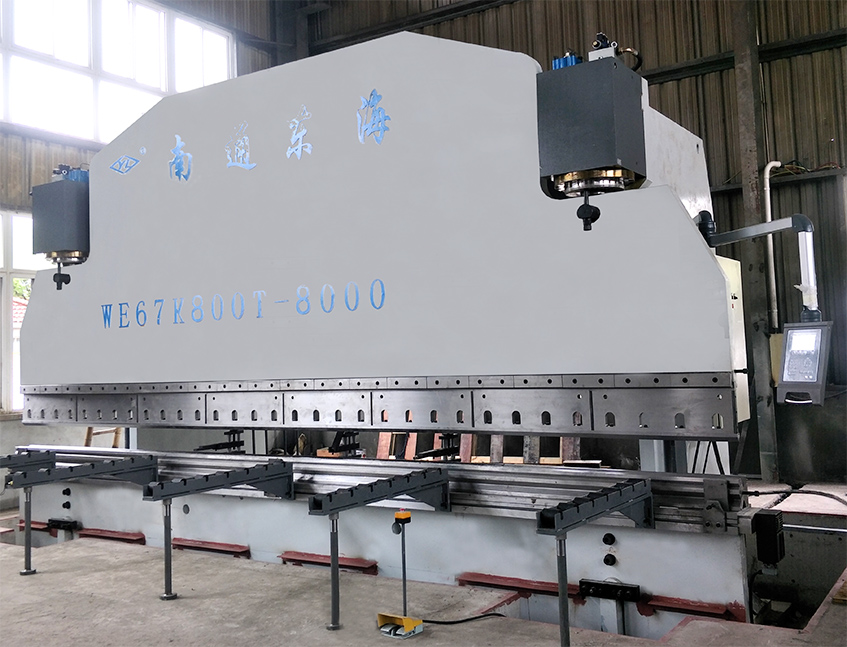

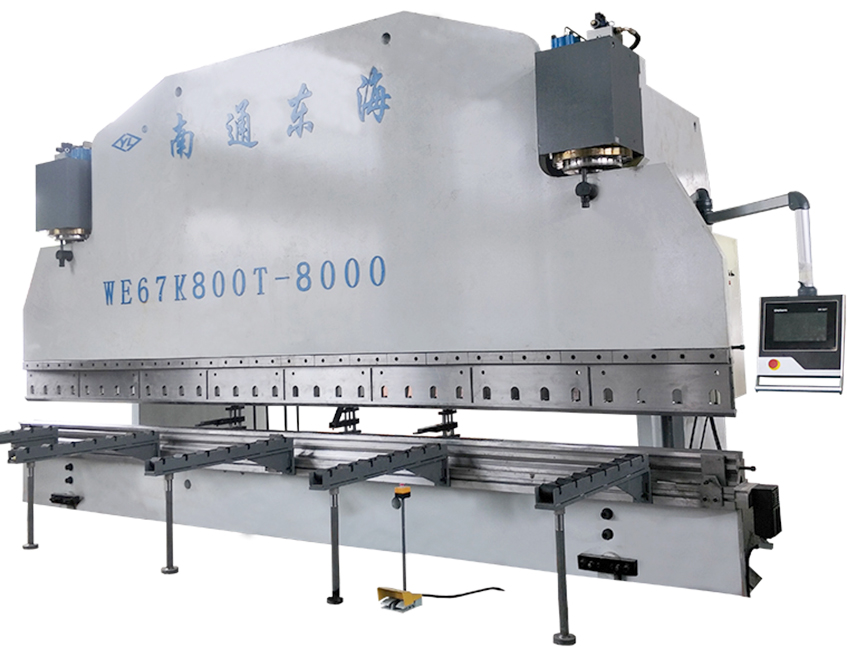

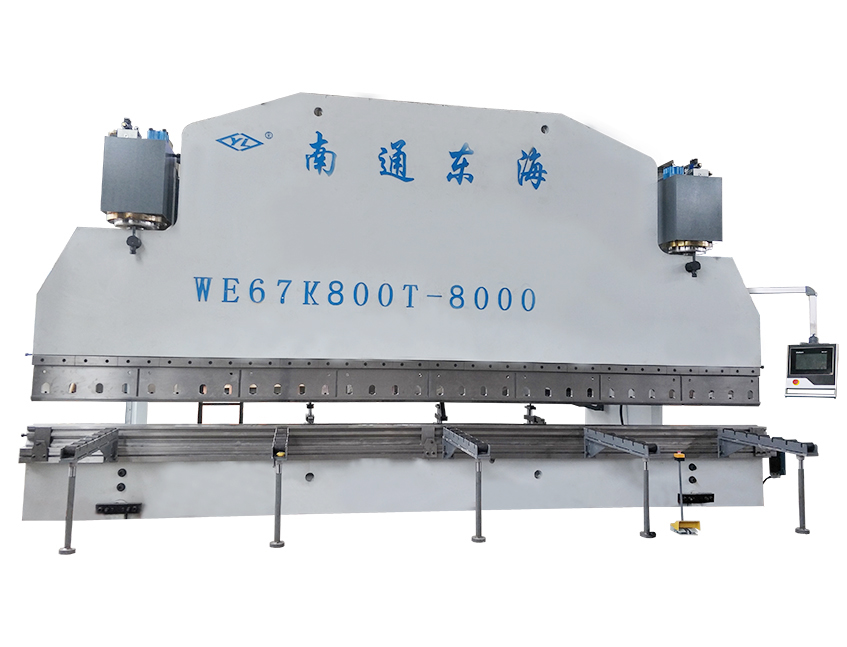

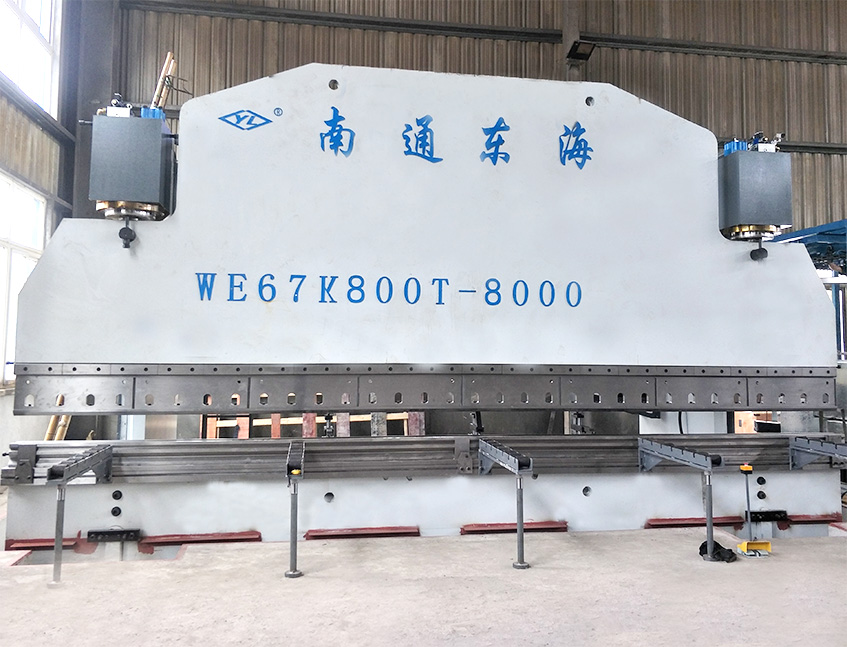

WE67K-800T8000 CNC Press Brake Machine
Parameters
|
1 |
Nominal pressure |
8000 |
KN |
|
2 |
Bending width |
8000 |
mm |
|
3 |
Distance between uprights |
6200 |
mm |
|
4 |
Stroke |
3400 |
mm |
|
5 |
Max. daylight |
800 |
mm |
|
6 |
Throat depth |
500 |
mm |
|
7 |
Working table length |
8000 |
mm |
|
8 |
Approaching speed |
100 |
mm/s |
|
9 |
Bending speed |
8 |
mm/s |
|
10 |
Returning speed |
80 |
mm/s |
|
11 |
Main motor power |
2x37 |
KW |
|
12 |
Oil pump |
2x50 |
mr/r |
|
13 |
Back gauge range |
1000 |
mm |
|
14 |
Machine length |
8100 |
mm |
|
15 |
Machine width |
3200 |
mm |
|
16 |
Machine height |
5600 |
mm |
|
17 |
CNC axis |
Y1-Y2-X+V |
|
Features
▲ highly productive, accurate, and economical.
▲close loop proportional hydraulics for beam synchronization
▲REXROTH highly precise proportional valve to control accurate beam movement
▲ accurate & fine beam position control by micro limit switch.
▲ hydraulic cylinder with twin type sealing low & high pressure and hard chrome.
▲moving control panel with on/off controls, emergency push button &selector for inching,
▲the current position and set position of the Y1, Y2, X, are showed on the CNC controller LCD.
▲three types operation way: manual, semiautomatic and automatic
▲CNC controlled mechanical pulling-rod anti-crowing device(V)
--DA-53T CNC controller
--Automatic crowing table
--REXROTH valve hydraulic system

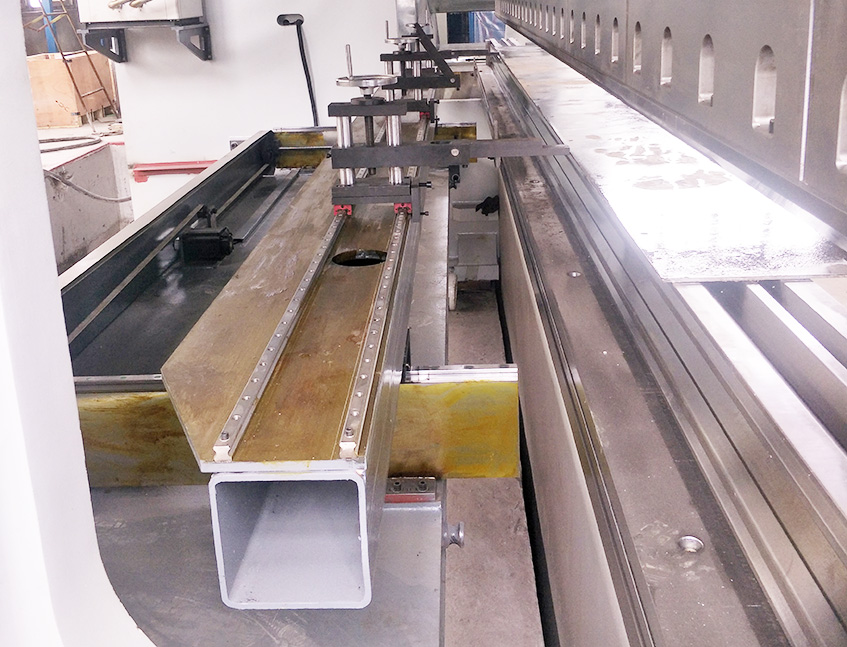

--CNC back gauge (X-R axes)
--Foot pedal
--Electric components
--Punch & multi-V die
--GIVI lineal scale
-- Laser protecting device (Optional)
-
-
