U-Rib Assembling Machine

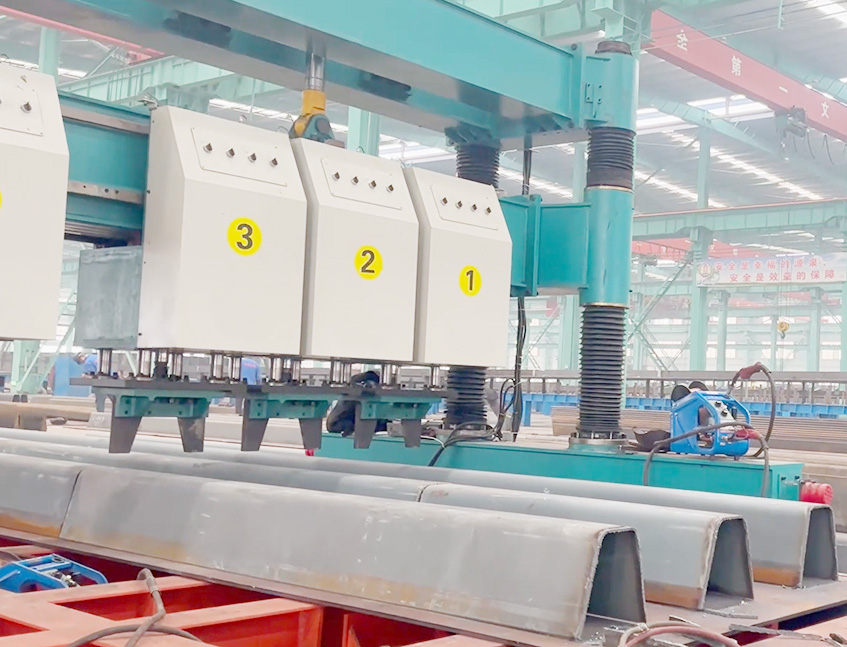

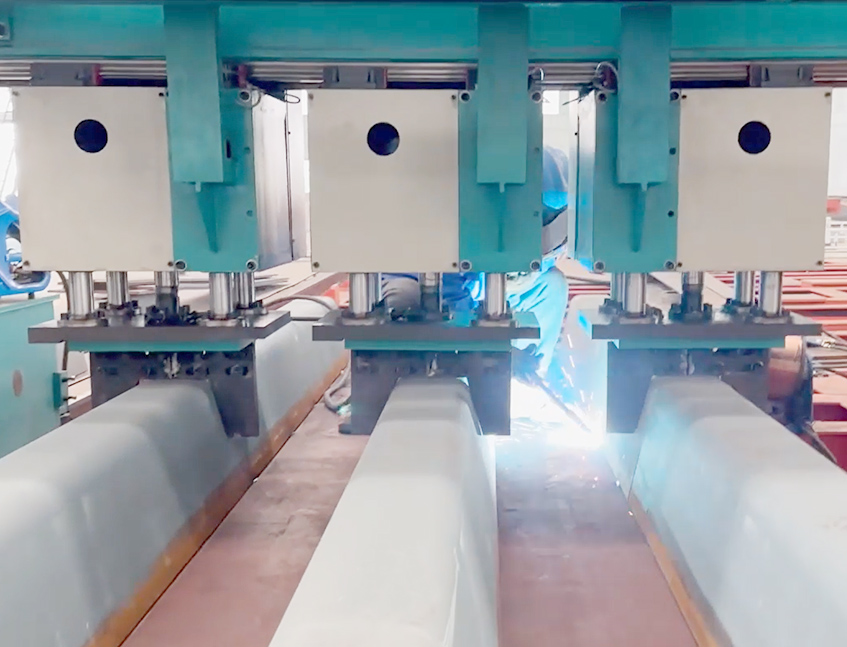

This machine can assemble the U-rib and base plate together

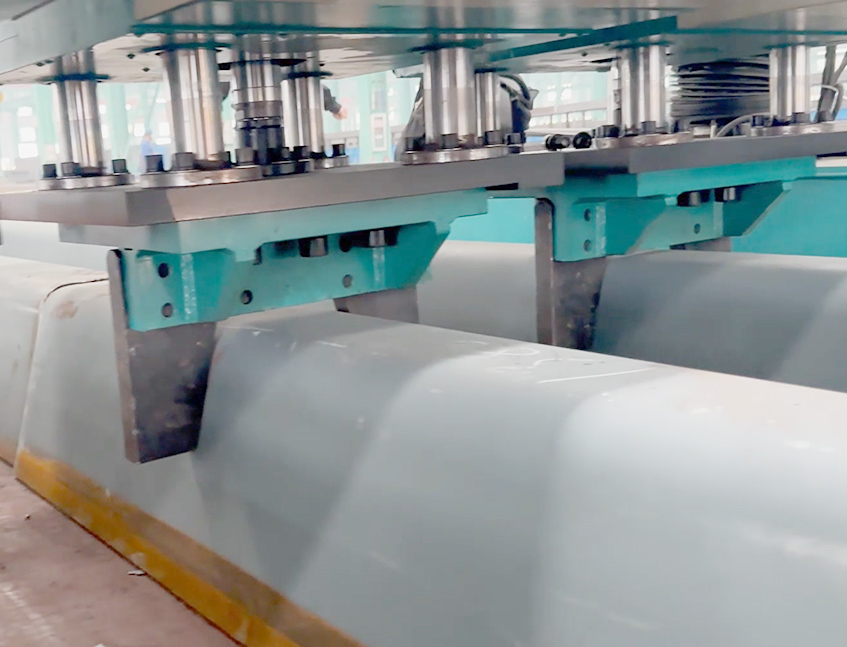

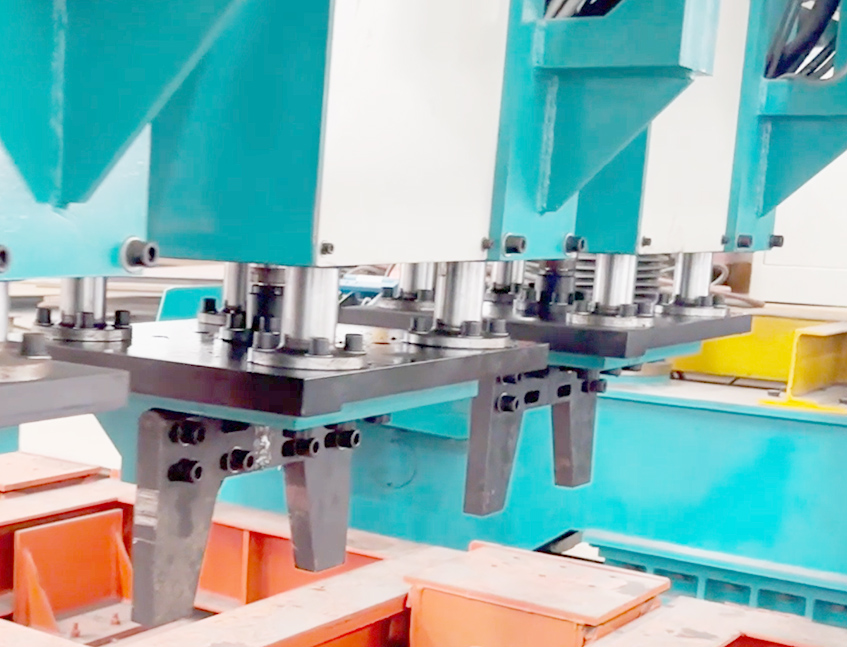

The distances between the pressing device is adjusted by the servo motor.

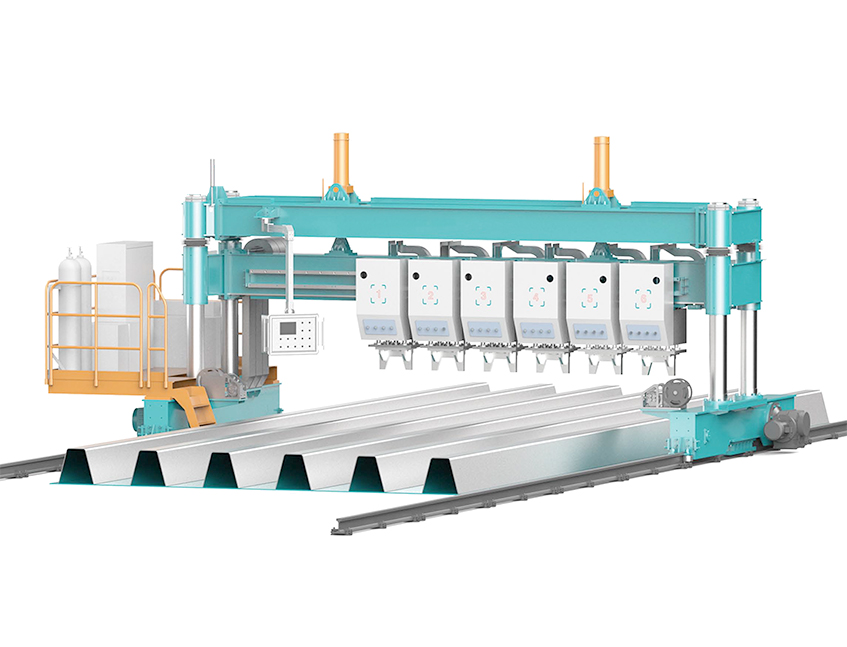

The main frame is gantry type, double driving system
Components
Picfures
Parameter
|
|
ULZ |
|
Width of base plate (mm) |
≤4500 |
|
Length of base plate (mm) |
≤18000 |
|
Thickness of base plate (mm) |
12-40 |
|
Height of U-rib (mm) |
≤320 |
|
Width of U-rib (mm) |
330-550 |
|
Thickness of U-rib (mm) |
6-12 |
|
Quantity of U-rip/base plate |
1-6 |
|
Center distance of U-rib (mm) |
600-800 |
|
Gap between U-rib and base plate (mm) |
≤1 |
|
Max. loading weight (T) |
30 |
Sample
