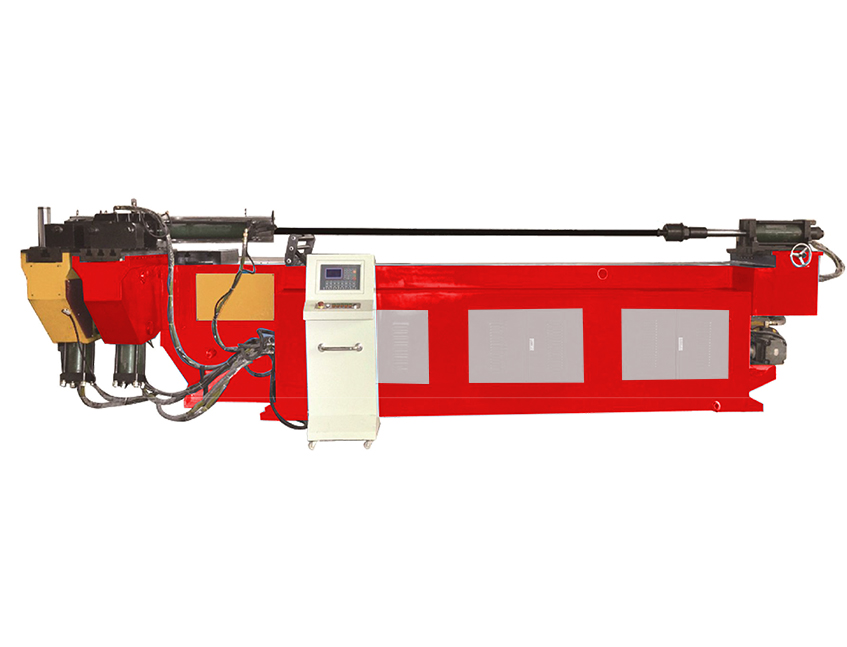

DW168 NC Tube Bending Machine

DW168 NC Tube Bending Machine

Features:

--NC controlled, hydraulic drive

--Various bending degrees

--Two kinds of operation way: manual and semi-automatic

--Portable foot pedal with emergency stop

--YUKEN cartridge valve integrated hydraulic system

Technical parameter

Item

    Name

Unit

Data

Remark

1

Max bending capacity

mm

Φ168 x 14t



2

Bending Torque

N.M

15000



4

Max bending radius

mm

1500mm

Can according to your requirement

5

Min bending radius

mm

Depend on the tube diameter



5

Max feeding length

mm

5000mm

Can according to customer’s requirement

7

Max bending degree

Degree

190



8

Control system

       NC control

9

Max bending unit on the same pipe

unit

16



10

Max storage sections

unit

16 x 16



11

Main Motor Power

Kw

22



12

Oil tank

L

650



13

System hydraulic pressure

Mpa

16



14.

Machine Size

mm

7100 x 2000 x 1800



15

Machine Weight

KGS

12000
