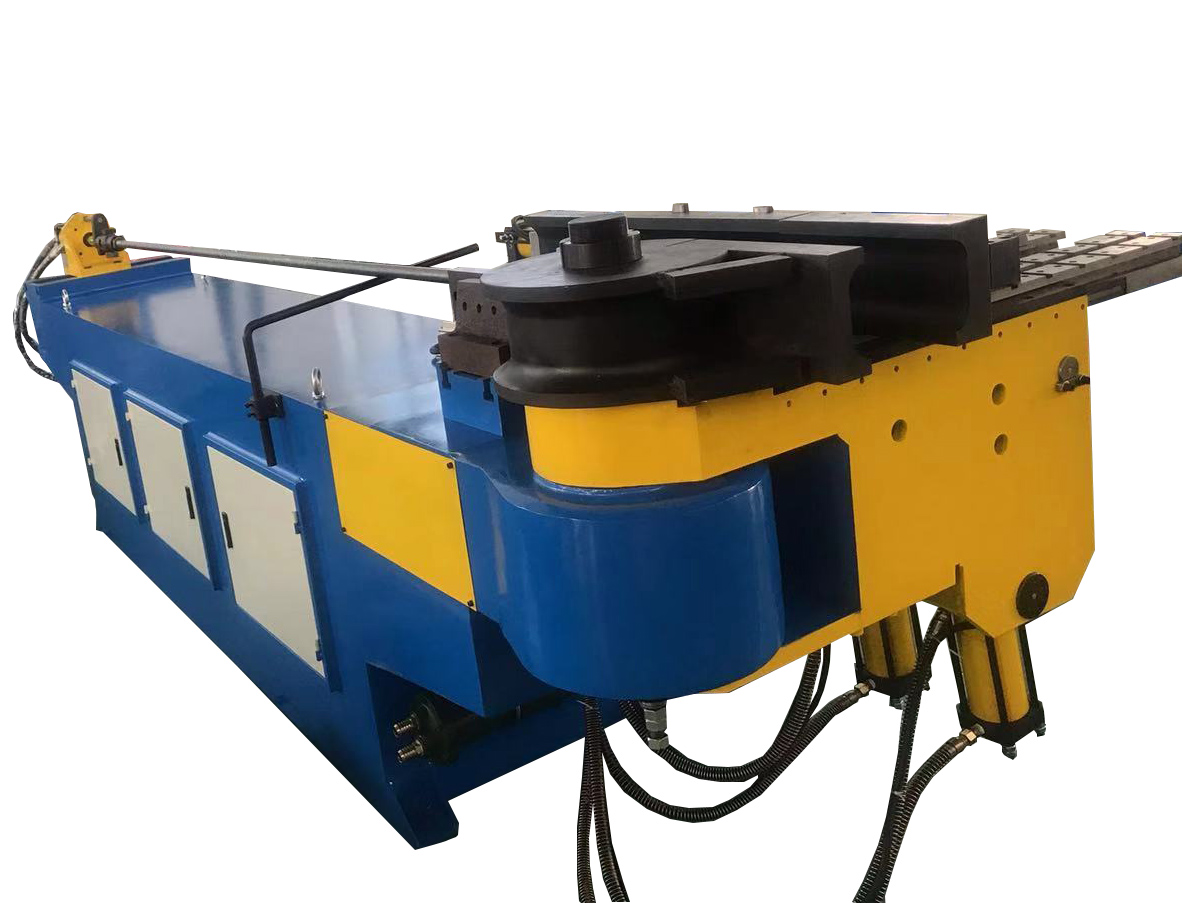

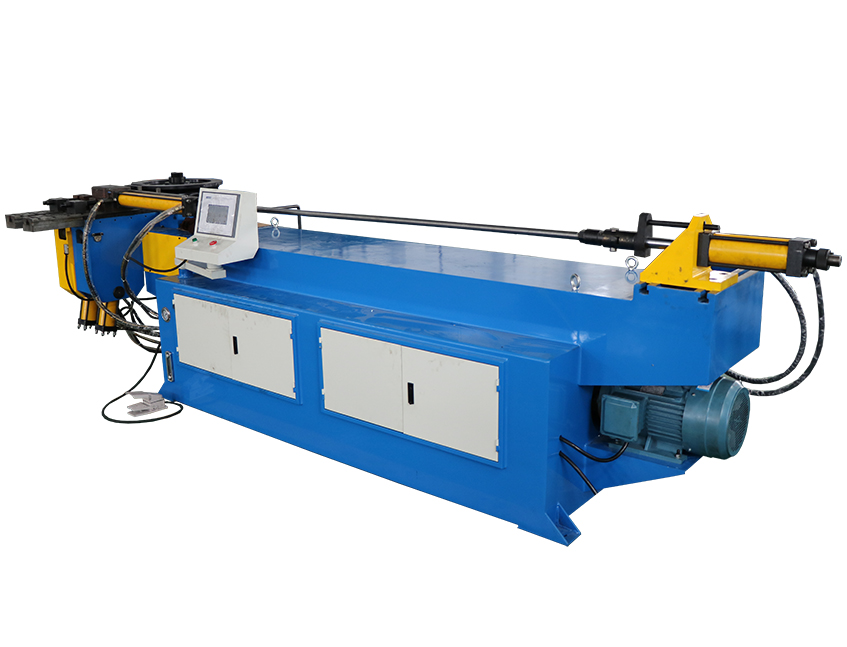

DW89 NC Tube Bending Machine

DW89NC pipe bending machine

Features:

--NC controlled, hydraulic drive

--Various bending degrees

--Two kinds of operation way: manual and semi-automatic

--Portable foot pedal with emergency stop

--YUKEN cartridge valve integrated hydraulic system

Technical parameter

Item

    Name

Unit

Data

Remark

1

Max bending capacity

Φ89 ×8mm



60 X 60 X 8mm

80 X 60 X 8mm

60mm

3

Max bending radius

mm

R450mm



4

Min bending radius

mm

1D

5

Max mandrel length

mm

3500mm



6

Max bending degree

Degree

190



7

Bending Speed



10°/s



8

Bending accuracy

degree

± 0.2



9

Control system

       NC control

10

Max bending unit on the same pipe

unit

16



11

Max storage sections

unit

16 x 16



12

Main Motor Power

Kw

11



13

Oil tank

L

260



14

System hydraulic pressure

Mpa

14



15

Machine Size

mm

4320 x 1300 x 1200



16

Machine Weight

KGS

3500



--Structure in detail

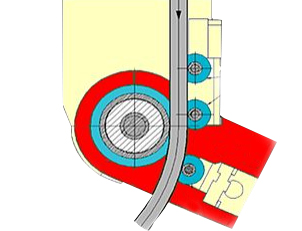

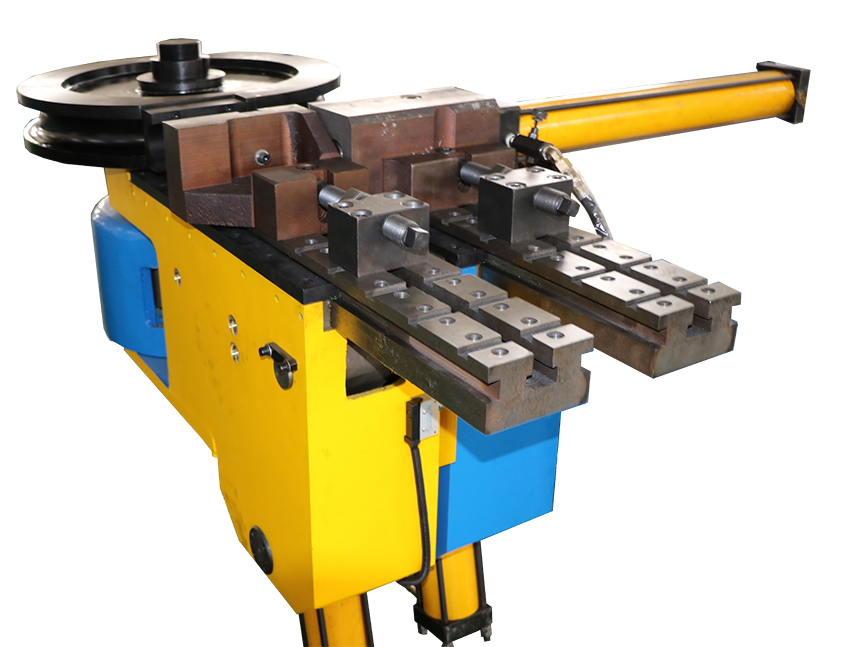

--mold

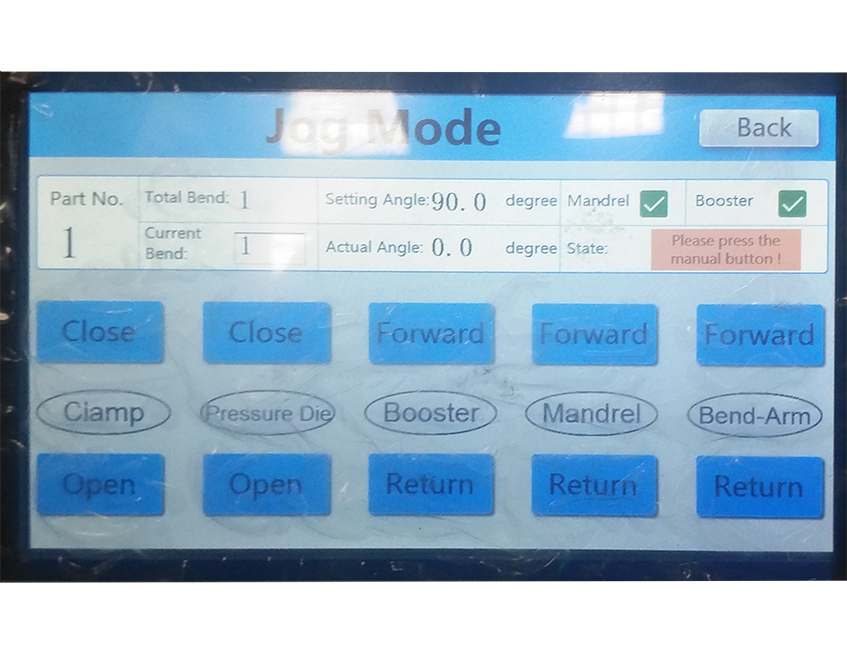

--NC controller

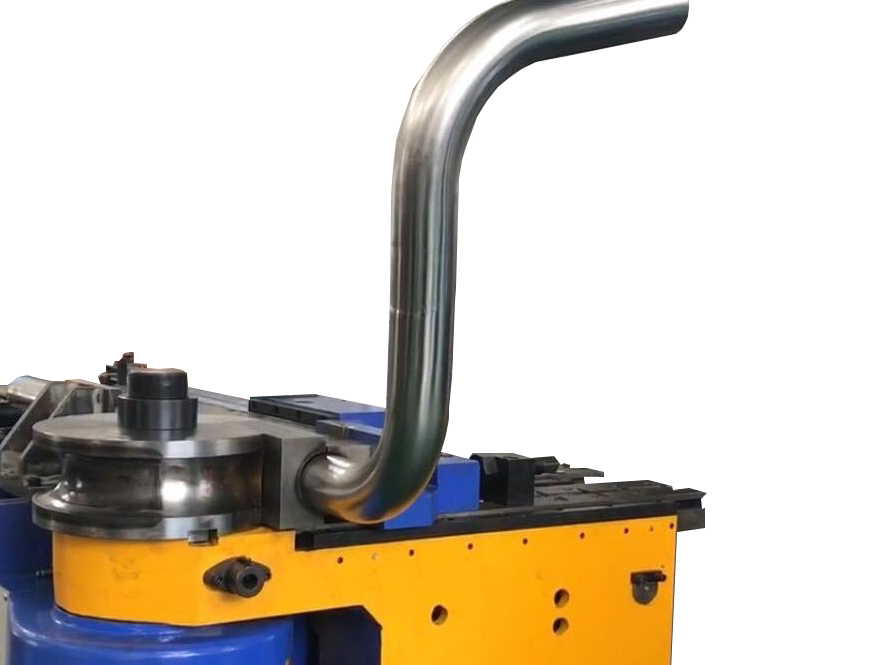

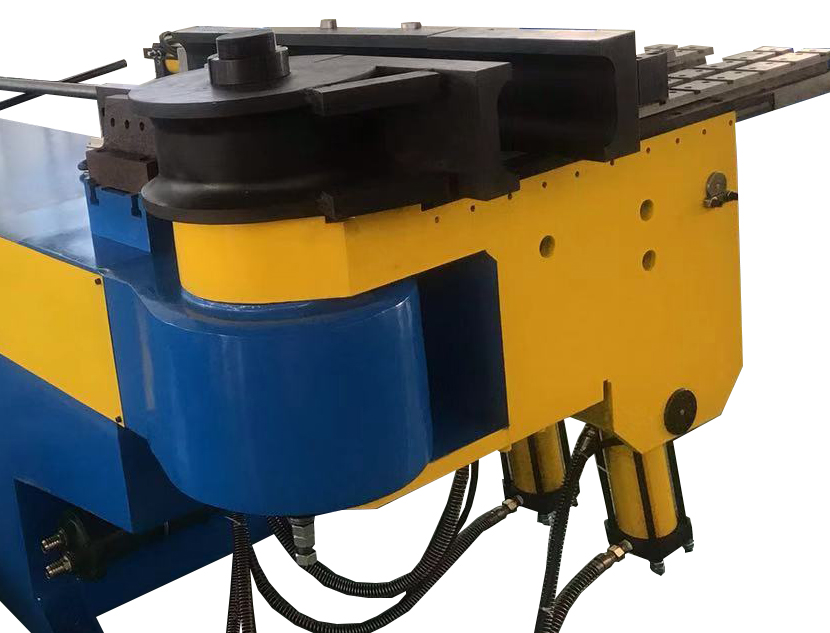

--bending arm



DW89NC pipe bending machine

---
