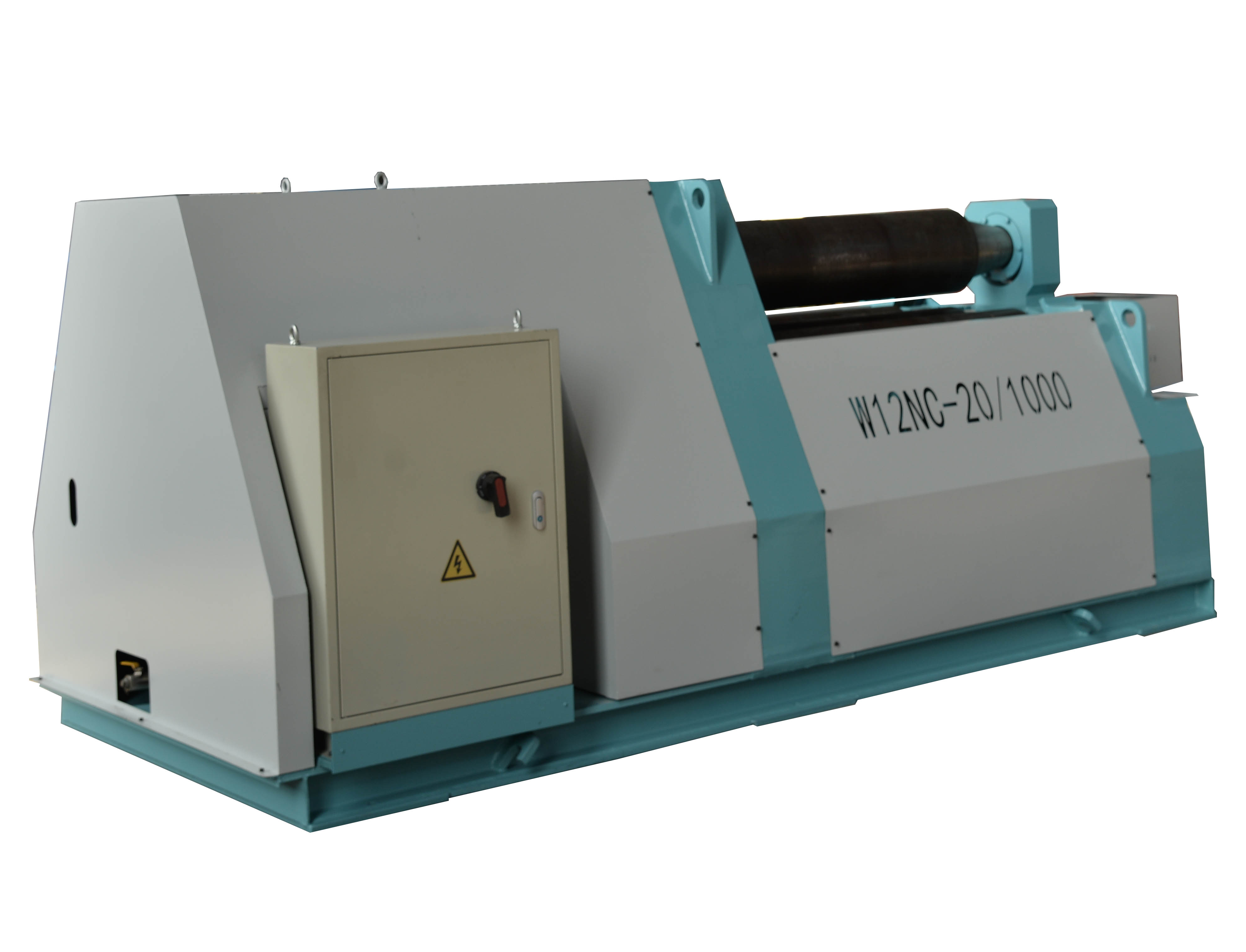

W12NC-20x1000 Four Rollers Plate Bending Machine

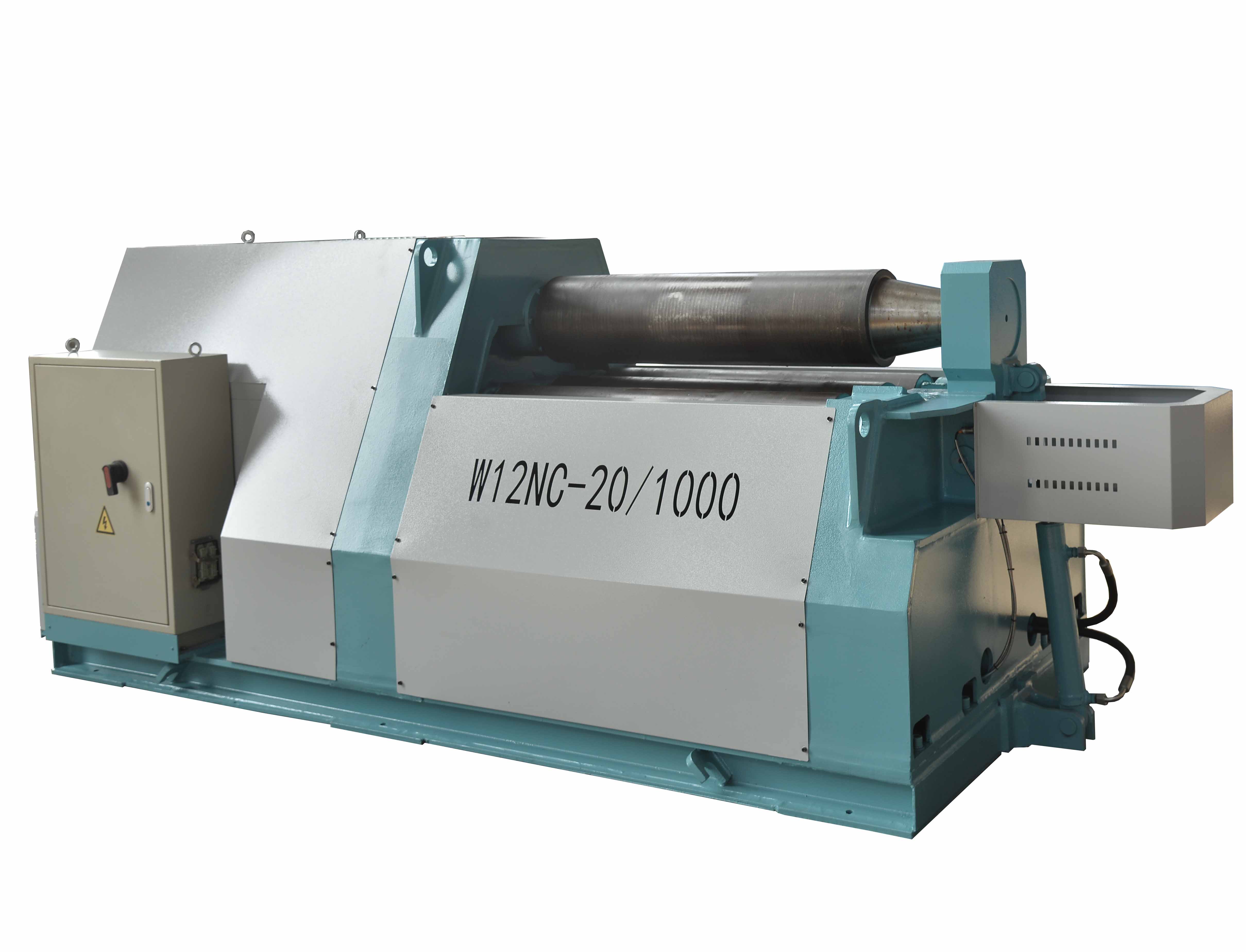

W12NC-20x1000 four rollers plate bending machine

W12NC-20x1000 is a  4-roller Plate Bending Machine is a type of double pinch plate bending machine. Each of the rollers is separate driven. Rollers rectilinear slide ways coated with antifriction material, no maintenance, suit to heavy duty loading, smooth and stable positioning. Spherical roller bearings are equipped on the rollers. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.

Parameter

Specification

Max.

Thk. of bending plate

(mm)

20

Thk. of pre-bending

16

Width of bending plate

1000

Effective length of the rollers

(mm)

1100

Yield Strength of Plate

(MPa)

235

Min. reel dia. with max.size

(mm)



Diameter of Roller

Upper

(mm)



Bottom



Side



Roller

Material

42CrMo

Hardness

(HB)

220-260

Induction Hardened Roll

YES

Roll Profile

crown

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

YES

Driving Mode

Motor + reducer

Control System

Control Mode

NC

Display of position & displacement

LCD

PLC

SIEMENS

Electrical Part System

SIEMNENS

Plate Bending Speed

(m/min)

about 3.5

Descending/Ascending Speed of bottom roller

(mm/min)

About 160

Descending/Ascending Speed of side roller

(mm/min)

About 300

Hydraulic System

Max. Working Pressure

(MPa)

0

Valve

SOFIAMA/YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

Features:

4 rollers plate bending machine

--heady duty linear sliding guides mounted on the uprights of the machine for lower roller and side rollers translation

--electronic parallelism control system

--rollers synchronization and balancing control fully electronically controlled

--upper roller is hydraulic motor driven

--conical facility (optional)

--anti-friction material in sliding area

--instantaneous brake for rollers rotation for high safety

--reversal side hydraulic driving

--Mobile control panel station, with low voltage control

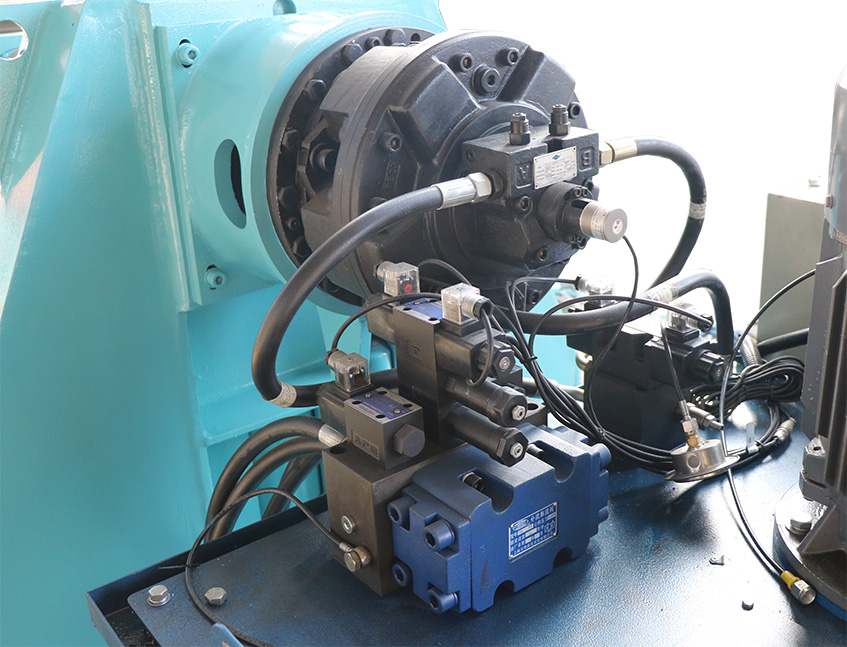

--Hydraulic motor

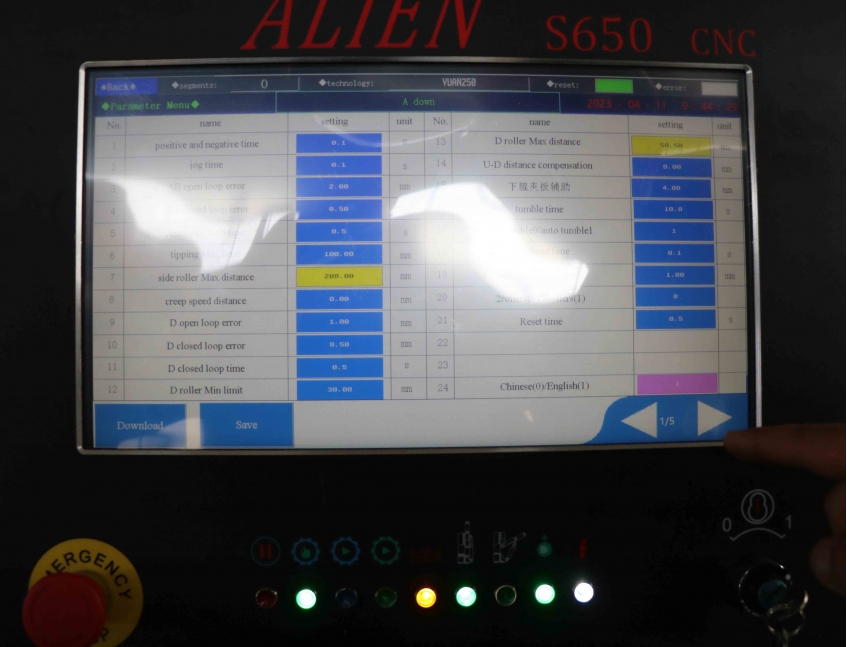

20x1000 four rollers plate bending machine --ALIEN S650 control system

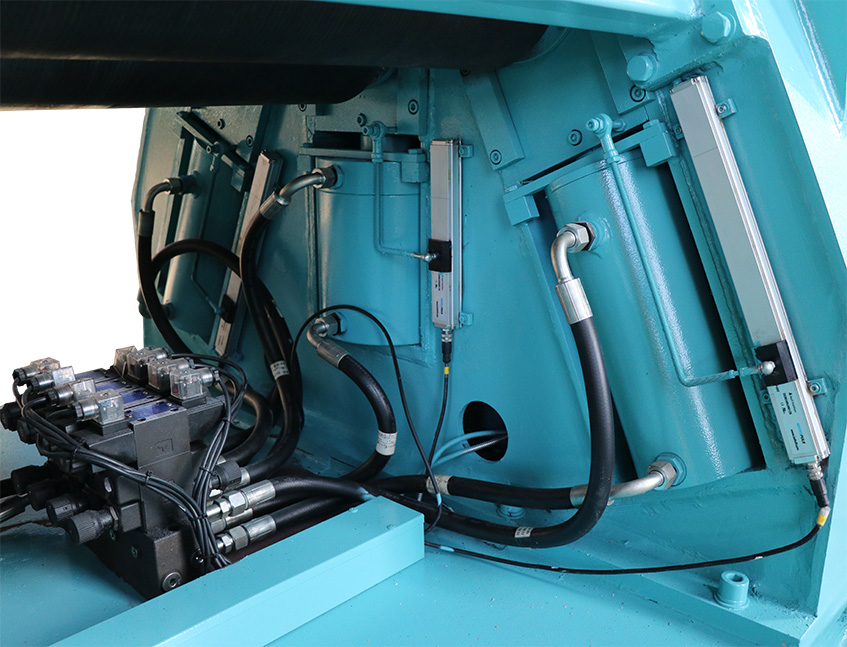

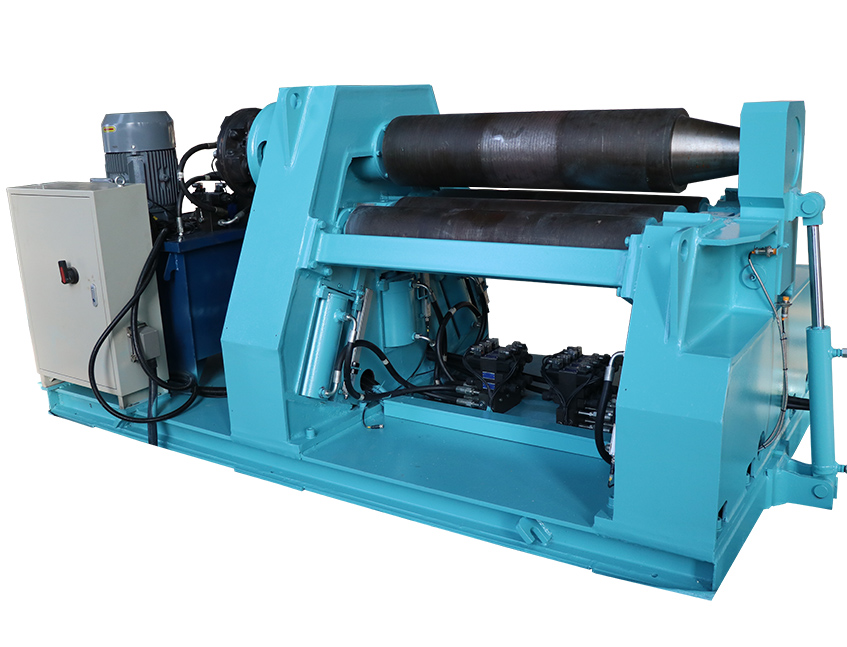

-- Hydraulic system

--Cylinders

--Cone bending(Optional)

cone bending

--Application

4 roolers roll bending machine

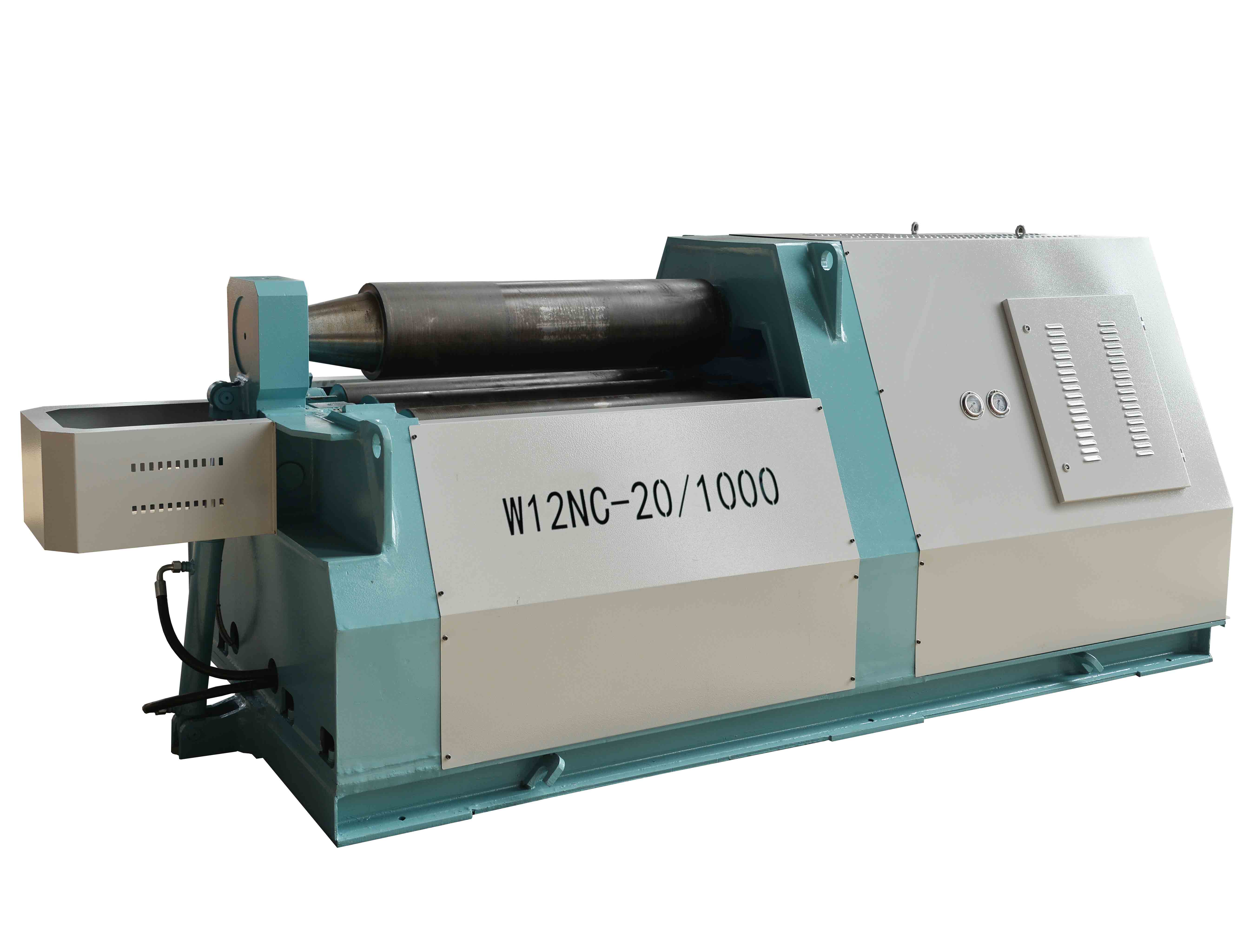

20x1000 four rollers plate rolling machine20x1000 roll bending machine
