W12NC-40x2500 Four Rollers Plate Bending Machine

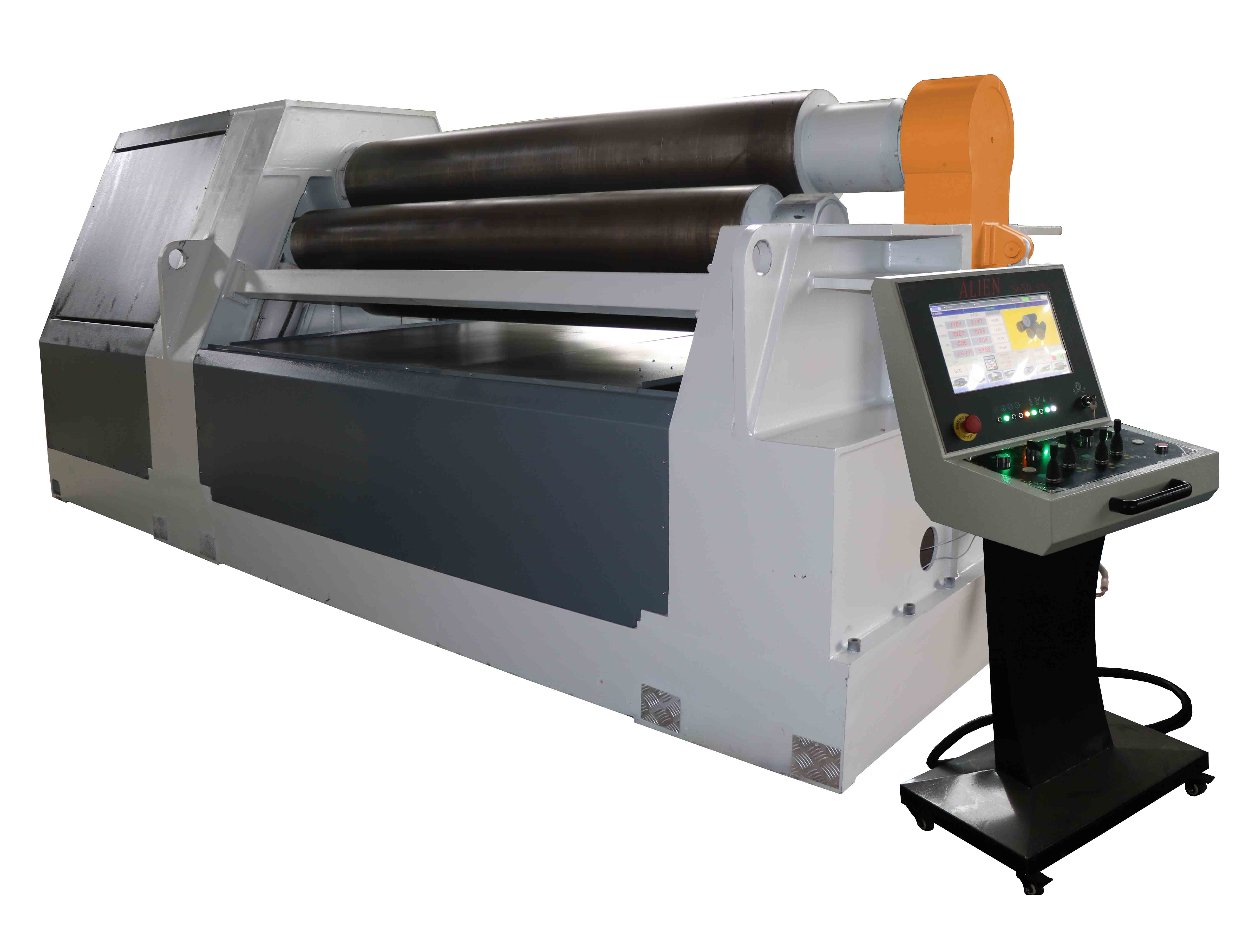

W12NC-40x2500 four rollers plate bending machine

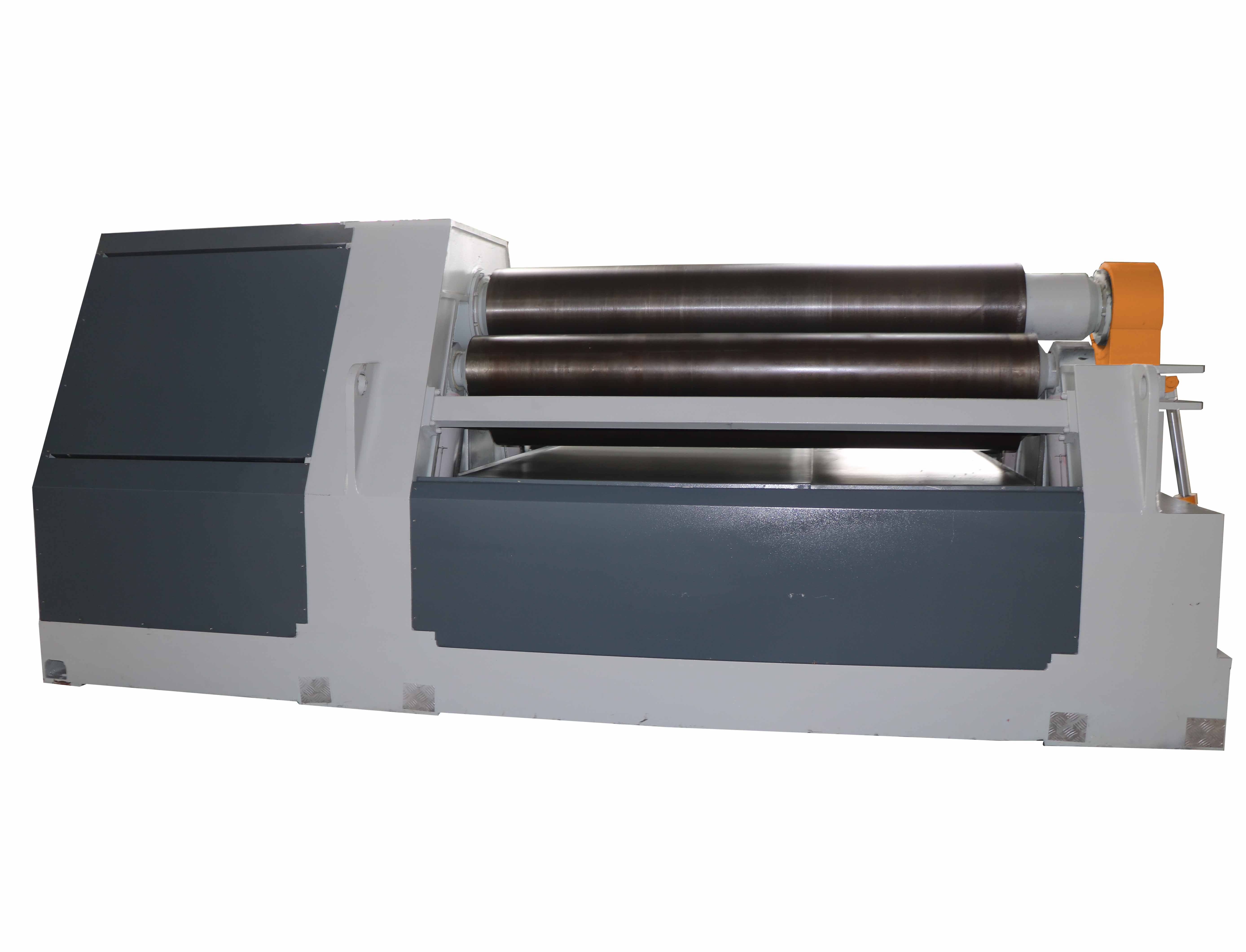

W12NC-40x2500 4-roller Plate Bending Machine is a type of double pinch plate bending machine. Each of the rollers is separate driven. Rollers rectilinear slide ways coated with antifriction material, no maintenance, suit to heavy duty loading, smooth and stable positioning. Spherical roller bearings are equipped on the rollers. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.

Parameters

Specification

Max.

Thk. of bending plate

(mm)

40

Thk. of pre-bending

32

Width of bending plate

2500

Effective length of the rollers

(mm)

2600

Yield Strength of Plate

(MPa)

235

Min.bending diameter with max.size

(mm)

1100

Diameter of Roller

Upper

(mm)

520

Bottom

480

Side

420

Roller

Material

42CrMo

Hardness

(HB)

240-286

Induction Hardened Roll

YES

Roll Profile

crown

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

Optional

Driving Mode

Hydraulic motor

Control System

Control Mode

CNC

Display of position & displacement

LCD

PLC

ALIEN S350

Electrical Part System

ABB/SIEMNENS

Plate Bending Speed

(m/min)

about 3.5

Main Power Motor

(KW)

55

Hydraulic System

Max. Working Pressure

(MPa)

22

Valve

SOFIAM/YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

Construction Steel Material

Q235

Side Support for Big Sheet Metal Diameters

 optional

Central Support for Big sheet Metal Diameters

 optional

Feeding Table

 optional

Oil Cooler System

 optiona

Features:

--heady duty linear sliding guides mounted on the uprights of the machine for lower roller and side rollers translation

--electronic parallelism control system

--rollers synchronization and balancing control fully electronically controlled

--side rollers and bottom rollers variable tilting controlled, positive or negative

--conical facility

--rollers driving by independent hydraulic motors

--anti-friction material in sliding area

--instantaneous brake for rollers rotation for high safety

--reversal side hydraulic driving

--Mobile control panel station, with low voltage control

--Mobile control push-buttons, convenience for operator

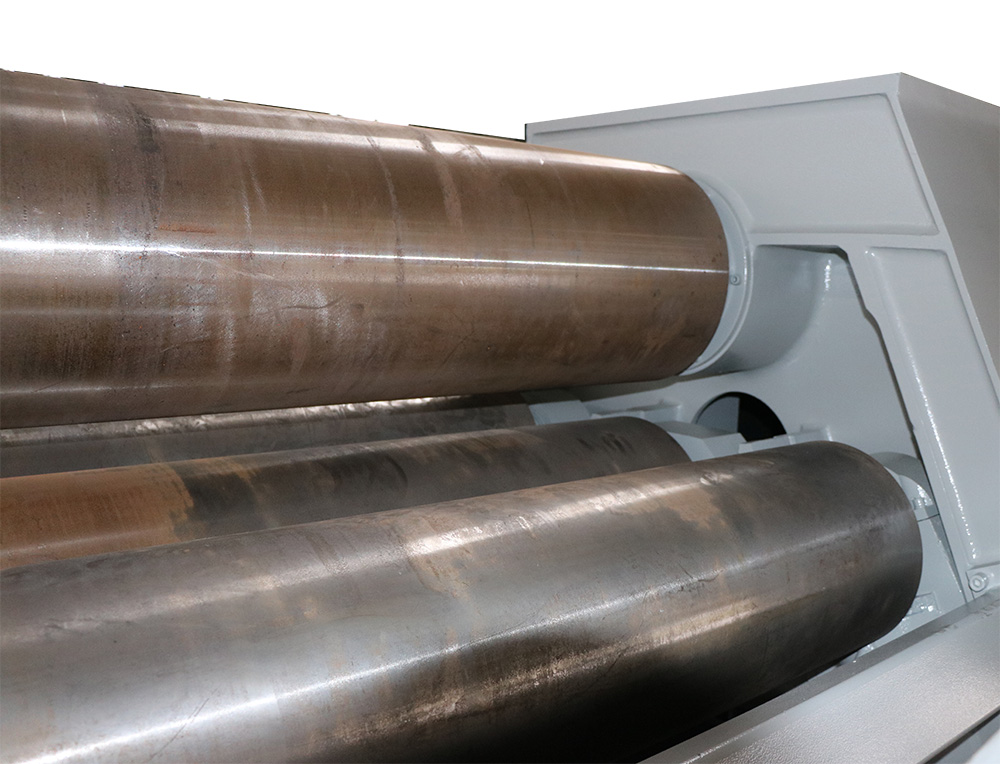

--Rollers

--Hydraulic motor

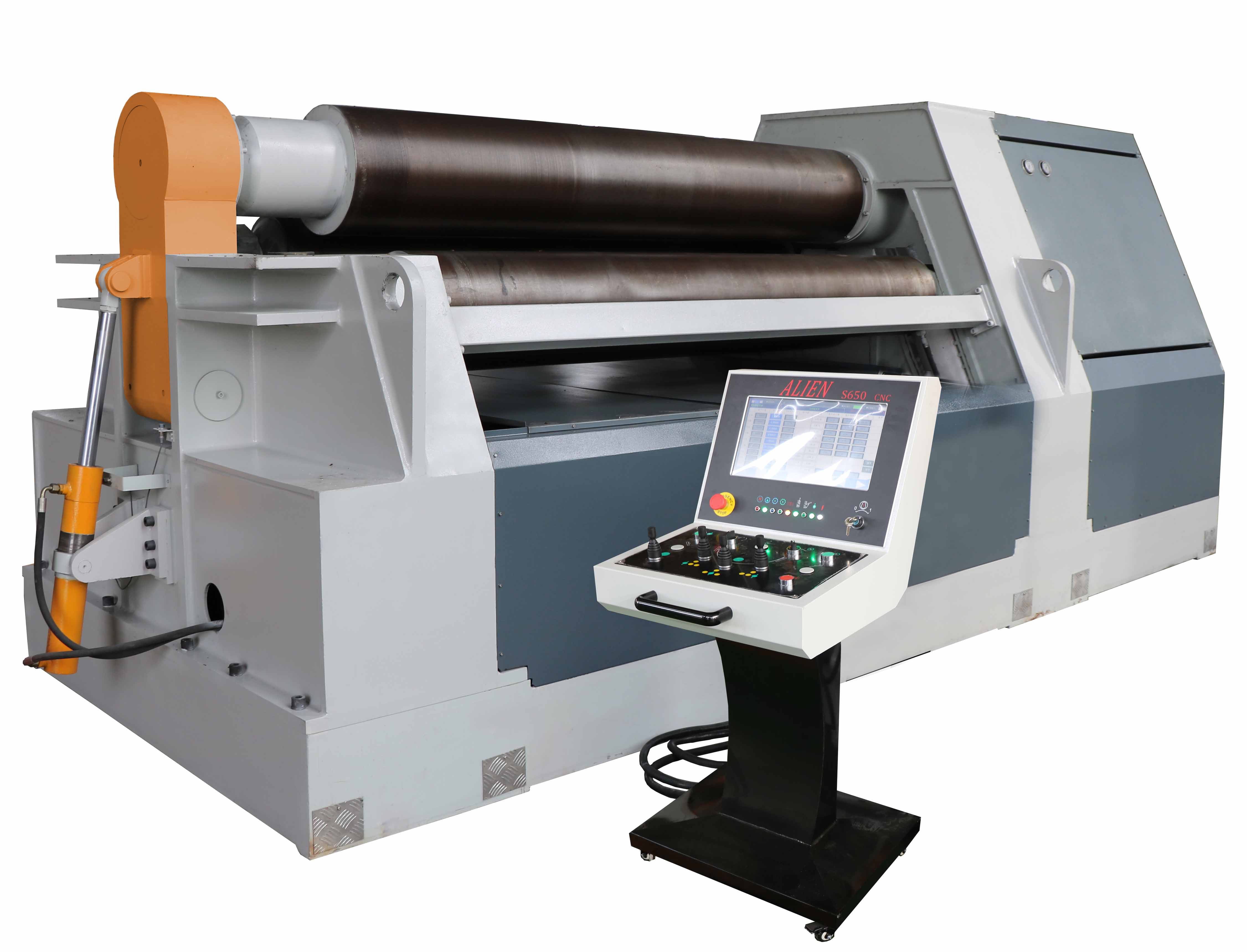

--ALIEN S650 control system

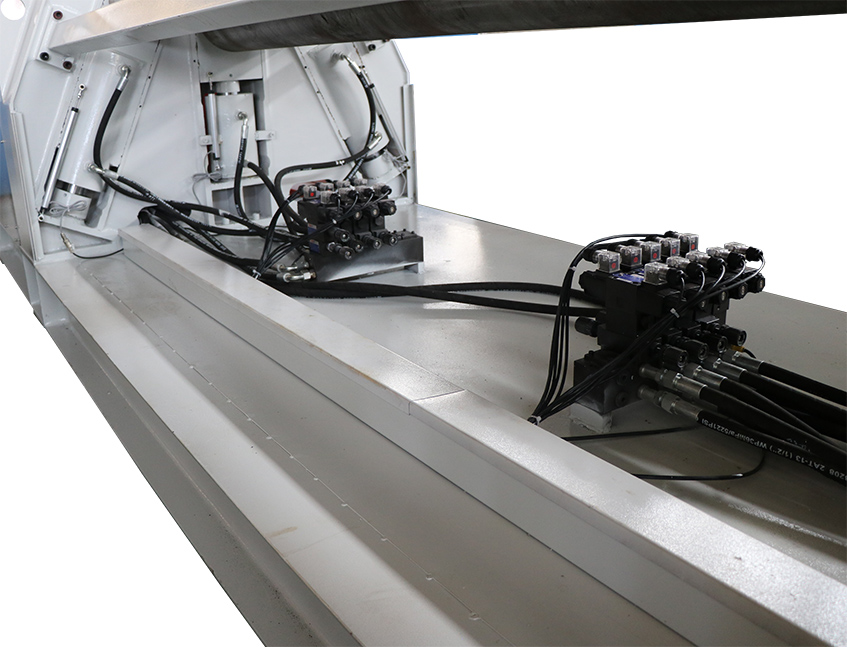

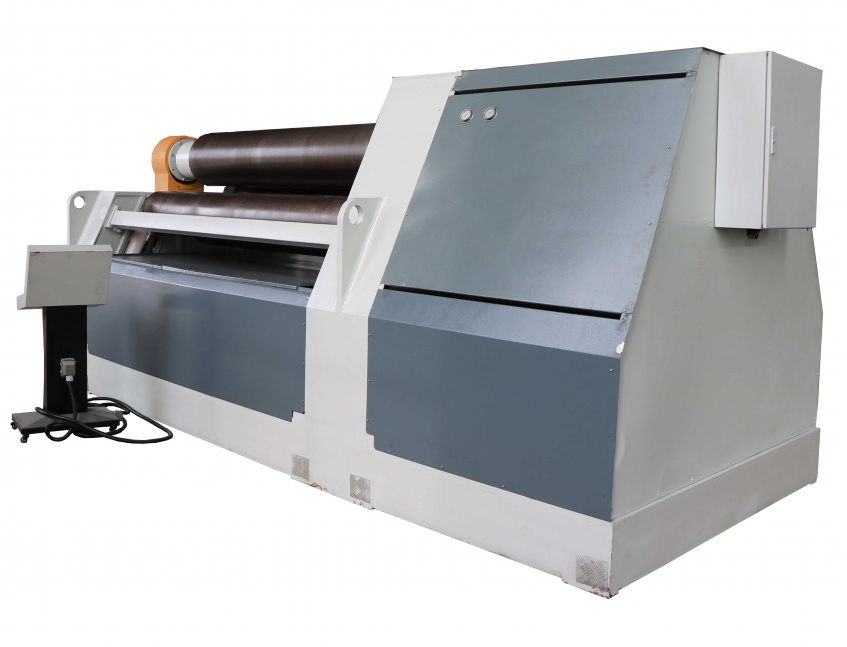

-- Hydraulic system

--Cylinders

--Cone bending

cone bending

Optional:

--vertical plate supporting device

--side plate supporting device

--Application

4 roolers roll bending machine

W12NC-40x2500 roll bending machine40x2500 four rollers plate bending machine
