W12NC-8x2000 Four Rollers Plate Bending Machine

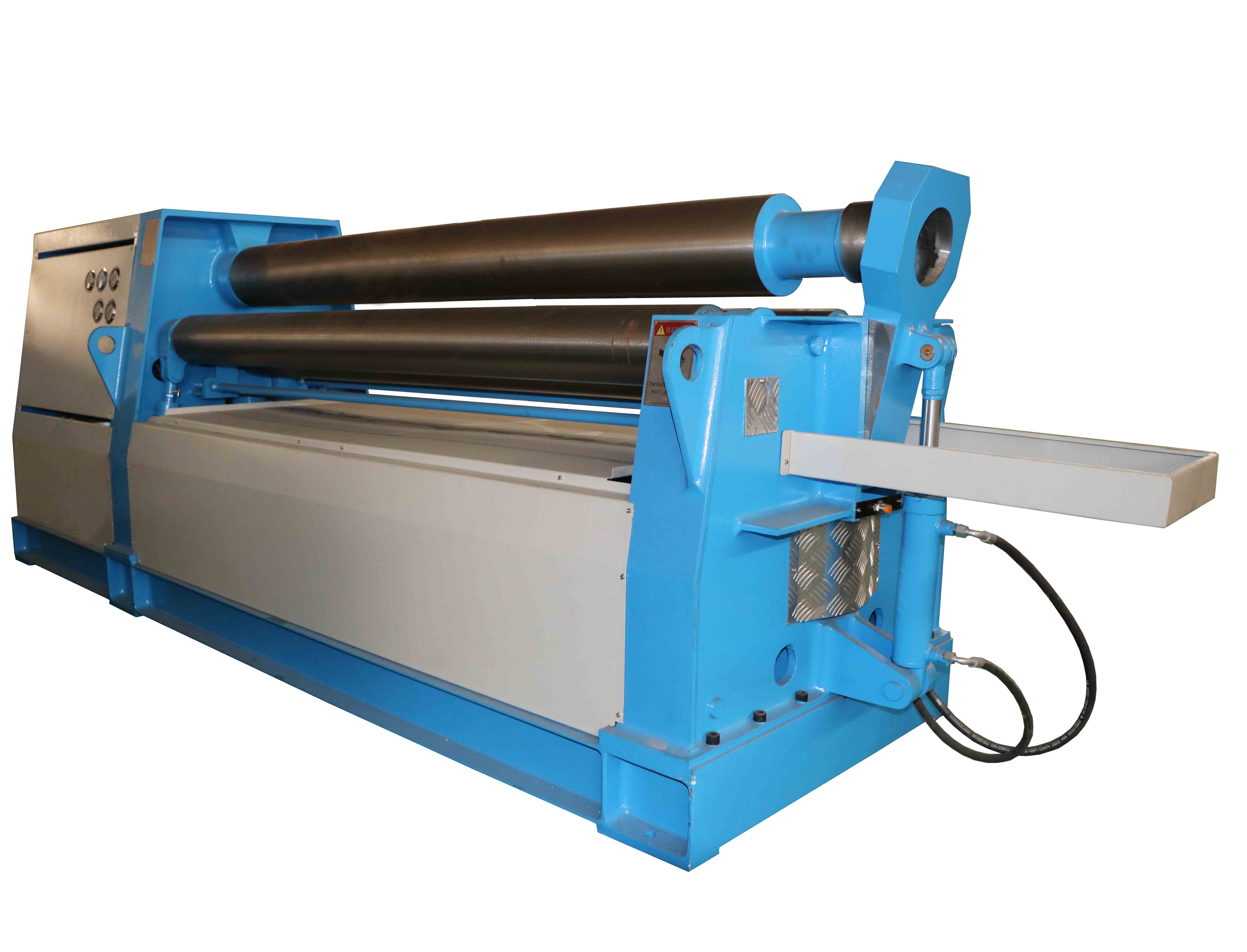

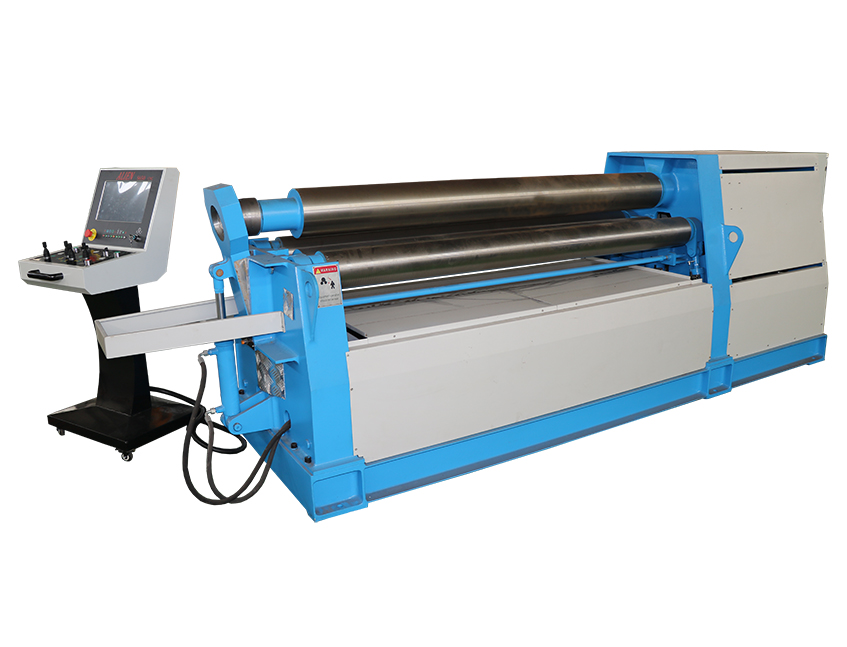

W12NC-8x2000 four rollers plate bending machine

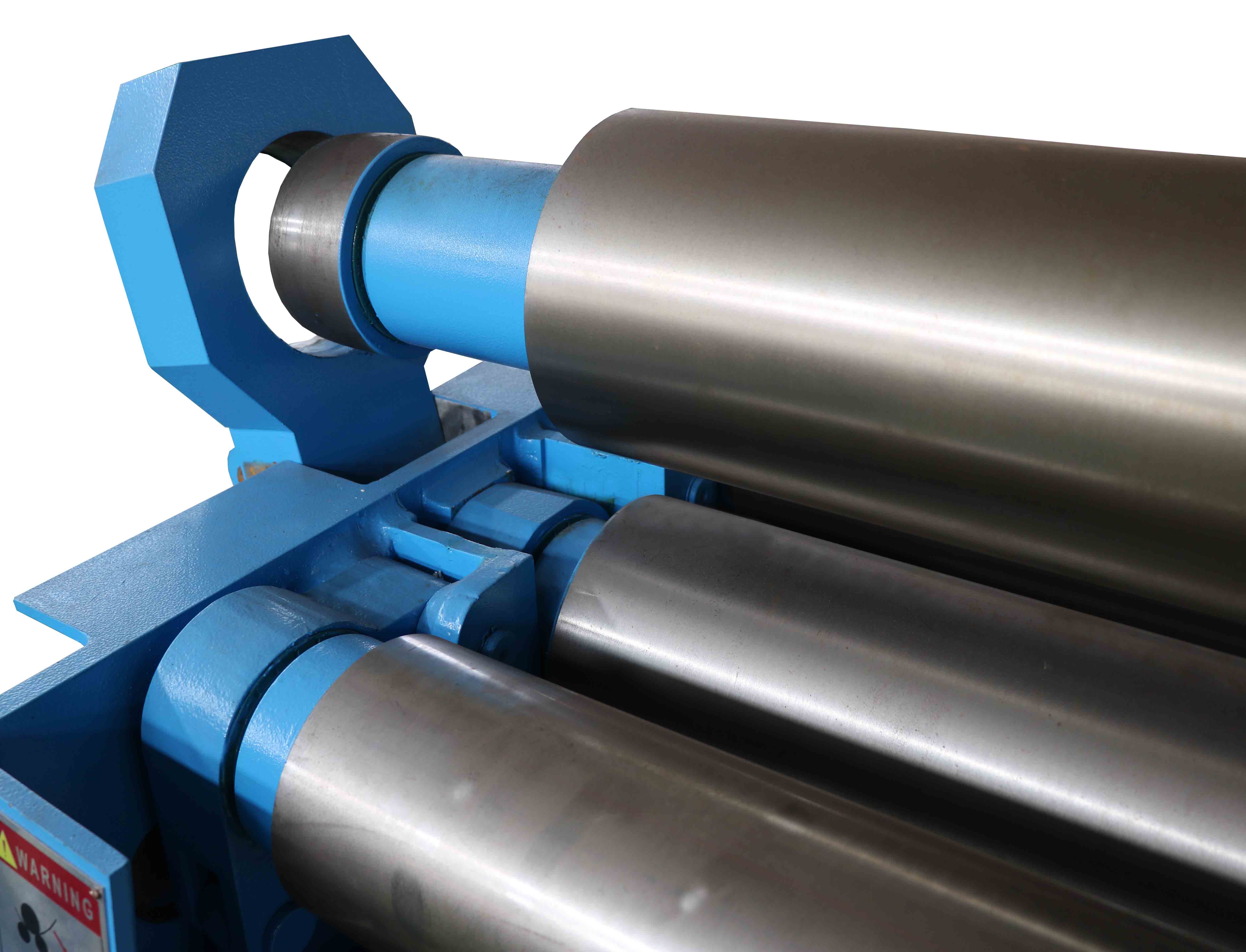

W12NC-8x2000 is a  4-roller Plate Bending Machine. Each of the rollers is separate driven. Rollers rectilinear slide ways coated with antifriction material, no maintenance, suit to heavy duty loading, smooth and stable positioning. Spherical roller bearings are equipped on the rollers. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.

Parameter

Specification

Max.

Thk. of bending plate

(mm)

8

Thk. of pre-bending

6

Width of bending plate

2000

Effective length of the rollers

(mm)

2100

Yield Strength of Plate

(MPa)

235

Min. reel dia. with max.size

(mm)

500

Diameter of Roller

Upper

(mm)

220

Bottom

200

Side

180

Roller

Material

42CrMo

Hardness

(HB)

220-260

Induction Hardened Roll

YES

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

YES

Driving Mode

Hydraulic motor

Control System

Control Mode

CNC

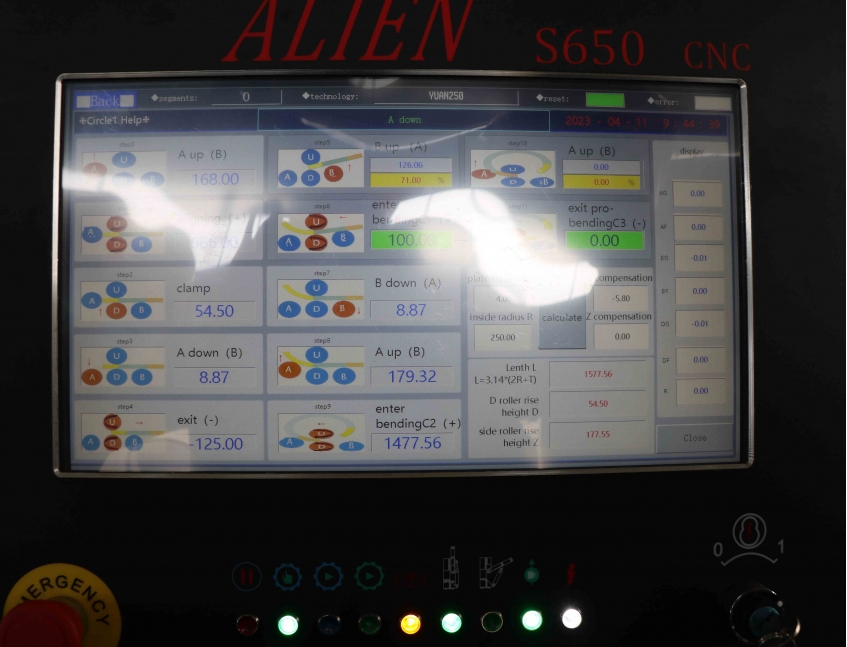

Display of position & displacement

LCD

PLC

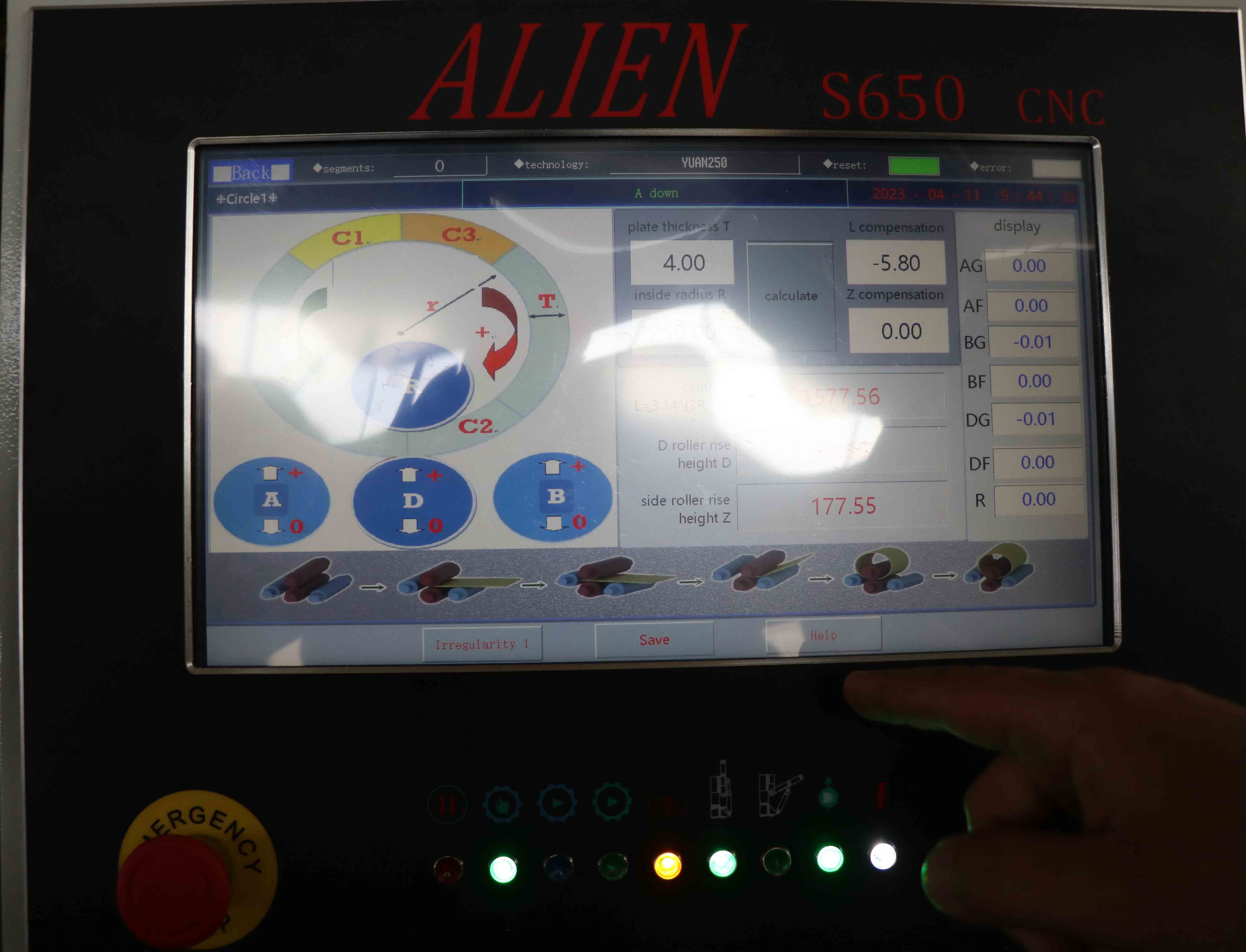

ALIEN S650

Electrical Part System

ABB/SIEMNENS

Plate Bending Speed

(m/min)

about 3.5

Hydraulic System

Max. Working Pressure

(MPa)

22

Valve

YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

Construction Steel Material

Q235

Side Support for Big Sheet Metal Diameters

  optional

Central Support for Big sheet Metal Diameters

 optional

Feeding Table

 optional

Oil Cooler System

 optional

Features:

4 rollers plate bending machine

--heady duty linear sliding guides mounted on the uprights of the machine for lower roller and side rollers translation

--electronic parallelism control system

--rollers synchronization and balancing control fully electronically controlled

--side rollers and bottom rollers variable tilting controlled, positive or negative

--conical facility

--rollers driving by independent hydraulic motors

--anti-friction material in sliding area

--instantaneous brake for rollers rotation for high safety

--reversal side hydraulic driving

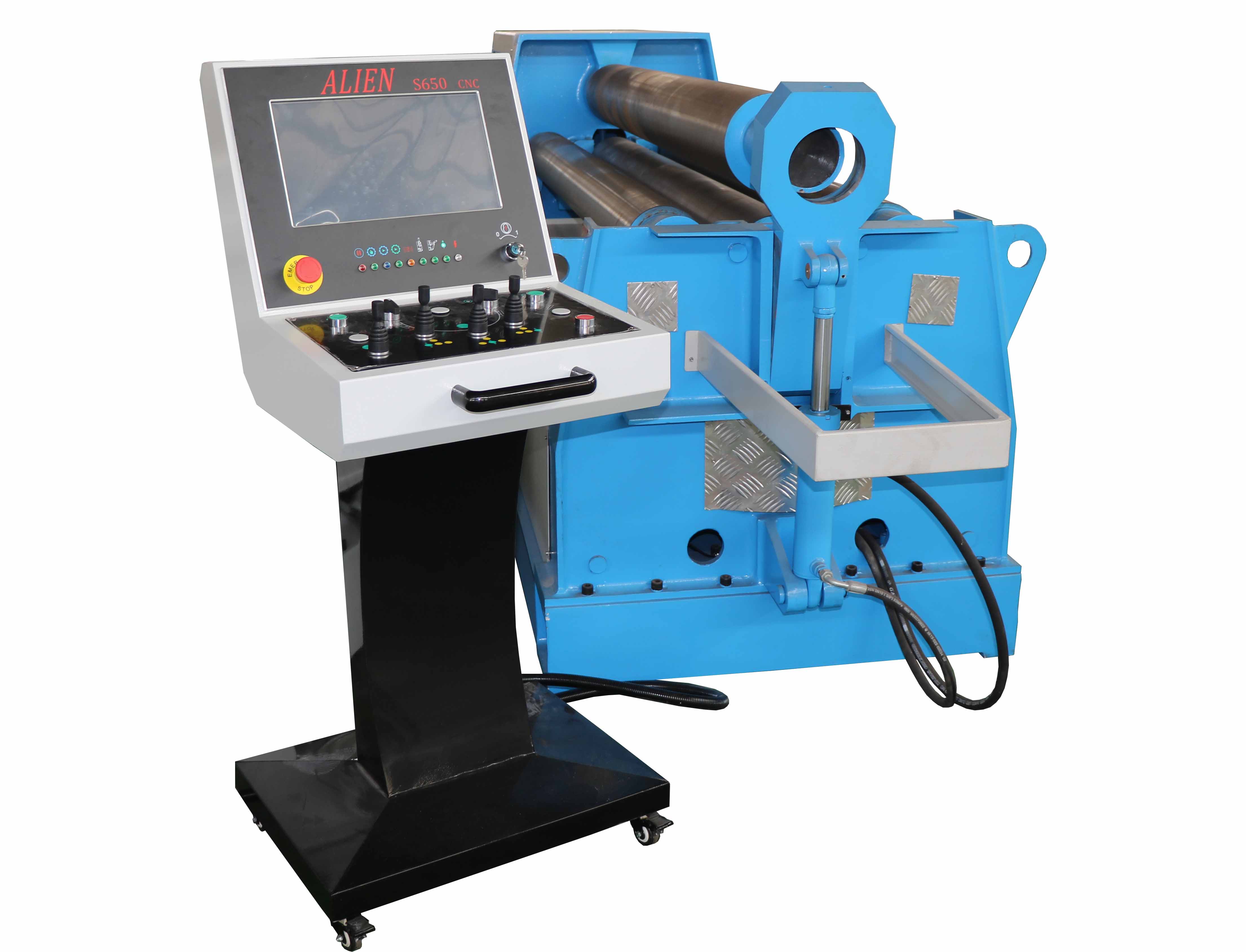

--Mobile control panel station, with low voltage control

--Mobile control push-buttons, convenience for operator

--Hydraulic yokr

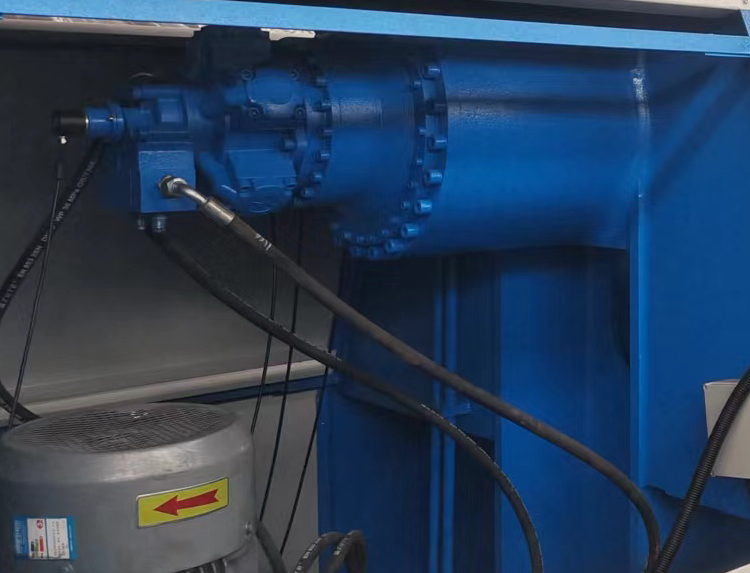

--Driving part

--SIMENS PLC

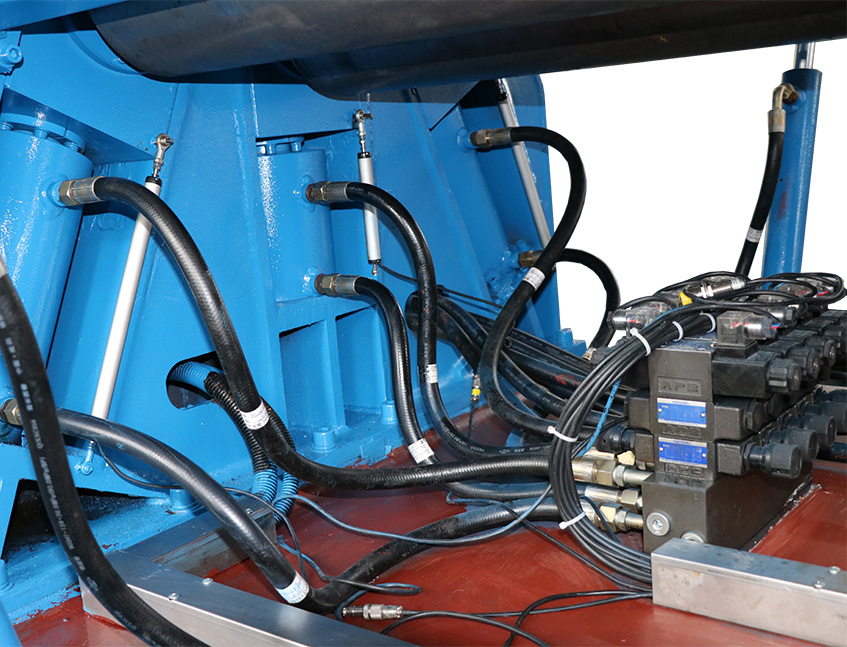

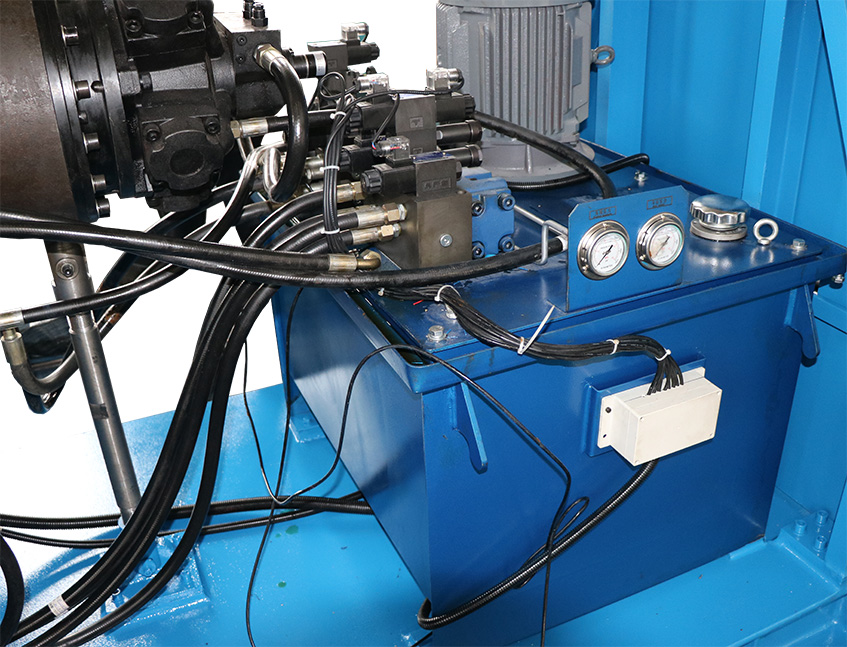

-- Hydraulic system

--Frame

--Cylinders

--Cone bending

cone bending

Optional:

--vertical plate supporting device

--side plate supporting device

--Application

4 roolers roll bending machine

8x2000 four rollers plate bending machine8x2000 four rollers plate bending machine
