W12NC-8x2500 Four Rollers Plate Bending Machine

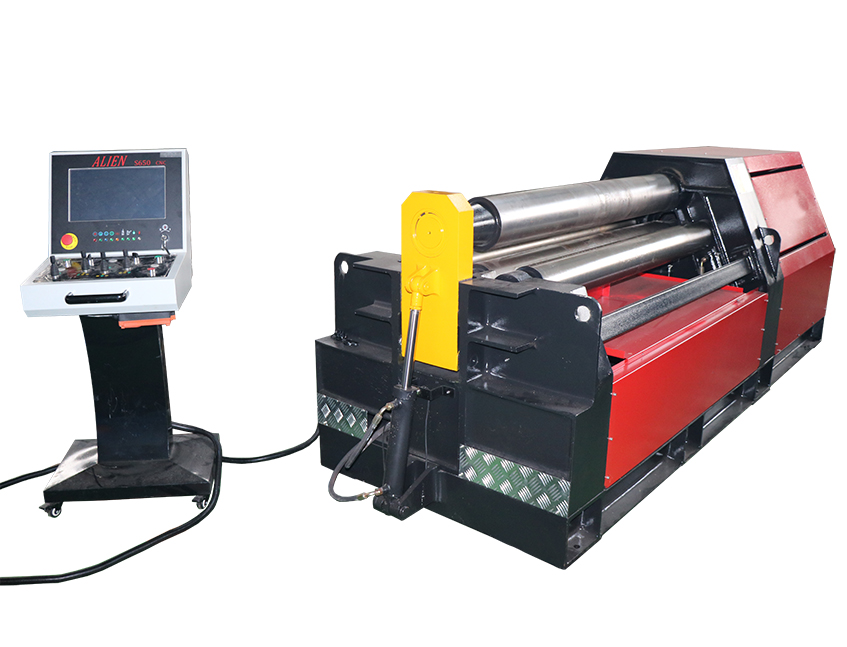

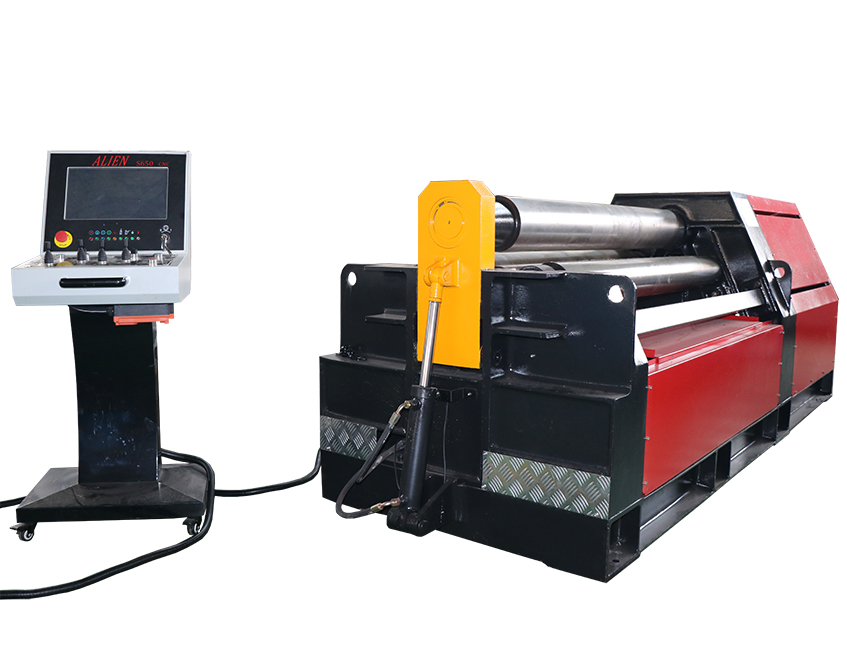

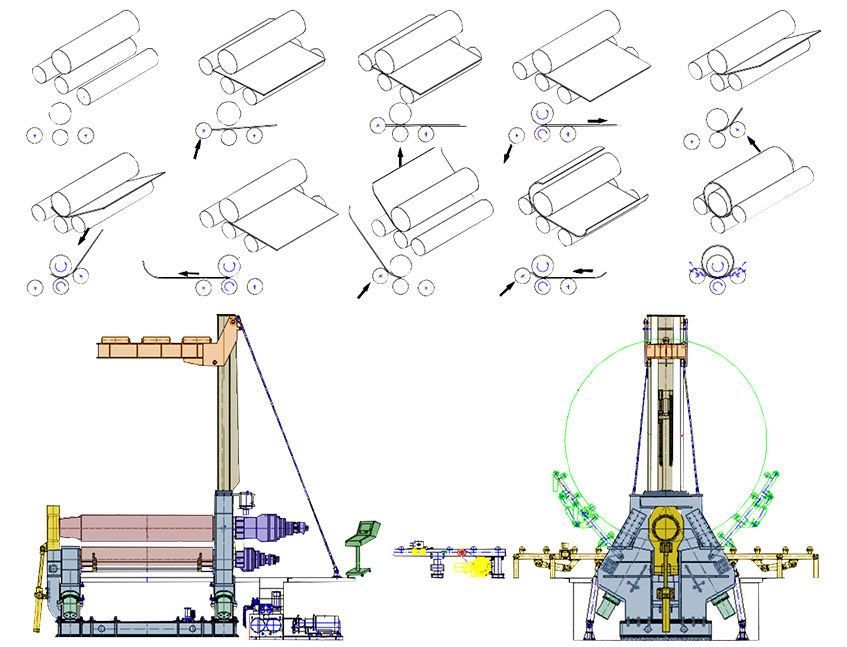

8x2500 four rollers plate bending machine

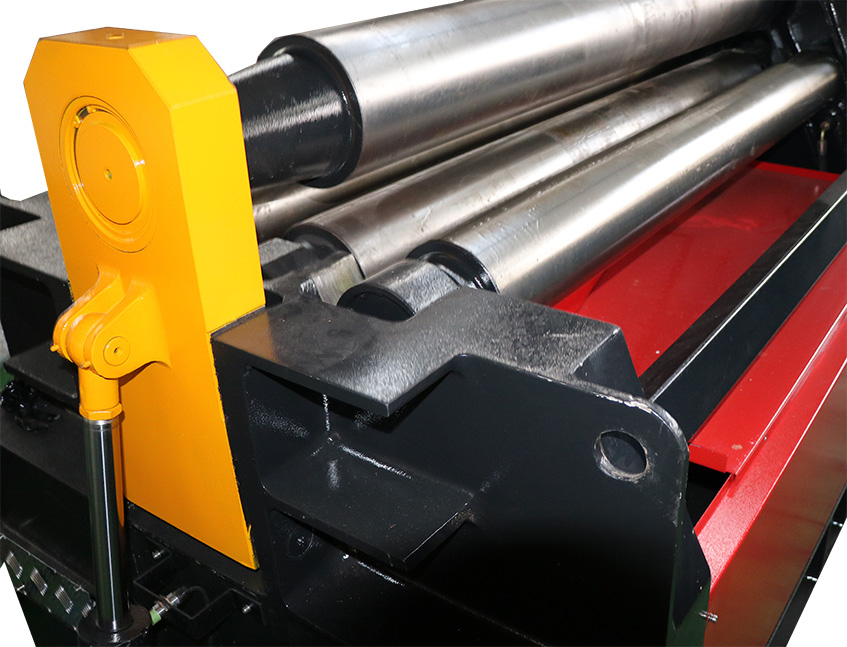

W12NC-8x2500 4-roller Plate Bending Machine is a type of double pinch plate bending machine. Each of the rollers is separate driven. Rollers rectilinear slide ways coated with antifriction material, no maintenance, suit to heavy duty loading, smooth and stable positioning. Spherical roller bearings are equipped on the rollers. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.

Parameter

Specification

Max.

Thk. of bending plate

(mm)

8

Thk. of pre-bending

6

Width of bending plate

2500

Effective length of the rollers

(mm)

2600

Yield Strength of Plate

(MPa)

235

Min. reel dia. with max.size

(mm)

600

Diameter of Roller

Upper

(mm)

270

Bottom

240

Side

220

Roller

Material

42CrMo

Hardness

(HB)

220-260

Induction Hardened Roll

YES

Roll Profile

crown

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

YES

Driving Mode

hydraulic motor

Control System

Control Mode

NC

Display of position & displacement

LCD

PLC

ABB/SIEMENS/XINJIE

Electrical Part System

SIEMNENS

Plate Bending Speed

(m/min)

about 3.5

Descending/Ascending Speed of bottom roller

(mm/min)

About 160

Descending/Ascending Speed of side roller

(mm/min)

About 300

Hydraulic System

Max. Working Pressure

(MPa)

22

Valve

YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

Construction Steel Material

Q235

Side Support for Big Sheet Metal Diameters

  optional

Central Support for Big sheet Metal Diameters

 optional

Feeding Table

 optional

Oil Cooler System

 optional

Features:

4 rollers plate bending machine

--heady duty linear sliding guides mounted on the uprights of the machine for lower roller and side rollers translation

--electronic parallelism control system

--rollers synchronization and balancing control fully electronically controlled

--side rollers and bottom rollers variable tilting controlled, positive or negative

--conical facility

--rollers driving by independent hydraulic motors

--anti-friction material in sliding area

--instantaneous brake for rollers rotation for high safety

--reversal side hydraulic driving

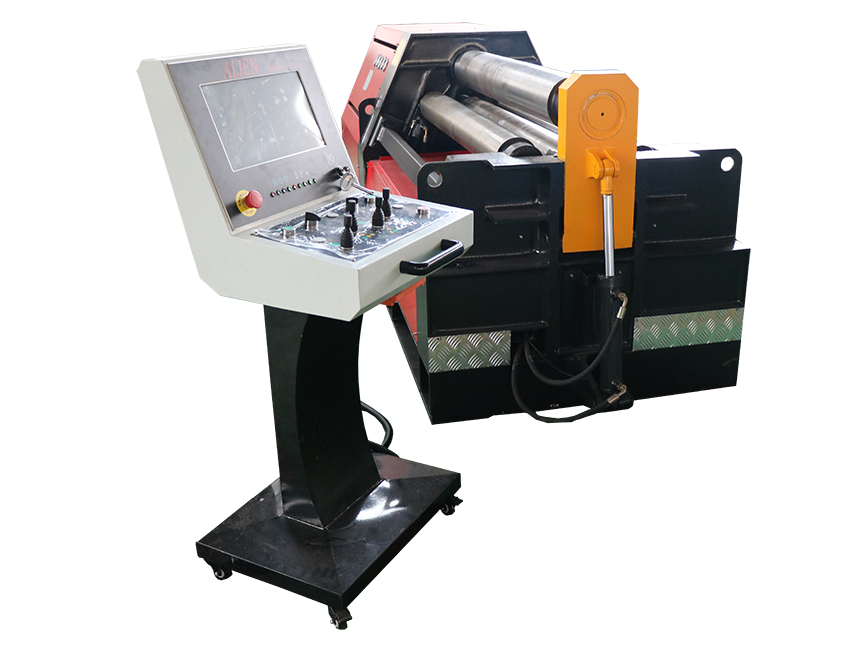

--Mobile control panel station, with low voltage control

--Mobile control push-buttons, convenience for operator

--Hydraulic yokr

plate bending machine

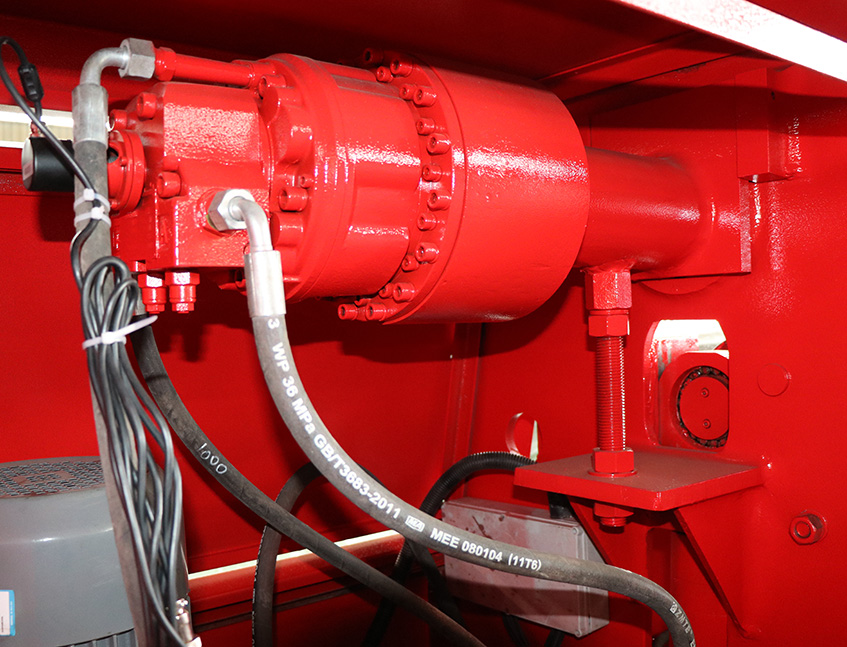

--Driving part

hydraulic motor

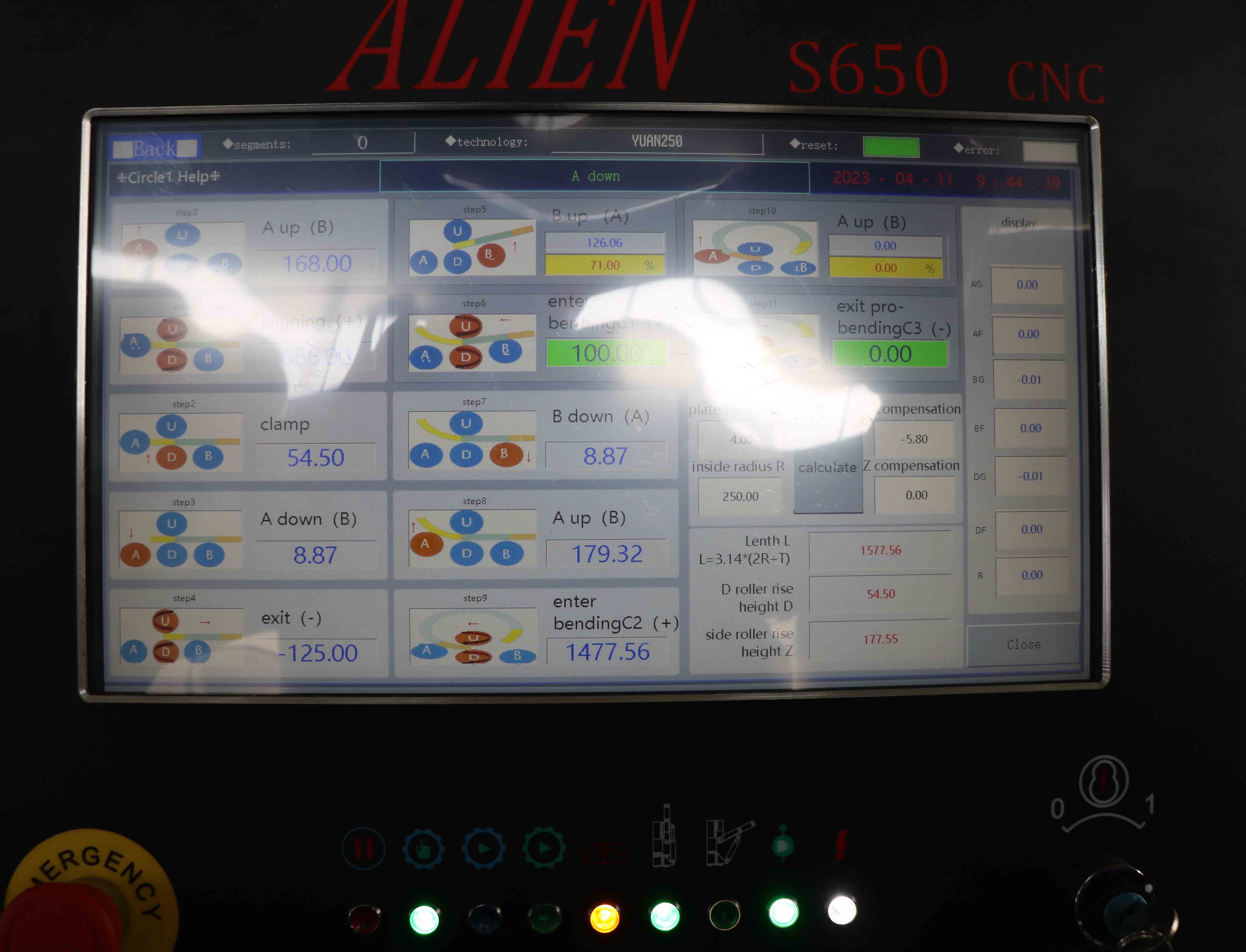

--Control system

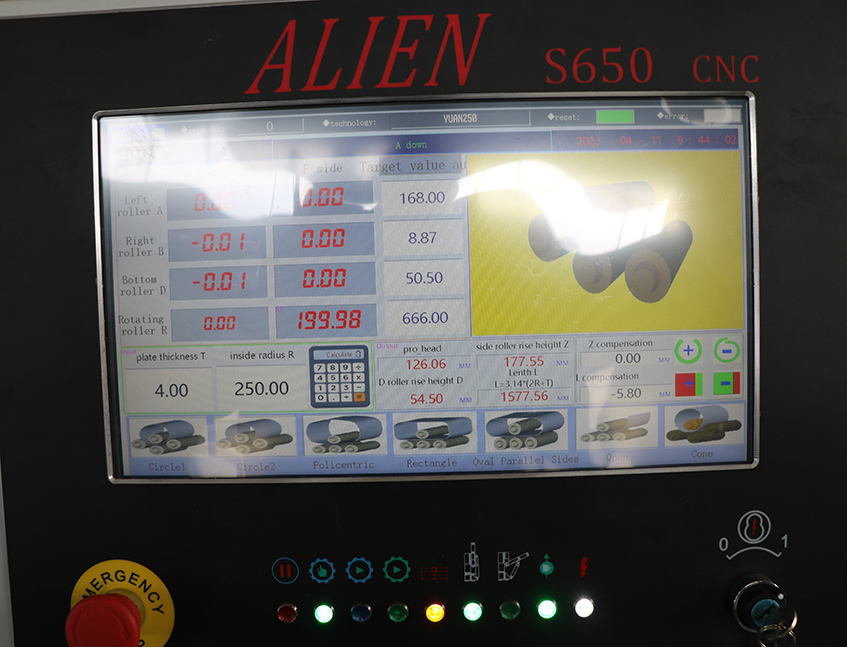

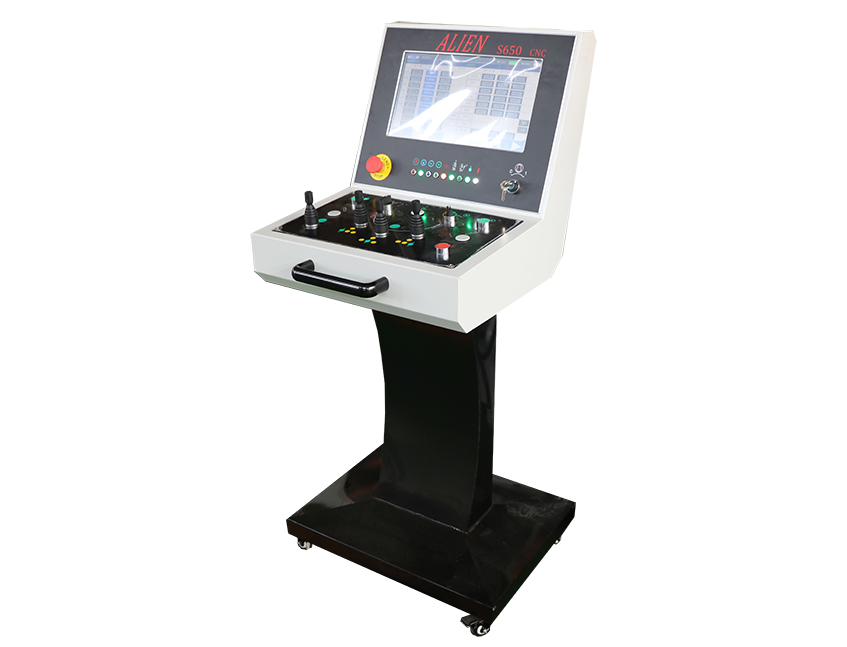

S650 control system

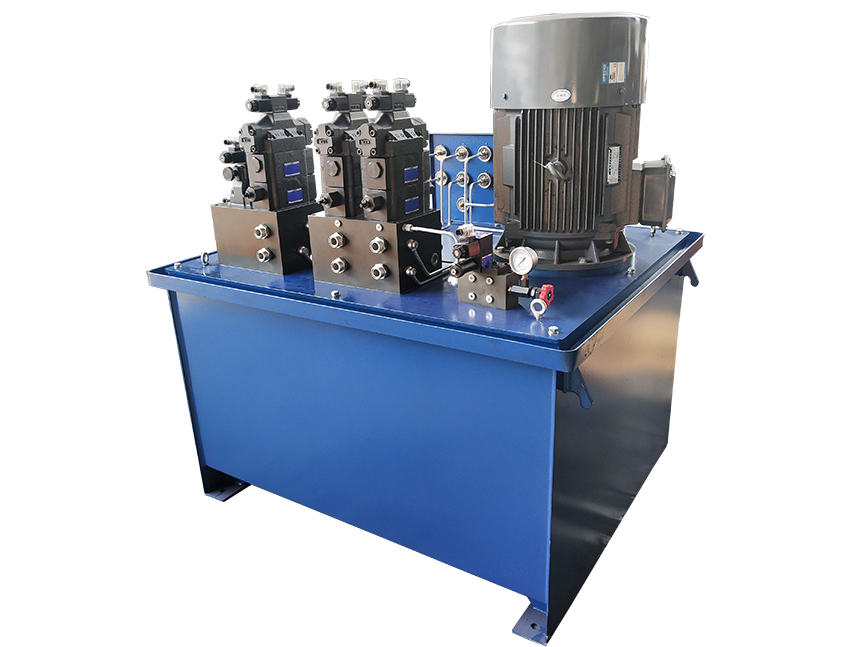

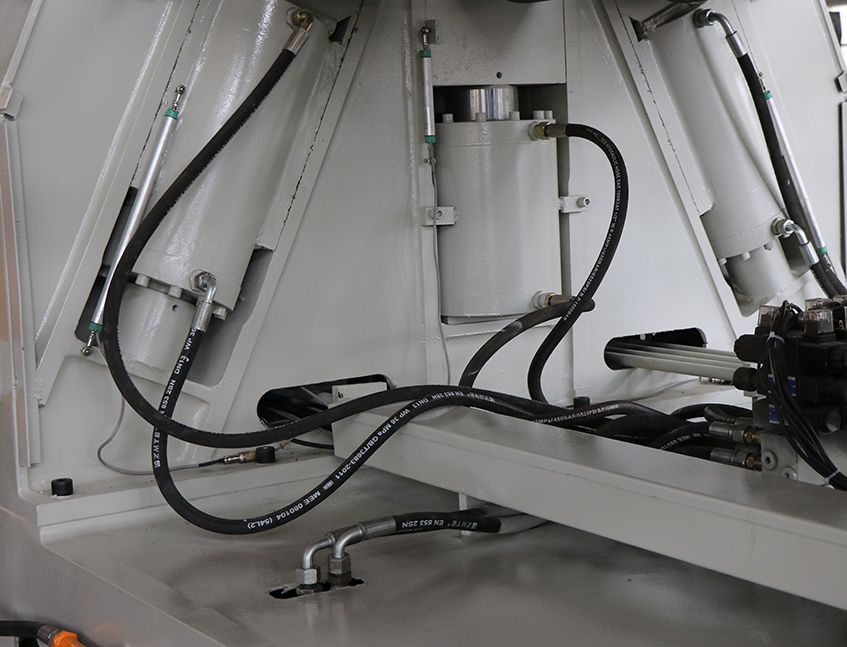

-- Hydraulic system

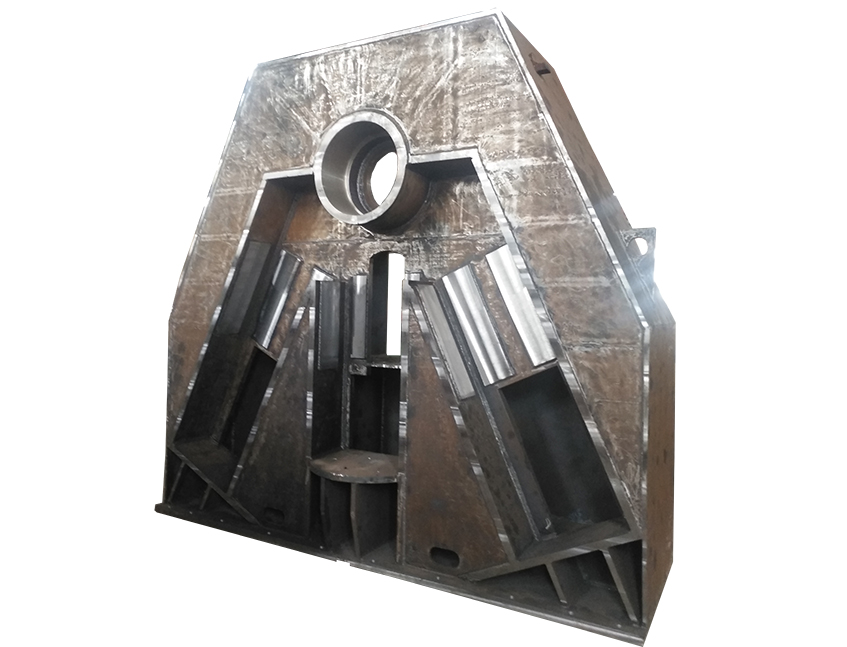

--Frame

--Cylinders

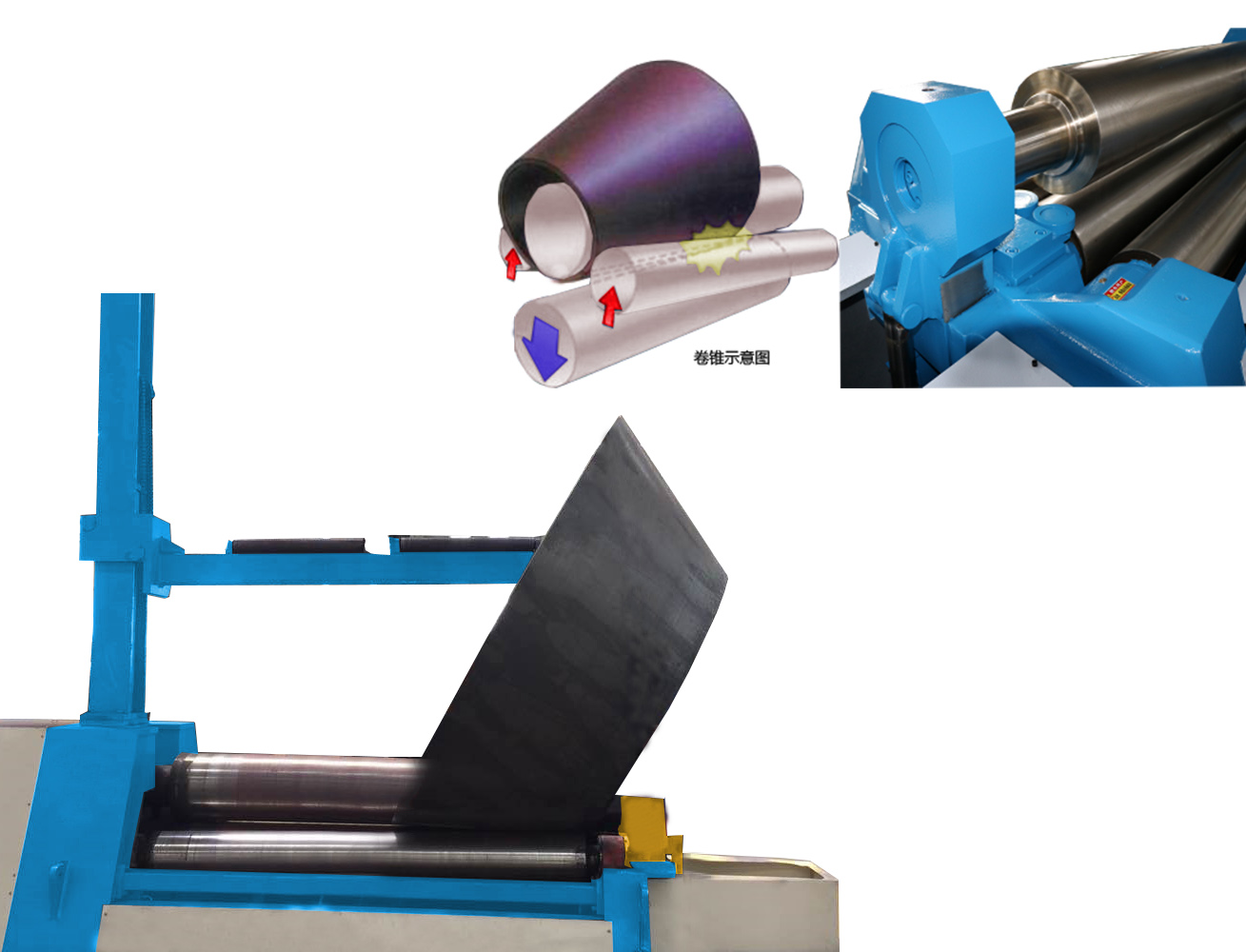

--Cone bending

cone bending

Optional:

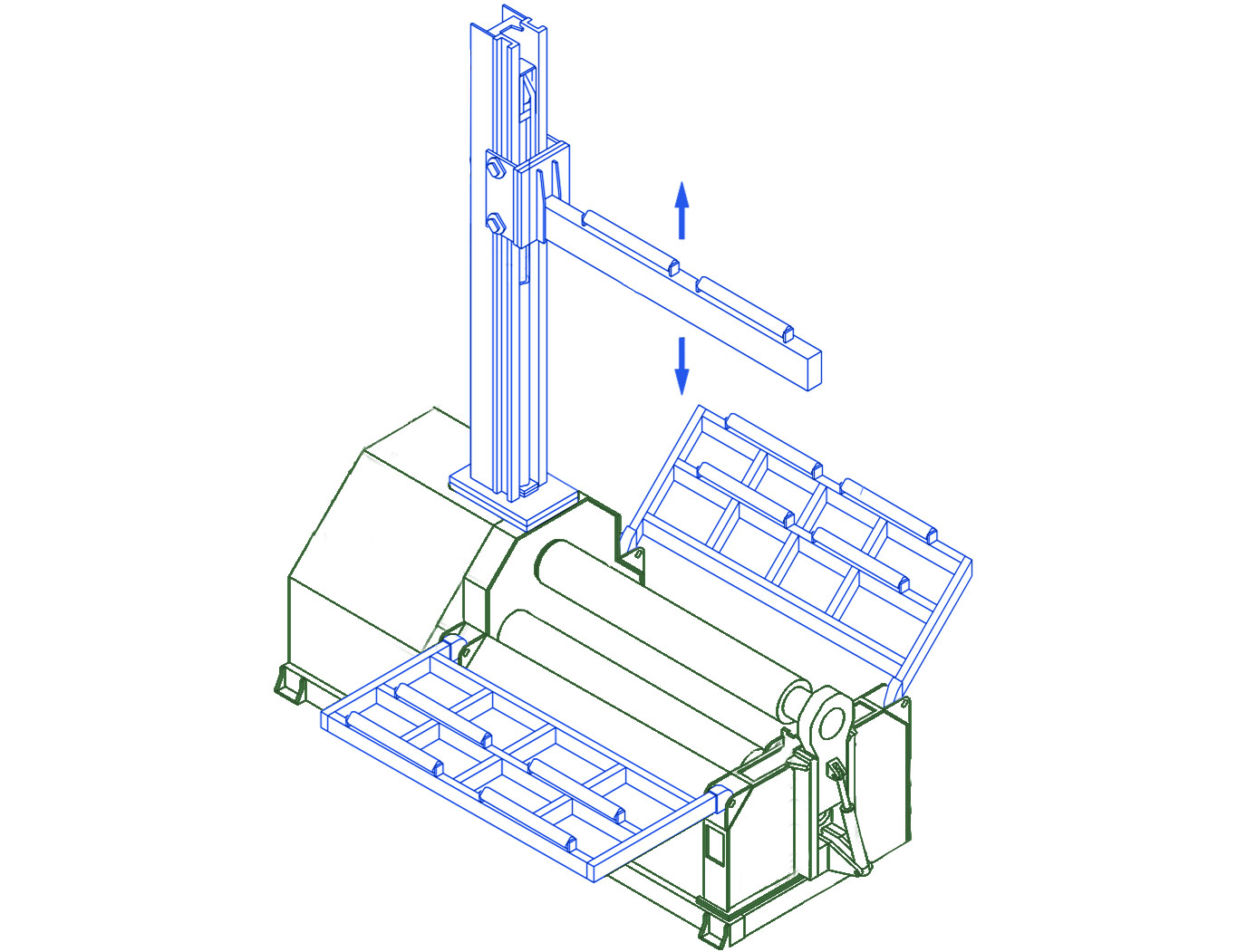

--vertical plate supporting device

--side plate supporting device

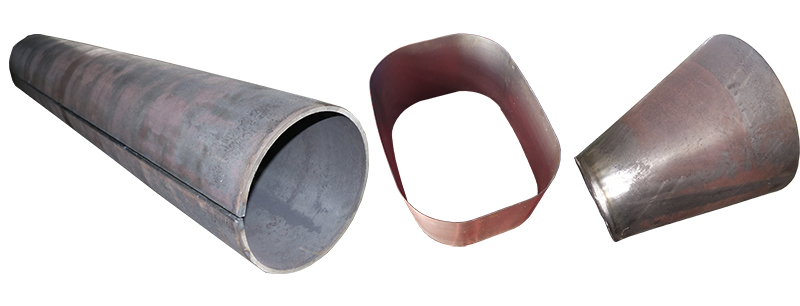

--Application

4 roolers roll bending machine

8x2500 four rollers roll bending machine

8x2500 rolling machine
