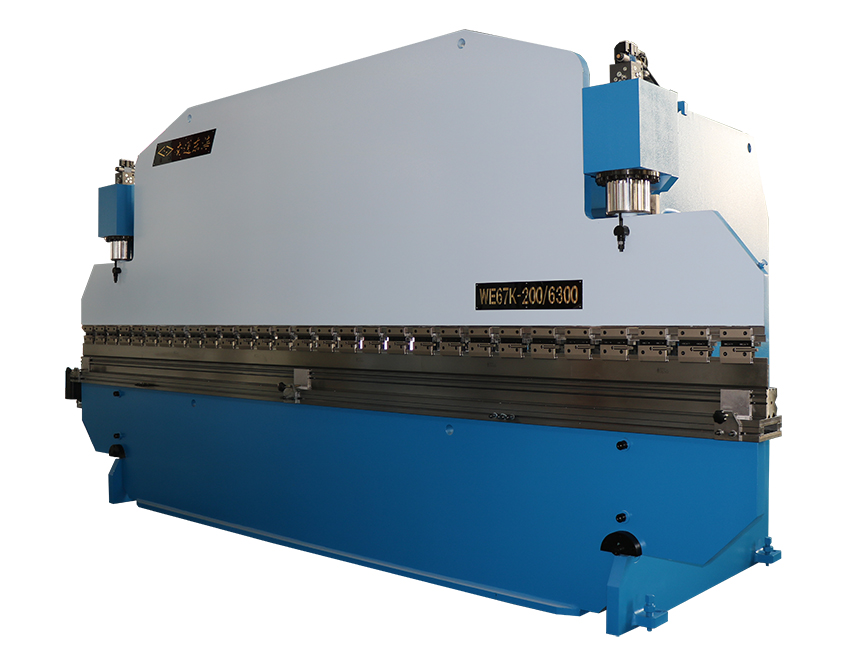

WE67K-200/6300  CNC Press brake

Parameters

Features

▲ highly productive, accurate, and economical.

▲close loop proportional hydraulics for beam synchronization

▲BOSCH-REXROTH highly precise proportional valve to control accurate beam movement

▲High alloy back gauge, with high rigidity in light heavy

▲ accurate & fine beam position control by micro limit switch.

▲ hydraulic cylinder with twin type sealing low & high pressure and hard chrome.

▲moving control panel with on/off controls, emergency push button &selector for inching,

▲ three speeds shit automatically

▲the current position and set position of the Y1, Y2, X, are showed on the CNC controller LCD.

▲three types operation way: manual, semiautomatic and automatic

▲CNC controlled mechanical pulling-rod anti-crowing device(V)

▲HEIDENHAIN light encoder to avoid the deflection bending

▲DA52S CNC control system

▲liner motion bearings and AC servo drive for accurate position up to 0.05 mm.

Instruction of structure

--BOSCH-REXROTH Hydraulic Manifold Control Block

DA52S CNC controller

Puch & die

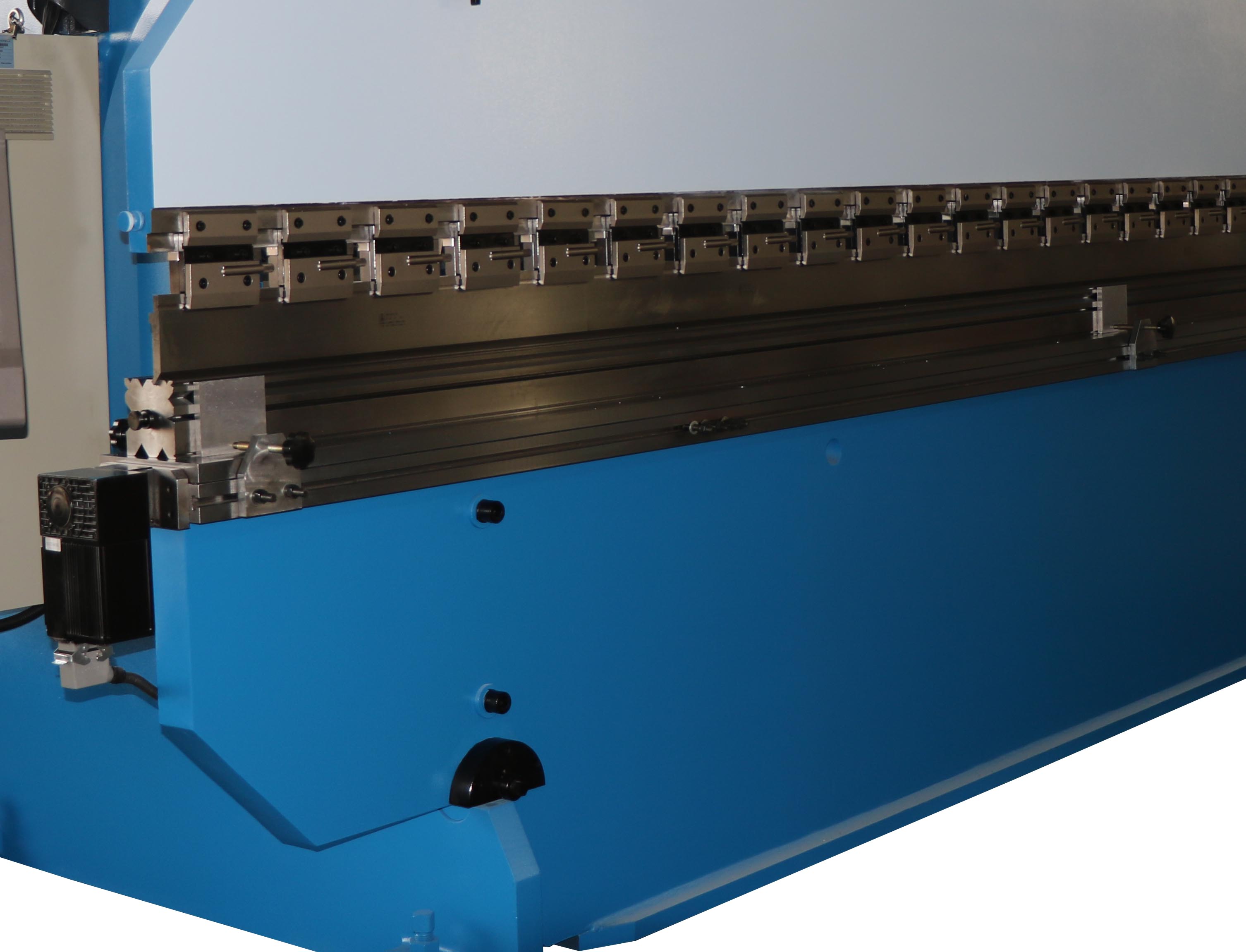

Automatic crowing table

CNC back gauge ( X axis)

Optinal of the punch & die

Main components
