QC11K-12x4000 CNC Shearing Machine

12x4000 CNC guillotine shearing machine

Model(QC11K)

12x4000

Shearing thickness (mm)

12

Shearing width (mm)

4000

Cutting plate tensile strength N/mm²

450

Shearing  angle (°)

0.5-2.0

Back gauge range (mm)

20-800

Blade length (mm)

4100

Throat depth (mm)

100

Blade material

Cr12MoV

Main motor power (KW)

15

Stroke (n/min)

6-20

Length (mm)

4720

Width (mm)

1960

Height (mm)

2300

Character

▲ Variable Rake Angle Design Machines.

▲ CNC controlled back gauge

▲ CNC controlled shearing angle

▲ CNC controlled blade gap

▲ Better safety for operator and machine.

▲ Front sheet support.

▲ Squaring arm with steel rule for front gauging.

▲ Hardened Transfer bars mounted on table.

▲ Hold down cylinders.

▲ Foot pedal with emergency stop

▲ Strokes can be controlled according different shearing length

▲ Four edge Cr12MoV Blade suitable to MS & SS.

▲ Laser cutting line

▲ Front feeding table( optional choice)

Guillotine beam

12x4000 CNC guillotine shearing machine

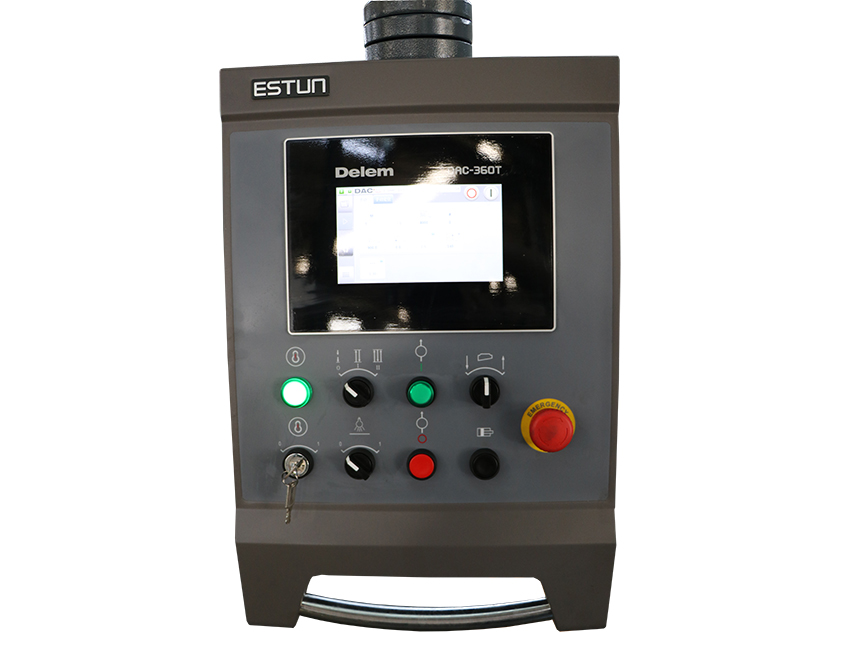

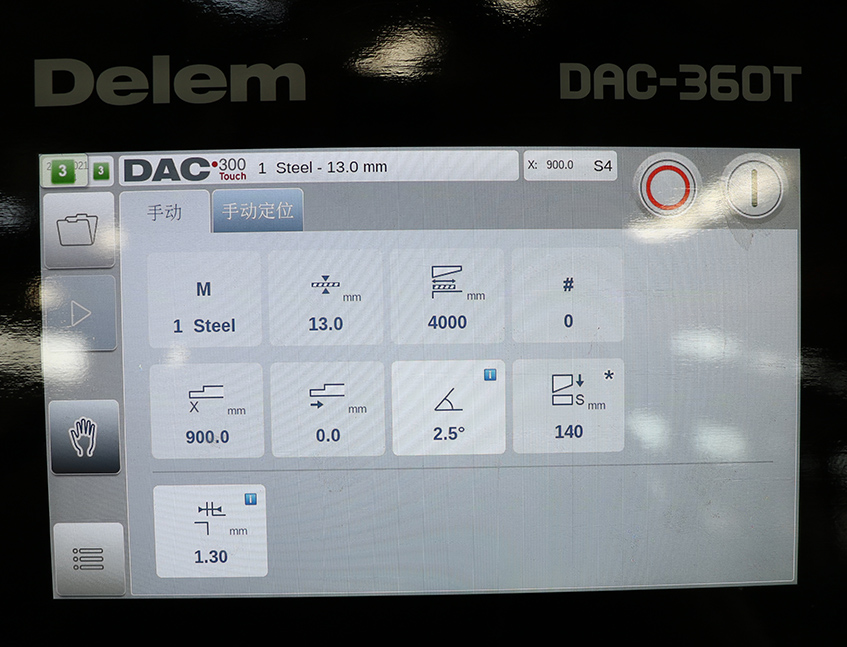

DAC-360T  CNC Controller

DAC-360 CNC shearing machine controller

DAC-360
DAC-360T CNC controller

Powerful hold downs

hold down

Hydraulic block

shearing machine valve

Four cutting edges shearing blade

shearing blade

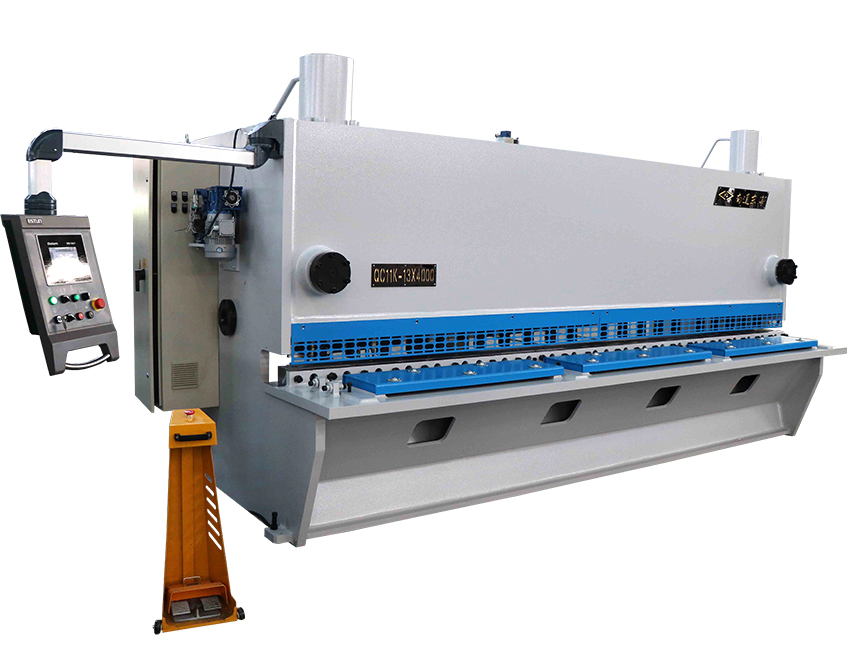

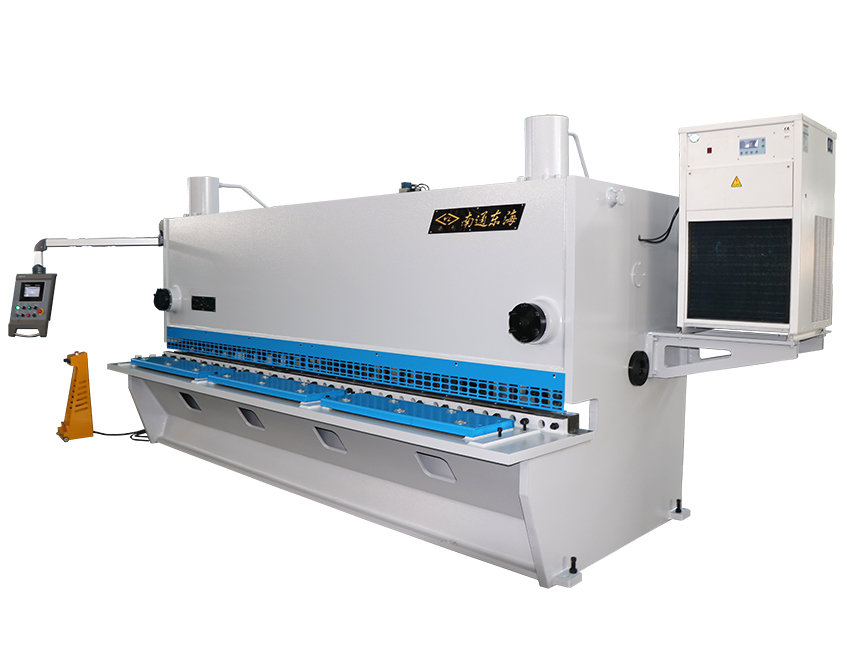

4 meters CNC shearing machine

CNC metal cutting machine
