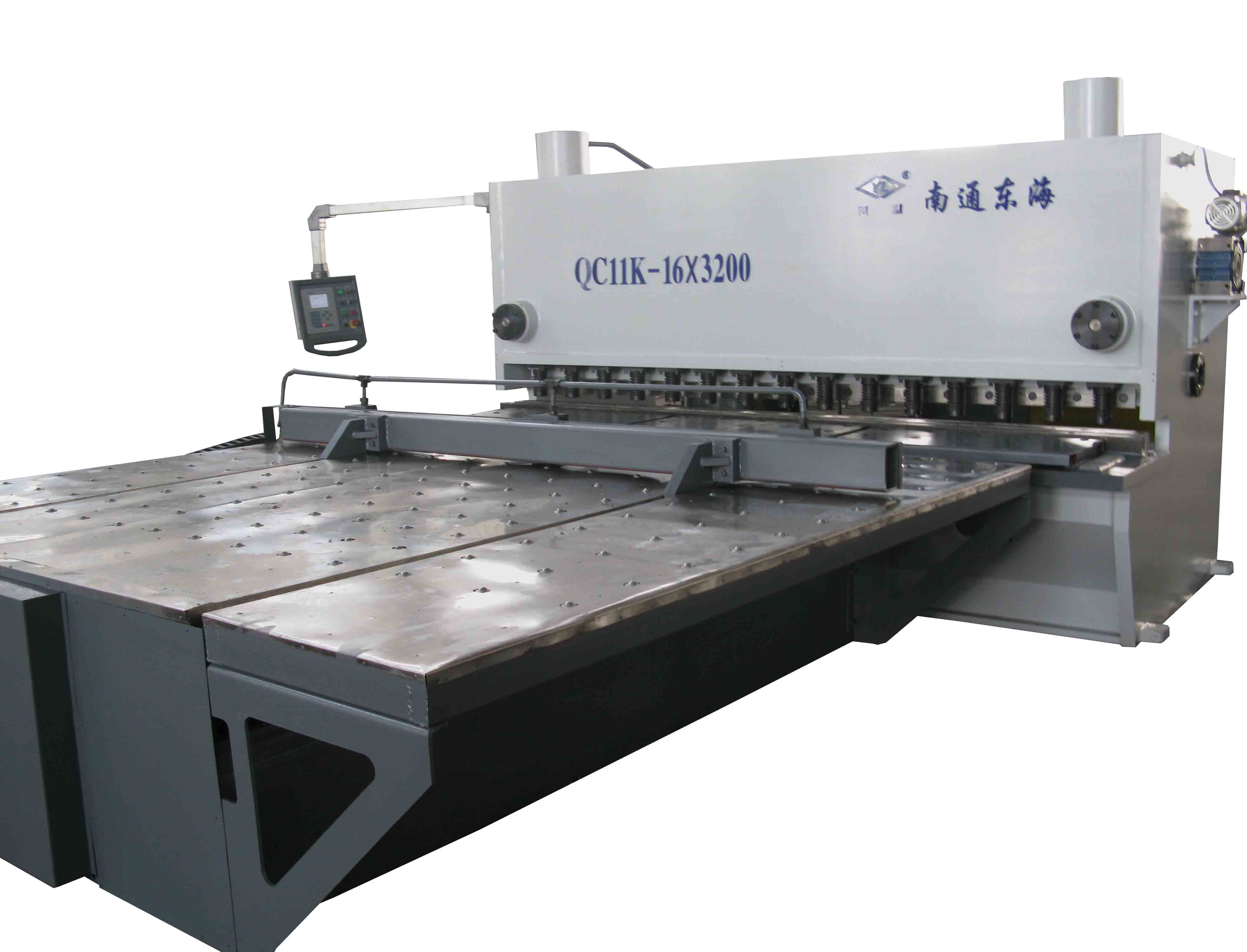

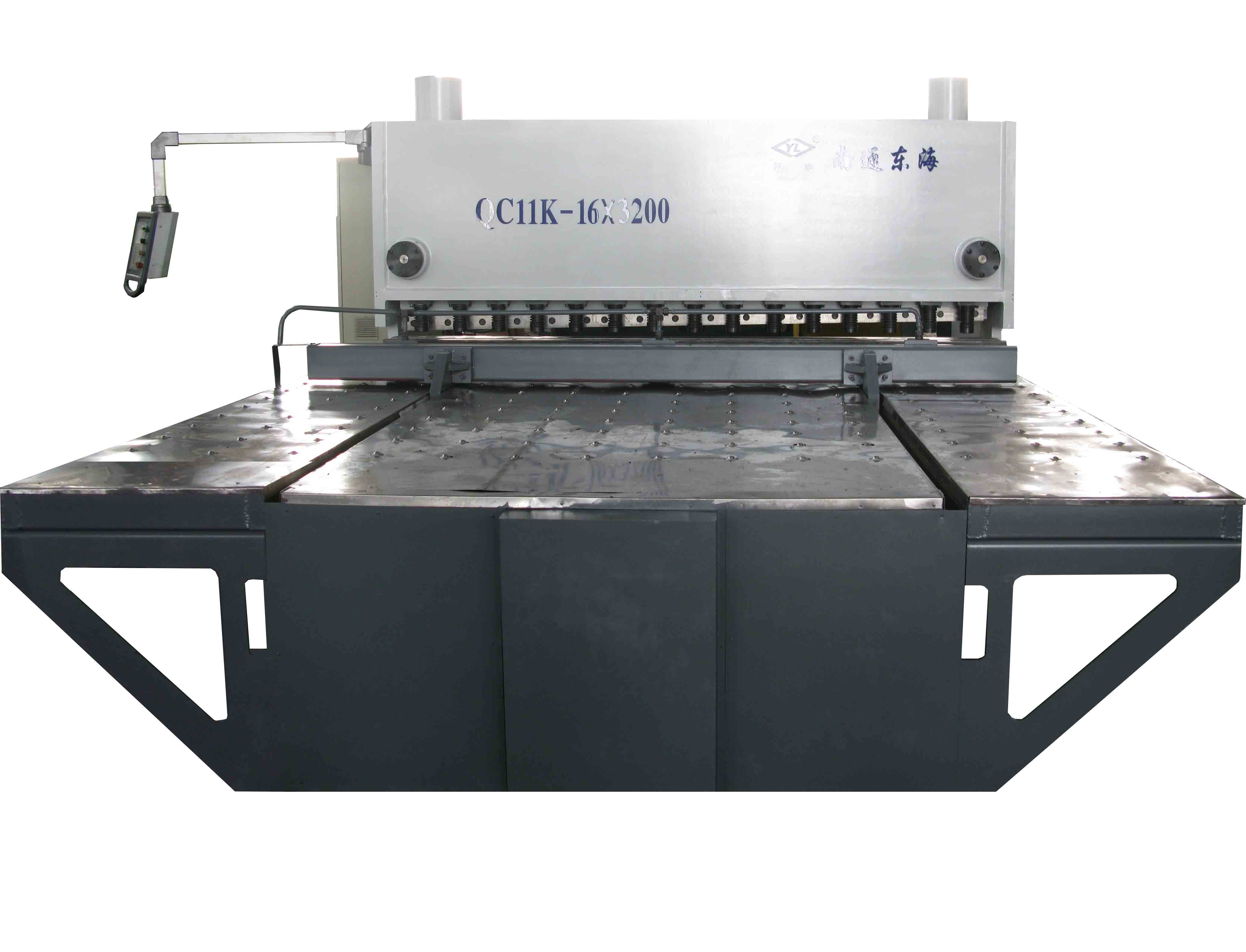

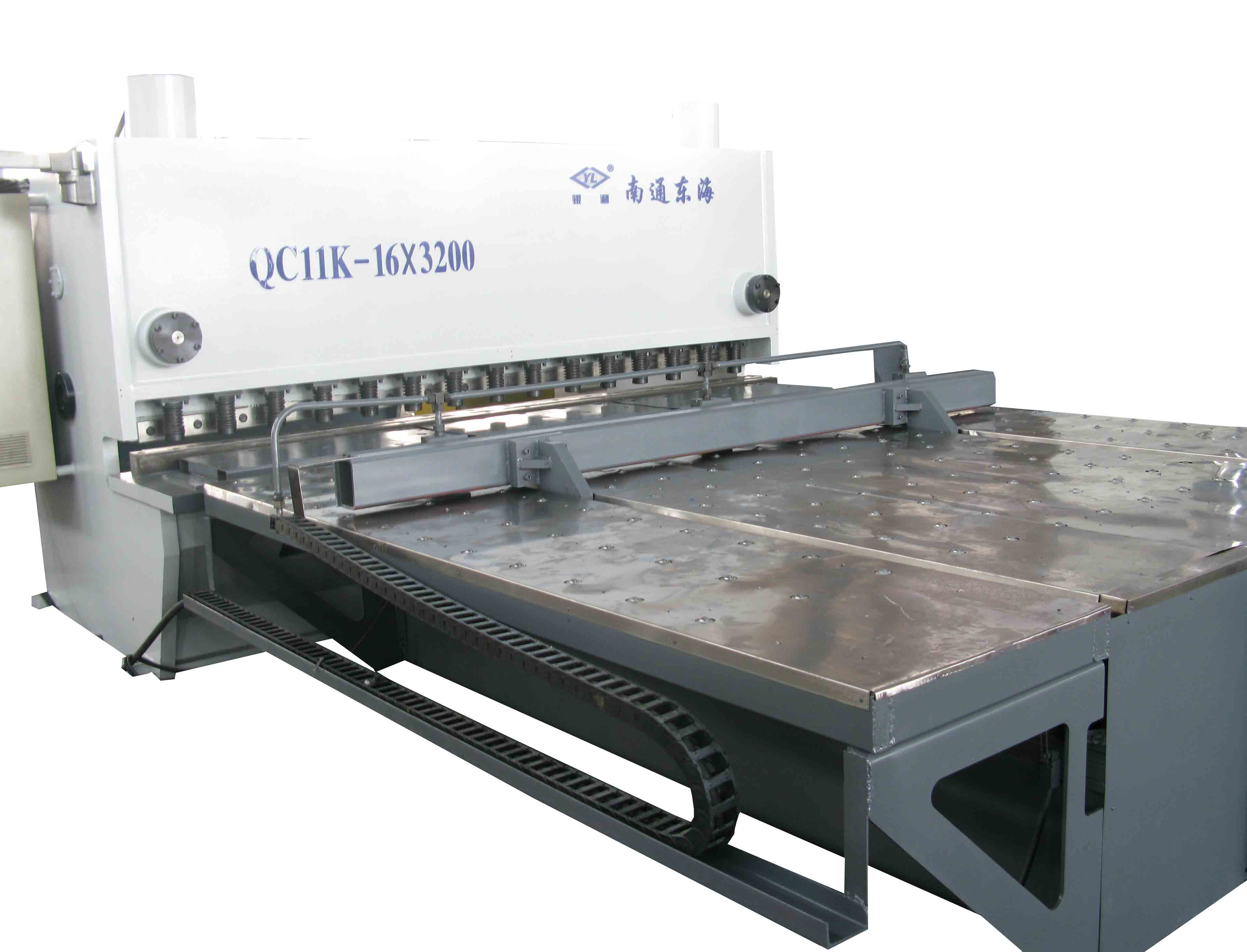

QC11K-16x3200 CNC Shearing Machine

CNC guillotine shearing machine

Model(QC11K)	16x3200
Shearing thickness (mm)	16
Shearing width (mm)	3200
Cutting plate tensile strength N/mm²	450
Shearing angle (°)	0.5-2.5
Back gauge range (mm)	20-800
Blade length (mm)	3300
Throat depth (mm)	100
Blade material	Cr12MoV
Main motor power (KW)	22
Stroke (n/min)	8-20
Length (mm)	4050
Width (mm)	1980
Height (mm)	2300

Character

▲ Variable Rake Angle Design Machines.

▲ CNC controlled back gauge

▲ CNC controlled shearing angle

▲ CNC controlled blade gap

▲ Better safety for operator and machine.

▲ Front sheet support.

▲ Squaring arm with steel rule for front gauging.

▲ Hardened Transfer bars mounted on table.

▲ Hold down cylinders.

▲ Foot pedal with emergency stop

▲ Strokes can be controlled according different shearing length

▲ Four edge Cr12MoV Blade suitable to MS & SS.

▲ Laser cutting line

▲ Front feeding table( optional choice)

DAC-360T CNC Controller

DAC-360T CNC controller

Powerful hold downs

hold down

Hydraulic block

Four cutting edges shearing blade
