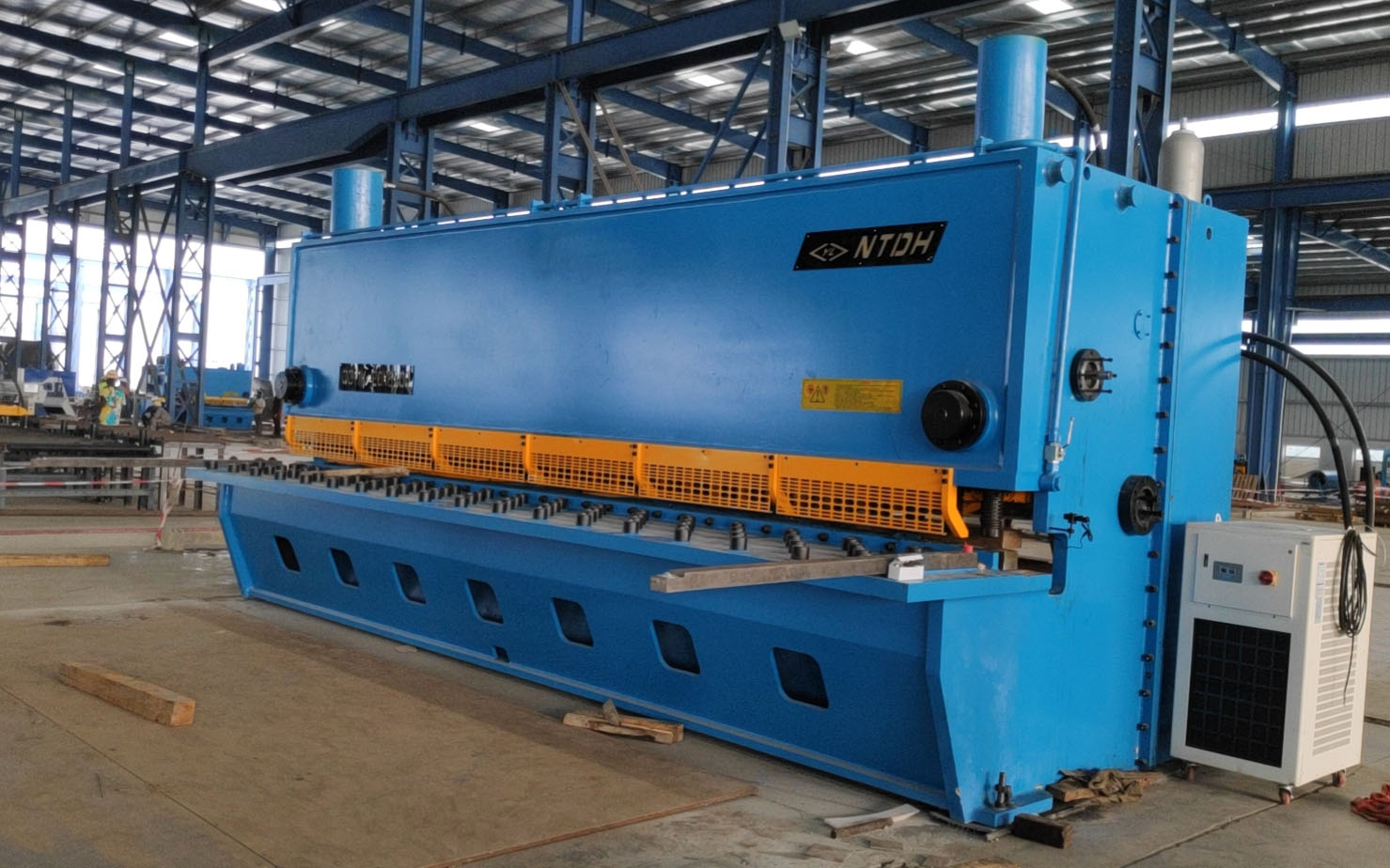

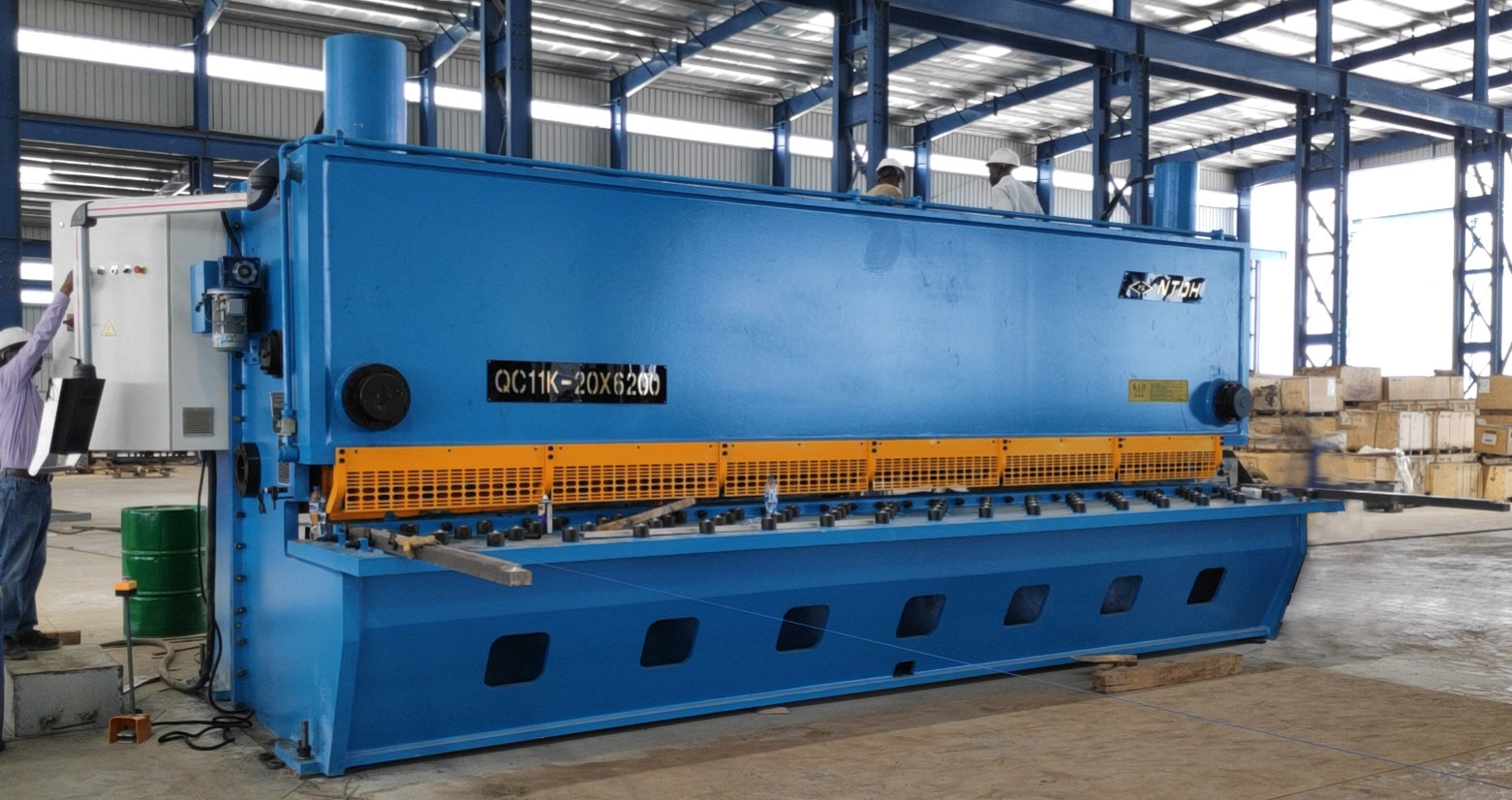

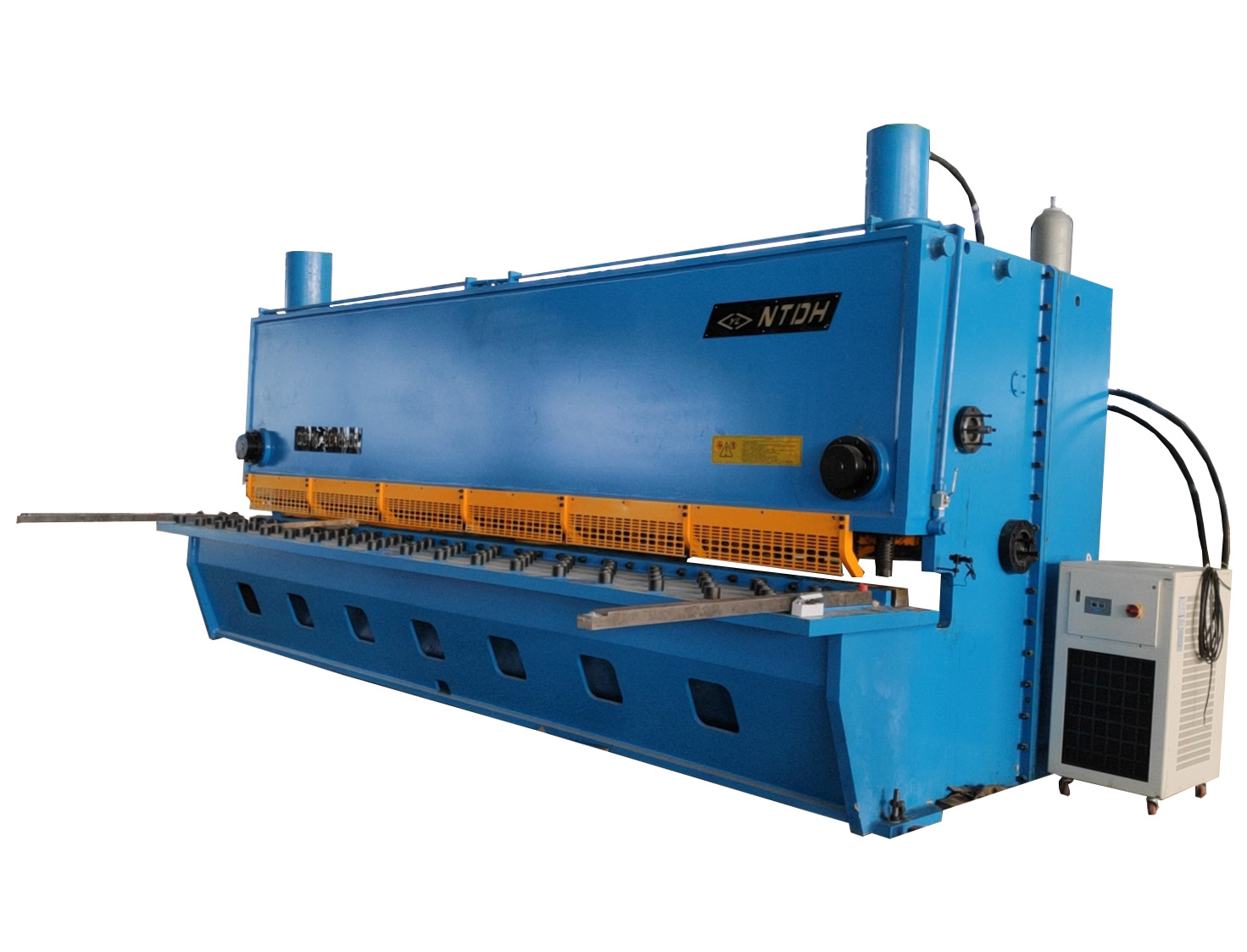

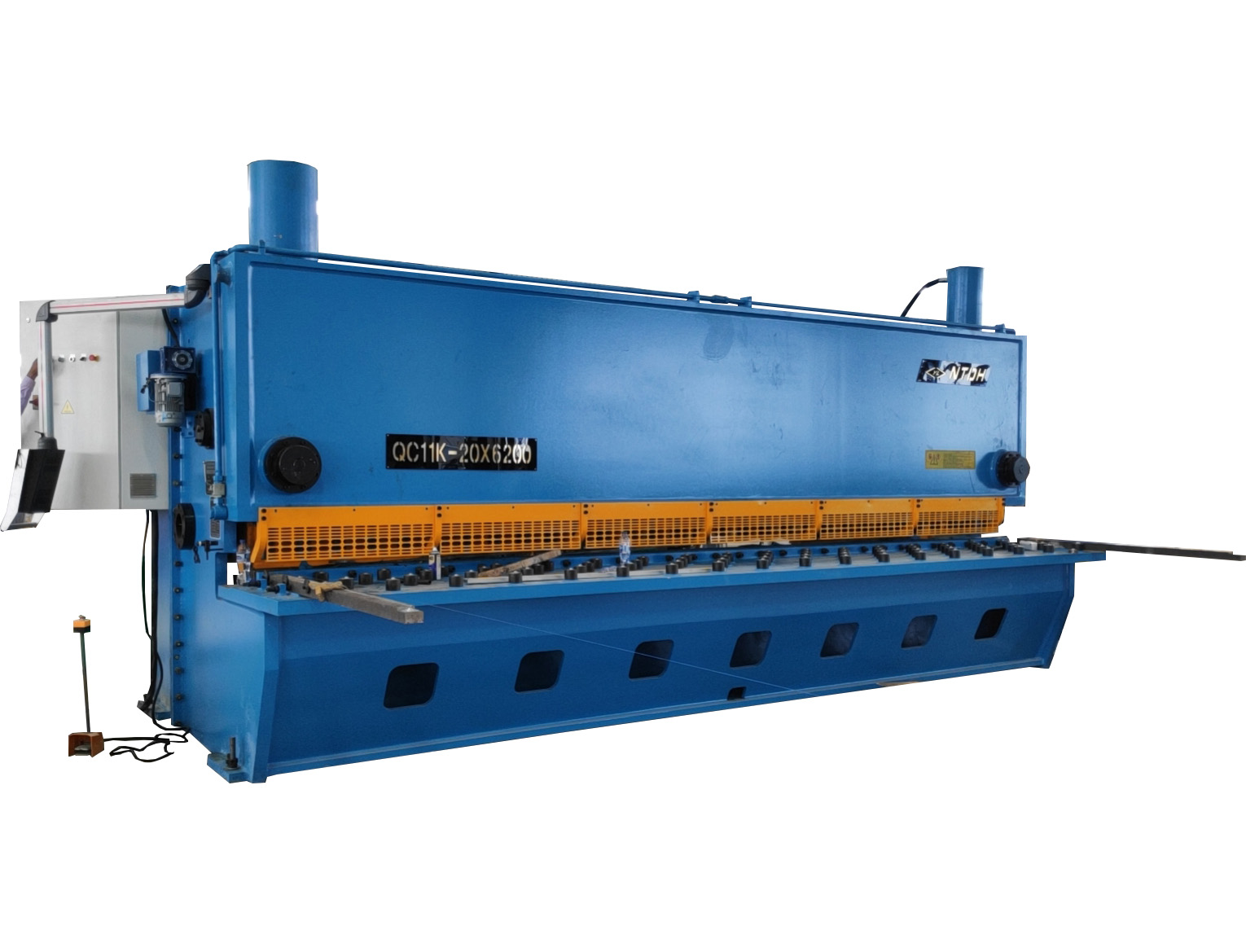

QC11K-20x6200 CNC Shearing Machine

CNC guillotine shearing machine

Model(QC11K)

20x6200

Shearing thickness (mm)

20

Shearing width (mm)

6200

Cutting plate tensile strength N/mm²

450

Shearing  angle (°)

1.5-3.0

Back gauge range (mm)

20-1000

Blade length (mm)

6300

Throat depth (mm)

120

Blade material

Cr12MoV

Main motor power (KW)

55

Stroke (n/min)

4-15

Length (mm)

7050

Width (mm)

2650

Height (mm)

3375

Character

▲ Variable Rake Angle Design Machines.

▲ CNC controlled back gauge

▲ CNC controlled shearing angle

▲ CNC controlled blade gap( X1, X2)

▲ Swing back gauge

▲ Universal front sheet support.

▲ Squaring arm with steel rule for front gauging.

▲ Hardened Transfer bars mounted on table.

▲ Hold down cylinders.

▲ Foot pedal with emergency stop

▲ Strokes can be controlled according different shearing length

▲ Four edge Cr12MoV Blade suitable to MS & SS.

▲ Laser cutting line

▲ Front feeding table( optional choice)

Character in detail

Guillotine beam



DAC-360T  CNC Controller
DAC-360T CNC controller

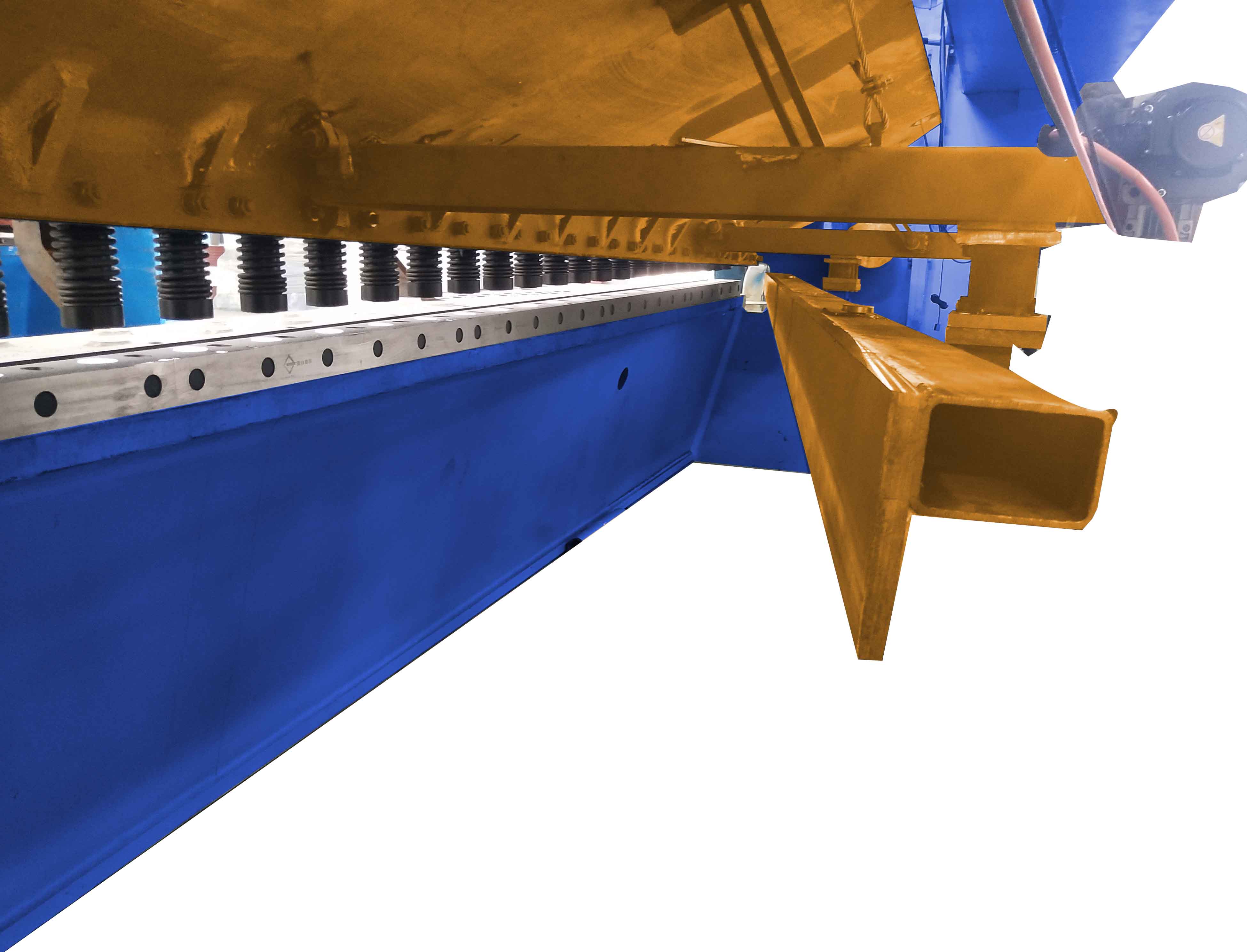

Powerful hold downs

hold down

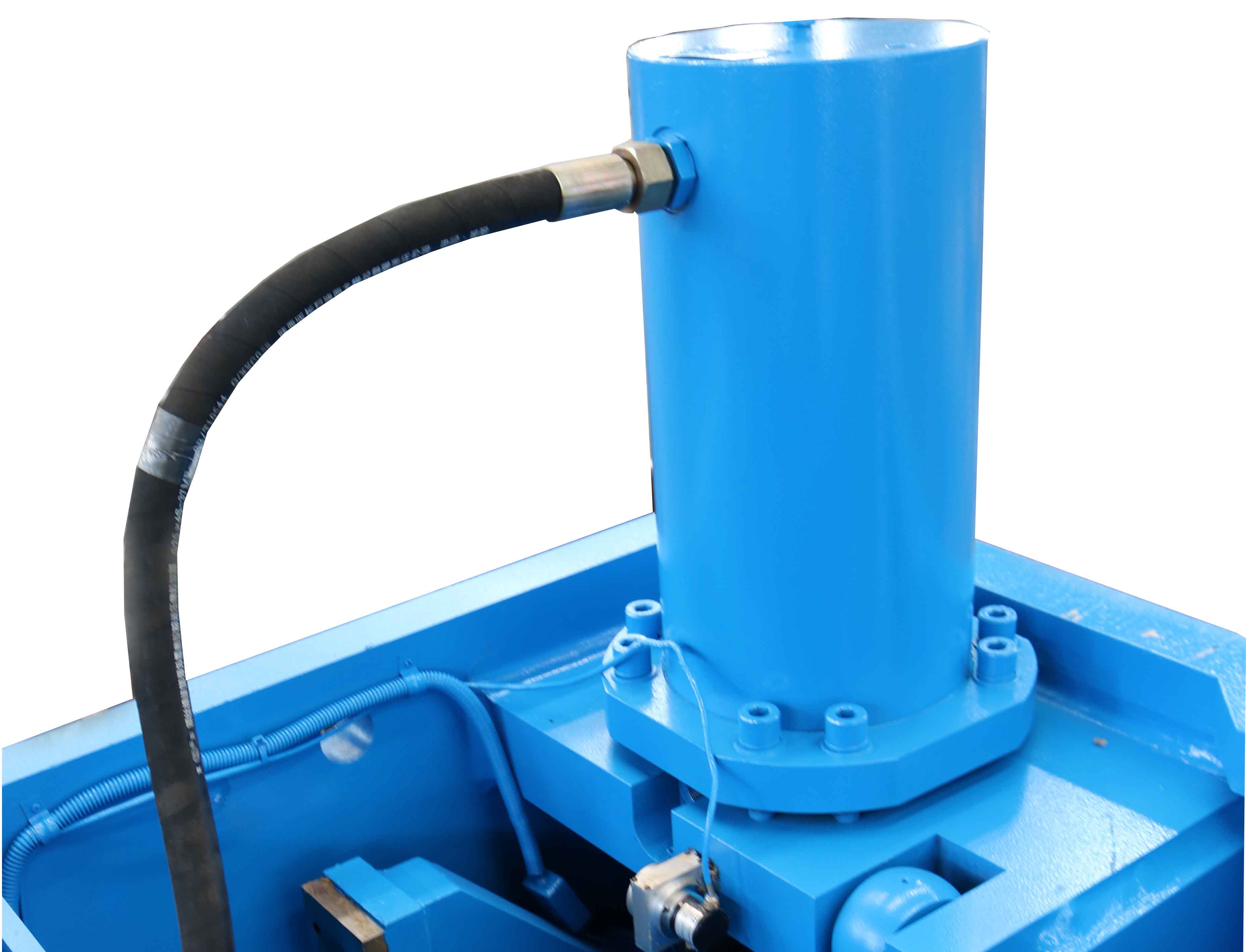

Cylinder

shearing machine cylinder

Hydraulic block

shearing machine valve

Four cutting edges shearing blade

shearing blade

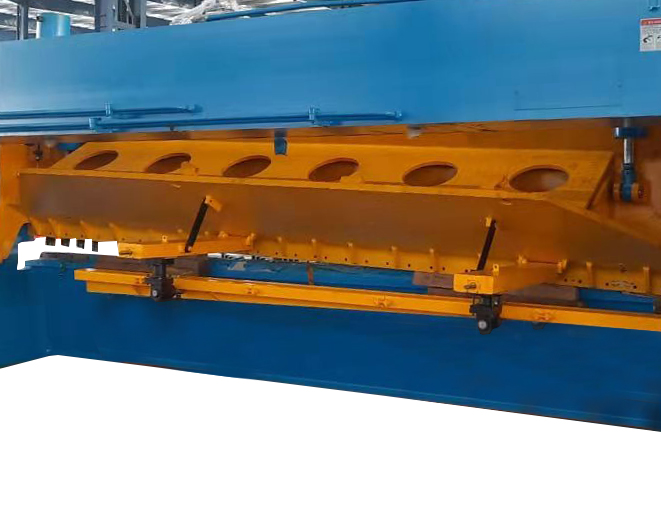

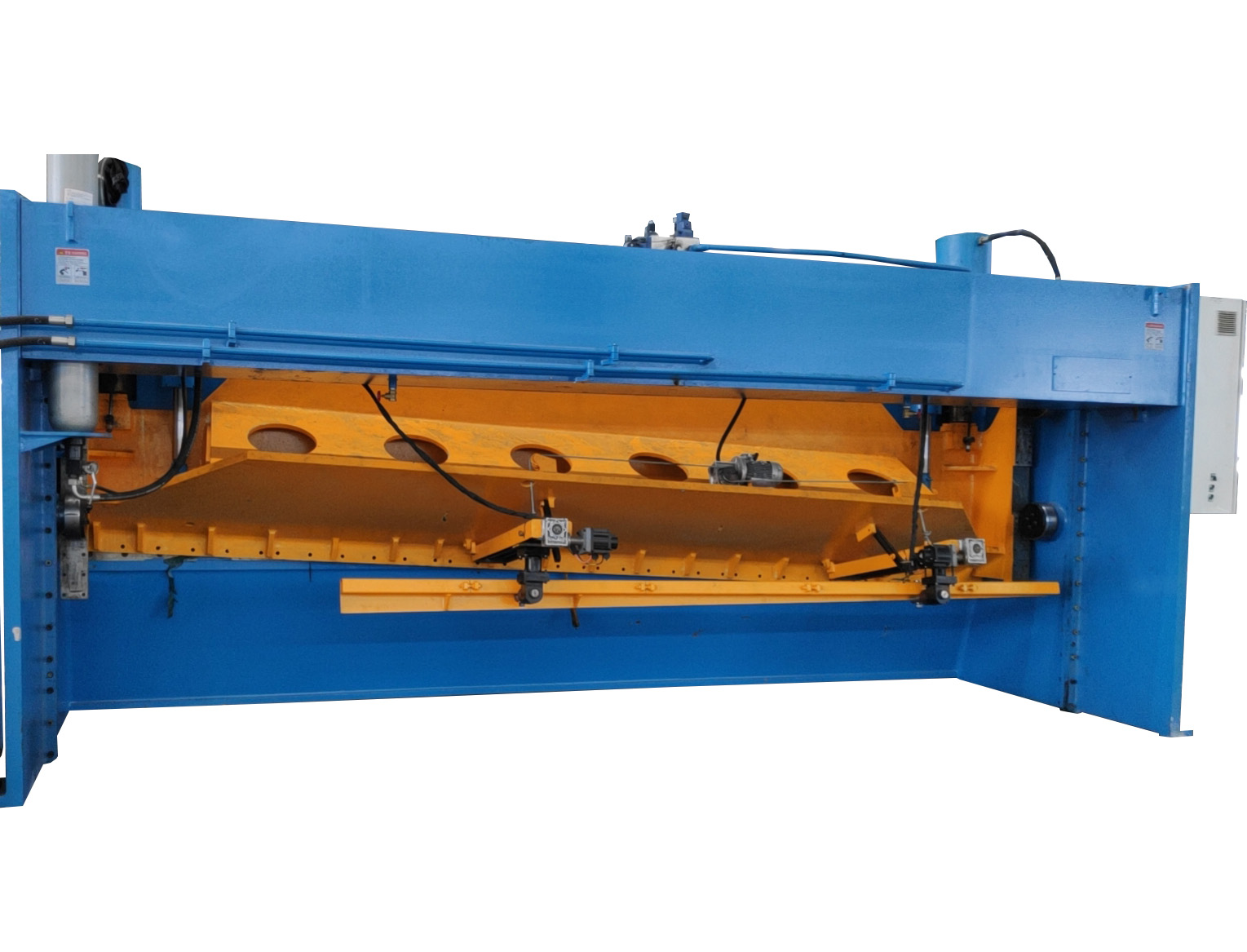

 Swing Back gauge

swing back gauge



The back gauge is swing, it can be raised up to cut the bid length plate, X1 and X2 are controlled by the CNC system sepearately to cut the slash plate.

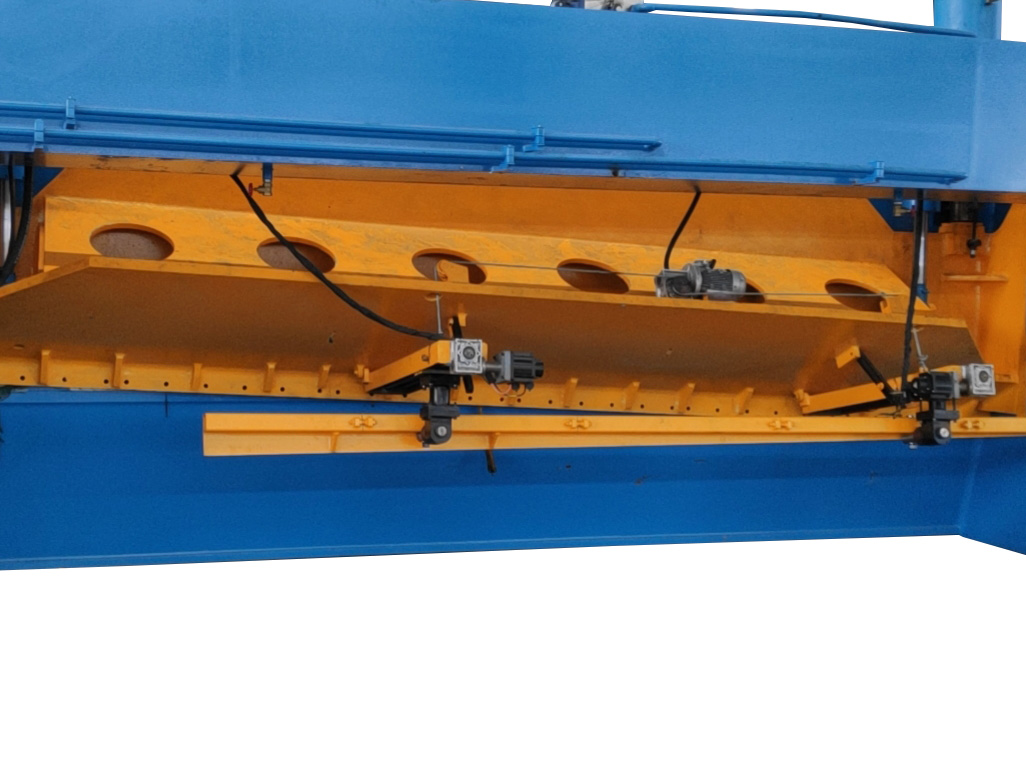

X1-X2 back gauge

X1 and X2 back gauge

The two back gauge axis X1 and X2 can be are controlled by the CNC system separately to cut the slash plate.The two back gauge axis X1 and X2 can be are controlled by the CNC system separately to cut the slash plate.

Universal front feeding table

universal feeding table
