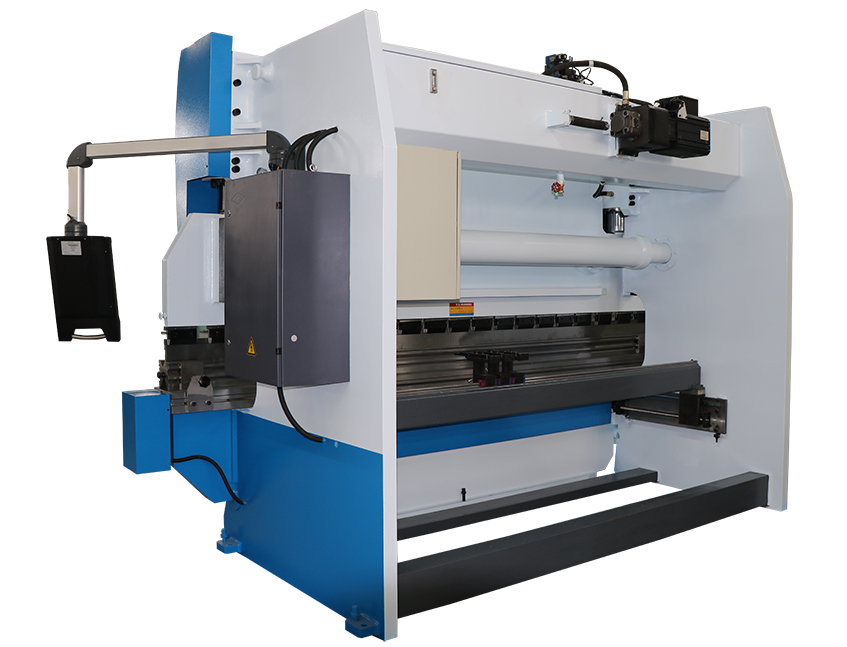

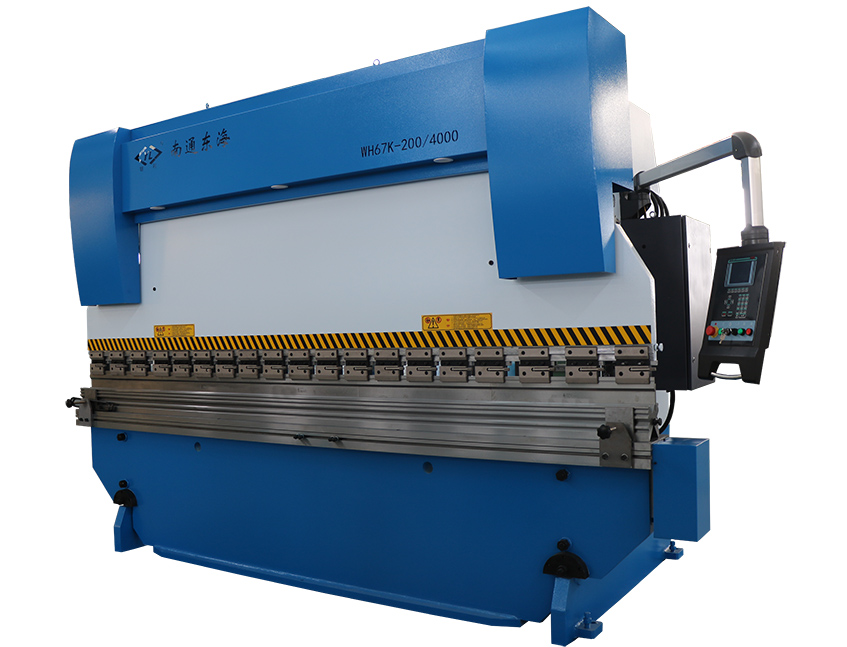

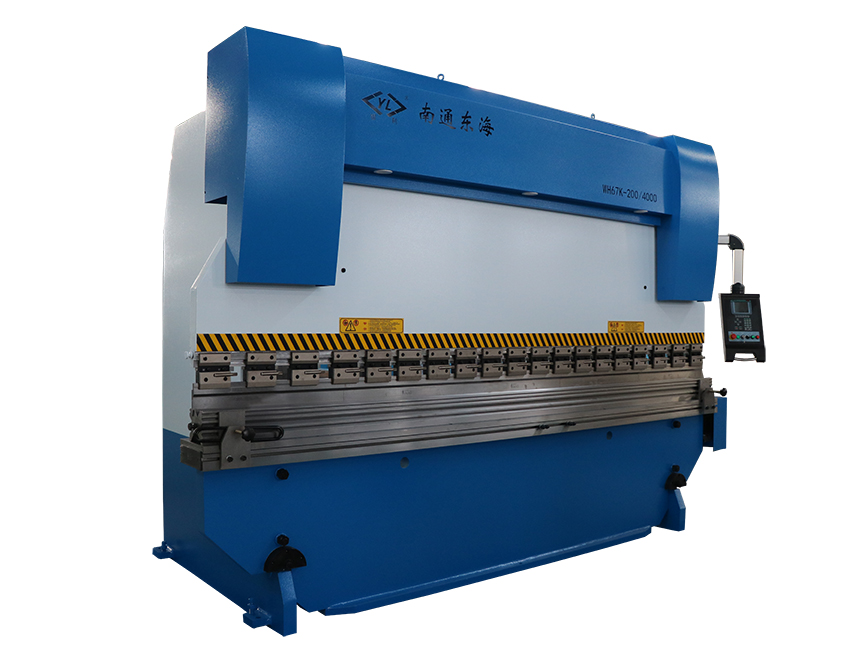

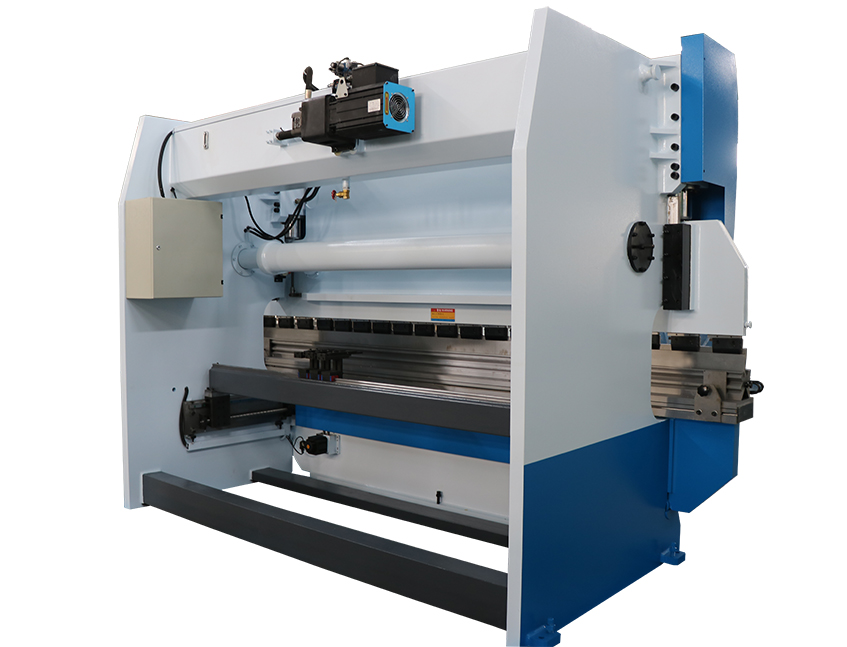

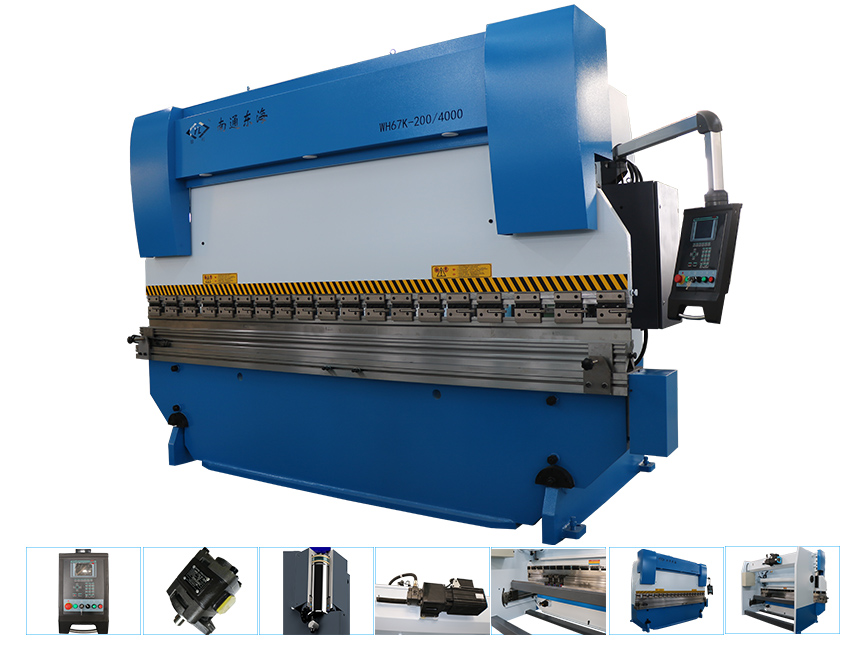

WH67K-200/4000 Torsion CNC  Press Brkae

press brake

WH67K series CNC Torsion Press Brake is a torsion synchronous press brake which equipped with the YL60H CNC controlled system, which the Y axis( beam) and X axis (back gauge) is CNC controlled.

Parameters

1

Nominal pressure

2000

KN



2

Bending width

4000

mm



3

Distance between uprights

3100

mm



4

Stroke

200

mm



5

Max. opening height

435

mm



6

Throat depth

320

mm



7

Working table length

4000

mm



8

Approaching speed

80

mm/s



9

Bending speed

8

mm/s



10

Returning speed

80

mm/s



11

Main motor power

15

KW



12

Oil pump

25

mr/r



13

Machine length

4100

mm



14

Machine width

1650

mm



15

Machine height

3070

mm

Overland

Features

YL60H (E300) CNC controller

Torsion bar synchronous system

Automatic angle bending

Beam position is automatically calculated

SIEMENS BEIDE motor

SUNNY quiet pump

Three operation model( Jog,Single,Continuous)

Y-X axes CNC controlled, servo drive

International quality hydraulics system

Accurate & fine beam position control by micro limit switch.

Mechanical crowing table

Ball screw & linear rail back gauge

Manual operated R axis

Front sheet support

Punch quick clamping system

4-face multi-V die

mm/inch

English language

--YL60 CNC controller

E300 CNC controller

The YL60H is a dedicated CNC (numerical control) device for the Torsion Press Brake, which combines the expertise of many years and provides a complete economic solution for the Torsion Bending Machine with the support of unique drive control technology.

The YL60H device adopts the integral product structure, built-in high-performance A8 processor, and configures 5.6 inch, 640 × 480 dot matrix, 18 full color display screen, and integrated IO ports, serial ports and USB port.

The YL60H device is designed to be operated via the buttons on the front panel. At the same time, the pump switch and the emergency stop button are installed in the customized suspension cabinet to meet the user's requirements. Its friendly interface, easy to use, practical function.







--Mechanical crowing table

crowing table

crowing table

WE67Y-63/2500 NC Press Brake

--Punch & die

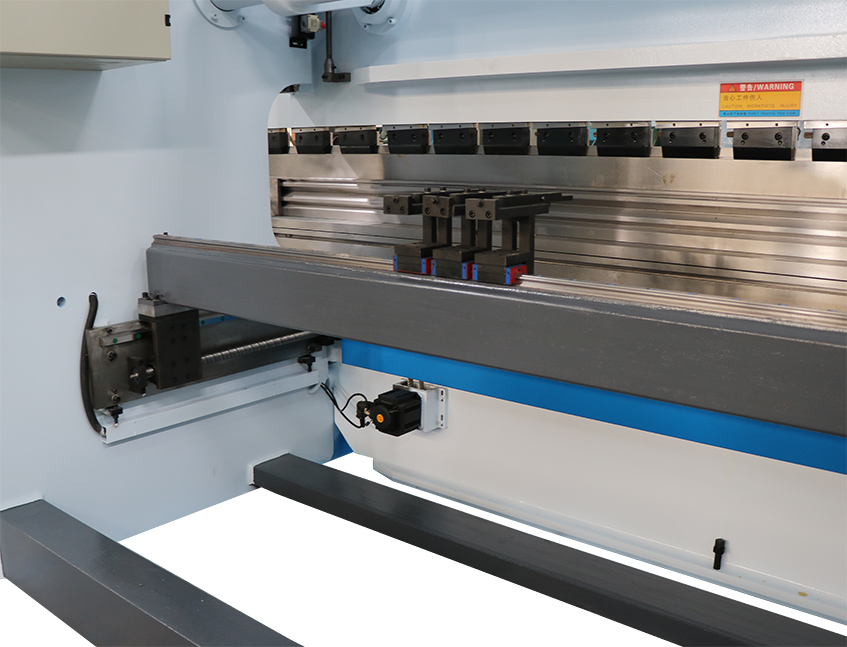

--Back gauge

--Torison bar

--Pipe Connection

--Automatic Crowing Table as Optioanl Choose

--Servo motor as Optional Choose

--Motorized R axis as Optional Choose
