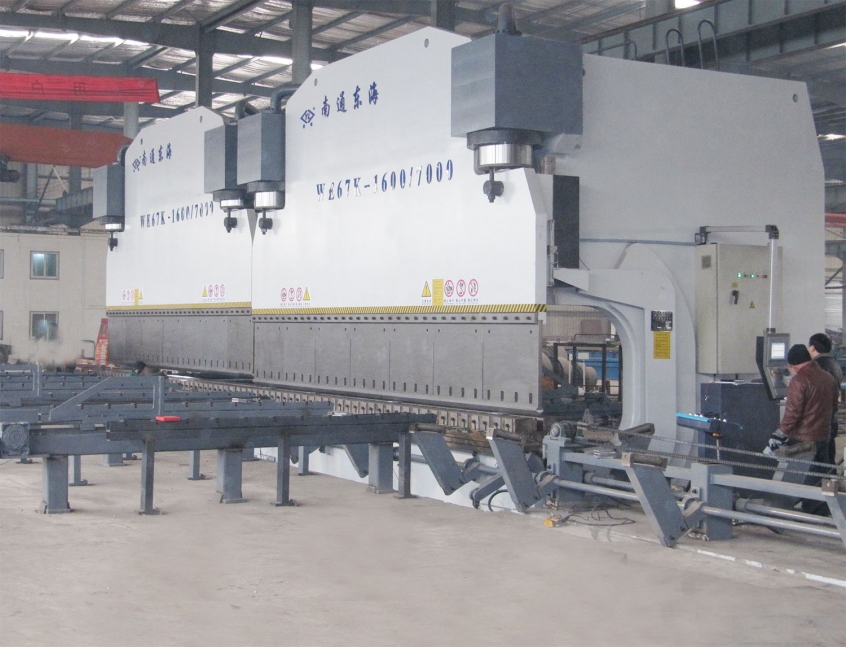

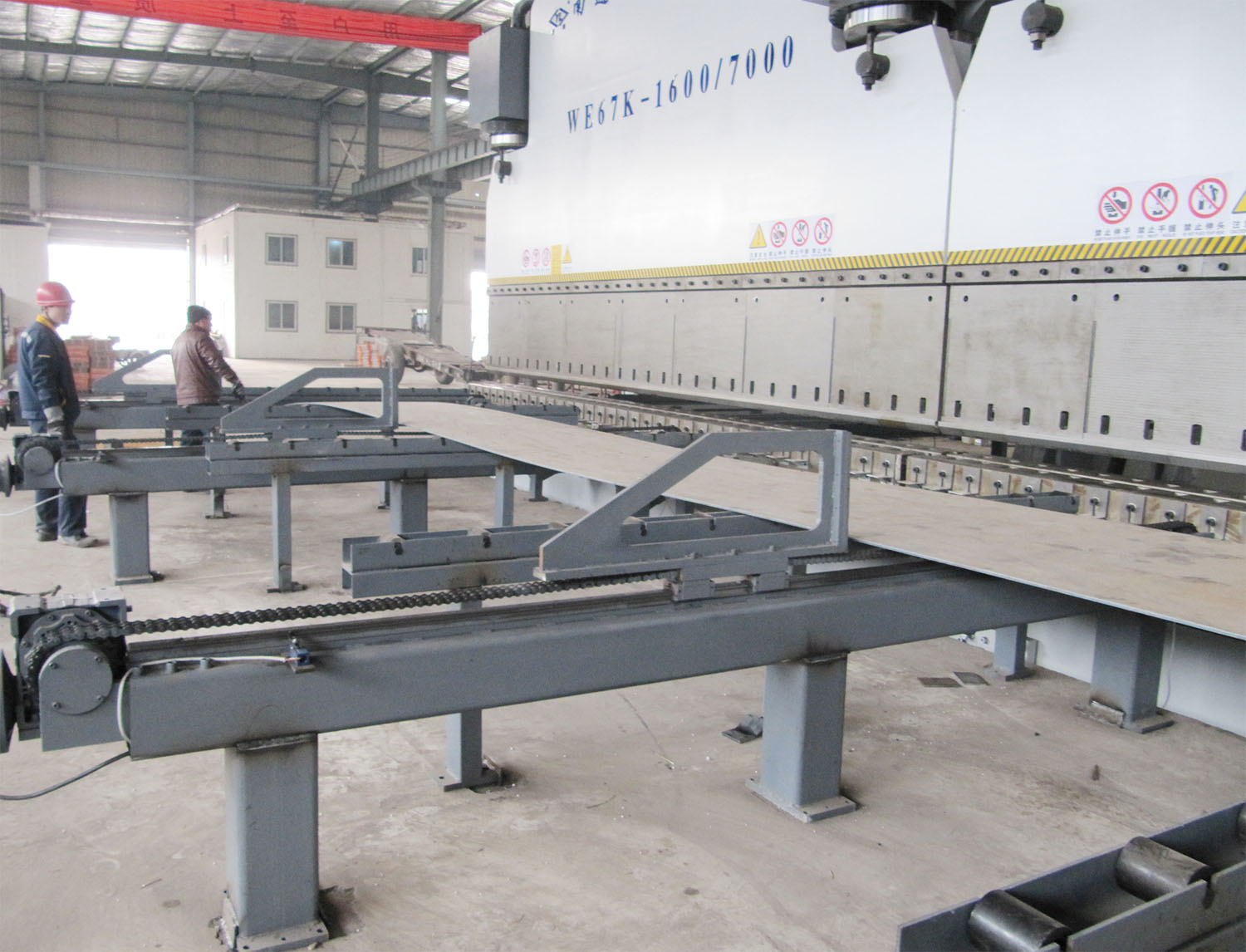

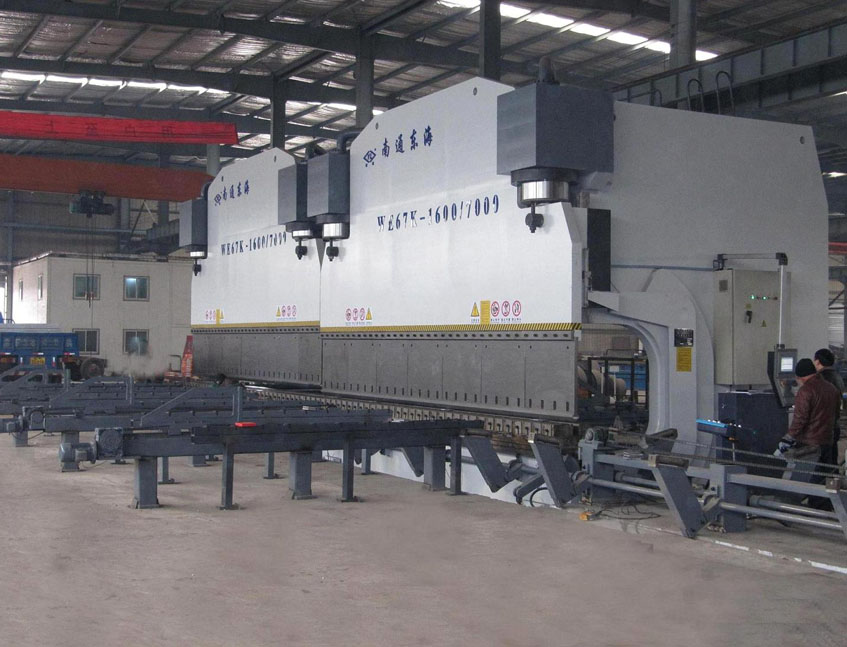

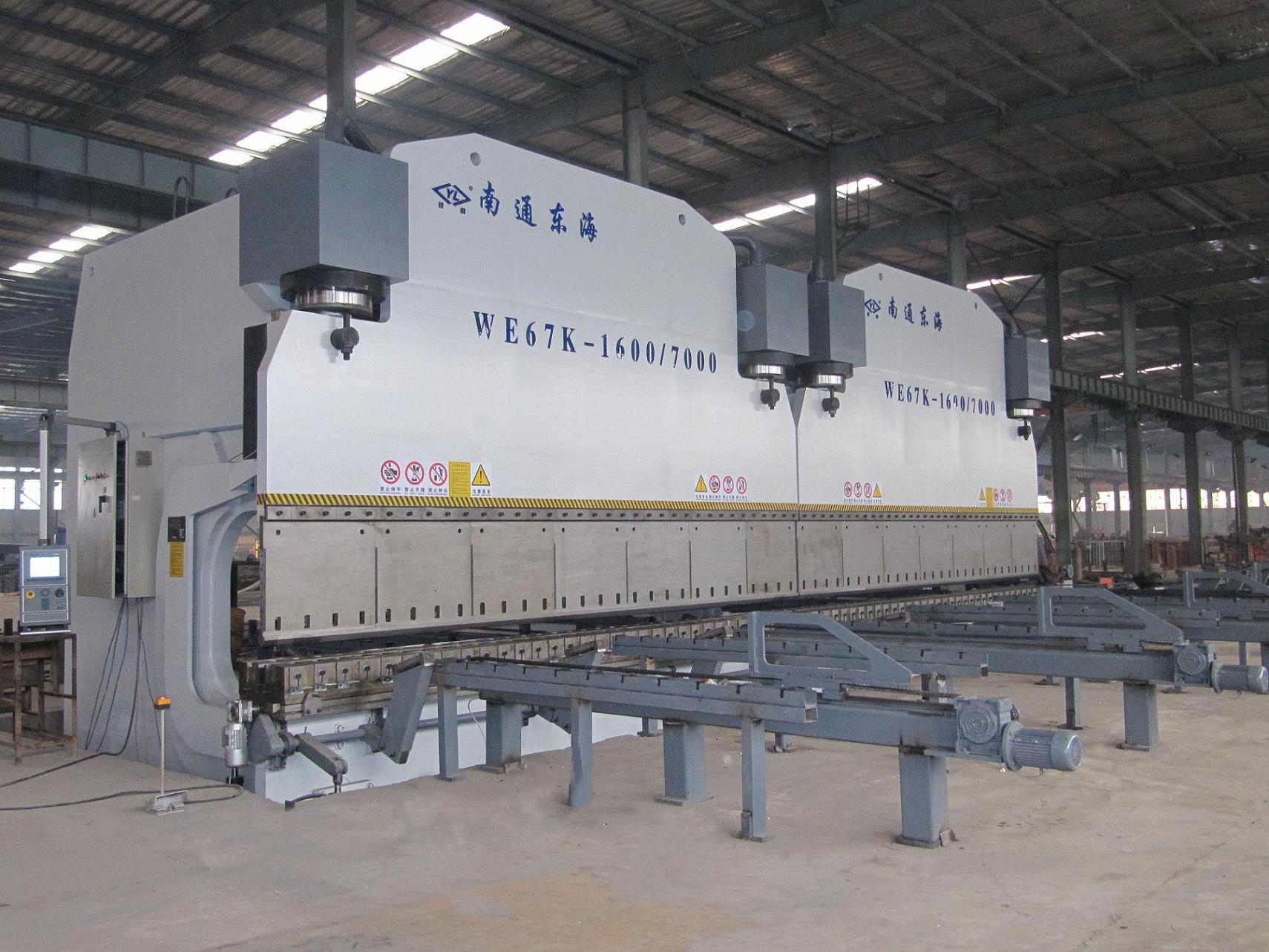

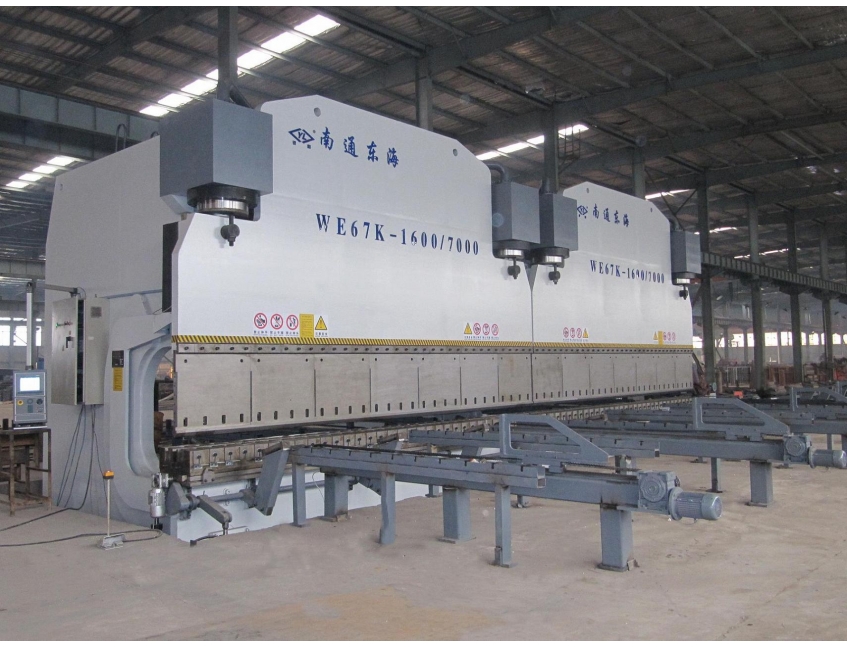

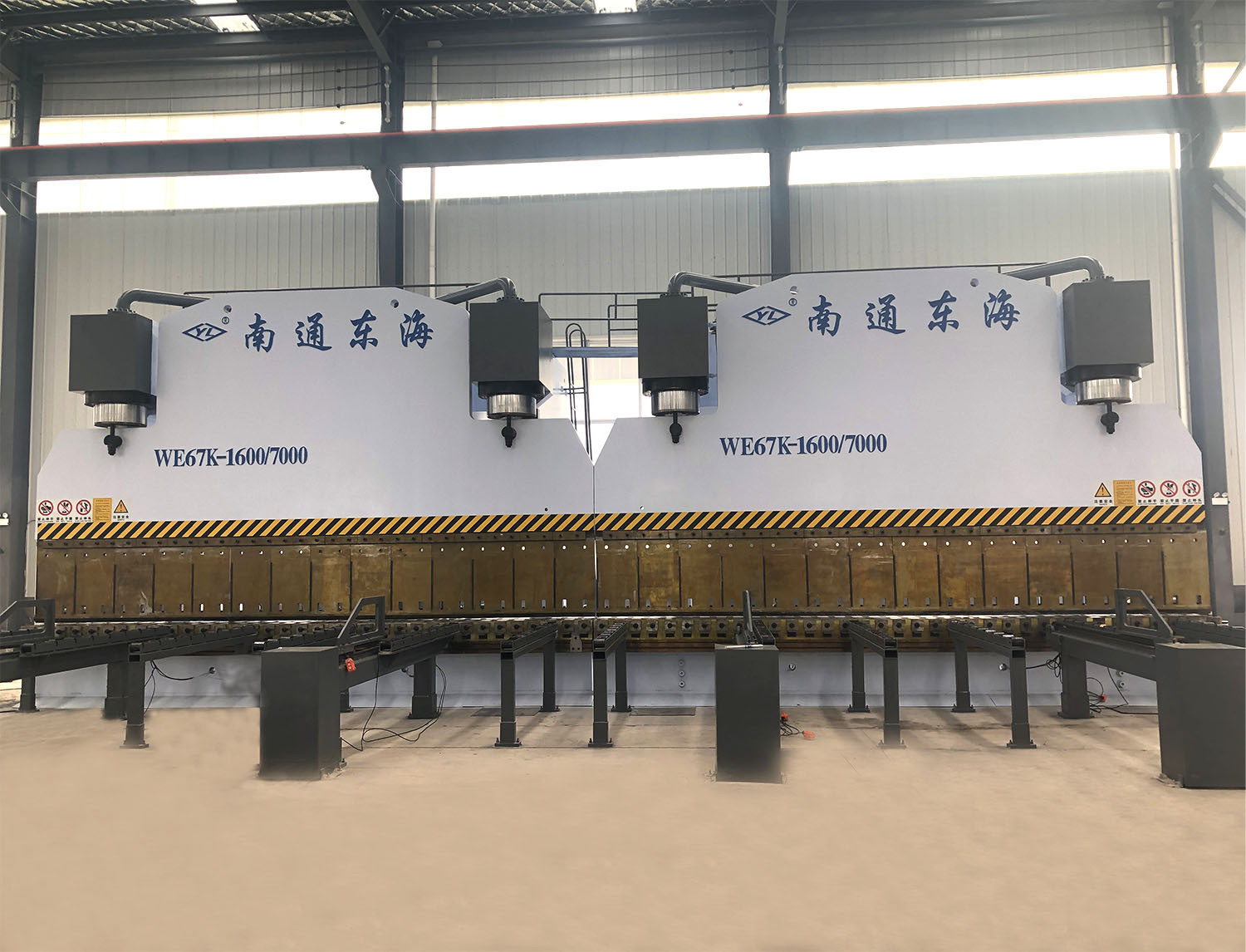

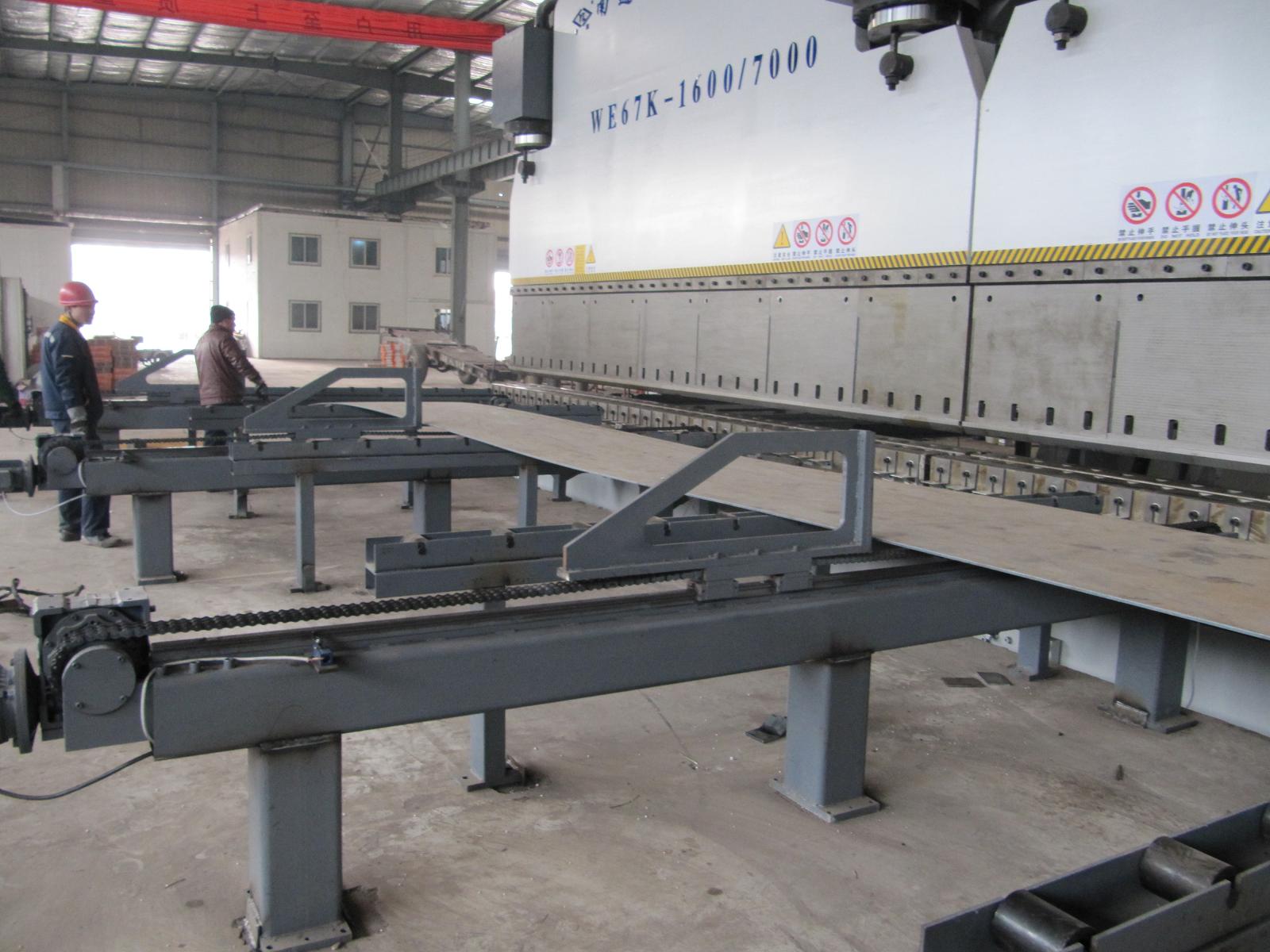

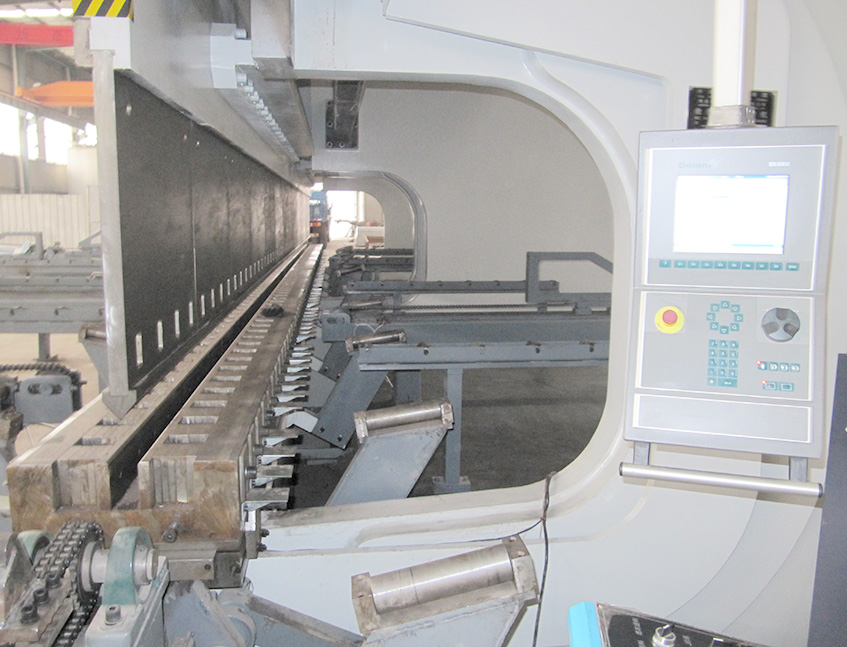

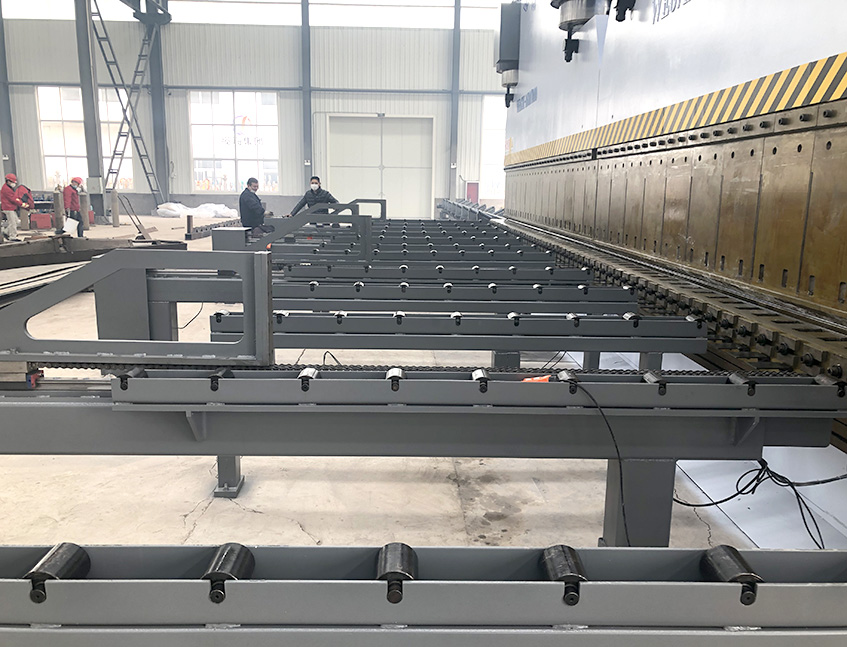

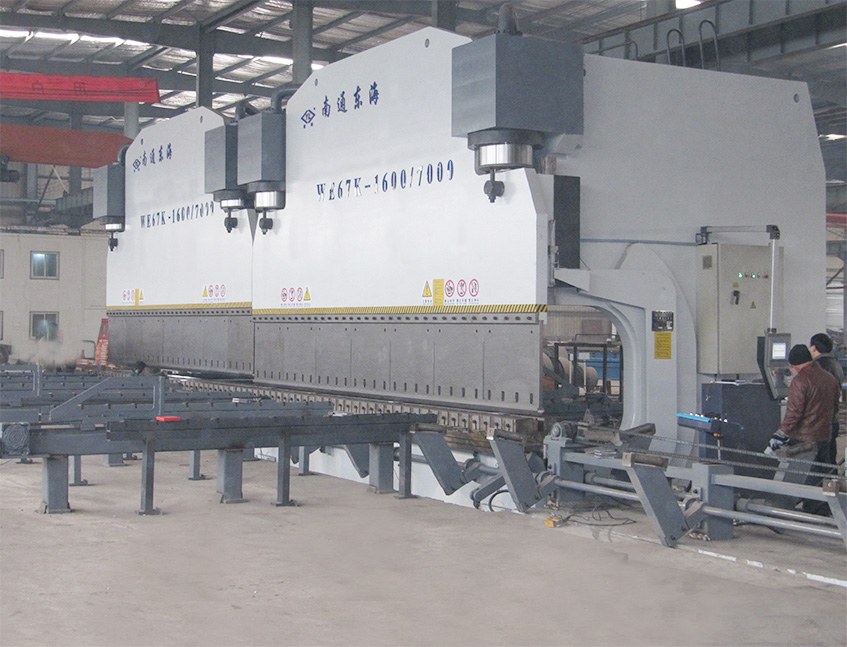

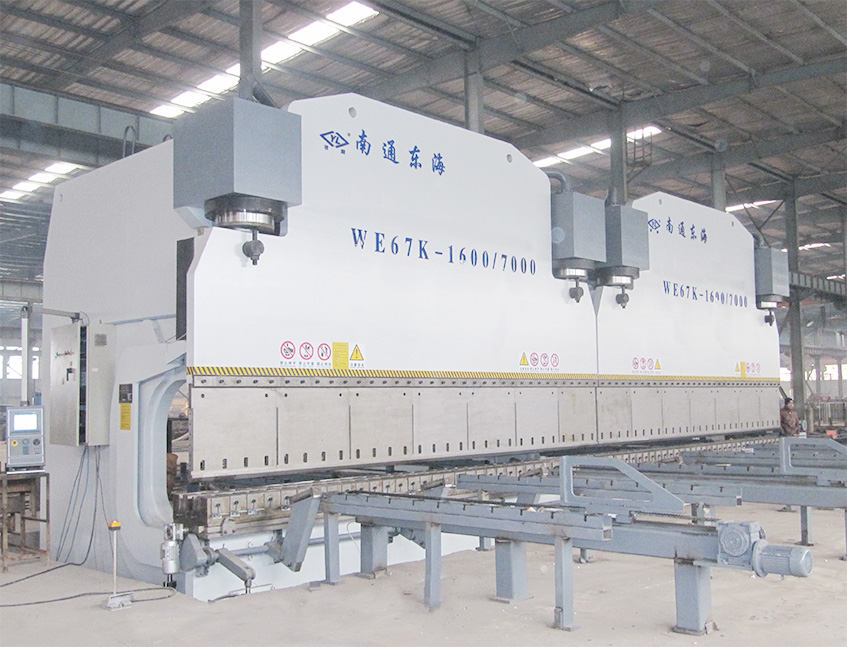

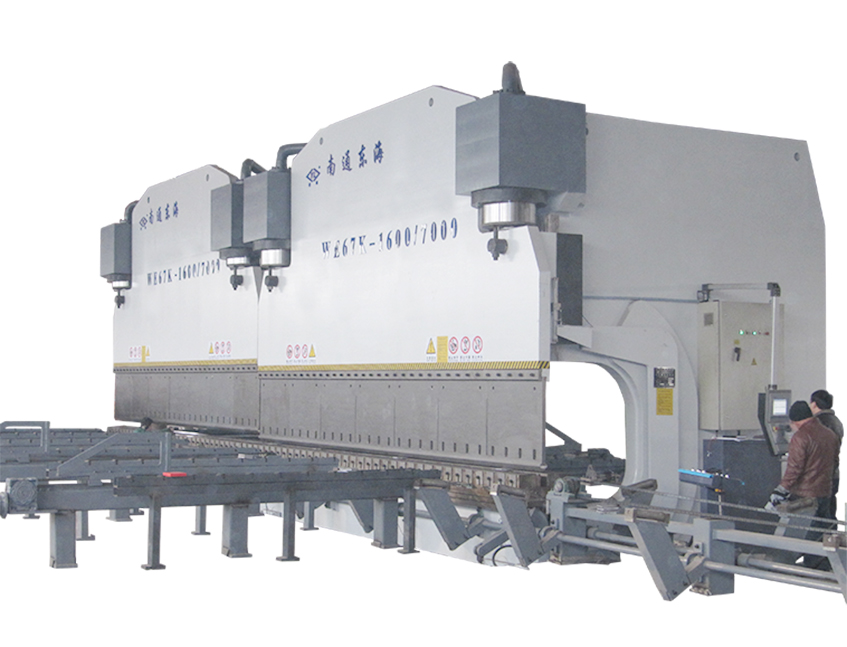

2xWE67K-1600T7000 CNC Press Brake in Tandem
Parameters:
|
Nominal force |
KN |
2x16000 |
|
|
Length of working table |
mm |
2x7000 |
|
|
Distance between uprights |
mm |
5600 |
|
|
Throat depth |
mm |
1300 |
|
|
Max. daylight |
mm |
1300 |
|
|
Main motor power |
KW |
2x2x55 |
Optional |
|
Main oil pump |
L/min |
2x2x100 |
Optional |
|
Approaching speed |
mm/s |
70 |
|
|
Bending speed |
mm/s |
7 |
|
|
Returning speed: |
mm/s |
70 |
|
|
Length |
mm |
2x6300 |
Without the side unloading system |
|
Width |
mm |
4500 |
Without the front feeding system |
|
Height(over land) |
mm |
5900 |
|
Features:

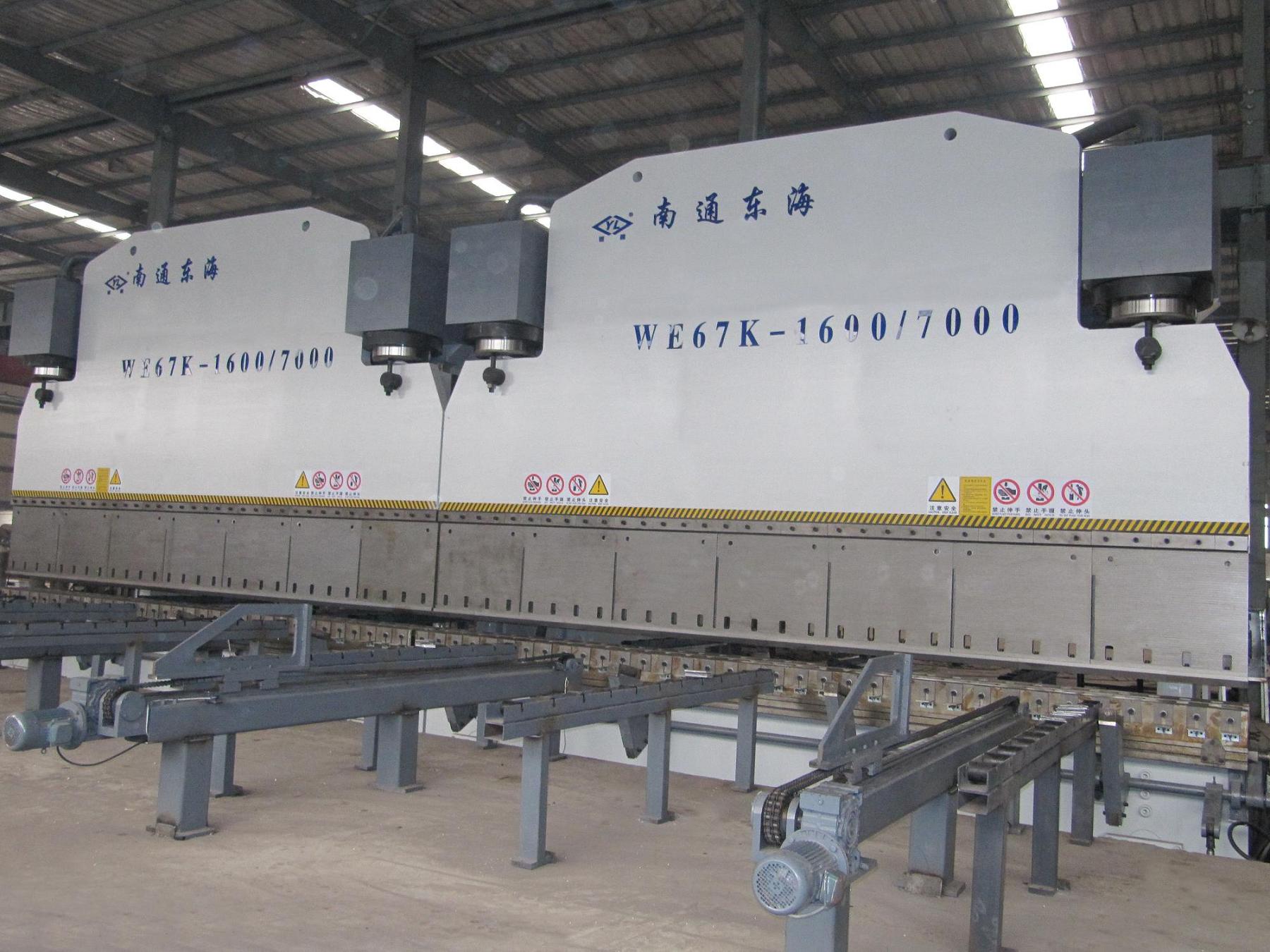

-- two CNC press brakes in tandem
-- suite bend long size plate till 14 meters

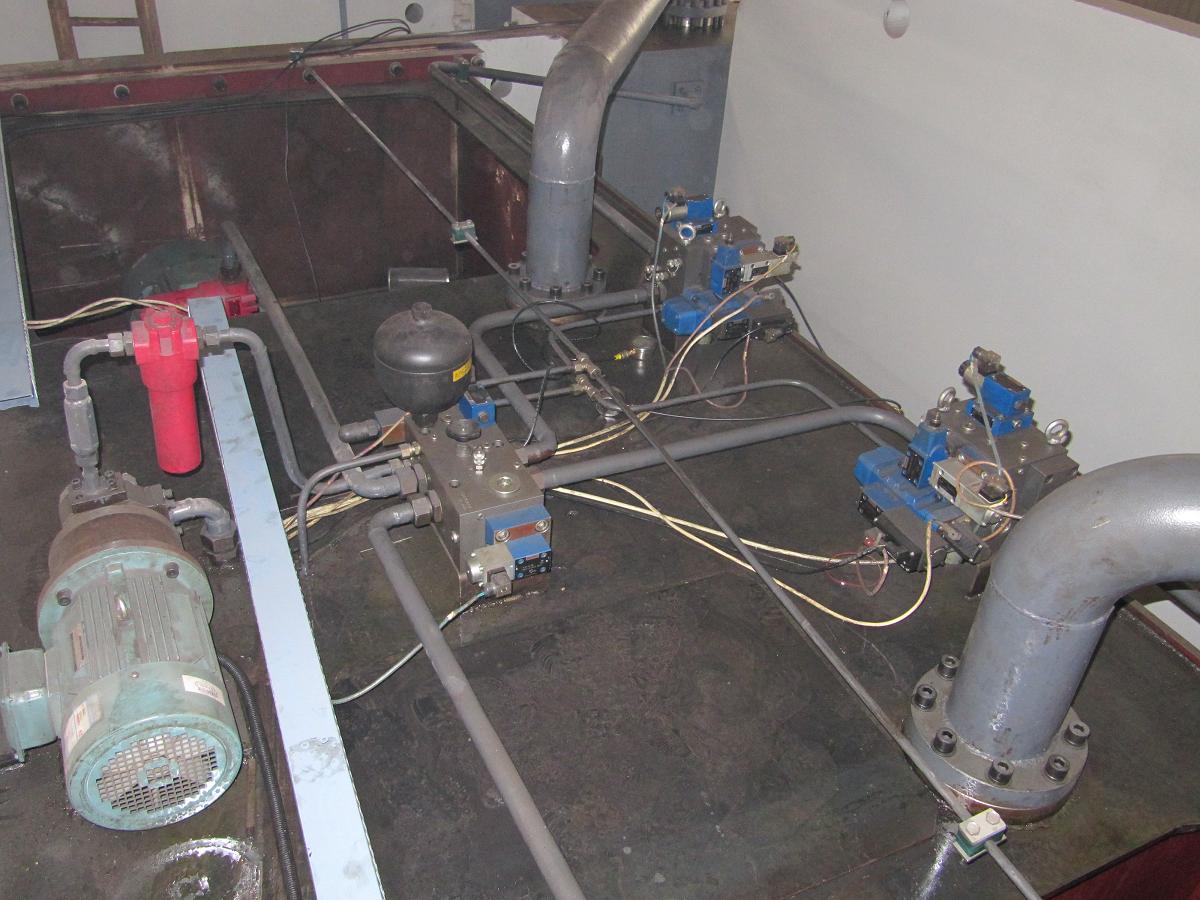

--REXROTH highly precise proportional valve to control accurate beam movement
-- accurate & fine beam position control by micro limit switch
--hydraulic cylinder with twin type sealing low & high pressure and hard chrome
--CNC controlled mechanical pulling-rod anti-crowing device(V)
-- Variable-V die
--Fixed adapter + variable punching tool
--Highly Precise proportional valve to control accurate beam movement

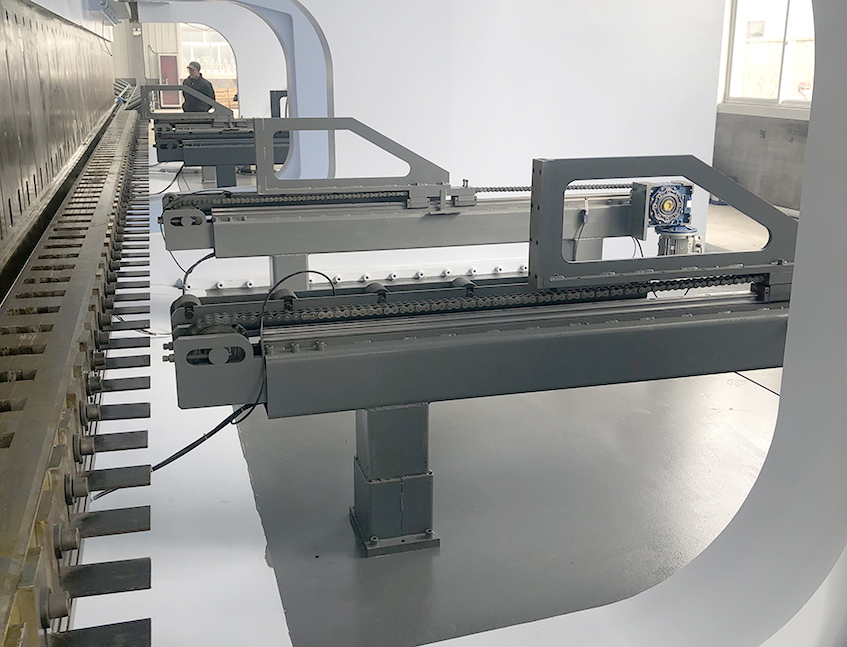

--Back gauge consist of hardened & ground ball screw
