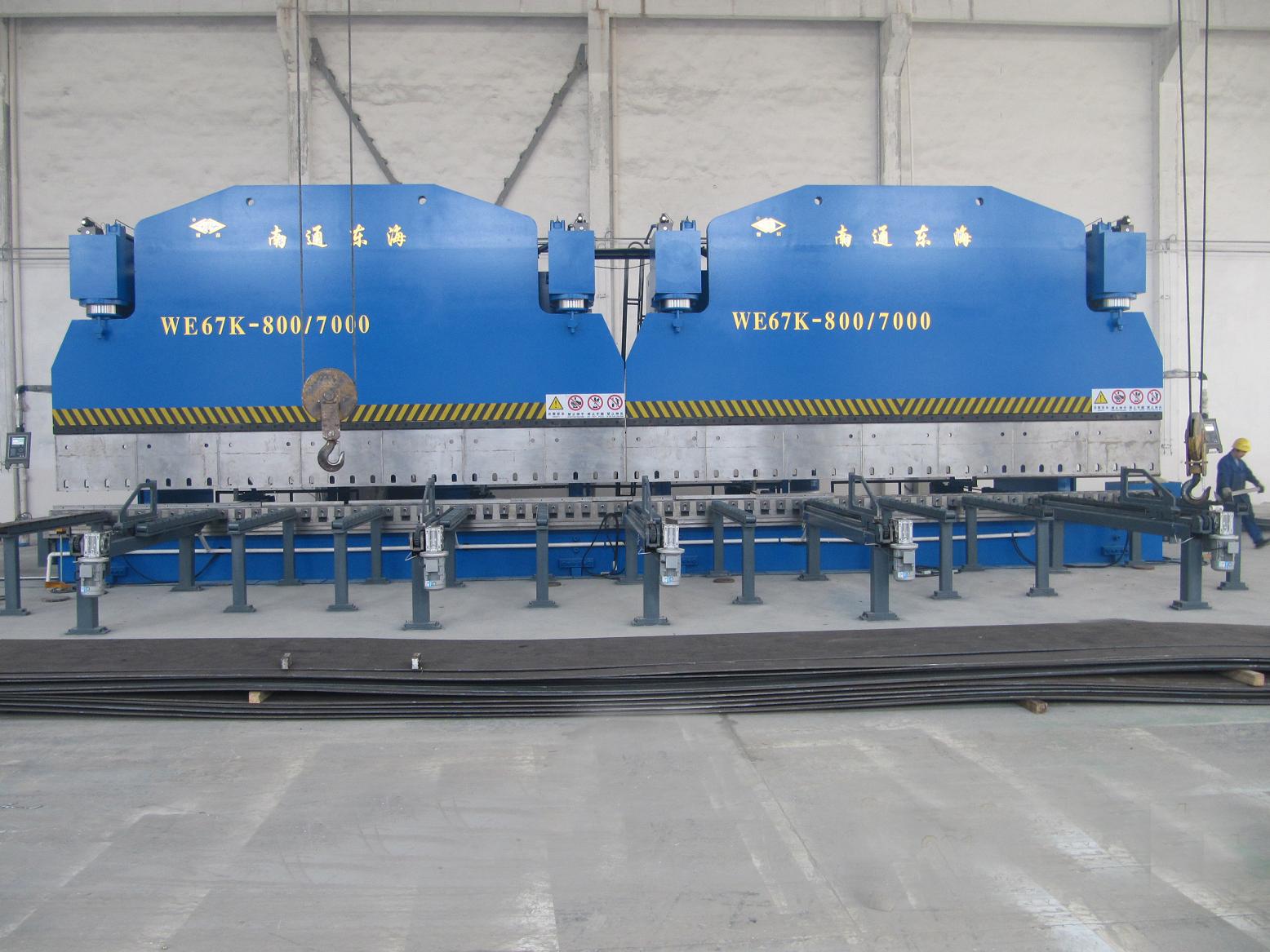

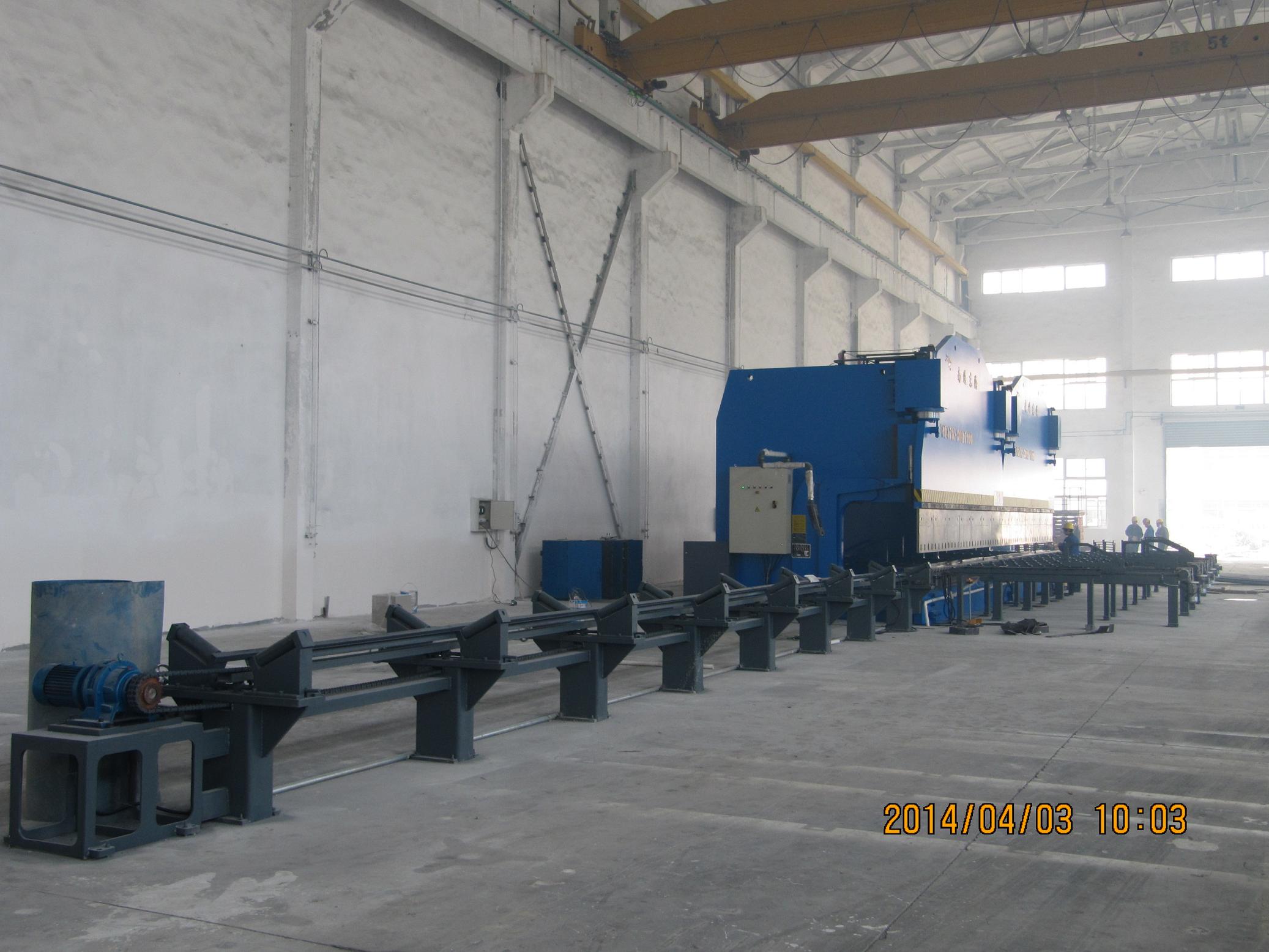

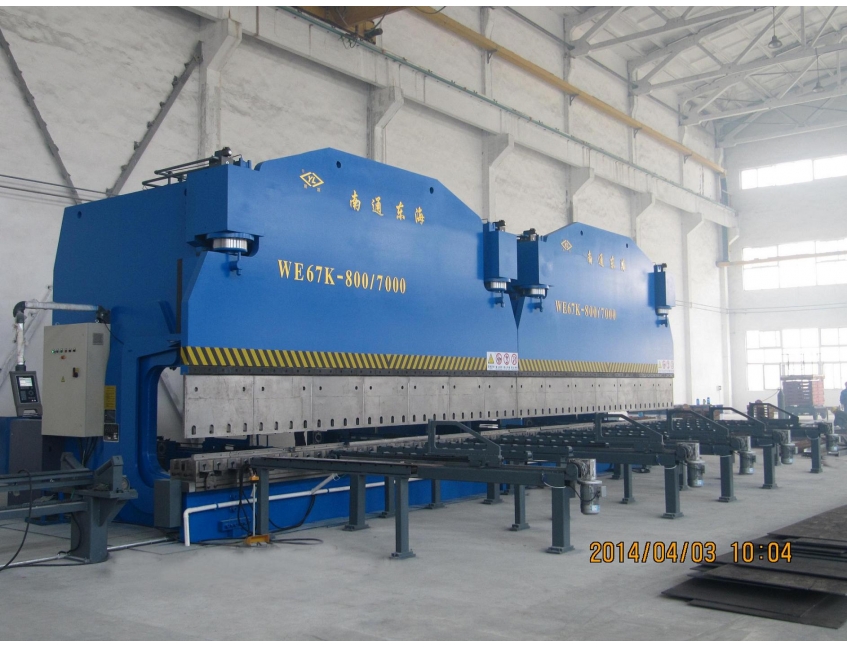

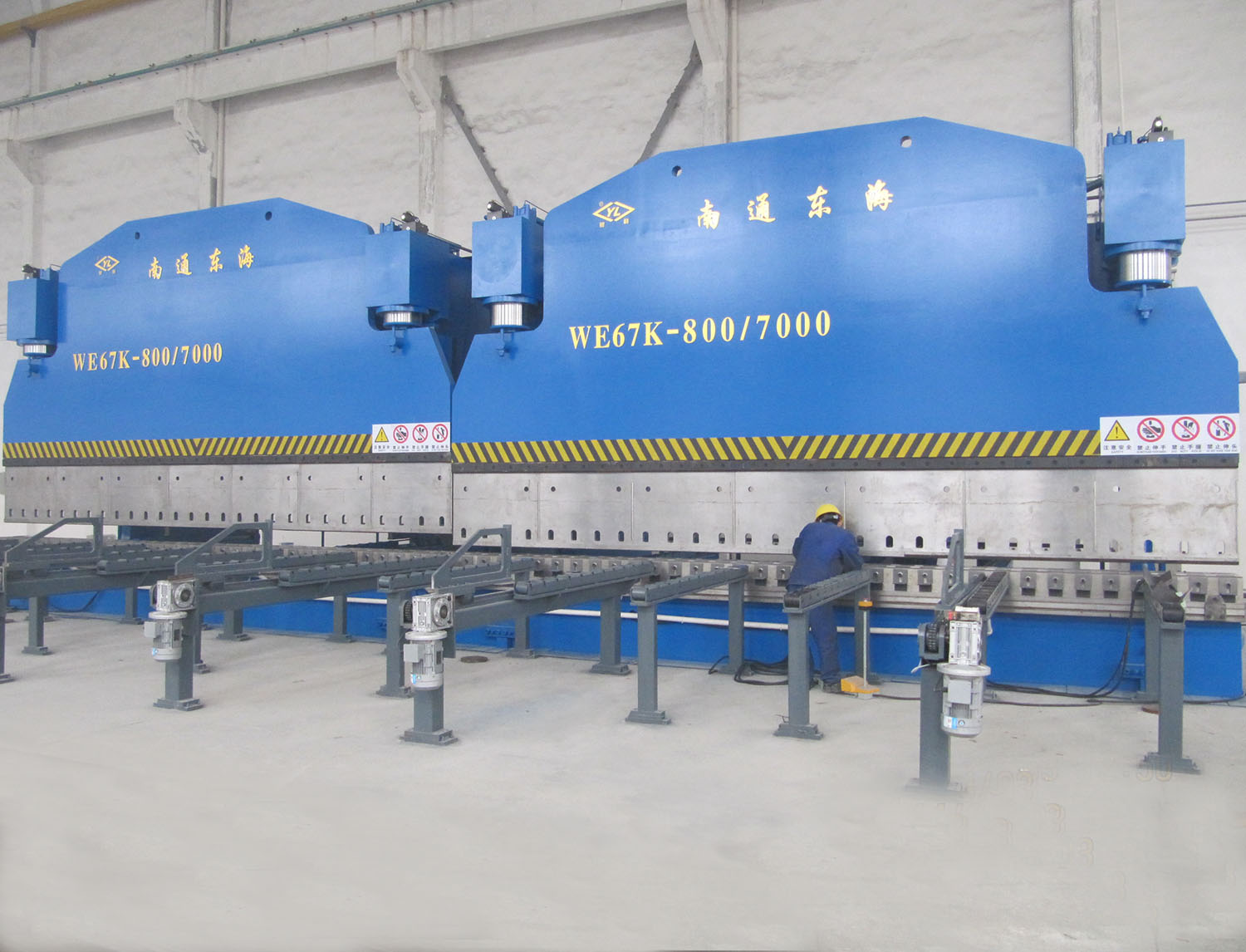

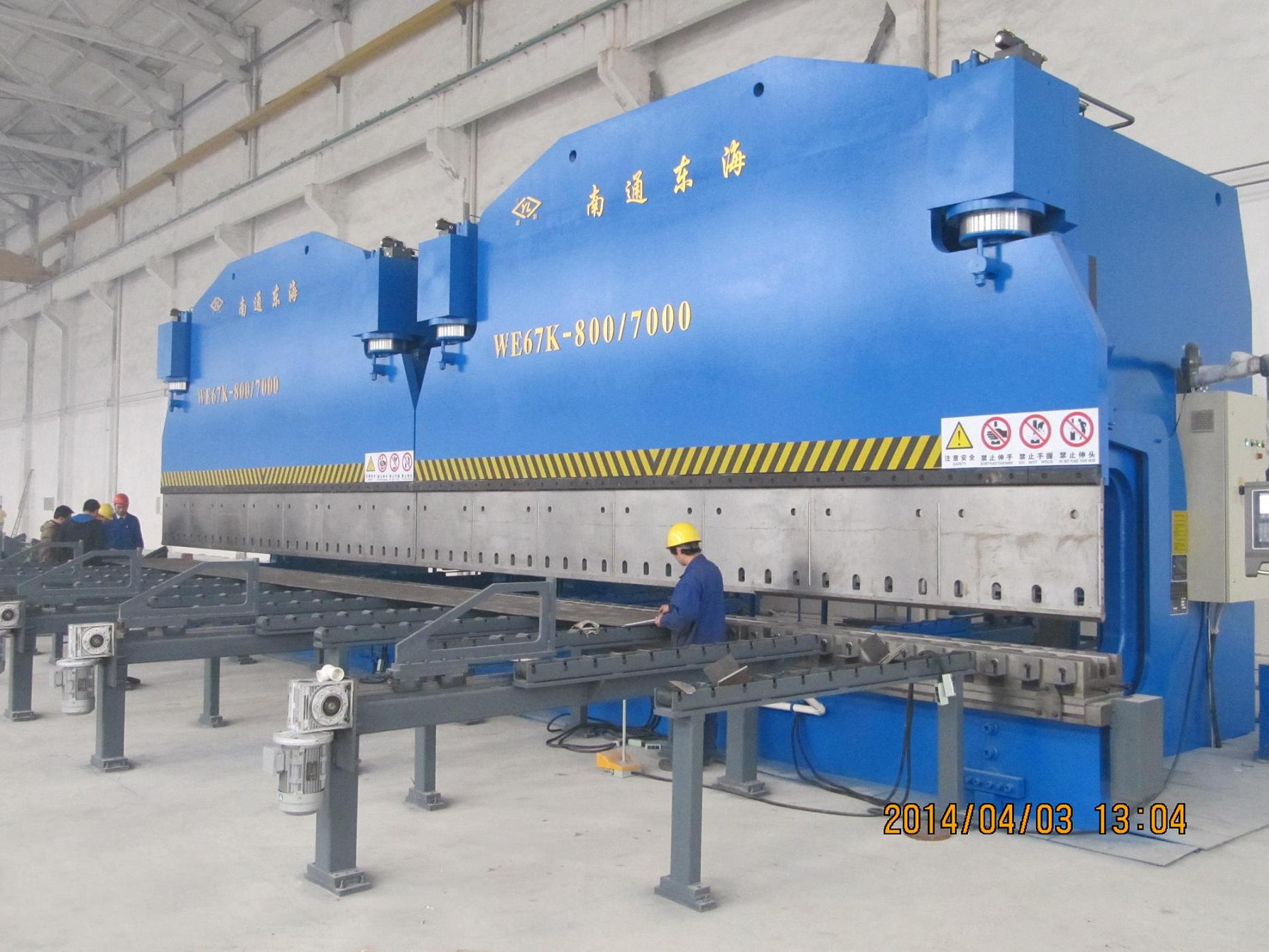

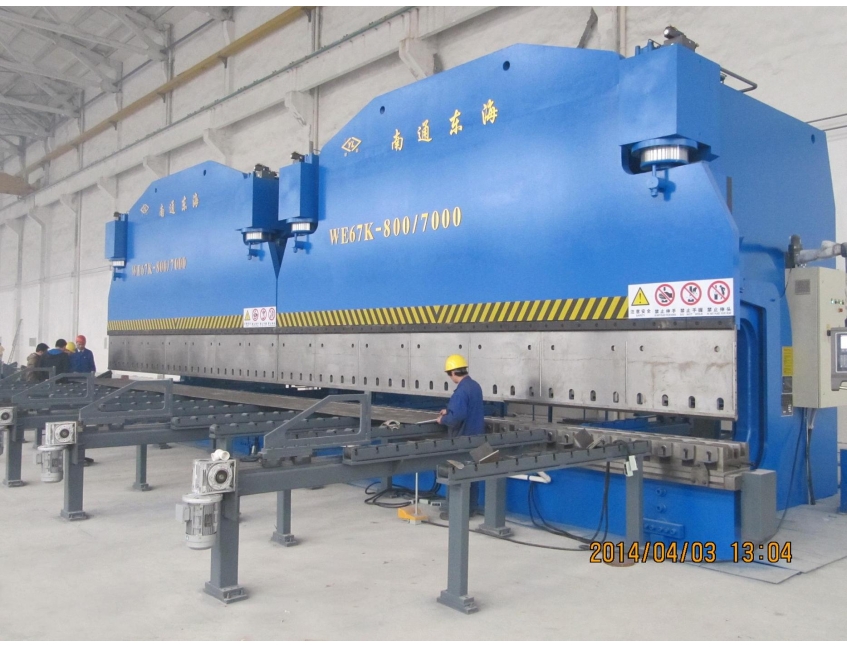

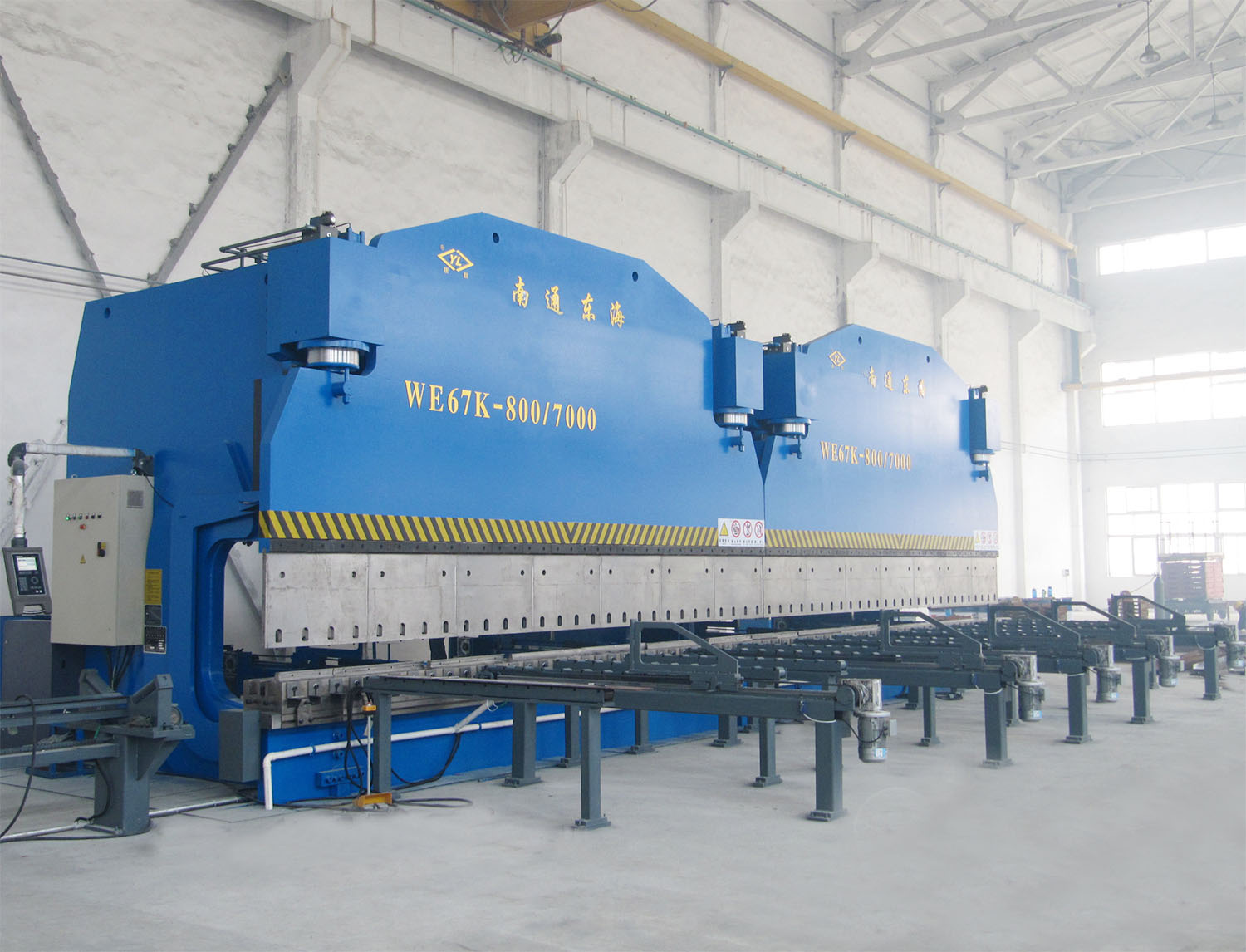

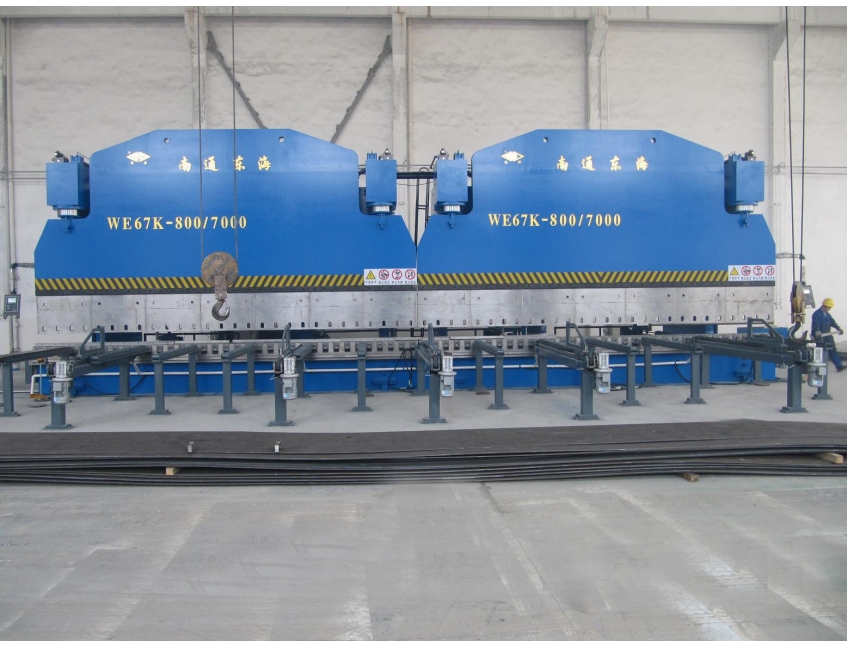

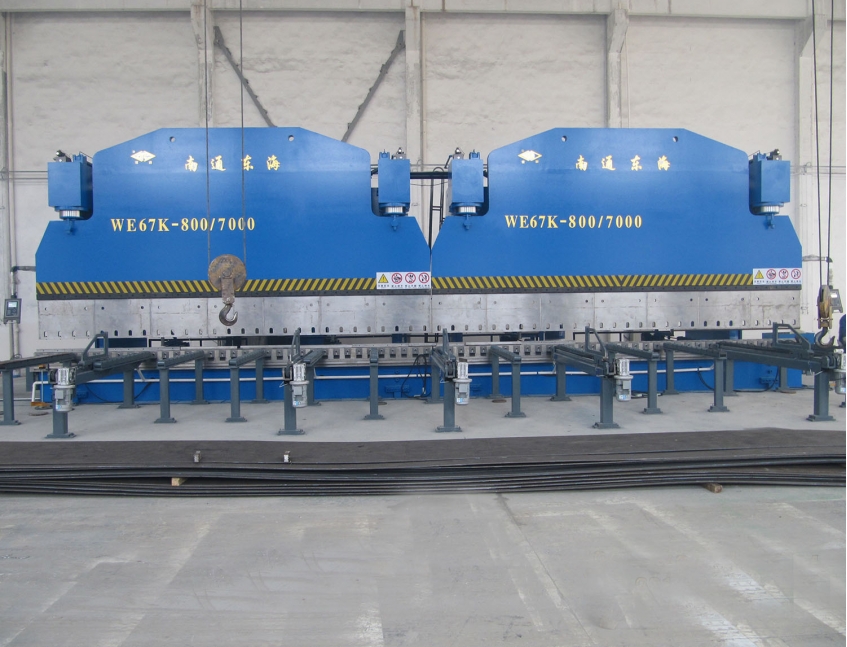

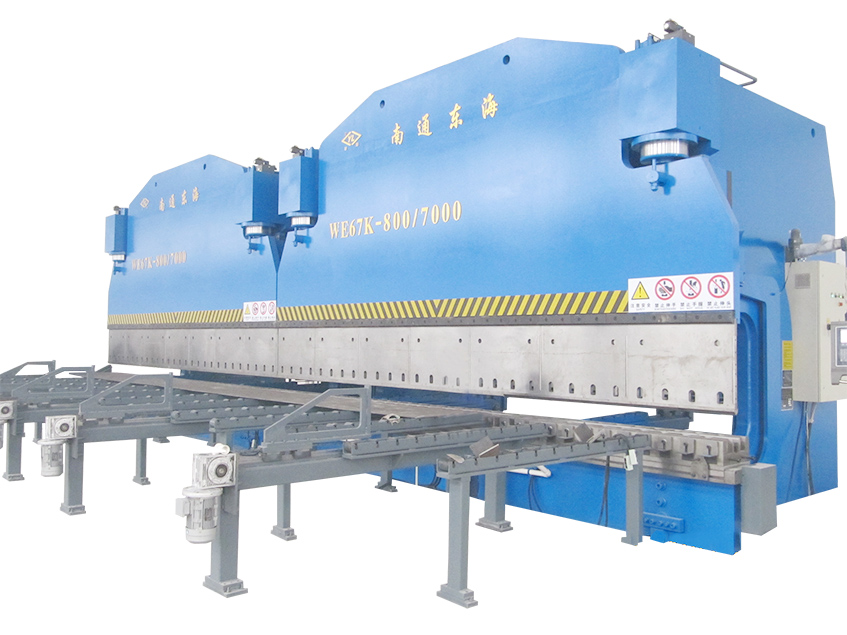

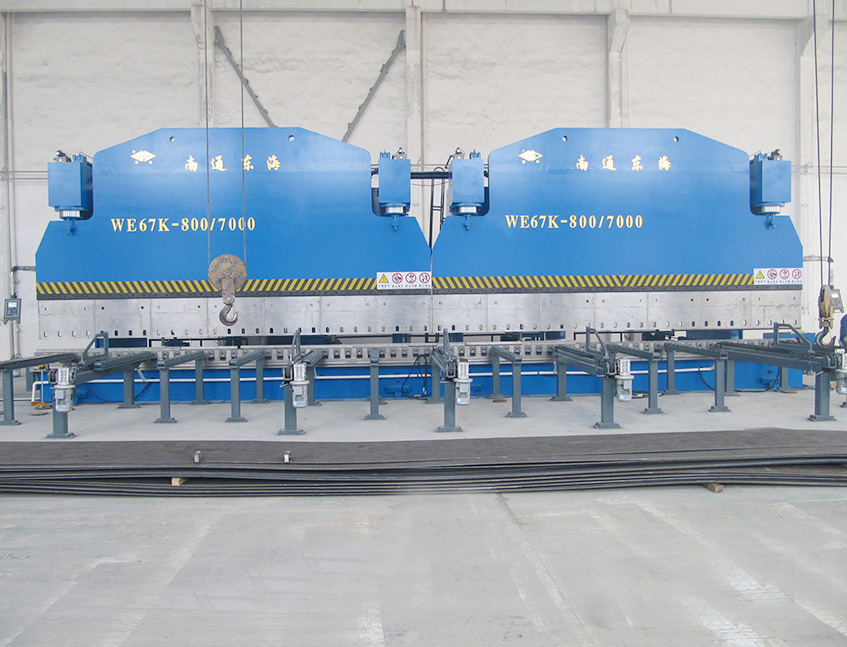

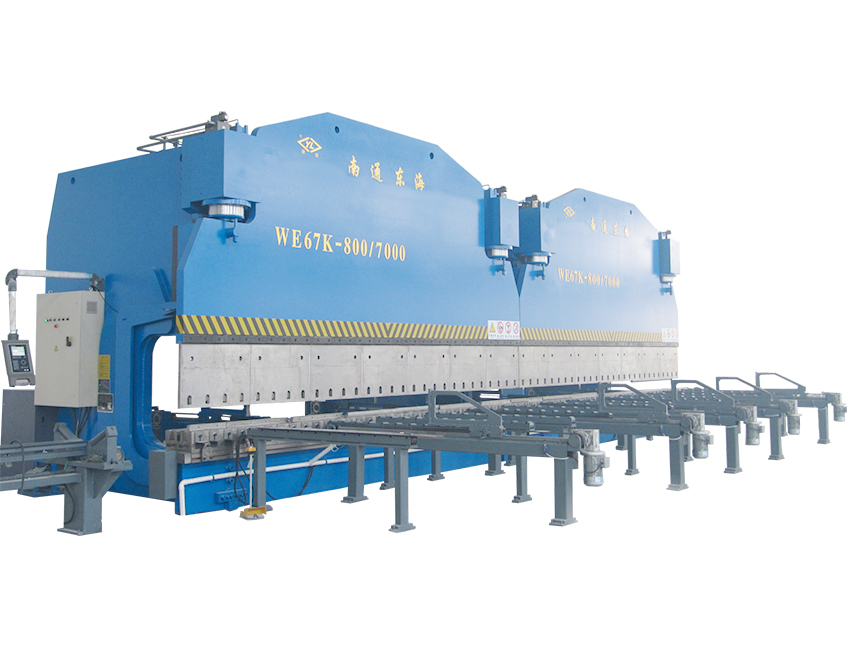

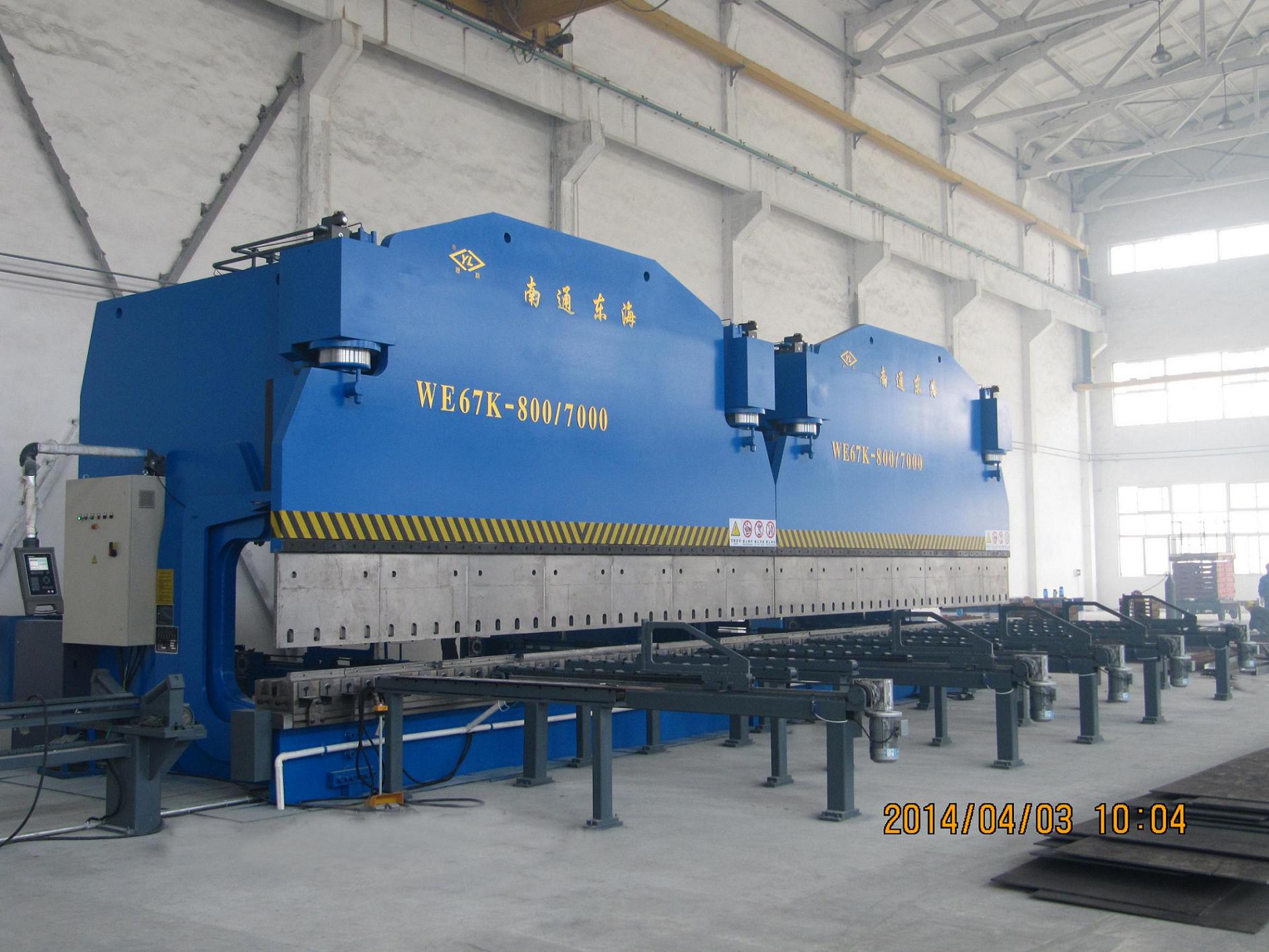

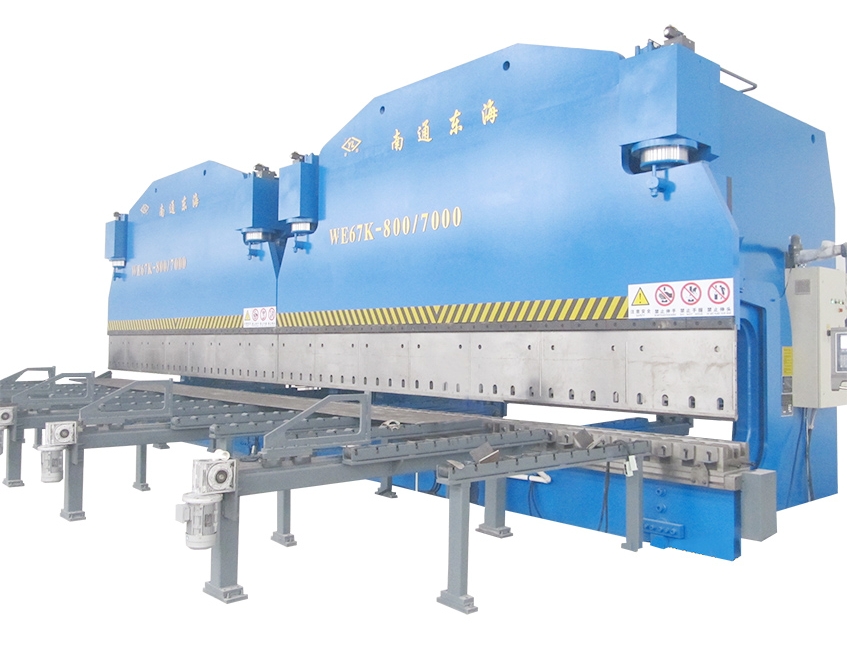

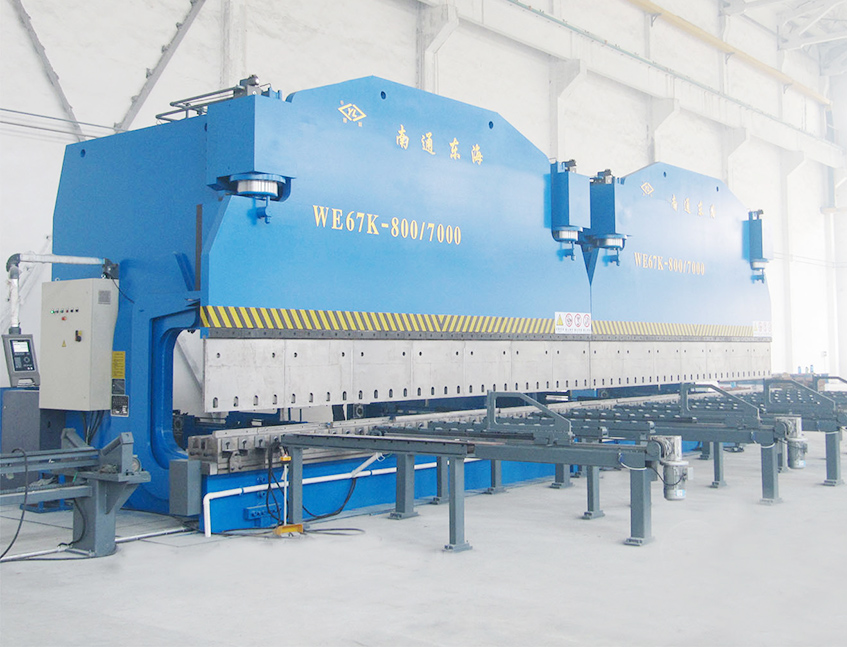

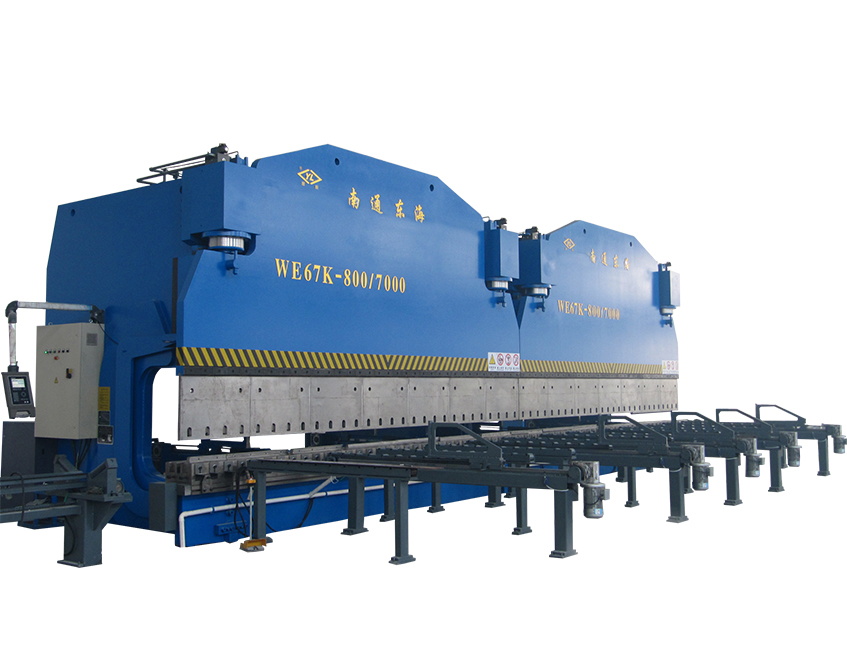

2xWE67K-800T7000 CNC Press Brake in Tandem
Parameters
|
Nominal force |
KN |
2x8000 |
|
|
Length of working table |
mm |
2x7000 |
|
|
Distance between uprights |
mm |
5600 |
|
|
Throat depth |
mm |
1300 |
optional |
|
Max. daylight |
mm |
1300 |
optional |
|

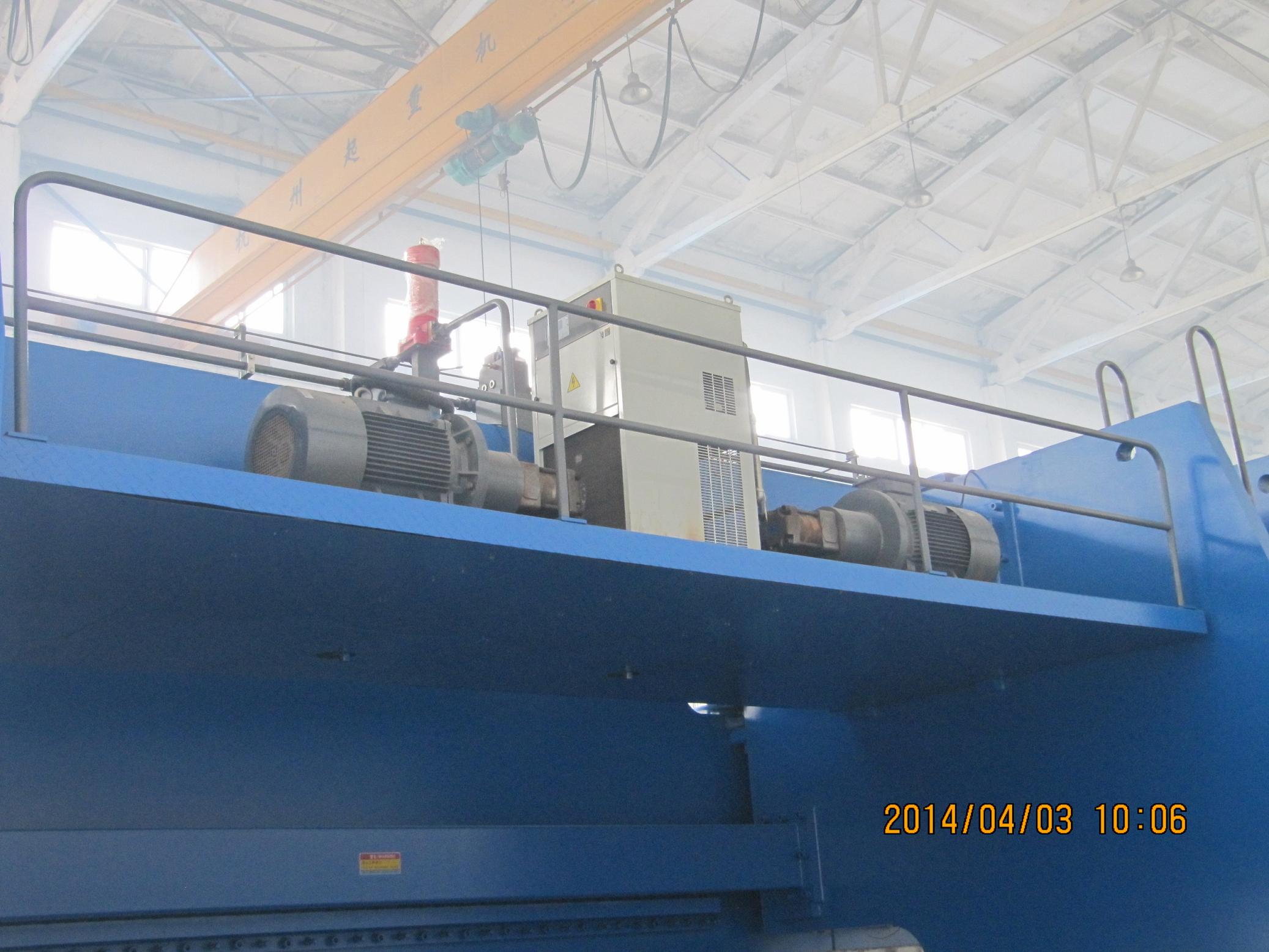

Main motor power |
KW |
2x2x37 |
|
|
Main oil pump |
L/min |
2x2x50 |
|
|
Approaching speed |
mm/s |
70 |
|
|
Bending speed |
mm/s |
7 |
|
|
Returning speed: |
mm/s |
70 |
|
|
Length |
mm |
2x7200 |
Without the side unloading system |
|
Width |
mm |
3500 |
Without the front feeding system |
|
Height(over land) |
mm |
5000 |
|
Features:

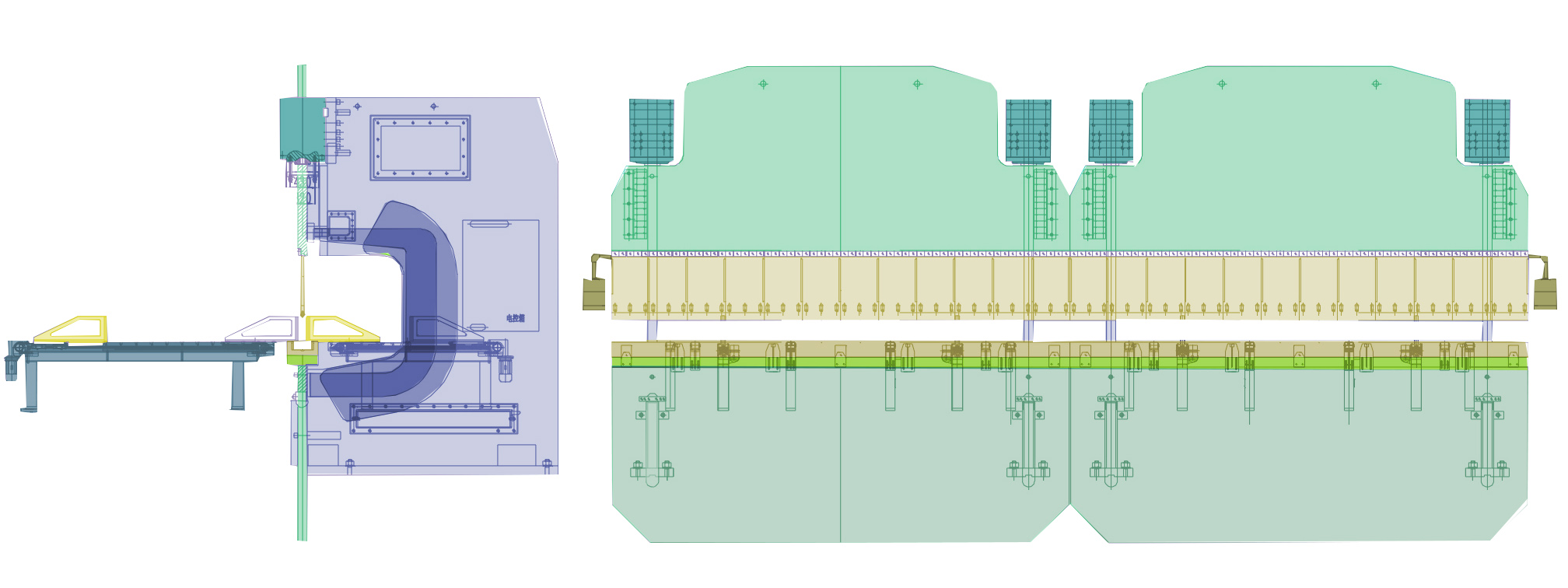

-- two CNC press brakes in tandem
-- suite bend long size plate till 14 meters
--REXROTH highly precise proportional valve to control accurate beam movement
-- accurate & fine beam position control by micro limit switch
--hydraulic cylinder with twin type sealing low & high pressure and hard chrome
--CNC controlled mechanical pulling-rod anti-crowing device(V)

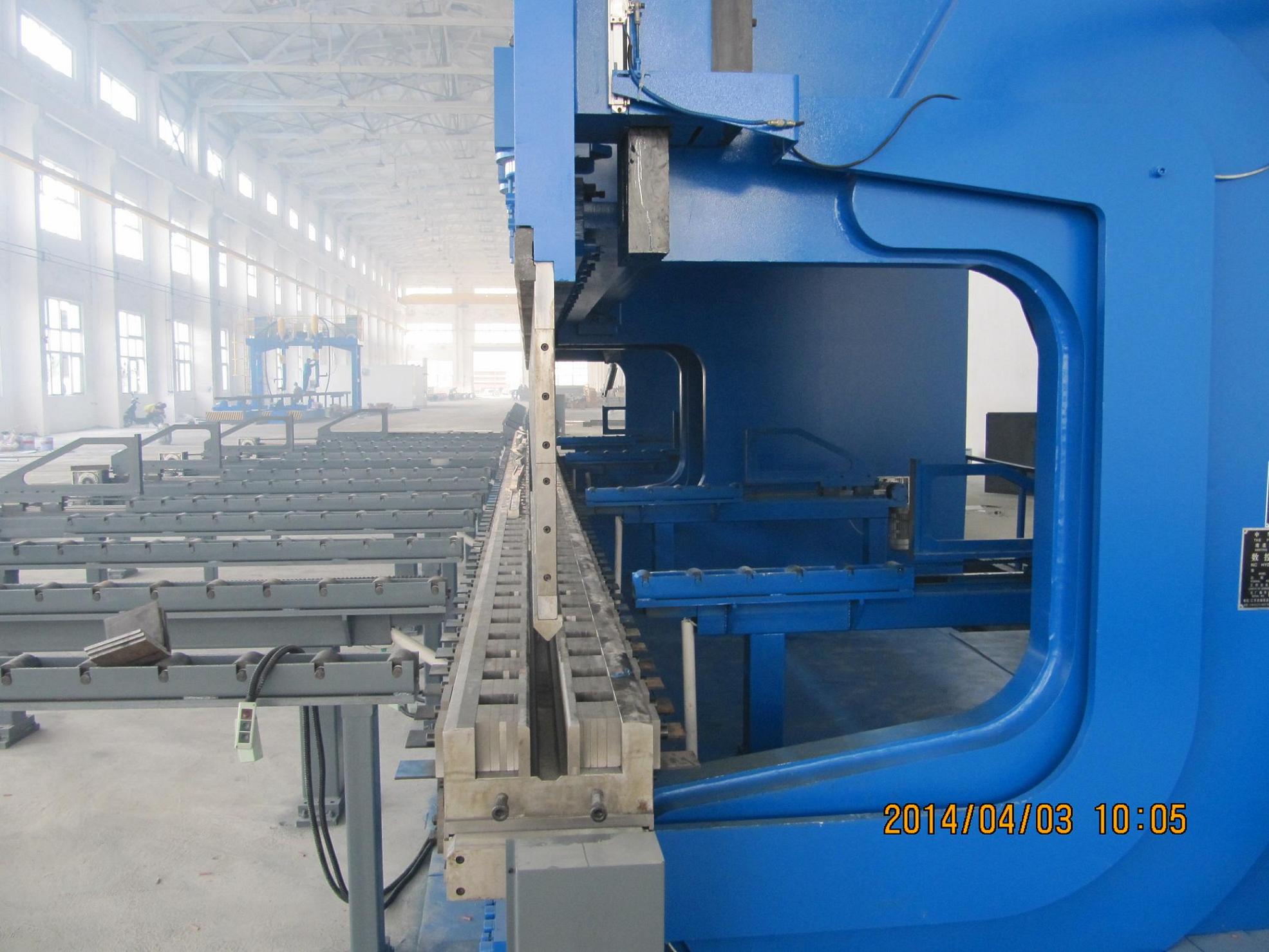

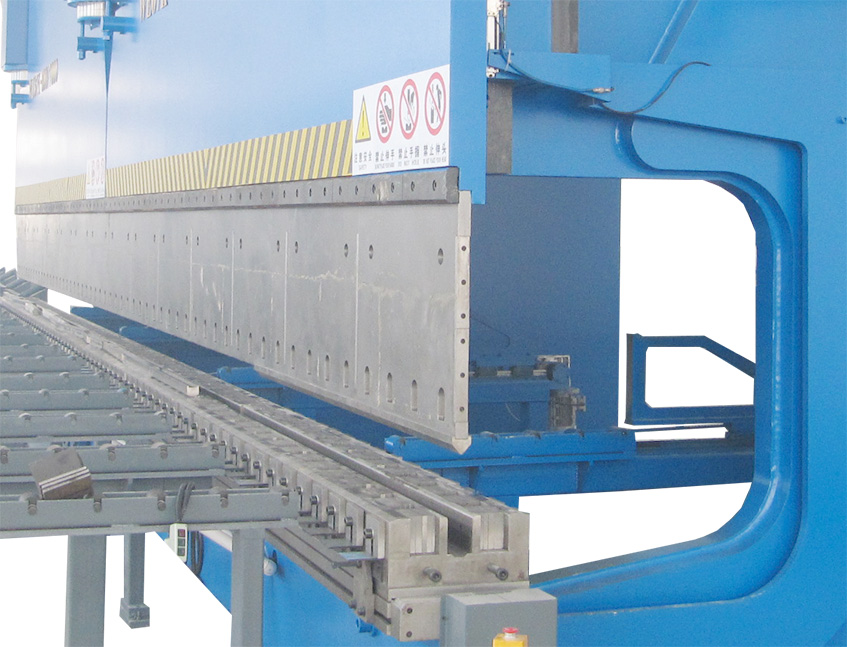

-- Variable-V die
--Fixed adapter + variable punching tool
--Highly Precise proportional valve to control accurate beam movement
--Back gauge consist of hardened & ground ball screw
