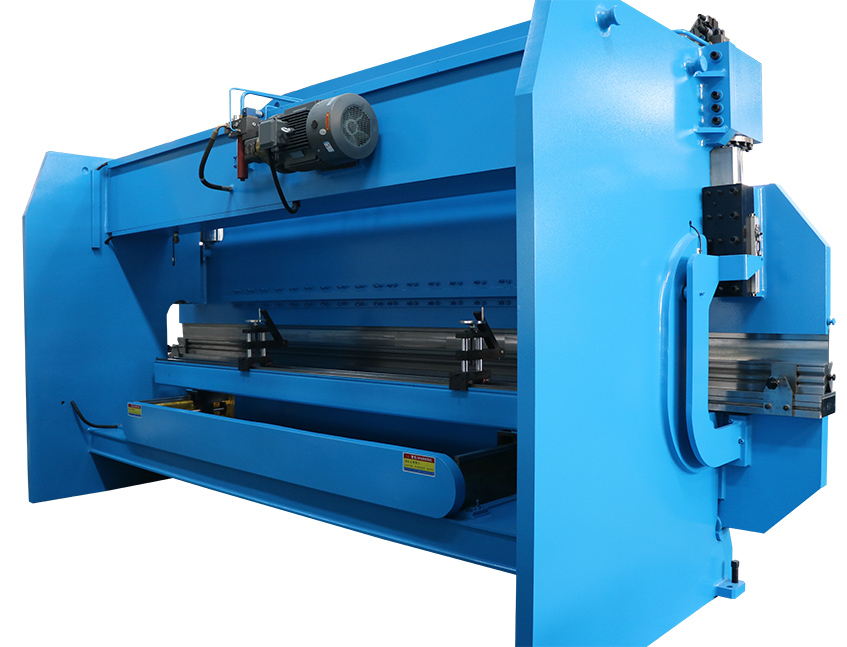

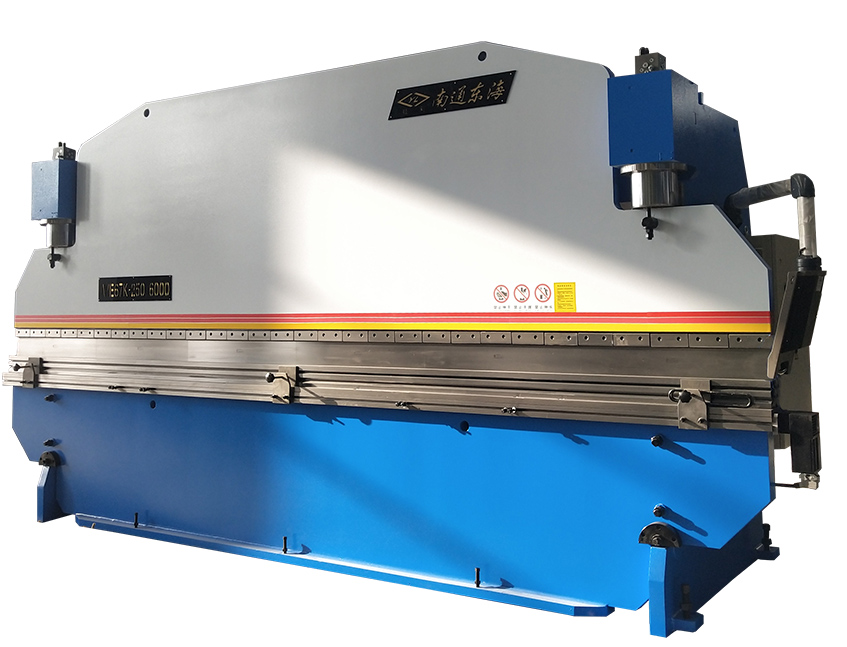

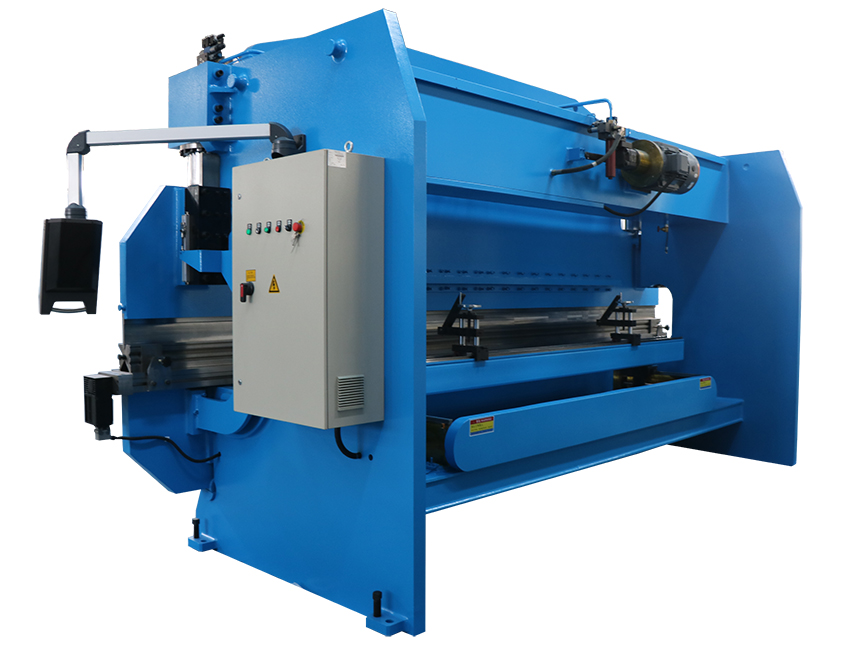

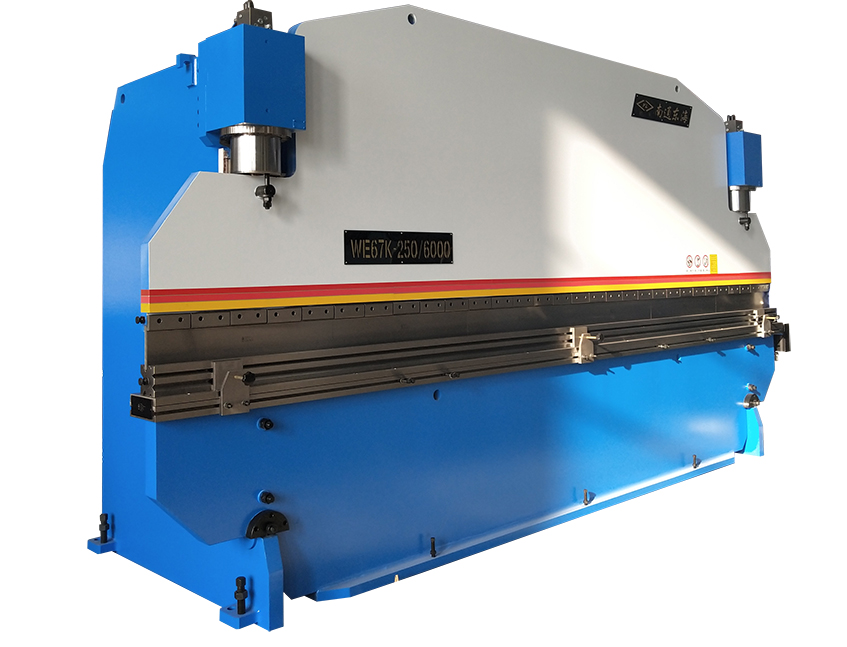

WE67K-250/6000  CNC Press brake

250T6000 CNC press brake

Parameters

1

Nominal pressure

2500

KN

2

Bending width

6000

mm

3

Distance between uprights

4800

mm

4

Stroke

200

mm

5

Max. daylight

435

mm

6

Throat depth

320

mm

7

Working table length

6000

mm

8

Approaching speed

70

mm/s

9

Bending speed

7

mm/s

10

Returning speed

60

mm/s

11

Main motor power

18.5

KW

12

Oil pump

32

mr/r

13

Back gauge range

600

mm

14

Machine length

6200

mm

15

Machine width

1850

mm

16

Machine height

3360

mm

17

CNC axis

Y1-Y2-X+V



Features

highly productive, accurate, and economical.

close loop proportional hydraulics for beam synchronization

BOSCH-REXROTH highly precise proportional valve to control accurate beam movement

High alloy back gauge, with high rigidity in light heavy

accurate & fine beam position control by micro limit switch.

hydraulic cylinder with twin type sealing low & high pressure and hard chrome.

moving control panel with on/off controls, emergency push button &selector for inching,

three speeds shit automatically

▲the current position and set position of the Y1, Y2, X, are showed on the CNC controller LCD.

three types operation way: manual, semiautomatic and automatic

CNC controlled mechanical pulling-rod anti-crowing device(V)

HEIDENHAIN light encoder to avoid the deflection bending

DA52S CNC control system

liner motion bearings and AC servo drive for accurate position up to 0.05 mm.

Instruction of structure

--BOSCH-REXROTH Hydraulic Manifold Control Block



DA52S CNC controller

Back gauge( X axis)

Automatic crowing table

Punch & die

Optional of punch & die


Main components

1

Main electric components

 SIEMENS & Schneider or OMRON

2

Main motor

 SIEMENS BEIDE

3

Oil pump

 SUNNY

4

Valve

 BOSCH-REXROTH

5

Seal

 Parker

6

CNC controller

 DELEM—DA-52S

7

Synchronous control

DELEM

8

Light encoder

 HEIDENHAIN

9

 Linder guider

 ABBA

10

 Ball screw

 ABBA

11

 Servo driver

 ESTUN

CNC press brake, hydraulic press brake, plate bending machine, hydraulic bender, bending machine, electric-hydraulic synchronous, Y1-Y2-X axis,PRESS BRAKE
