Q35Y -20 Hydraulic Ironworker

The Q35Y series hydraulic ironworker is kind of machine that used to cutting, bending, punching, pressing, shearing, notching the steel plate.

This kind of ironworker is hydraulic drive, with two operation stations, with professional tool, this type of ironworker can processing the following material.

Angle steel, I-beam(IPN) ,U-beam(UPN),H-beam, steel plate, solid bar, pipe, tube

--Parameter

Model

Q35Y-20

Pressure(Ton)

90

Plate strength (N/mm2)

≤450

Sheet

shearing

Max. thickness

20x330

Max. length

10x480

Round bar cutting (mm)

Ø50

Square bar cutting (mm)

50x50

Angle steel cutting (mm)

140x12

IPN cutting (mm)

160x74

UPN cutting (mm)

160x74



Notching

(mm)

thickness

10

width

80

depth

100



Hole

Punching

(mm)

thickness

20

diameter

30

throat

355

stroke range

80

strokes

8-22

Power of main motor( Kw)

5.5



Dimensions

(mm)

length

1860

width

900

height

1900

Weight kg)

2300

Oiling volume(46#)

80L

--Structure

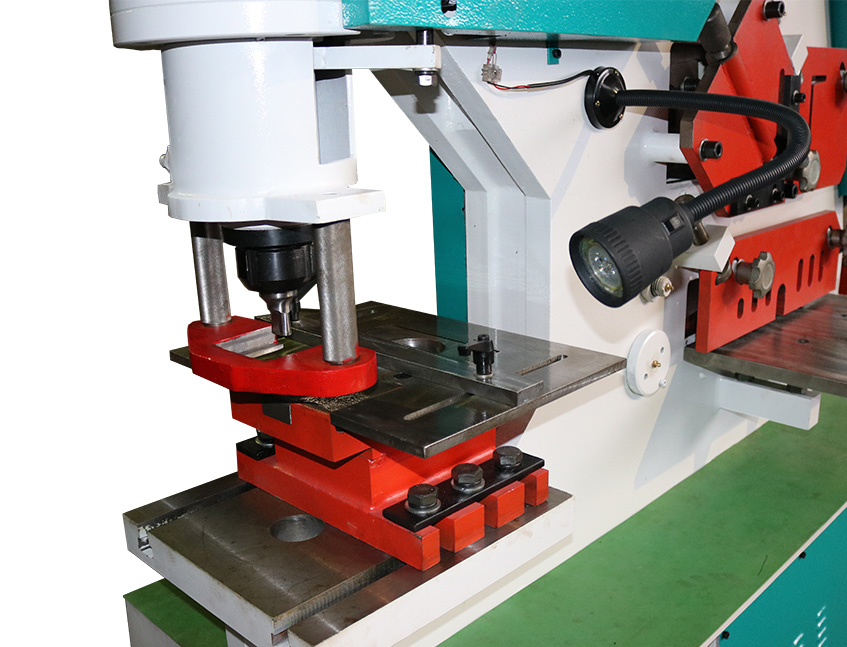

--Hole punching station

--Notching station

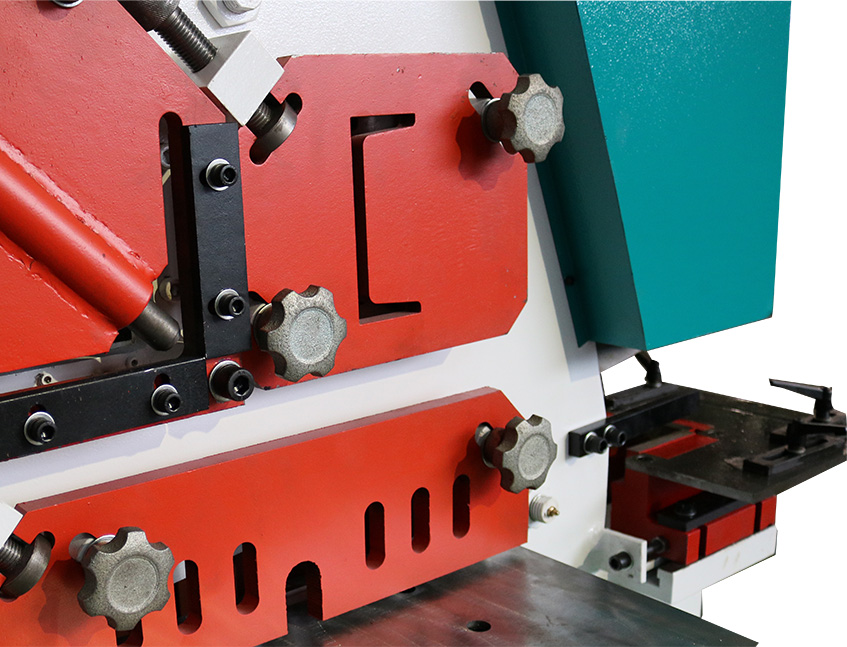

--Cutting station

--Sample



-------
