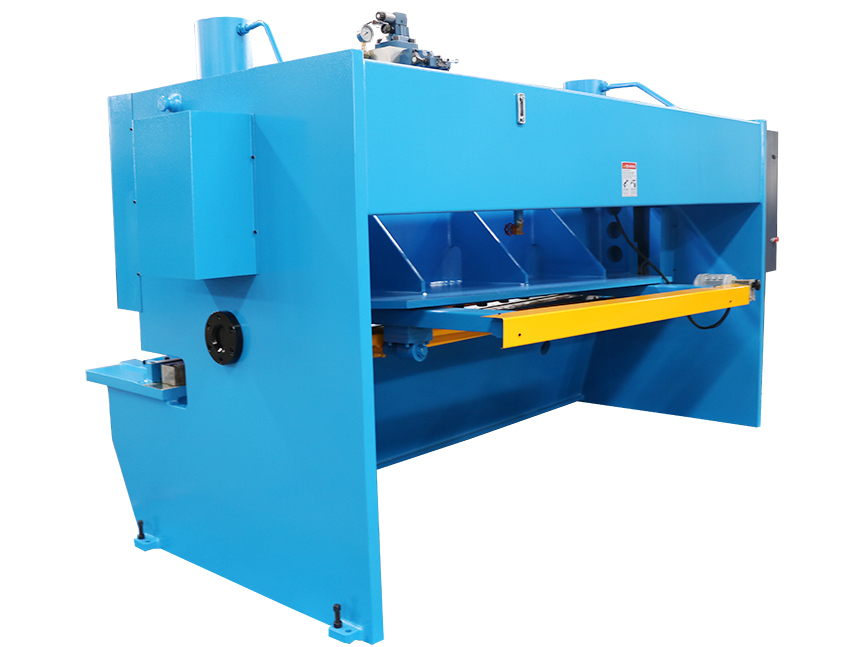

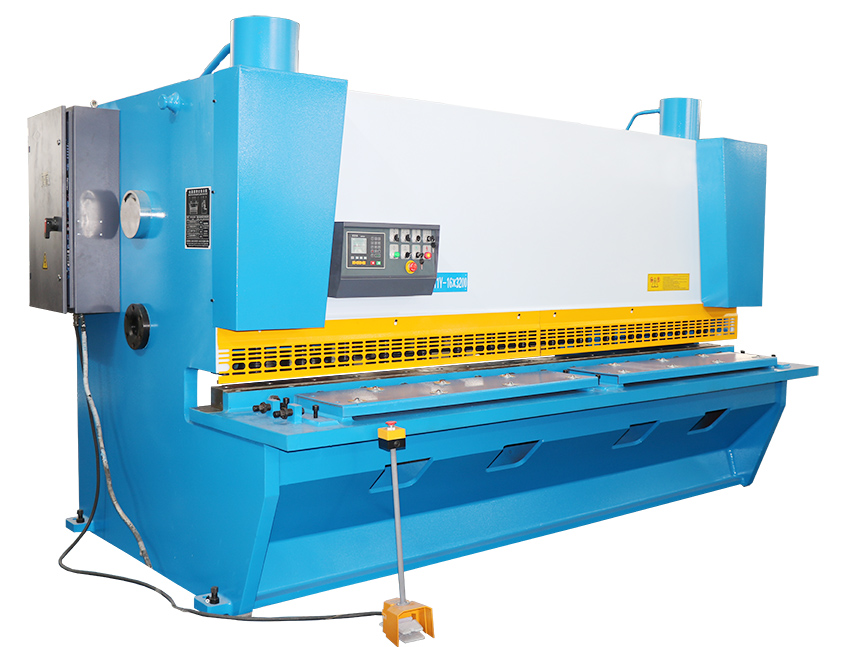

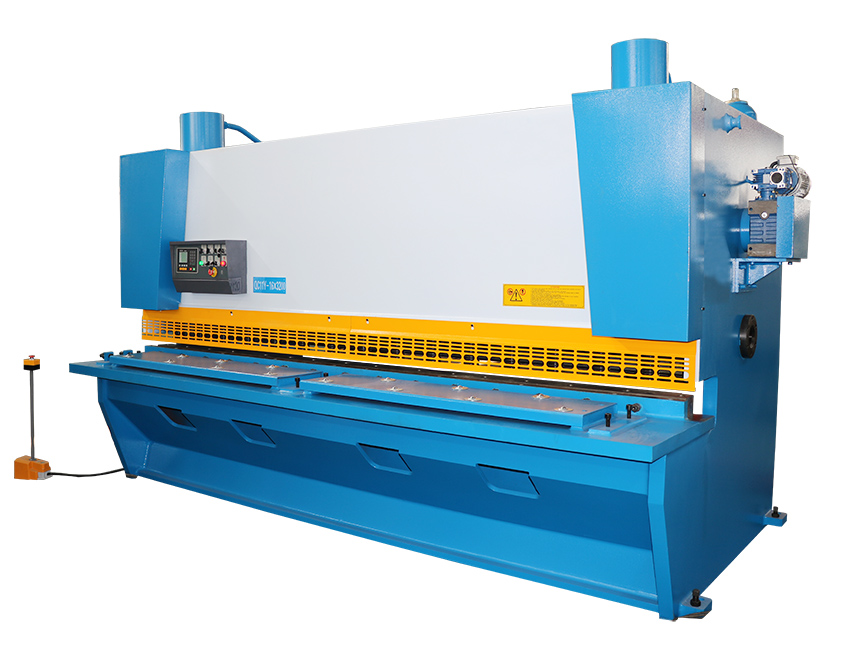

QC11Y-16x3200 Series Hydraulic Guillotine Shearing Machine
Parameters
|
Model(QC11Y) |
16x3200 |
|
Shearing thickness (mm) |
16 |
|
Shearing width (mm) |
3200 |
|
Cutting plate tensile strength N/mm² |
450 |
|
Shearing angle (°) |
0.5-2.5 |
|
Back gauge range (mm) |
20-800 |
|
Blade length (mm) |
3300 |
|
Throat depth (mm) |
80 |
|
Blade material |
6CrW2Si |
|
Main motor power (KW) |
22 |
|
Oil pump( L/min) |
50 |
|
Stroke (n/min) |
8-20 |
|
Length (mm) |
412 |
|
Width (mm) |
1980 |
|
Height (mm) |
2300 |
Features
--Guillotine beam design
--Variable shearing angle
--Squaring arm with steel rule for front gauging.
--Strokes can be controlled according different shearing length
--Four edge shearing blade
--E21S control system
