QC11Y-6x3200 Hydraulic Guillotine Shearing Machine
- Parameters
- Pictures
- You May Like
- Inquiry Now

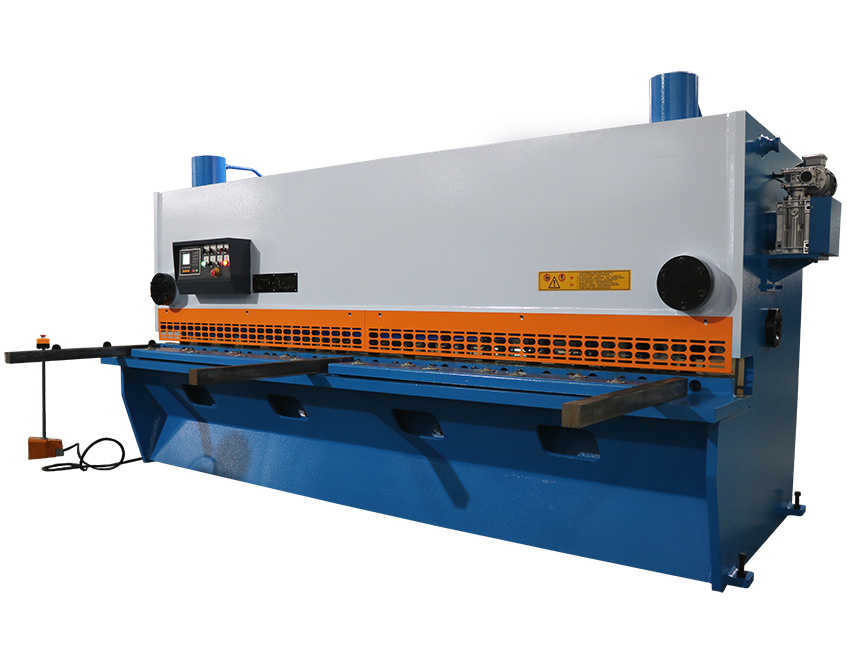

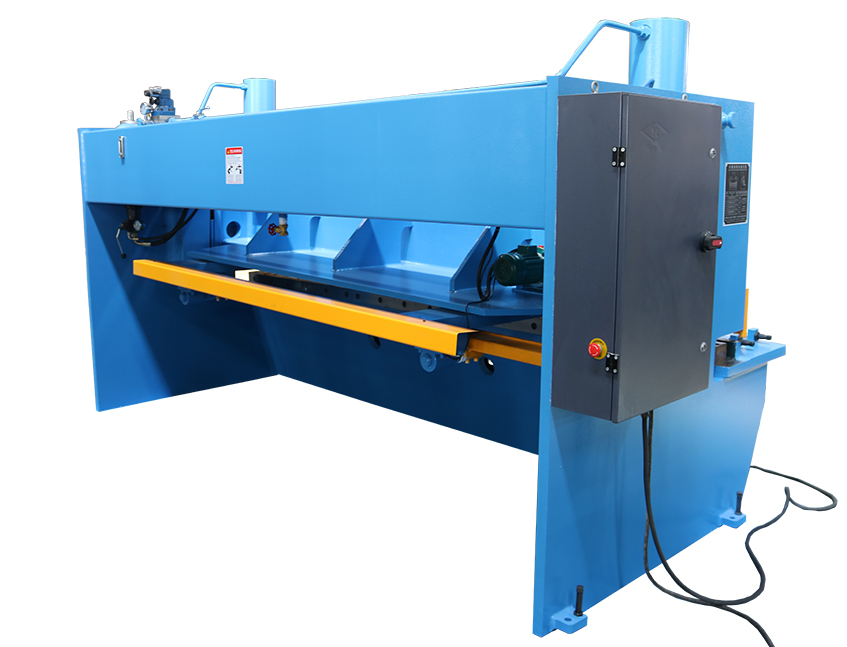

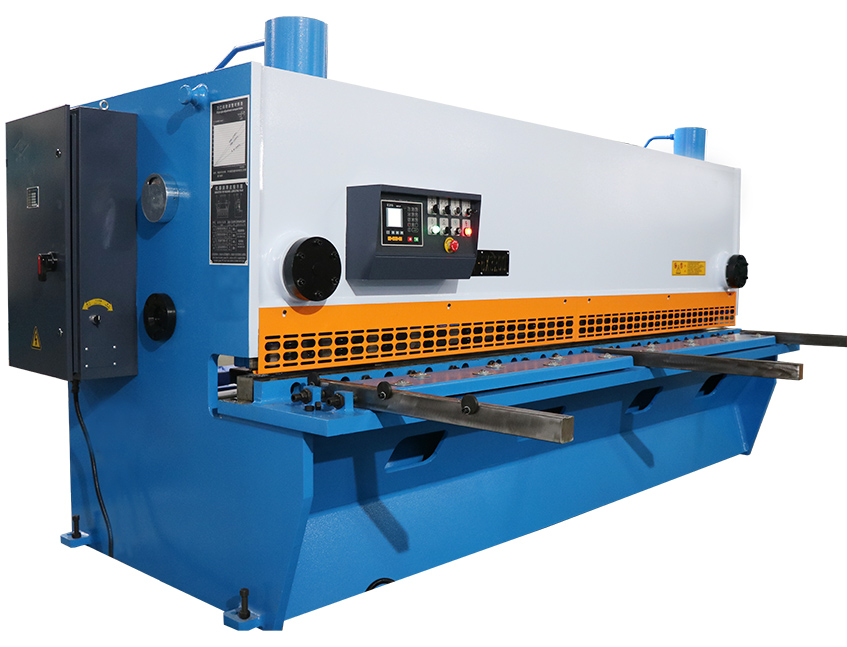

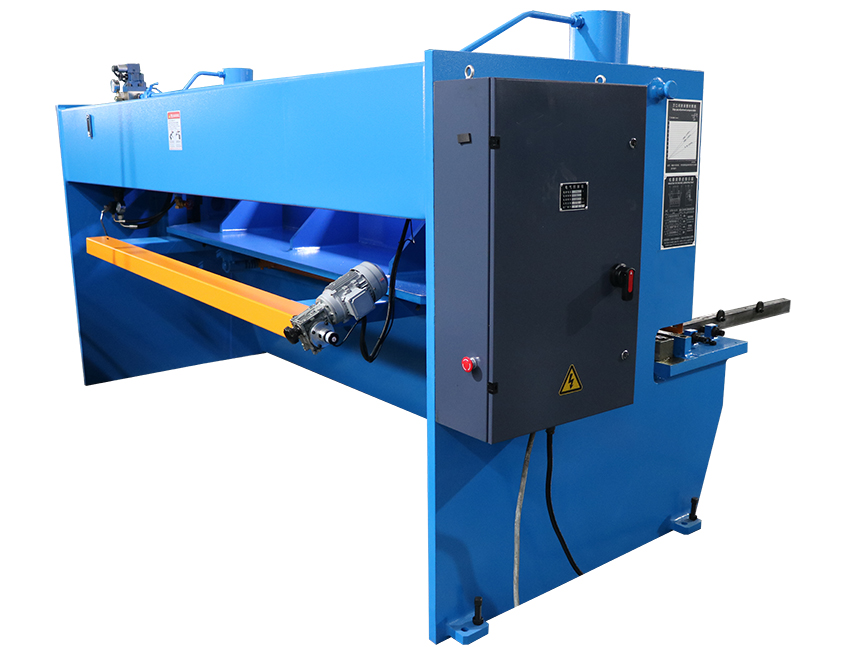

QC11Y-6x3200 Hydraulic Guillotine Shearing Machine
|
Model(QC11Y) |
6x3200 |
|
Shearing thickness (mm) |
6 |
|
Shearing width (mm) |
3200 |
|
Cutting plate tensile strength N/mm² |
450 |
|
Shearing angle (°) |
0.5-1.5 |
|
Back gauge range (mm) |
20-600 |
|
Blade length (mm) |
3300 |
|
Throat depth (mm) |
80 |
|
Blade material |
6CrW2Si |
|
Main motor power (KW) |
7.5 |
|
Oil pump( L/min) |
25 |
|
Stroke (n/min) |
14-35 |
|
Length (mm) |
3860 |
|
Width (mm) |
1810 |
|
Height (mm) |
1750 |
Features:
--Guillotine beam design
--Variable shearing angle
--Squaring arm with steel rule for front gauging.
--Strokes can be controlled according different shearing length
--Four edge shearing blade
--E21S control system
