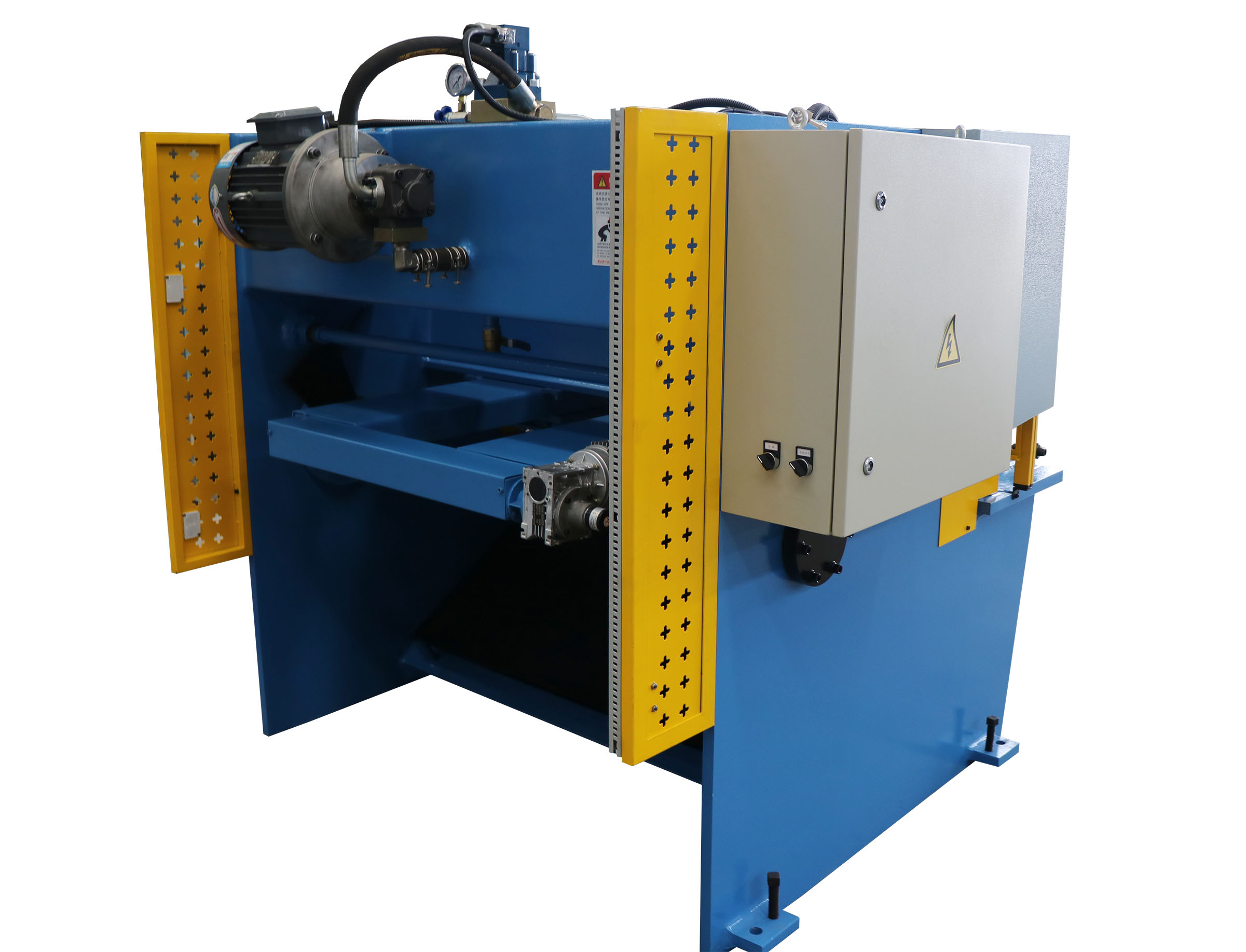

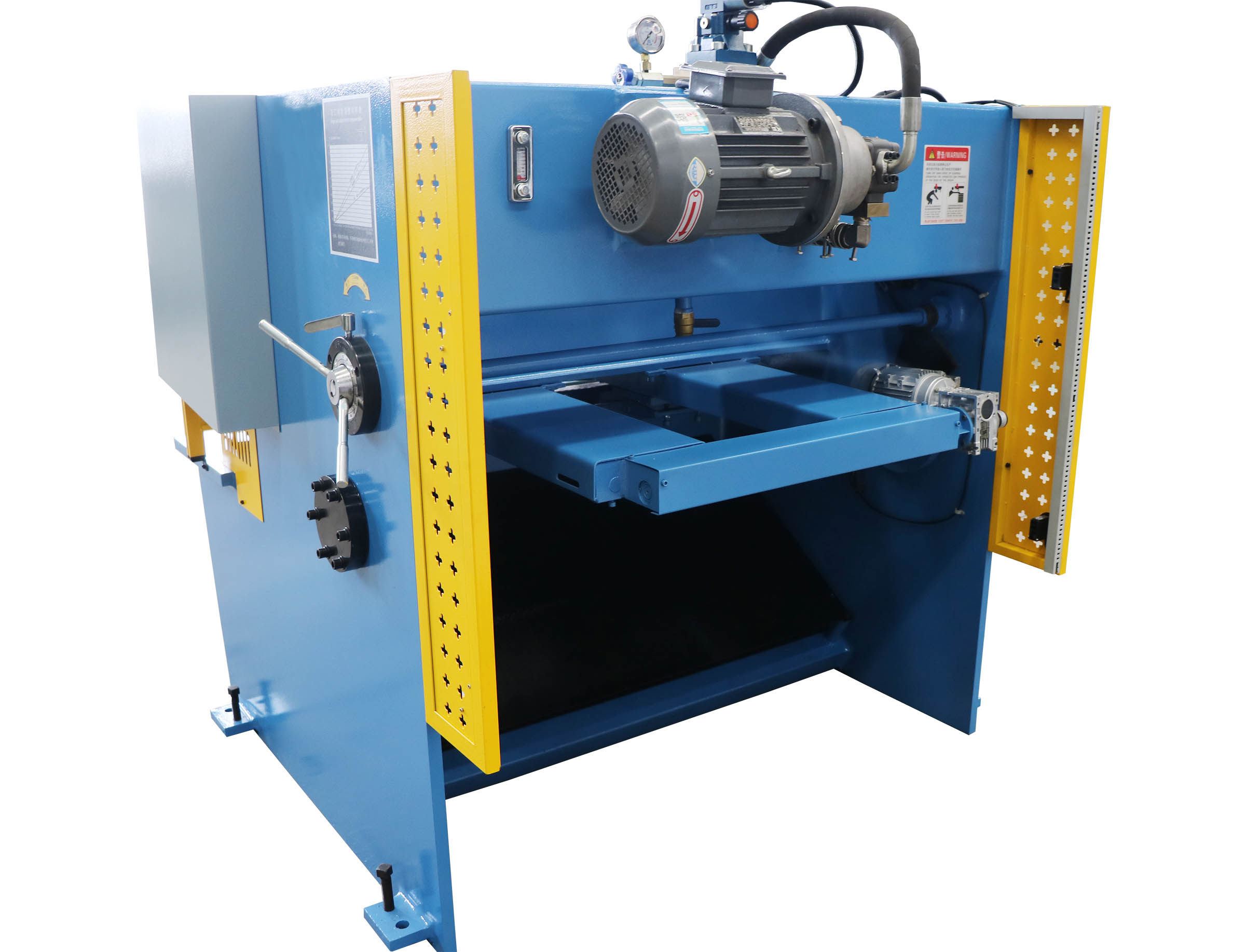

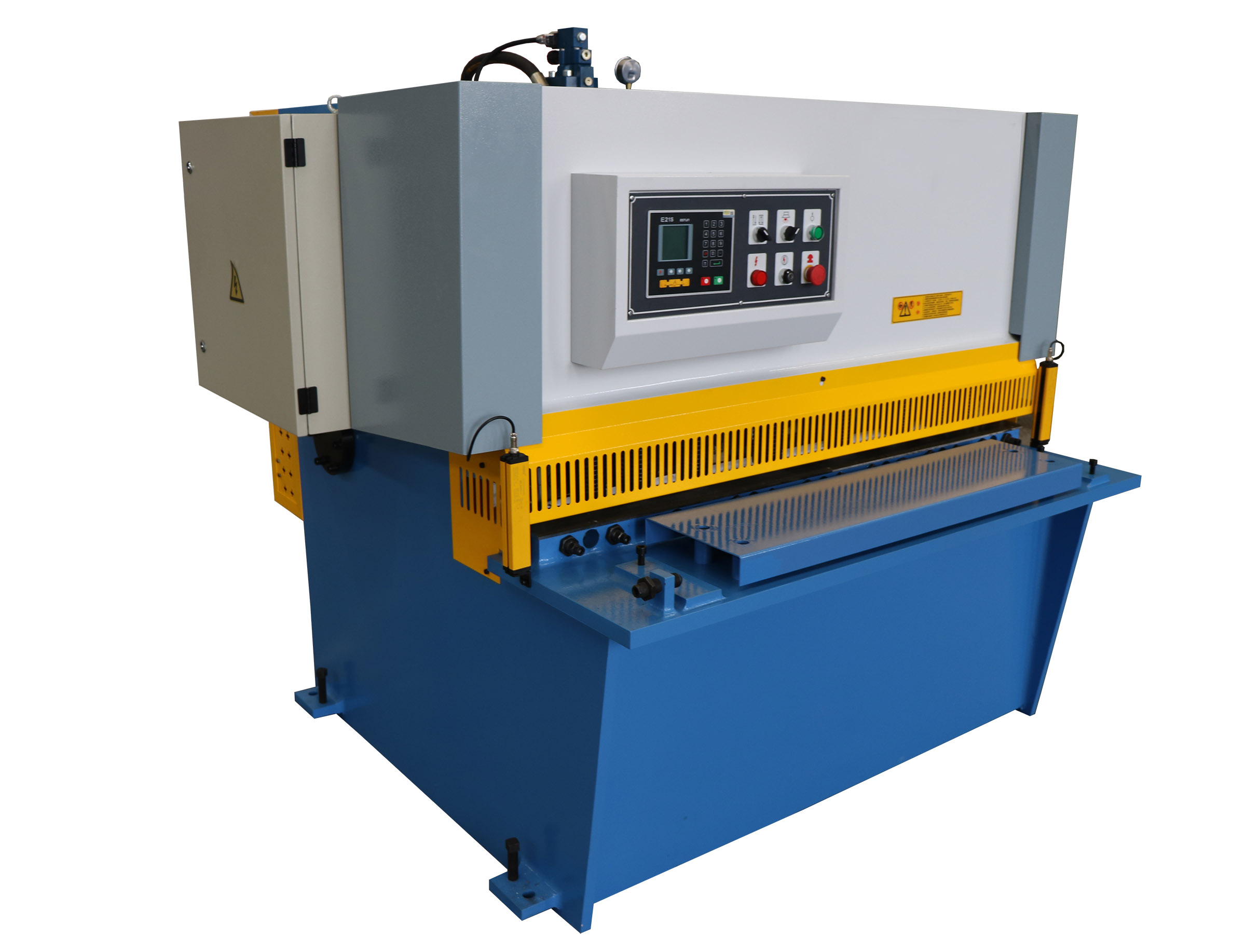

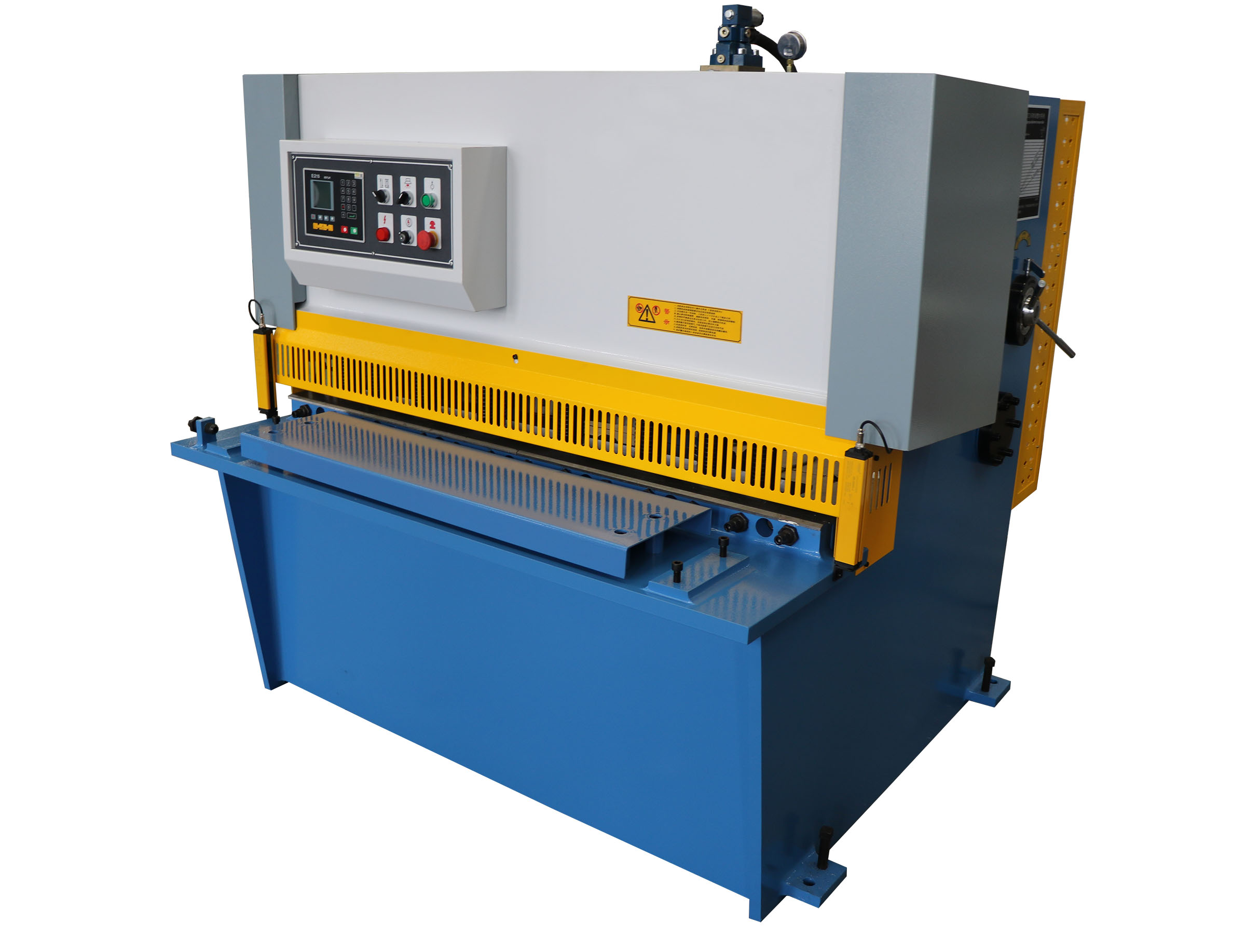

QC12Y-4x1300 Hydraulic Swing Beam Shearing Machine
PARAMETERS:
|
Model(QC12Y) |
4x1300 |
|
Shearing thickness (mm) |
4 |
|
Shearing width (mm) |
1300 |
|
Cutting plate tensile strength N/mm² |
450 |
|
Shearing angle (°) |
1.5 |
|
Back gauge range (mm) |
20-500 |
|
Blade length (mm) |
1350 |
|
Throat depth (mm) |
80 |
|
Blade material |
6CrW2Si |
|
Main motor power (KW) |
4 |
|
Stroke (n/min) |
25 |
|
Length (mm) |
1850 |
|
Width (mm) |
1400 |
|
Height (mm) |
1400 |
--Features
▲ swing beam design
▲ Better cutting accuracy in thin sheets at lower rake angle.
▲ Higher cutting capacity at maximum rake angle.
▲ Low noise & smooth operation gives higher efficiency of operator.
▲ Less power consumption.

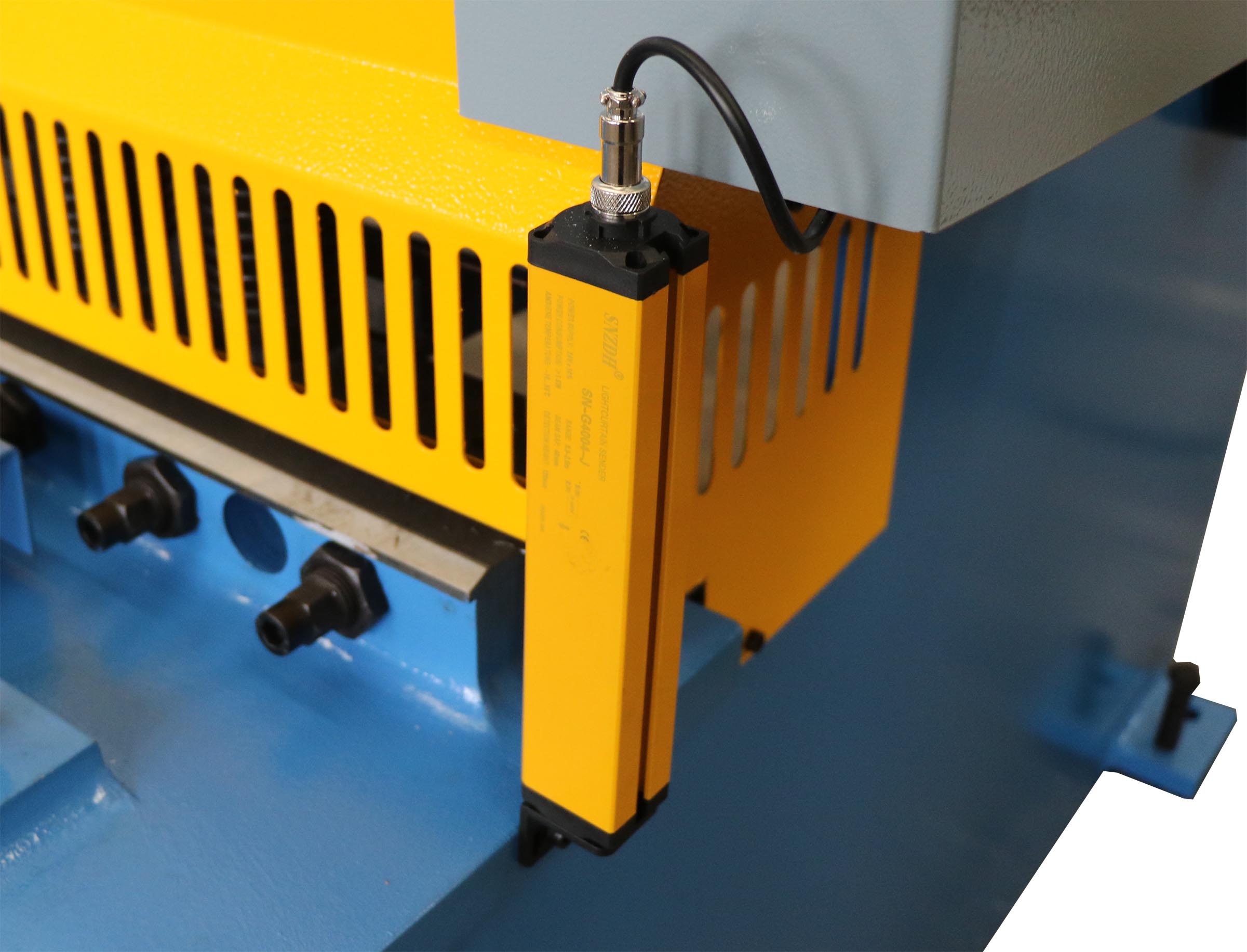

▲ Better safety for operator and machine.
▲ Front sheet support.
▲ Squaring arm with steel rule for front gauging.
▲ Hardened Transfer bars mounted on table.

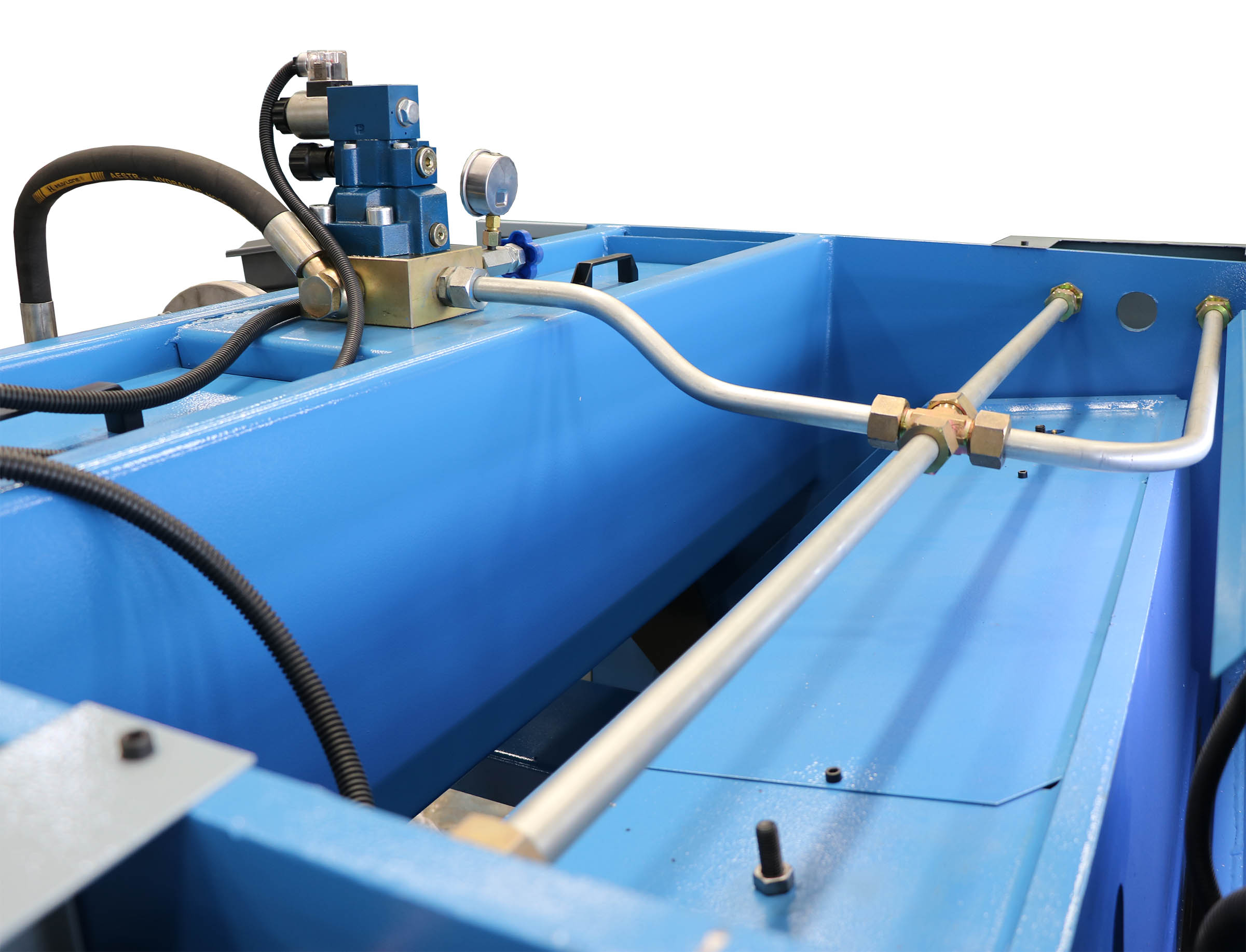

▲ Hold down cylinders.
▲ Foot pedal with emergency stop
▲ Four edge 6CrWi2Si Blade suitable to MS & SS.

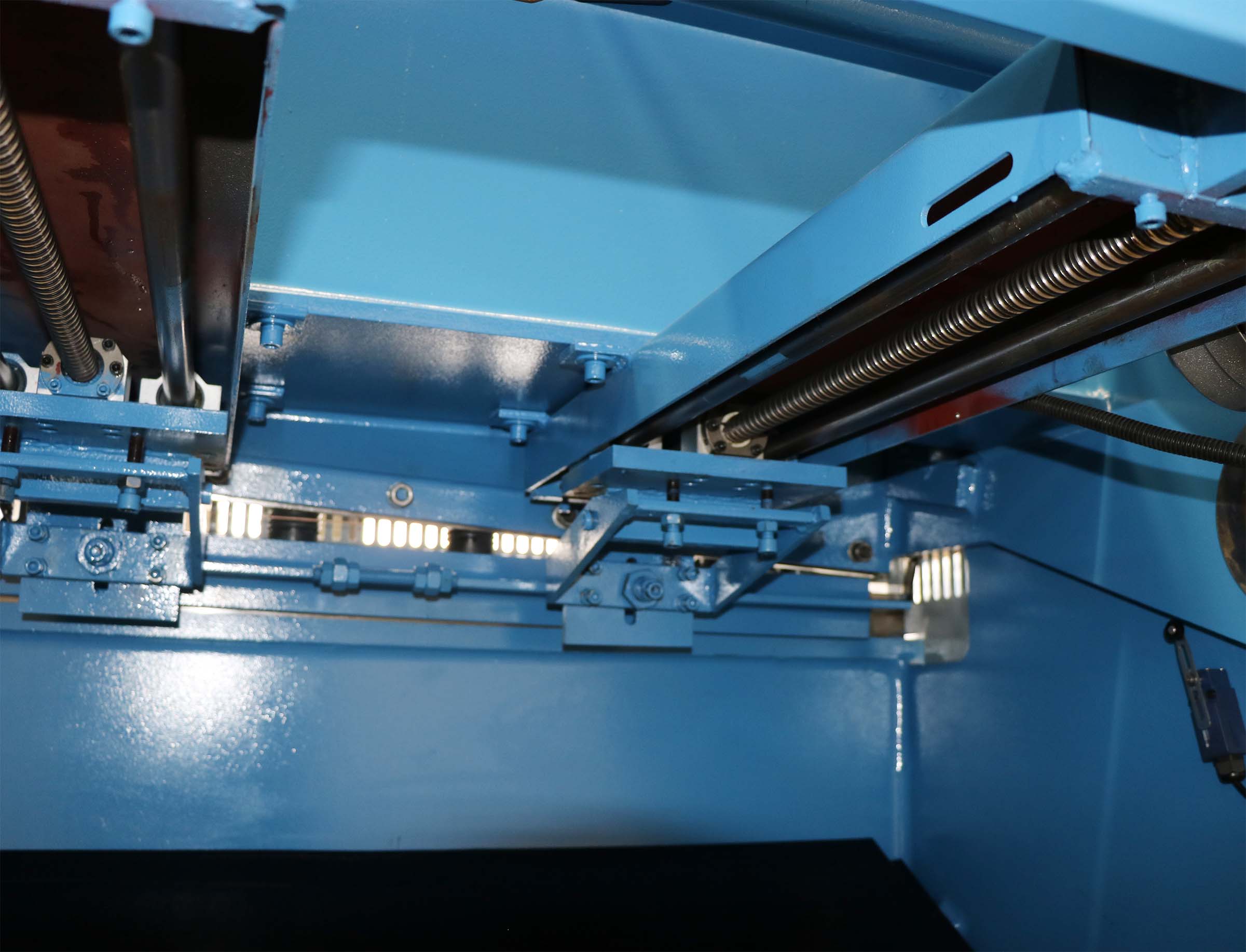

▲ Hardened & ground ball screw with linear motion bearings.

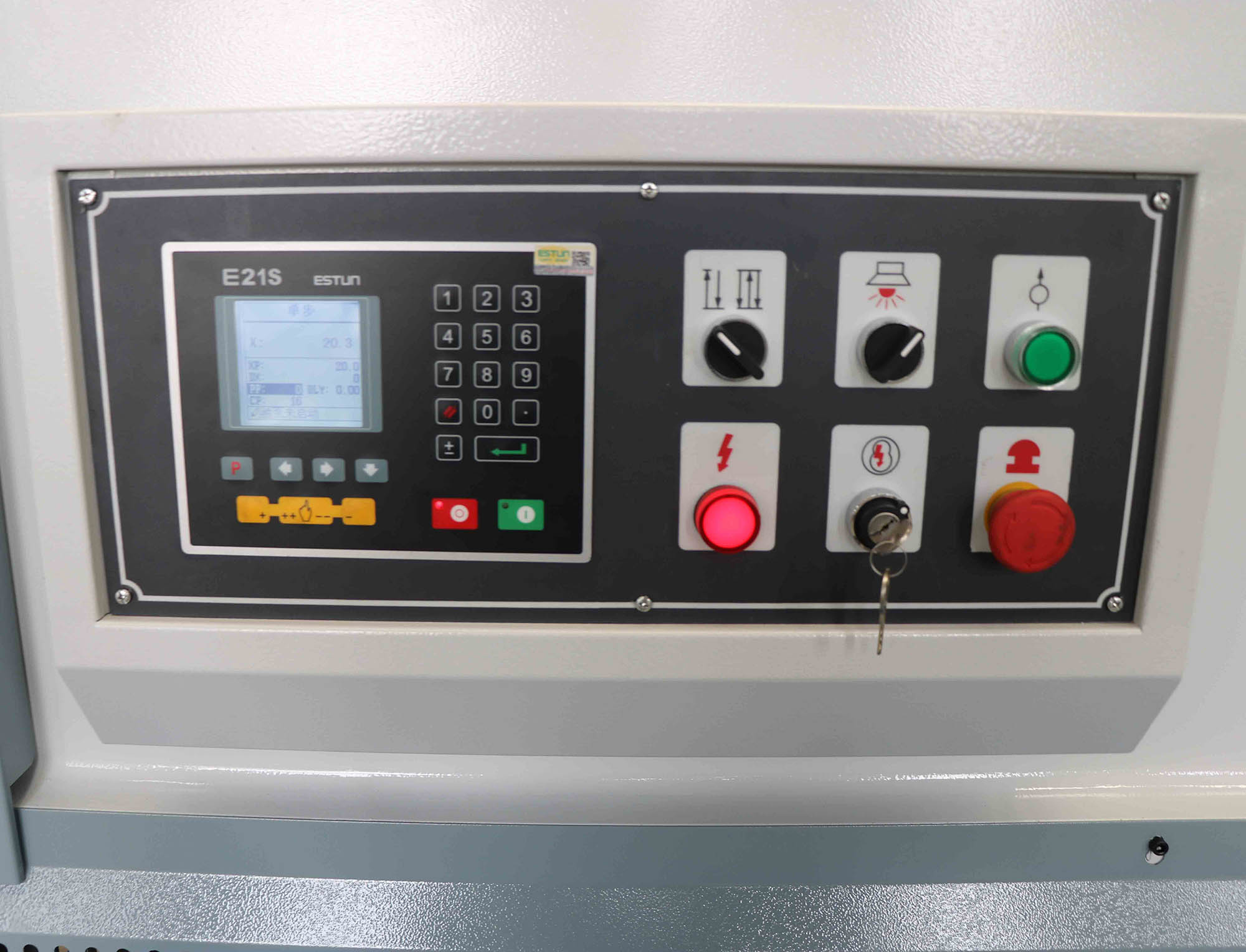

▲ Stroke counting on screen.
