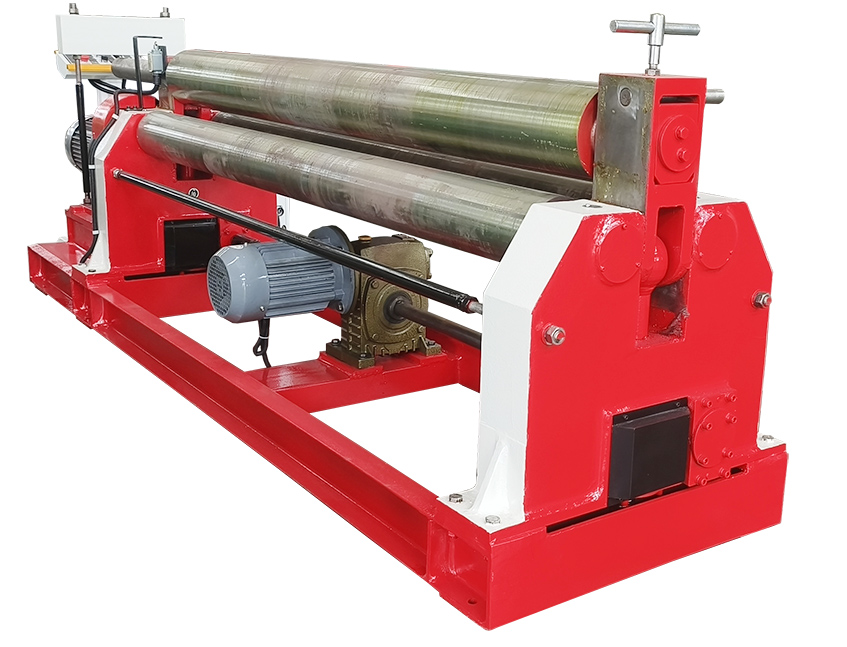

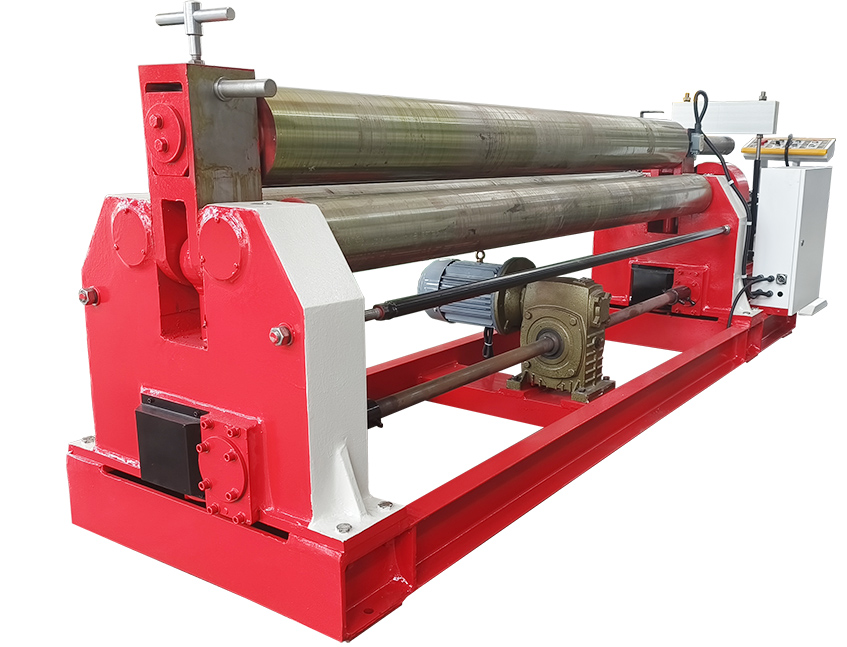

W11-8x2000 Plate Bending Machine
Parameter
|
|
|
W11-8x2000 |
|
Yielding limited |
MPa |
245 |
|
Max.bending thickness: |
mm |
8 |
|
Max.bending width |
mm |
2000 |
|
Full-loading Min. bending diameter |
mm |
500 |
|
Upper roller diameter |
mm |
185 |
|
Upper roller material |
|
45# forged steel |
|
Lower roller diameter: |
mm |
170 |
|
Lower roller material |
|
45# forged steel |
|
Central distance of the lower rollers |
mm |
260 |
|
Bending speed |
m/min |
about 4 |
|
Main motor power |
KW |
5.5 |
--Features
▲ highly productive, accurate, and economical.
▲Easy operating rolling machine, energy-efficient
▲Mechanical type, three rollers
▲Mechanical drive
▲The two lower rollers are the driving rollers, and the upper roller is drove roll
