Specification

Max.

Thk. of bending plate

(mm)

70

Thk. of pre-bending

60

Width of bending plate

3500

Effective length of the rollers

(mm)

3600

Yield Strength of Plate

(MPa)

235

Min. reel dia. with max.size

(mm)

2500

Diameter of Roller

Upper

(mm)

720

Bottom

700

Side

600

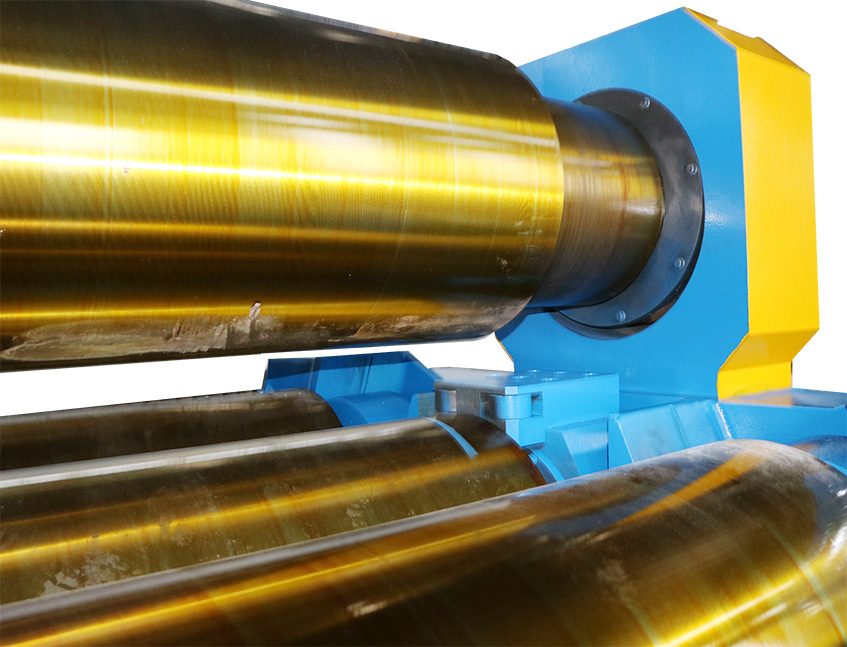

Roller

Material

42CrMo

Hardness

(HB)

240-286

Induction Hardened Roll

YES

Roll Profile

crown

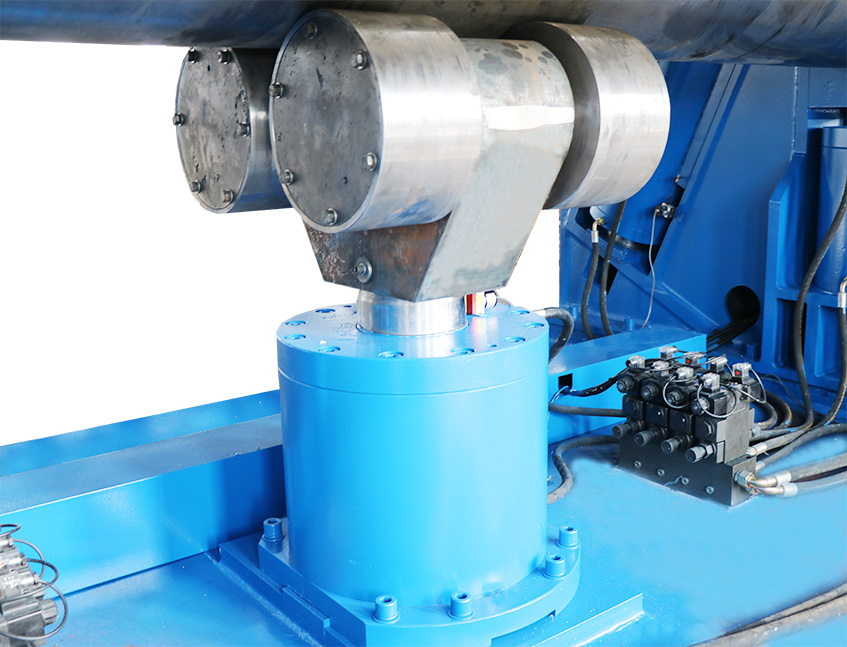

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

Optional

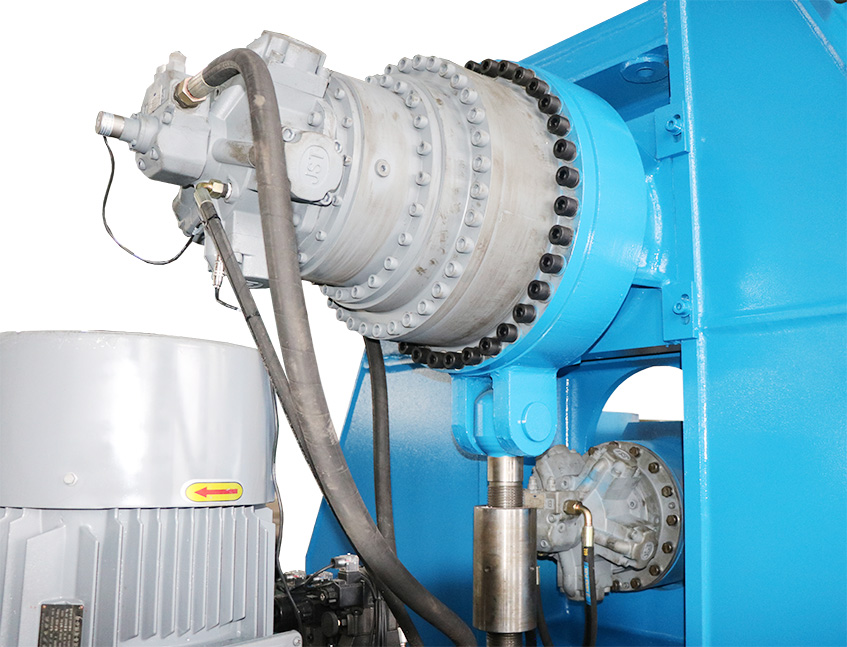

Driving Mode

Hydraulic motor

Control System

Control Mode

CNC

Display of position & displacement

LCD

PLC

ALIEN S650

Electrical Part System

ABB/SIEMNENS

Plate Bending Speed

(m/min)

about 3.5

Main Power Motor

(KW)

75

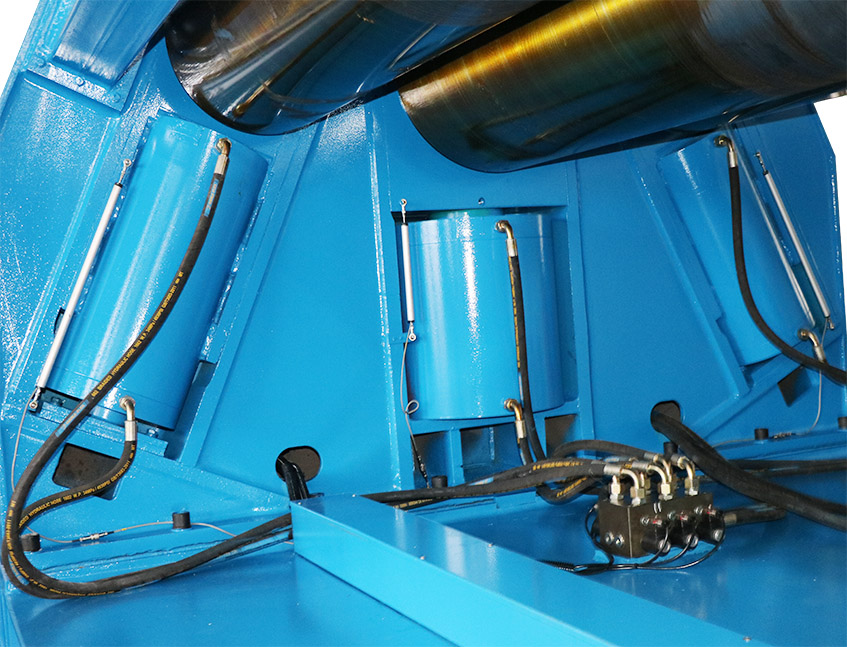

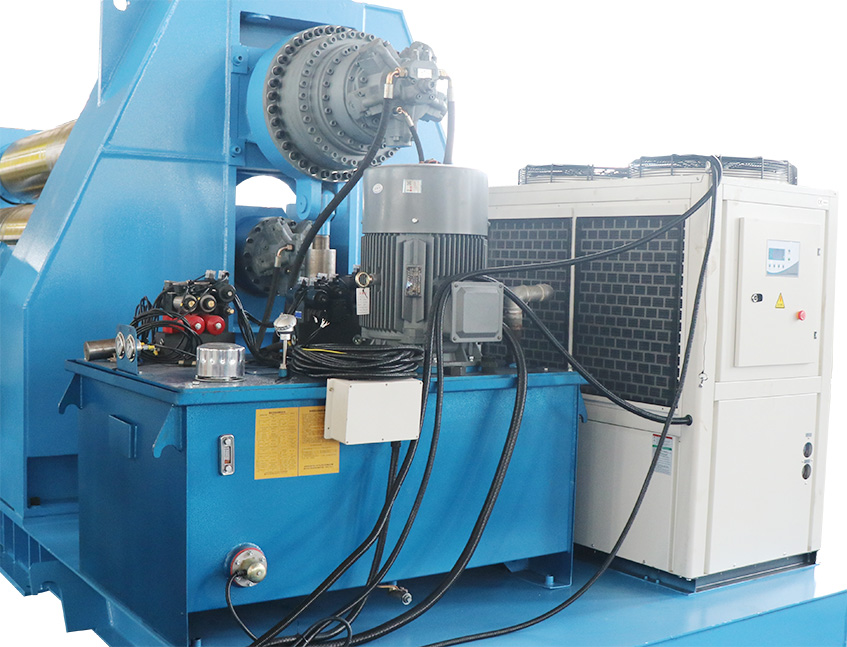

Hydraulic System

Max. Working Pressure

(MPa)

31.5

Valve

SOFIMA/YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

Construction Steel Material

Q235

Side Support for Big Sheet Metal Diameters

　optional

Central Support for Big sheet Metal Diameters

　optional

Feeding Table

　optional

Oil Cooler System

　optiona
