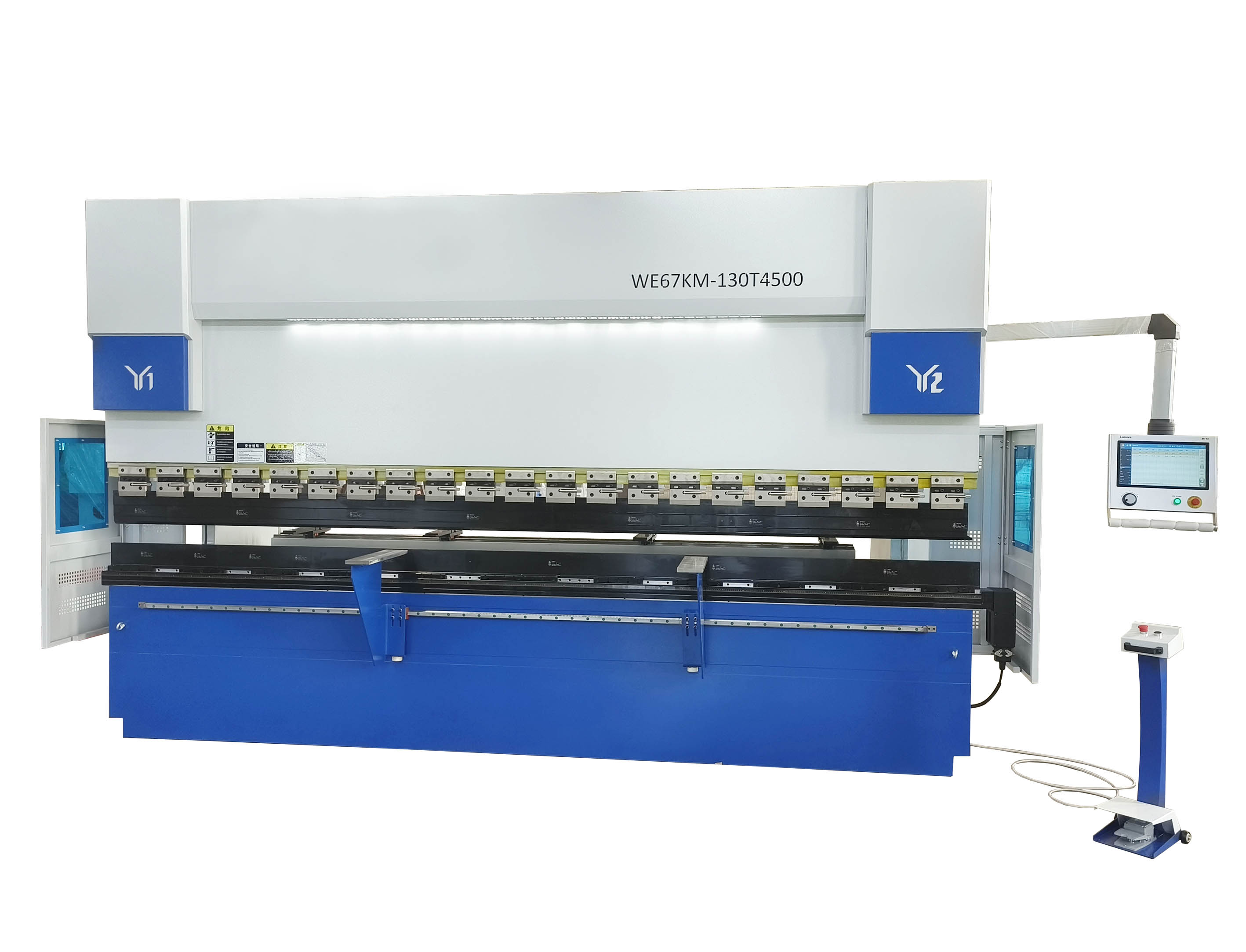

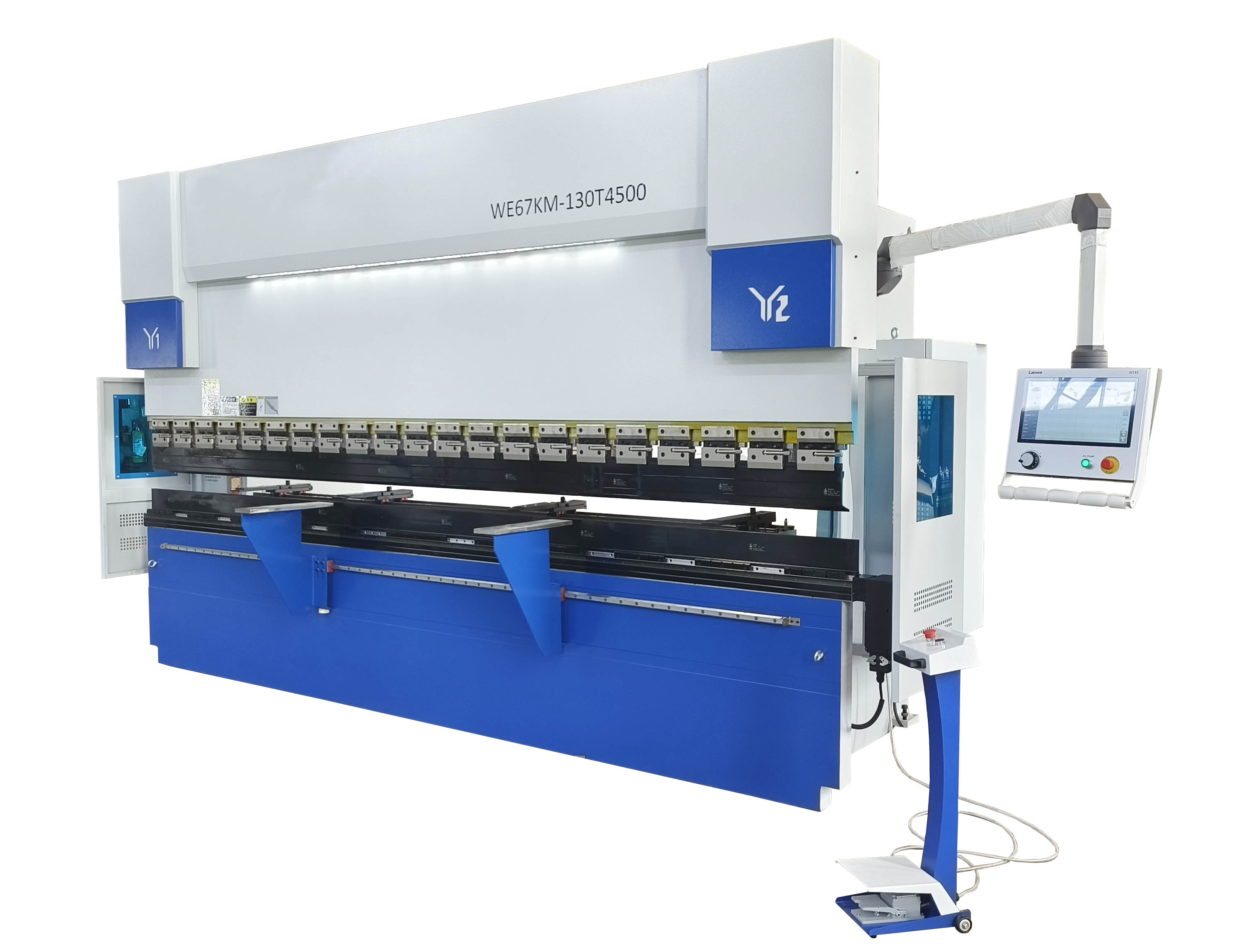

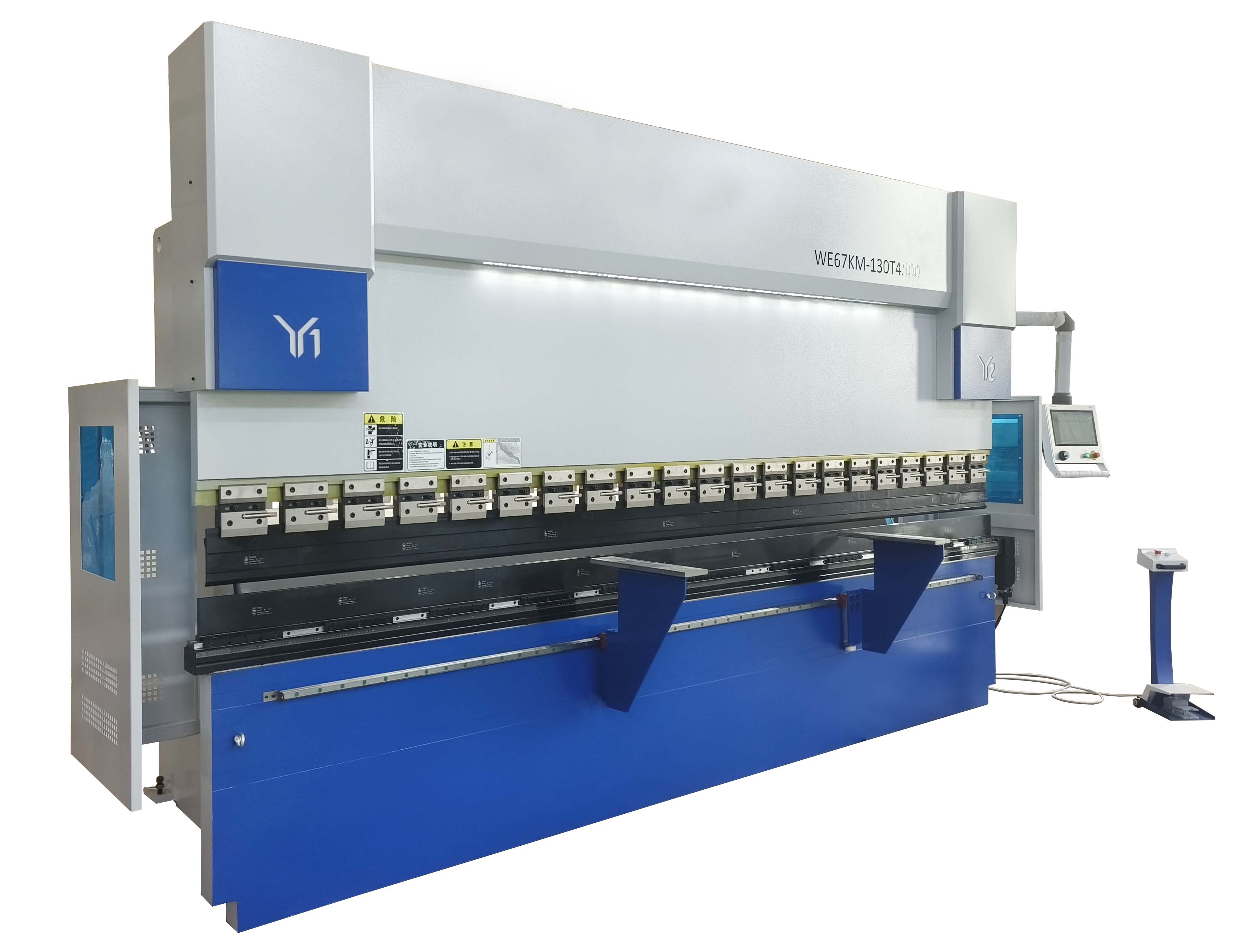

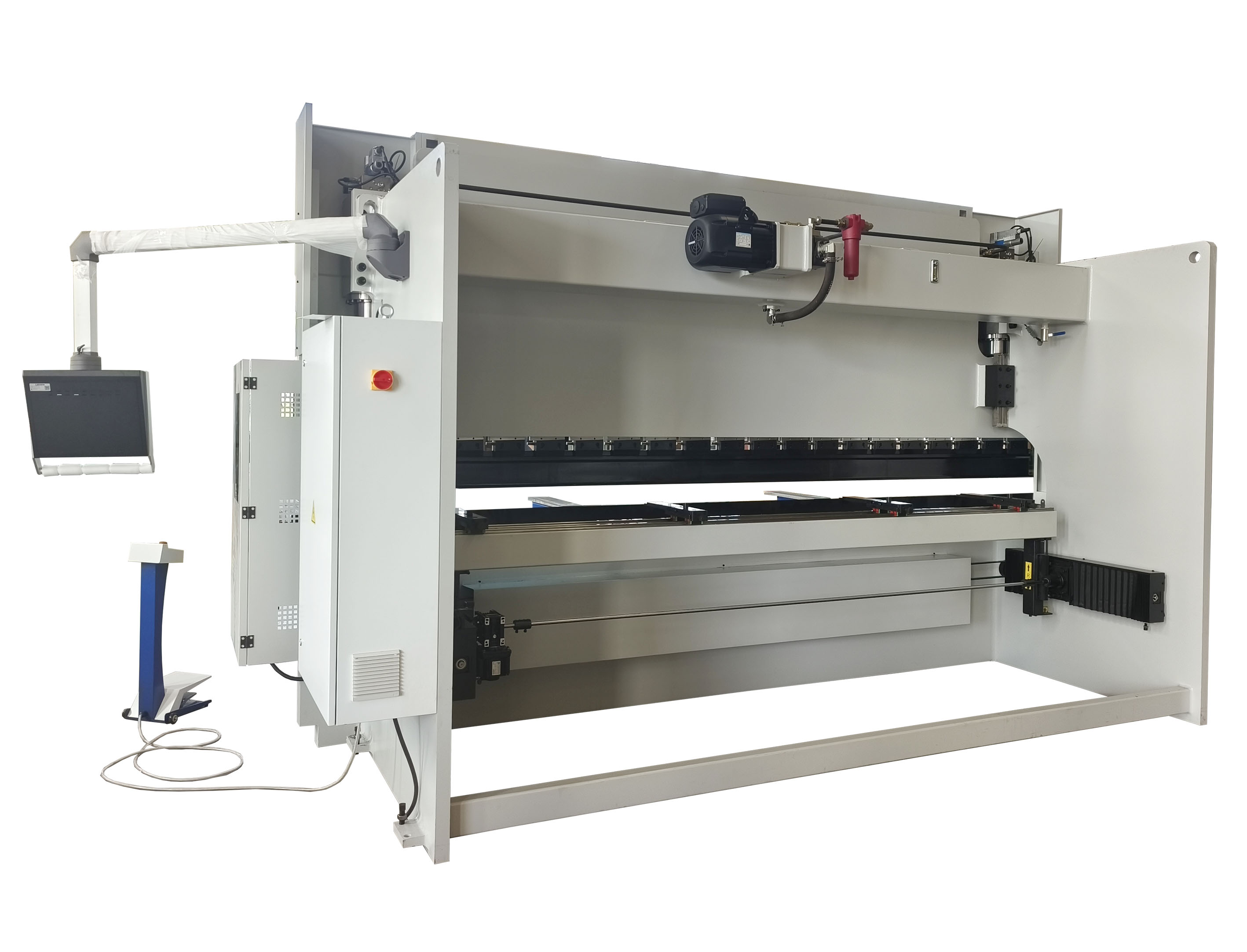

WE67K-130/4500 CNC Press Brake

Features

-- Y1-Y2-X-R +V axis CNC controlled

--MT-15 CNC system

-- Close loop proportional hydraulics for beam synchronization

-- Hardened  multi-V Die & Punch

-- Quick release die clamps

-- REXROTH precise proportional valve to control accurate beam movement

-- X-R back gauge consist of hardened & ground ball screw

-- liner motion bearings and AC servo drive for accurate position

Parameters:

Y1.Y2. axis re-position: ≤+0.05mm

Y1.Y2. axis position: ≤+0.03mm

X axis re-position: ≤+0.02mm

X axis position: ≤+ 0.05mm

Test bending angle: + 1°/3000 mm

Test straightness: ±0.75/1000 mm

--MT-15 CNC controller

--Automatic crowing table

--Precious cylinder

--REXROTH valve hydraulic system

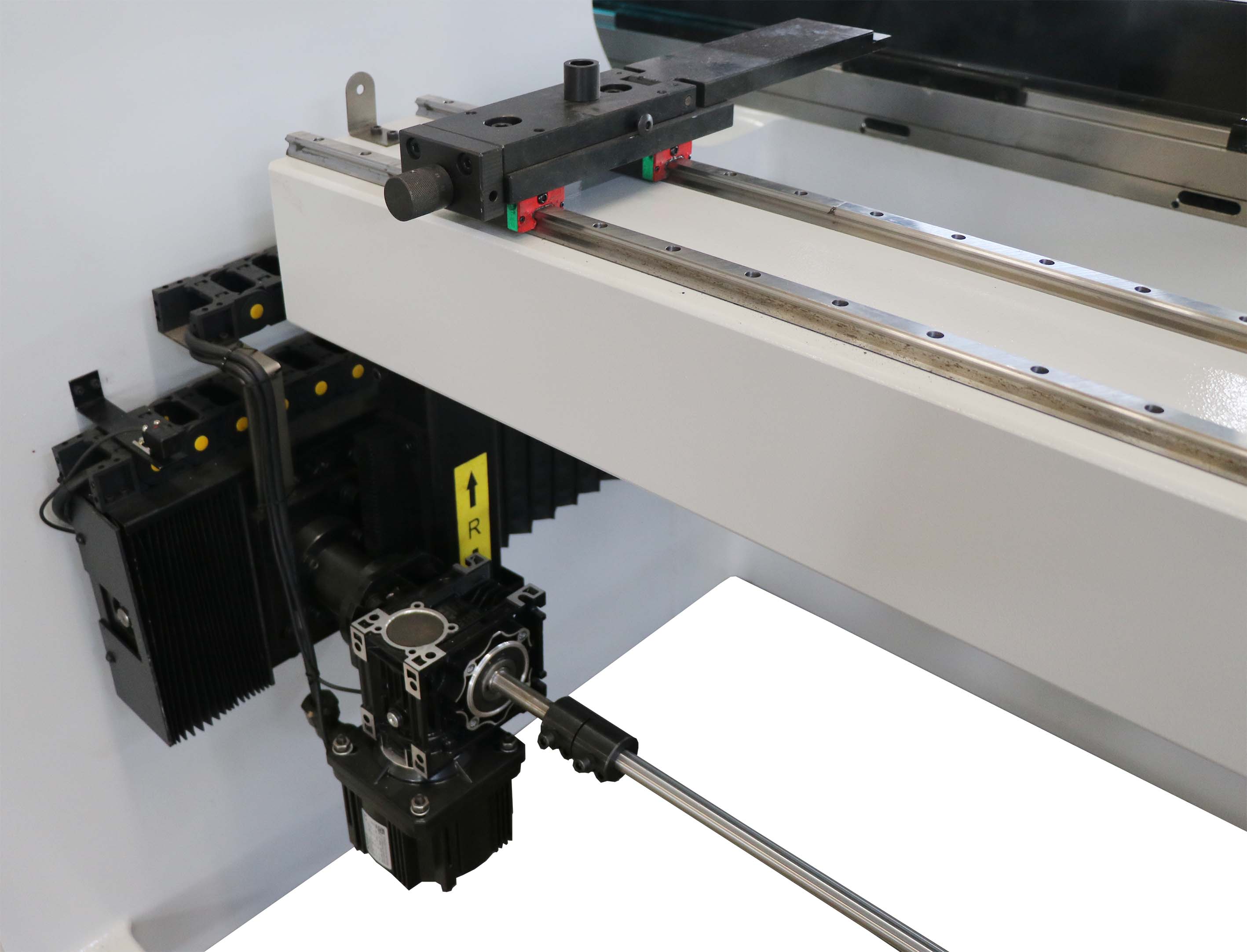

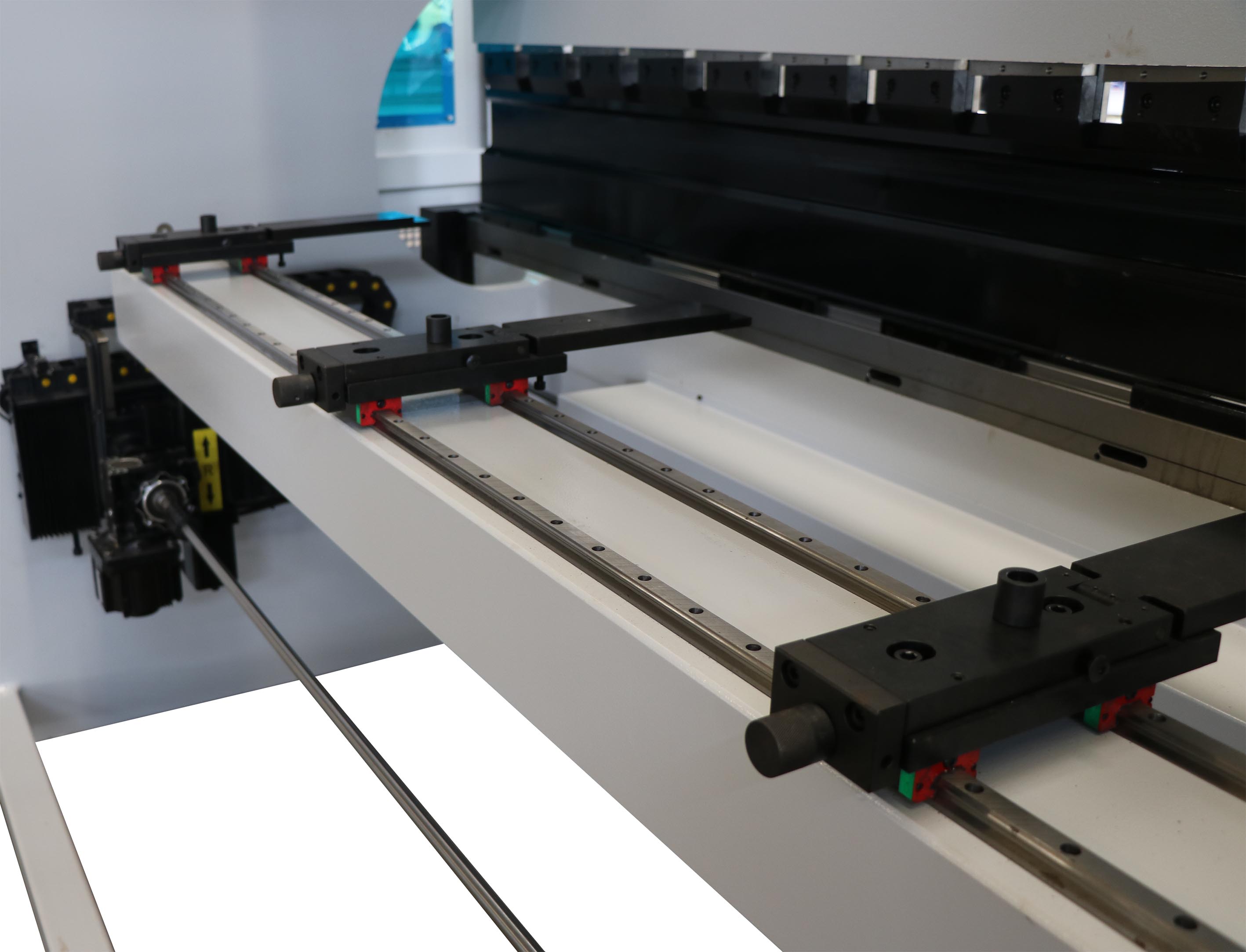

--CNC back gauge (X-R axes)

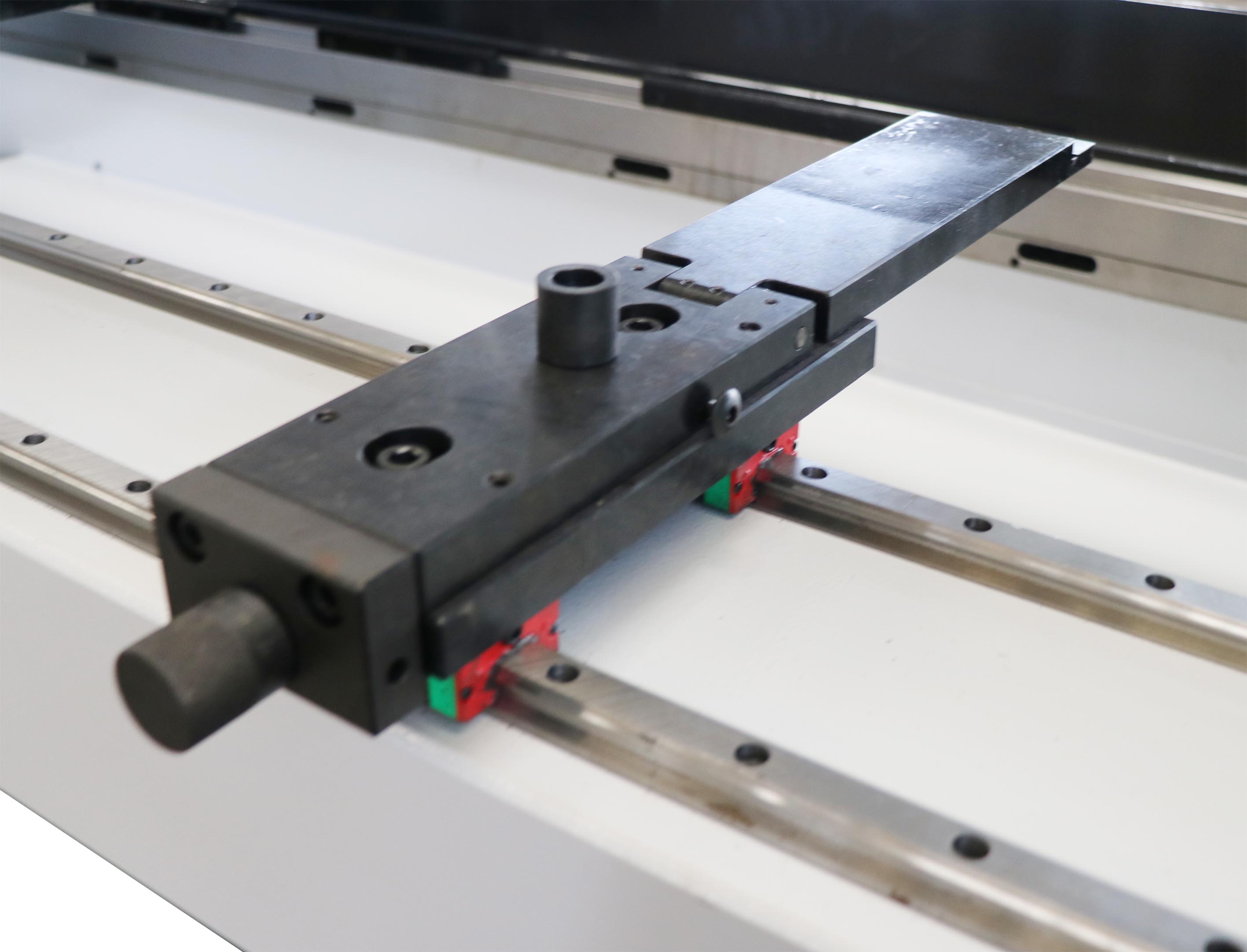

--Stop finger

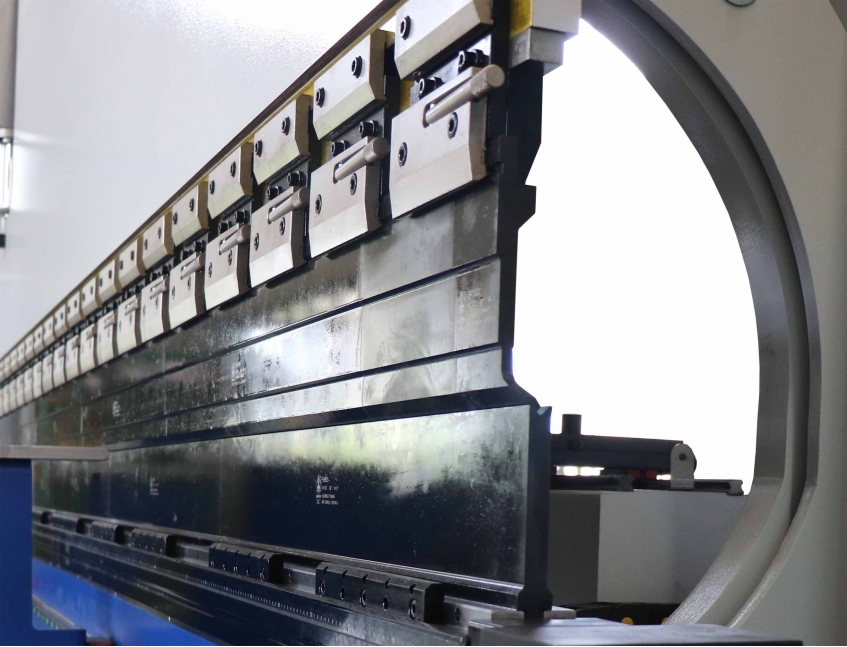

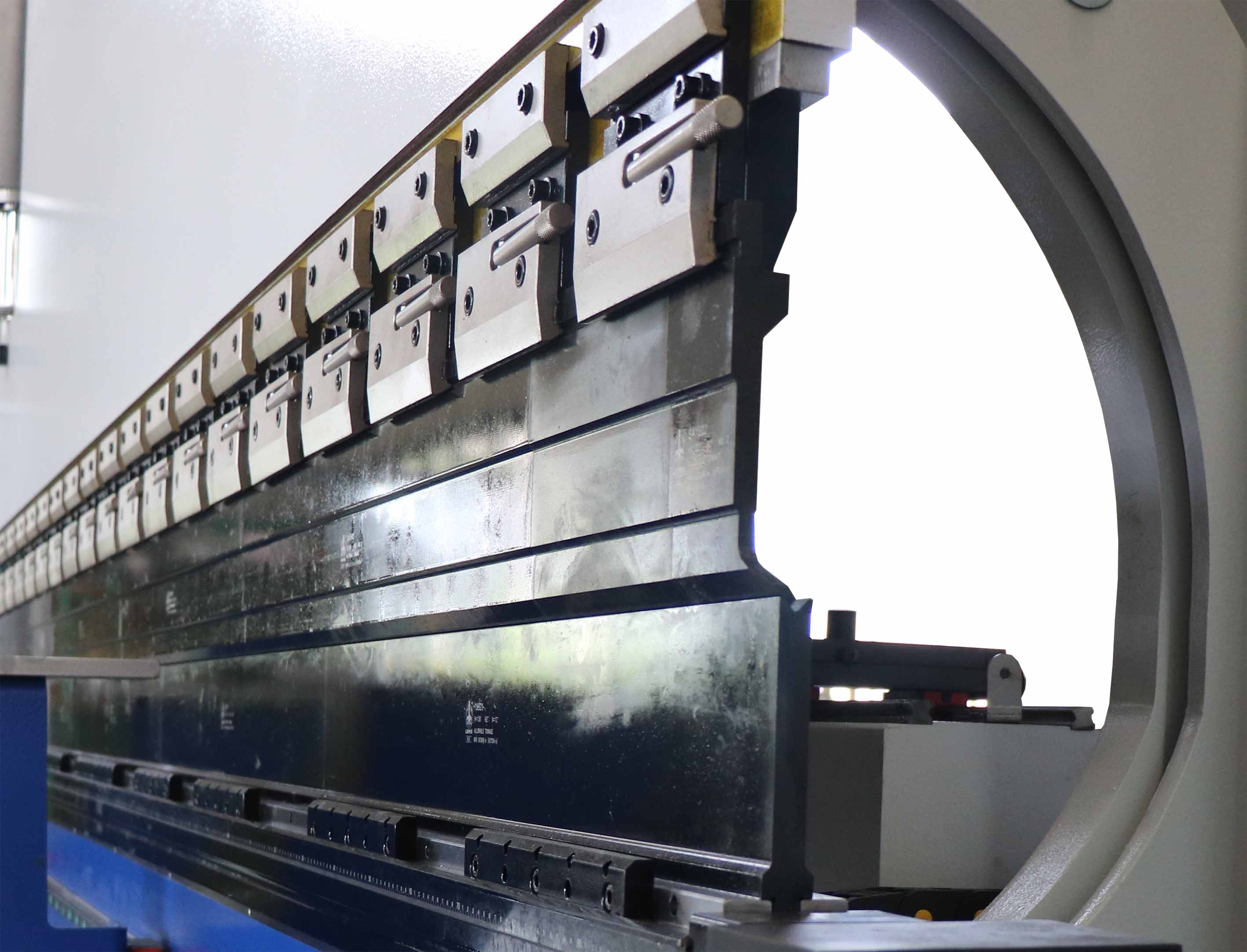

--Quick clamping system

--Servo motor & pump

--Oil filter

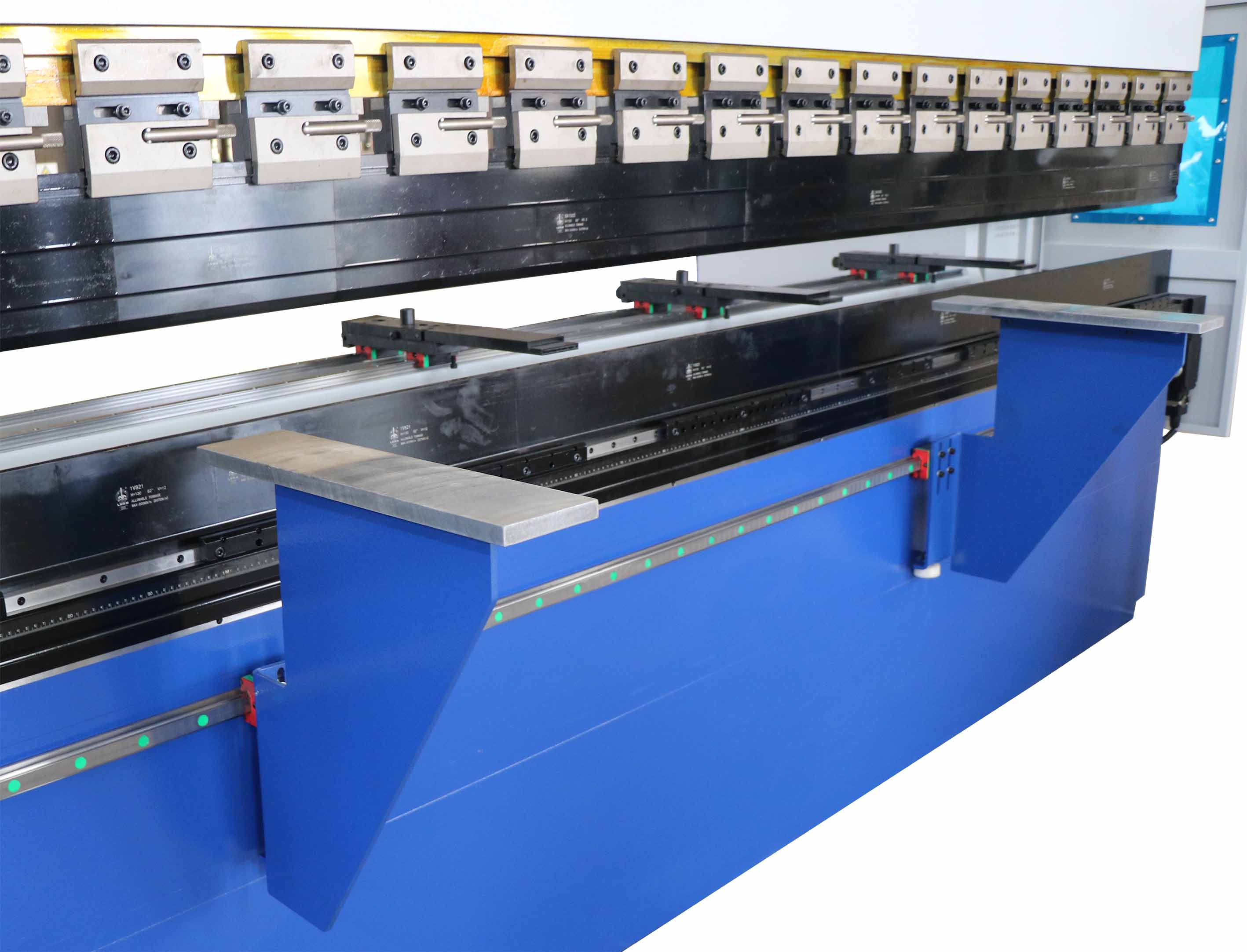

--Slidding sheet support

--Operating light

--Foot pedal

--Electric components

--Punch & multi-V die

--GIVI lineal scale

-- Laser protecting device (Optional)
