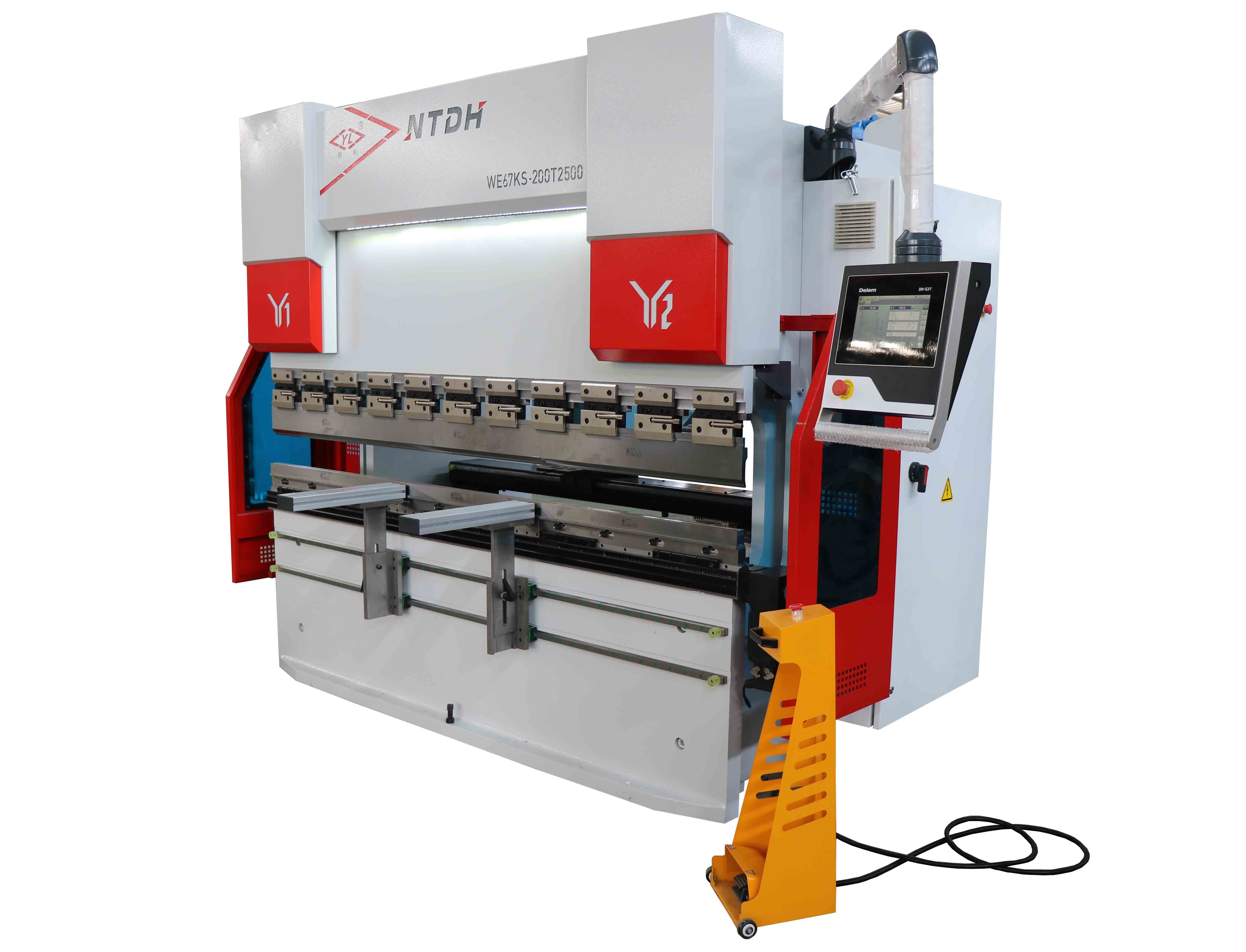

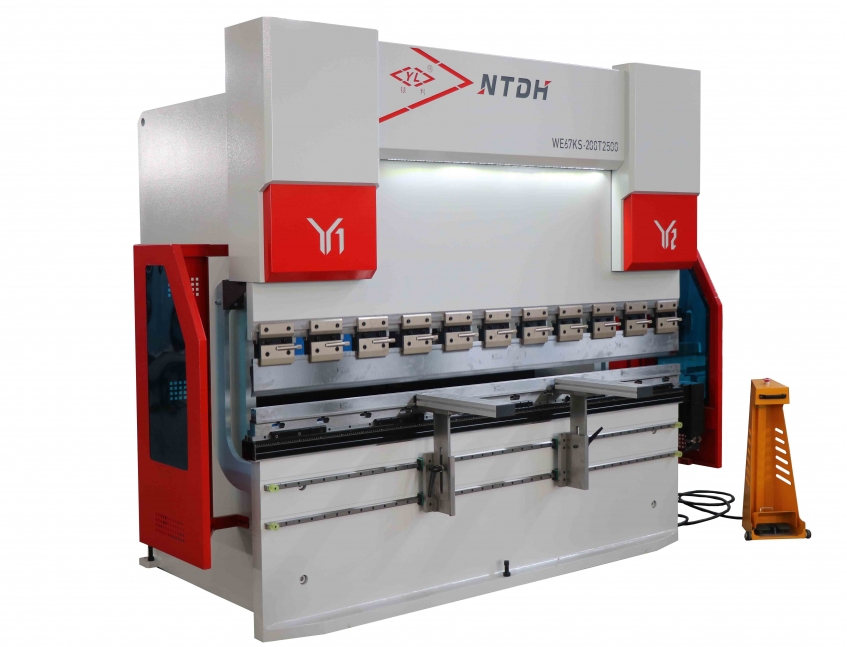

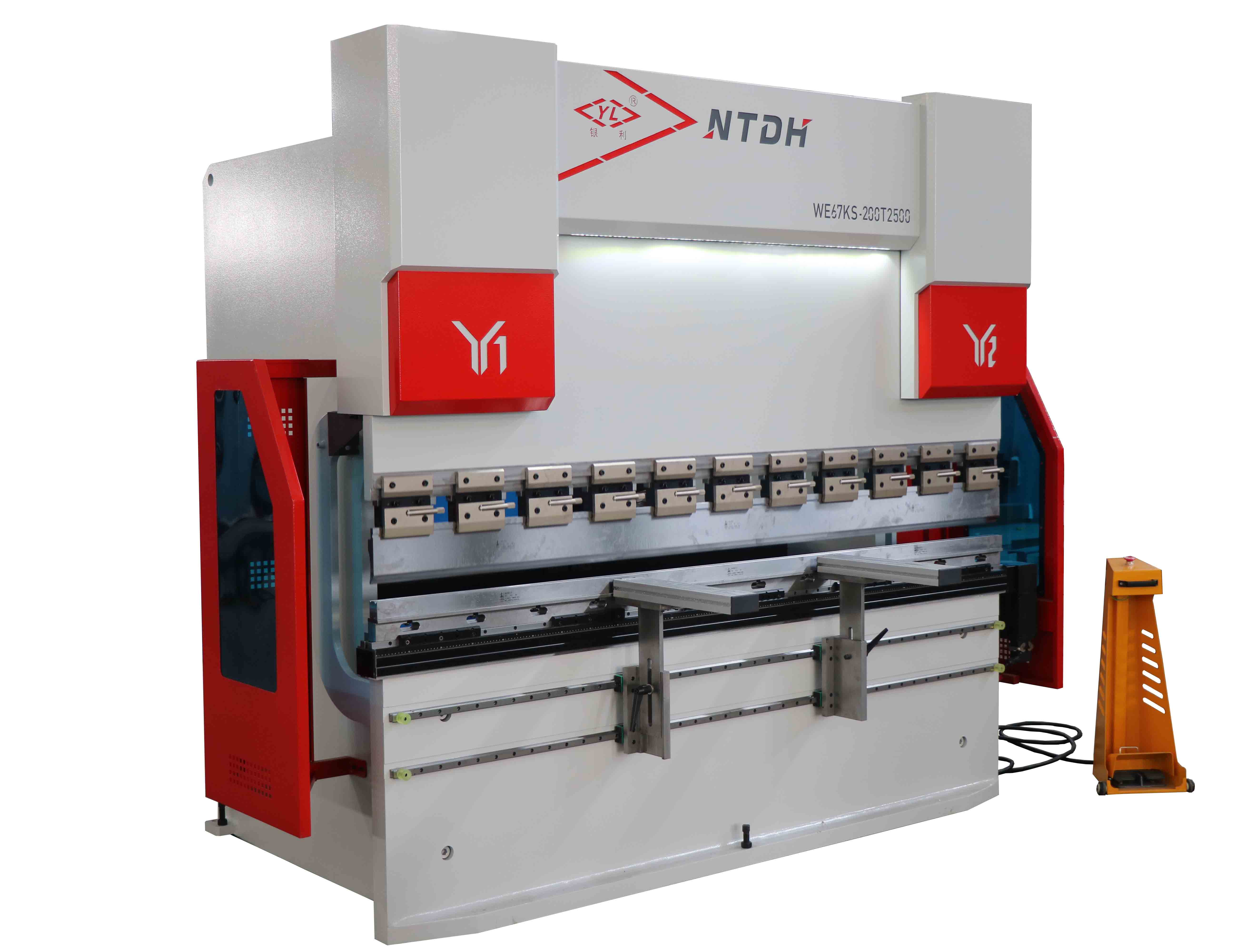

WE67KS- 200/2500 CNC Servo Press brake

WE67KS-200T2500 CNC Press Brake

Parameters

      Model

Rated Force (mm)

Bending

Length

(mm)

Distance of Uprights (mm)

Daylight (mm)

Throat Depth

(mm)

Beam

Stroke

(mm)

Motor Power

(KW)

Dimenssions

(L x W x H)

WE67KS-200T2500

200T

2500

2050

500

400

200

2X5.5

2800X1600X2600

Features

▲ 60%-70% energy consumption

▲ 30% oil consummation

▲ moving control panel with on/off controls, emergency push button &selector for inching,

▲ High alloy back gauge, with high rigidity in light heavy

▲ 4+1 axis

▲ CNC controlled mechanical pulling-rod anti-crowing device(V)

▲ FAGOR linear scale to avoid the deflection bending

▲ DA53T CNC control system

▲ liner motion bearings and AC servo drive for accurate position up to 0.05 mm.

Instruction of structure

--Dual servo pump + motor



The servo motor doesn’t rotate when the press brake does not work; The servo motor is rotating during the bending and returning period, and the energy consumption is 60%-70%  compare to the traditional press brake.

The hydraulic unit that connected to the cylinder directly, each hydraulic unit contains one servo motor and one oil container, the oil consummation is 30% of the oil that used in traditional press brake. It has the quickly action response, which let the beam move fast to  improve the efficiency.

--CNC control system

DA-53T CNC controller

The control system is DELEM D series professional press brake CNC control system, touch screen, 2D or 3D graphic.

--CNC crowning system

crowning table

The mechanical wedge crowning device is placing under the lower die, using professional reducer and precision potentiometer to control the accuracy.

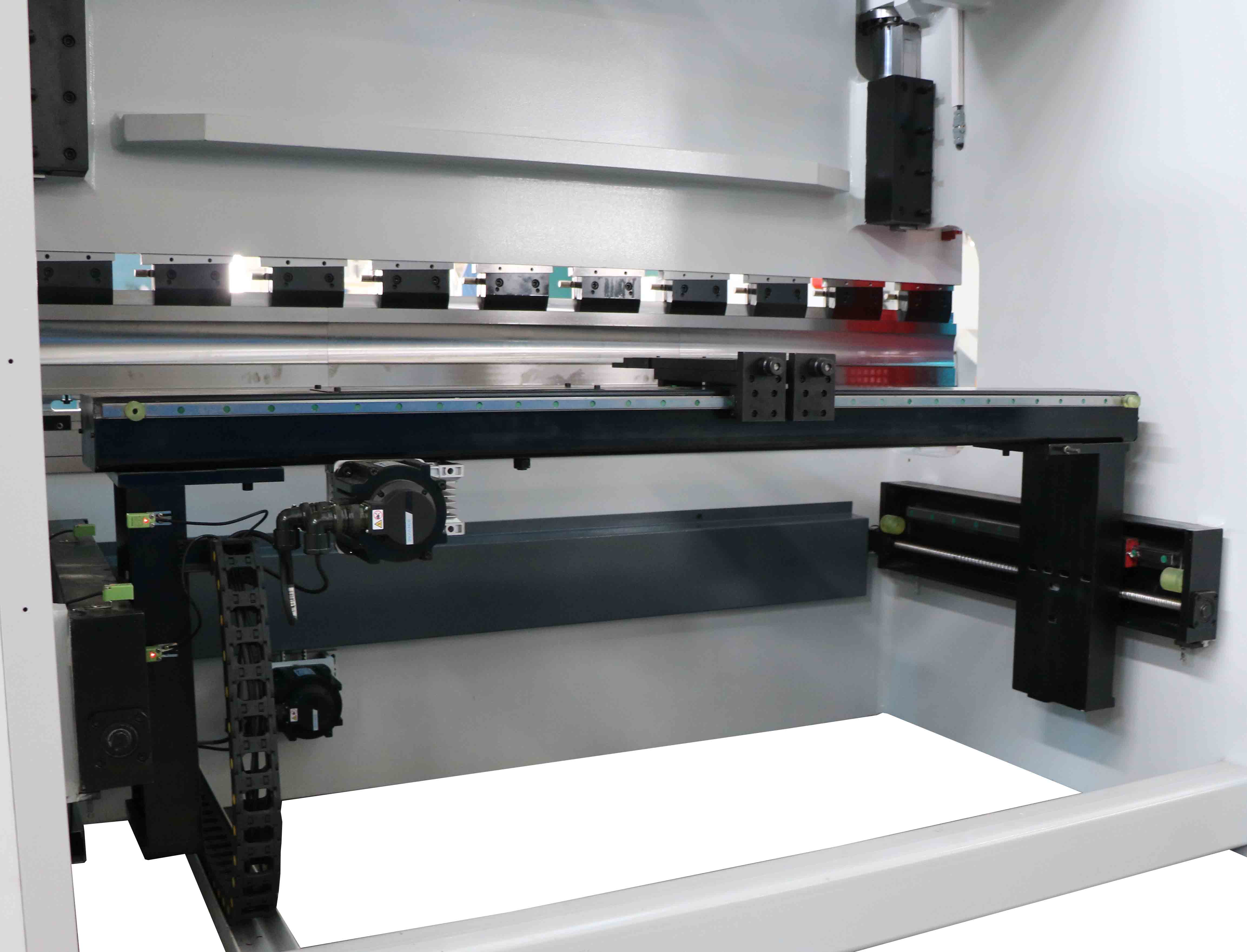

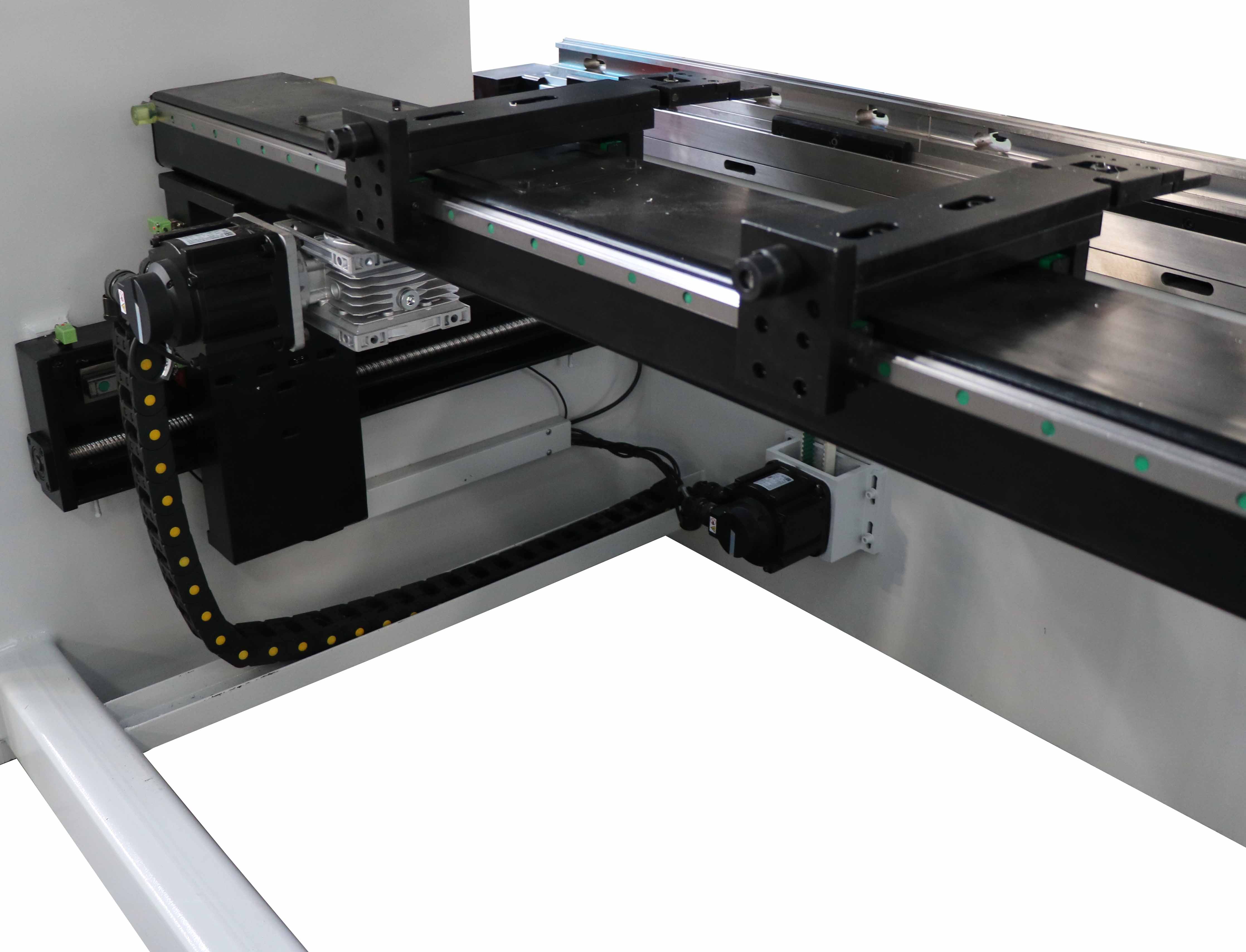

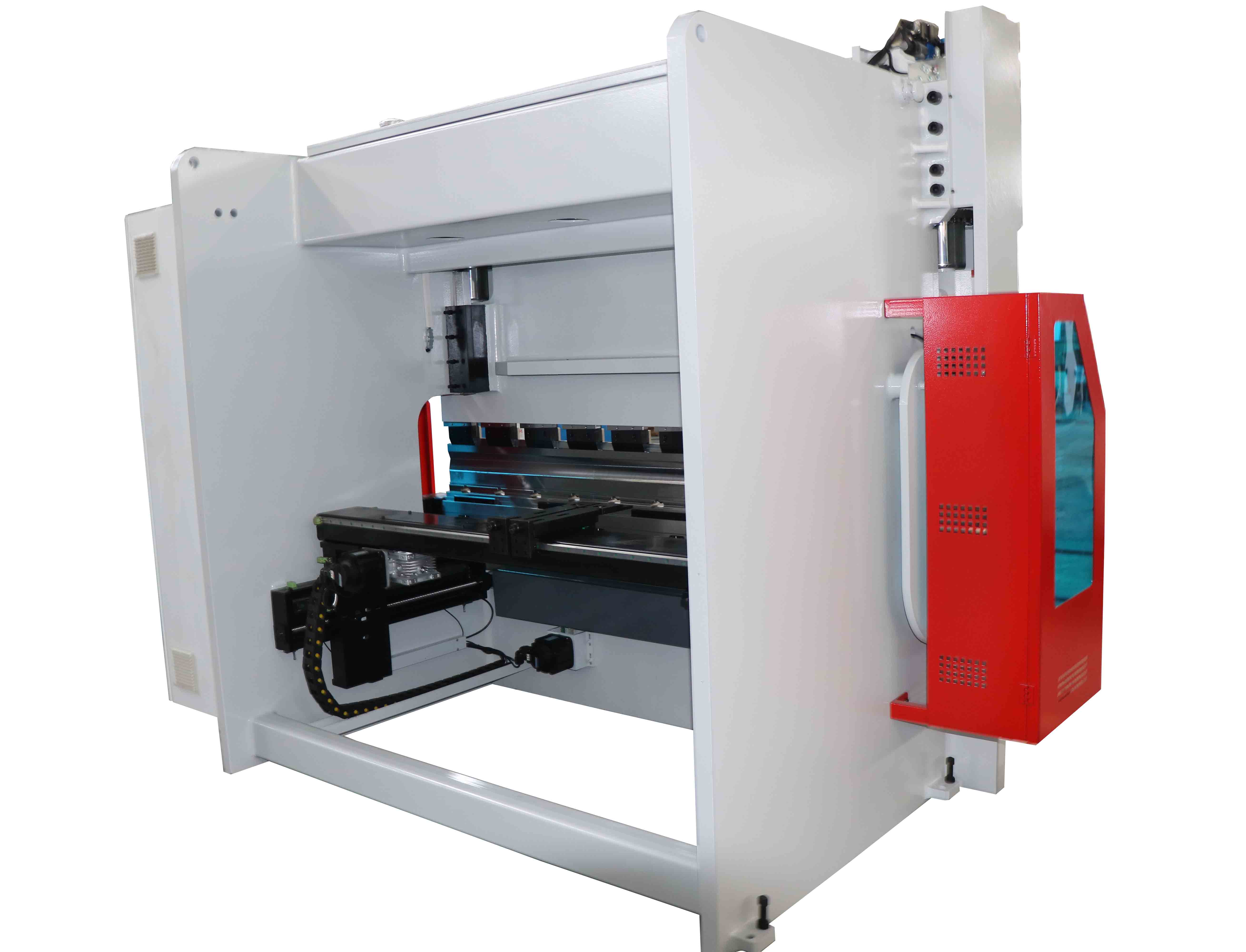

-- X-R back gauge

CNC back gaugeThe back gauge is equipped with ball screw and linear rail. The functions of the back gauge can be extended up to 6 axis ((X1,X2,R1,R2,Z1,Z2).

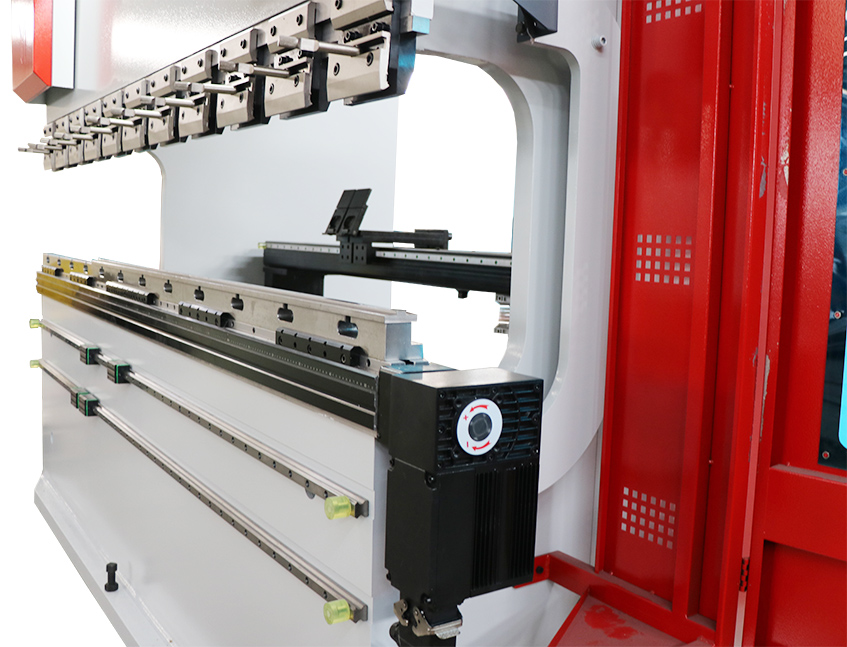

-- Linear scale

linear scale

Two pieces of linear scale were installed at the uprights to supply the reliable position and re-position accuracy.

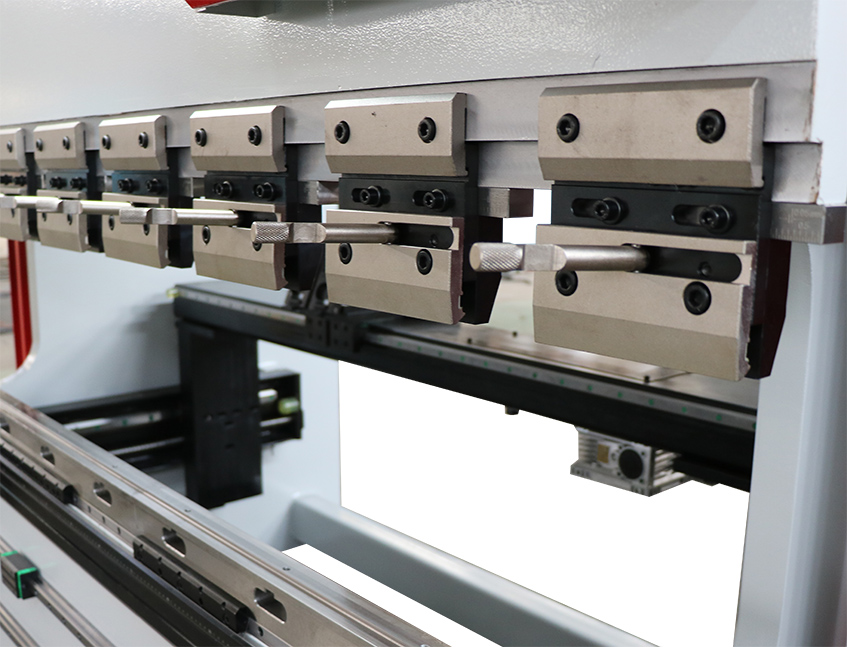

-- Quick clamping system

quick clamping system

Quick clamping system,the operator can change the tool through our quick clamping system.

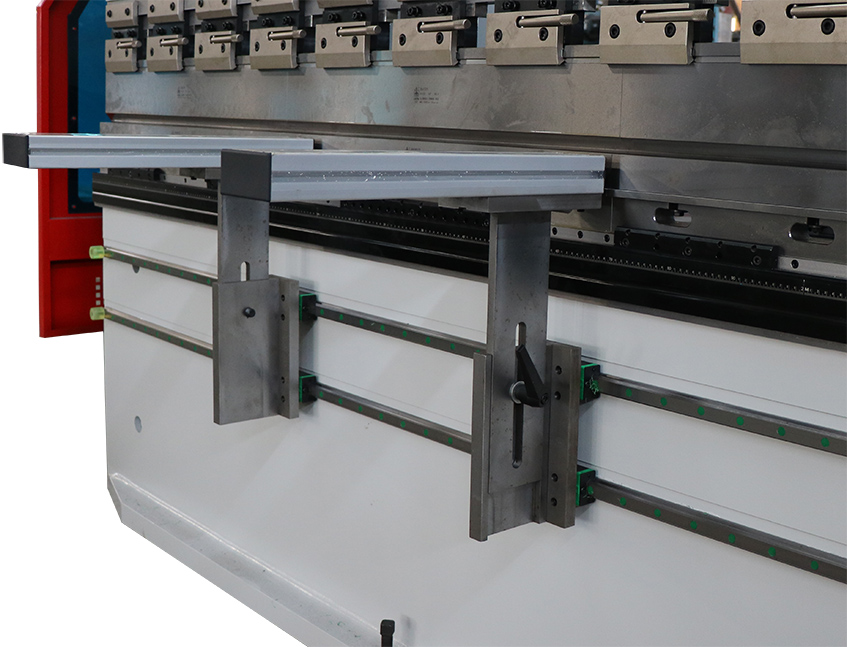

--Moveable support

The front sheet support can move against the linear rail, fast and reliable.

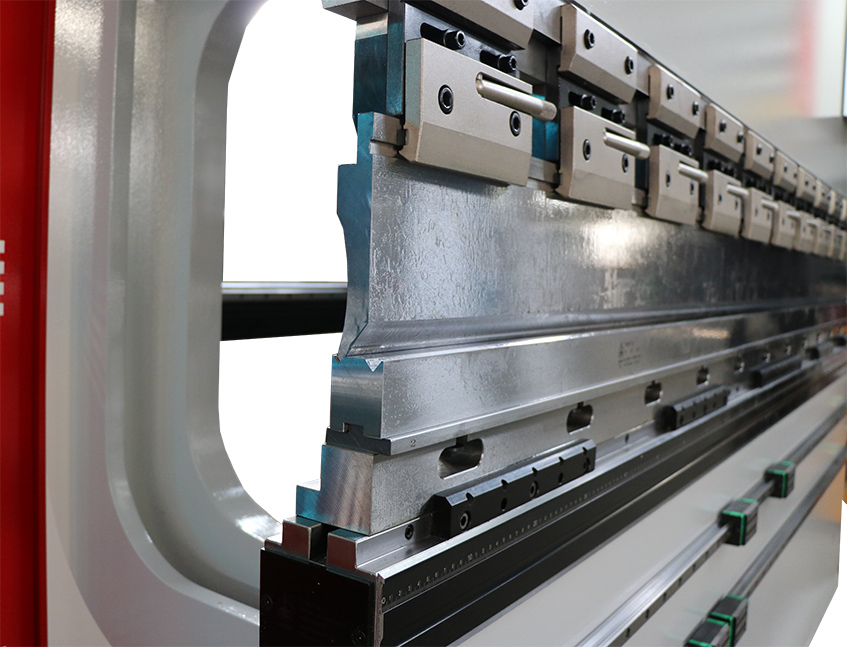

--Tool

The machine is equipped with 1-V/2-V die. We also supply the customed tool.

200T2500 CNC press brake
