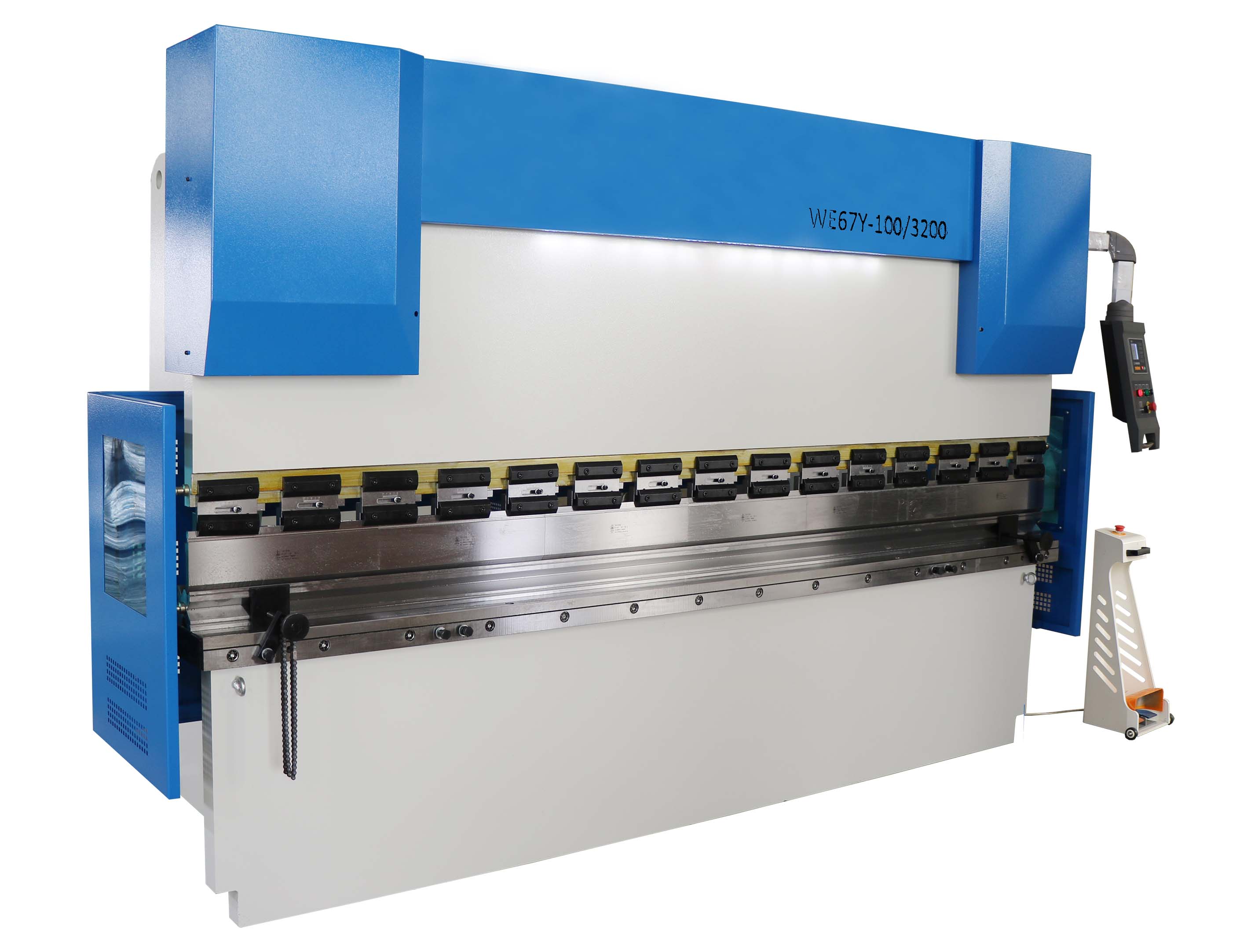

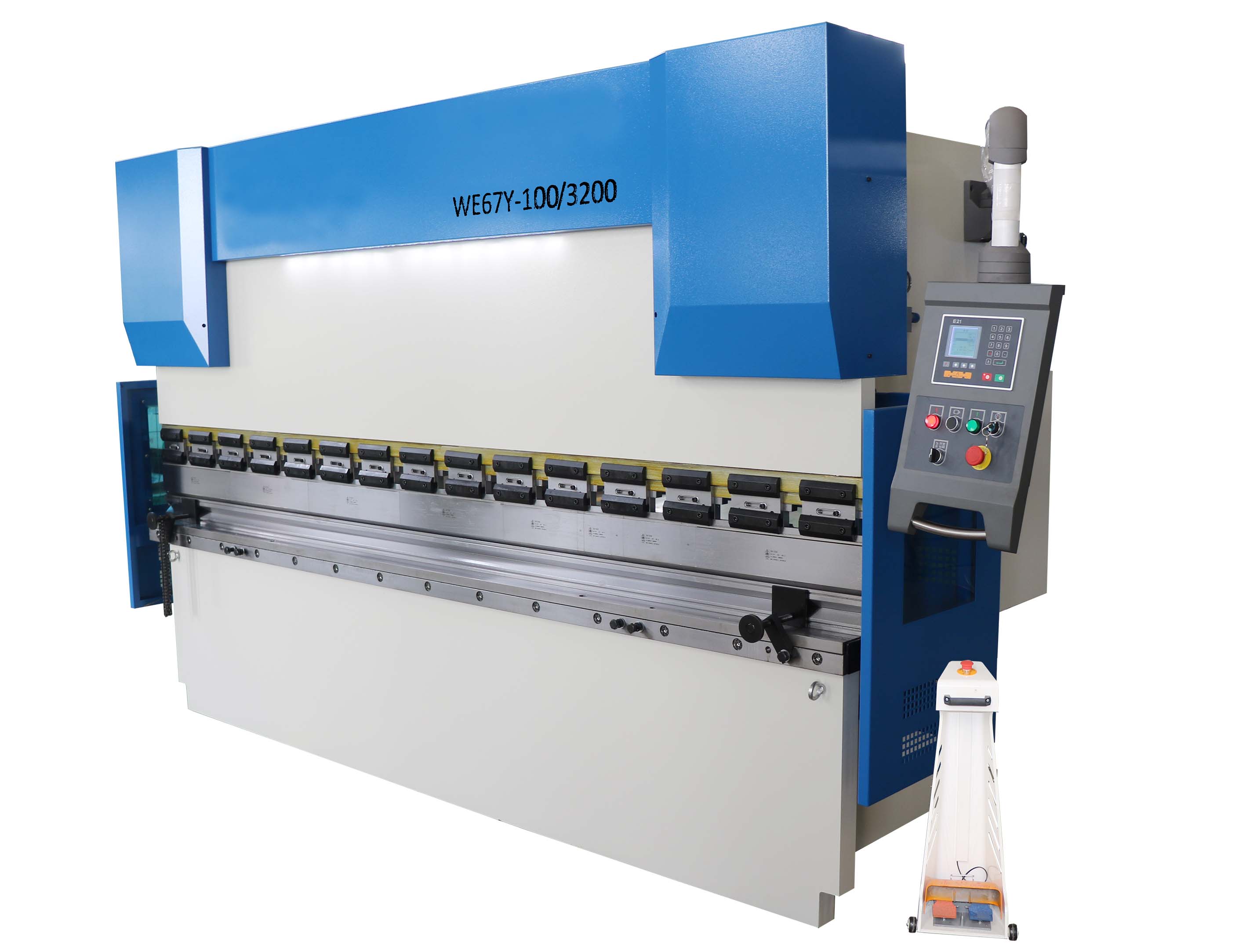

WE67Y-100T3200 Hydraulic Press Brkae
Parameters
|
1 |
Nominal pressure |
1000 |
KN |
|
|
2 |
Bending width |
3200 |
mm |
|
|
3 |
Distance between uprights |
2500 |
mm |
|
|
4 |
Stroke |
120 |
mm |
|
|
5 |
Max. daylight |
380 |
mm |
|
|
6 |
Throat depth |
320 |
mm |
|
|
7 |
Working table length |
3200 |
mm |
|
|
8 |
Approaching speed |
80 |
mm/s |
|
|
9 |
Bending speed |
8 |
mm/s |
|
|
10 |
Returning speed |
60 |
mm/s |
|
|
11 |
Main motor power |
7.5 |
KW |
|
|
12 |
Oil pump |
16 |
l/min |
|
|
13 |
Machine length |
3200 |
mm |
|
|
14 |
Machine width |
1450 |
mm |
|
|
15 |
Machine height |
2150 |
mm |
Overland |
Features

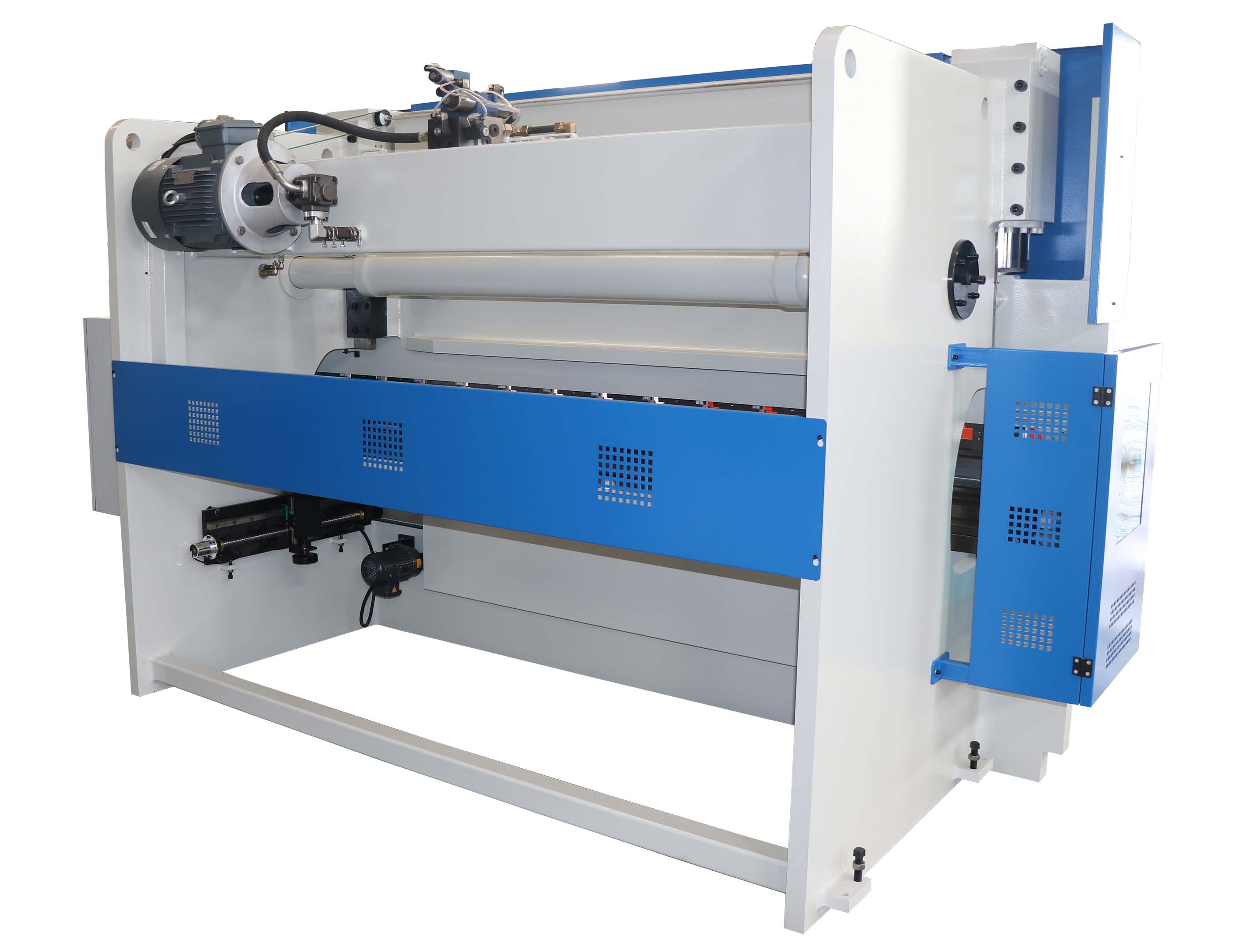

--Hydraulic-mechanical synchronous system
--XINLIy hydraulic components

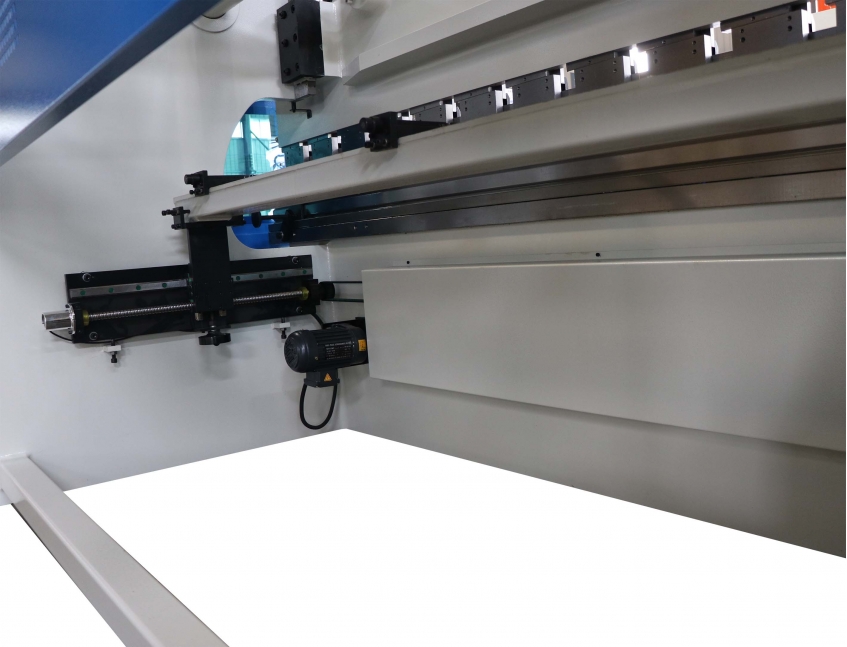

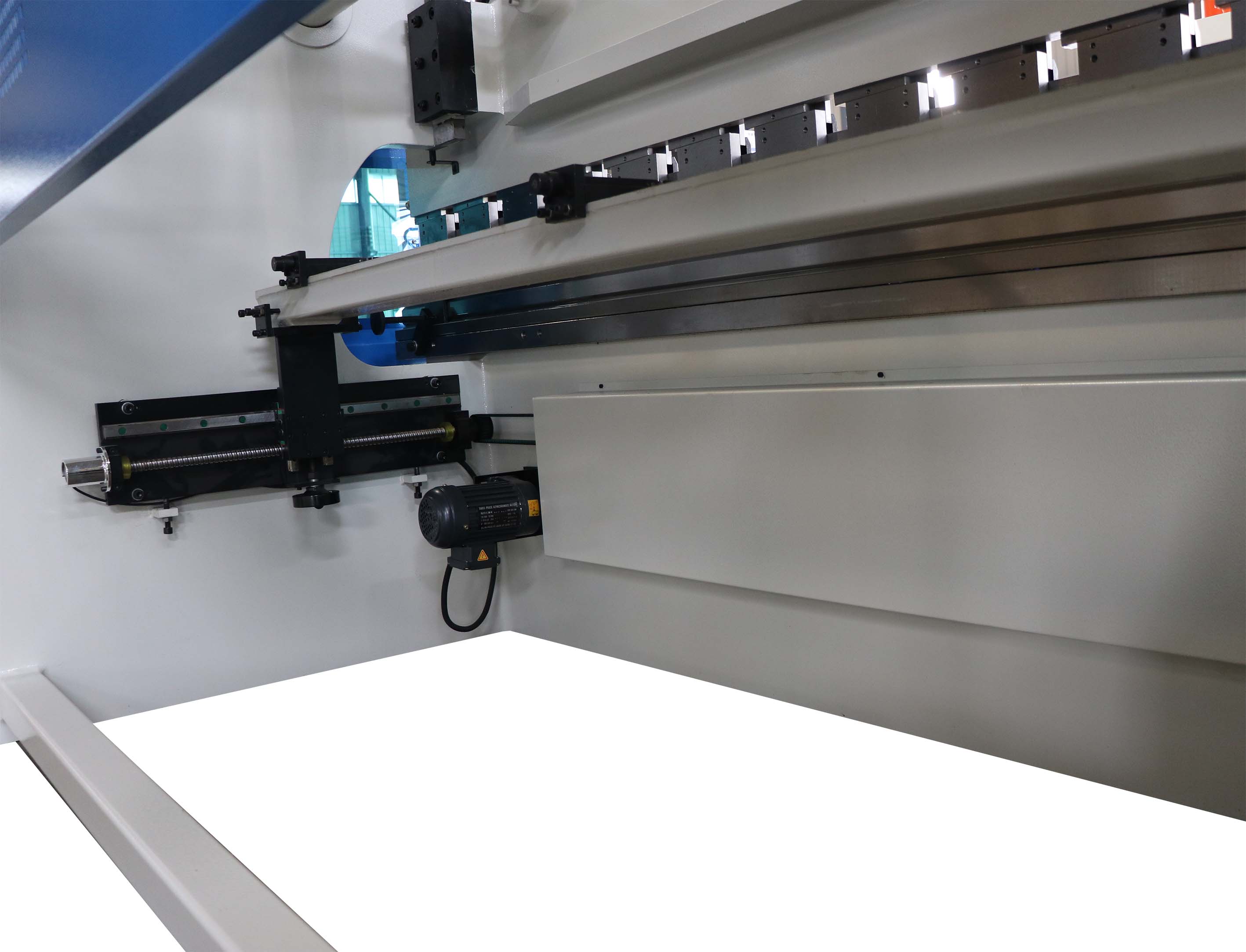

--E21 controlled back gauge ( X axis)
--E21 controlld beam strok ( Y axi)
--Accurate & fine beam position control by micro limit switch

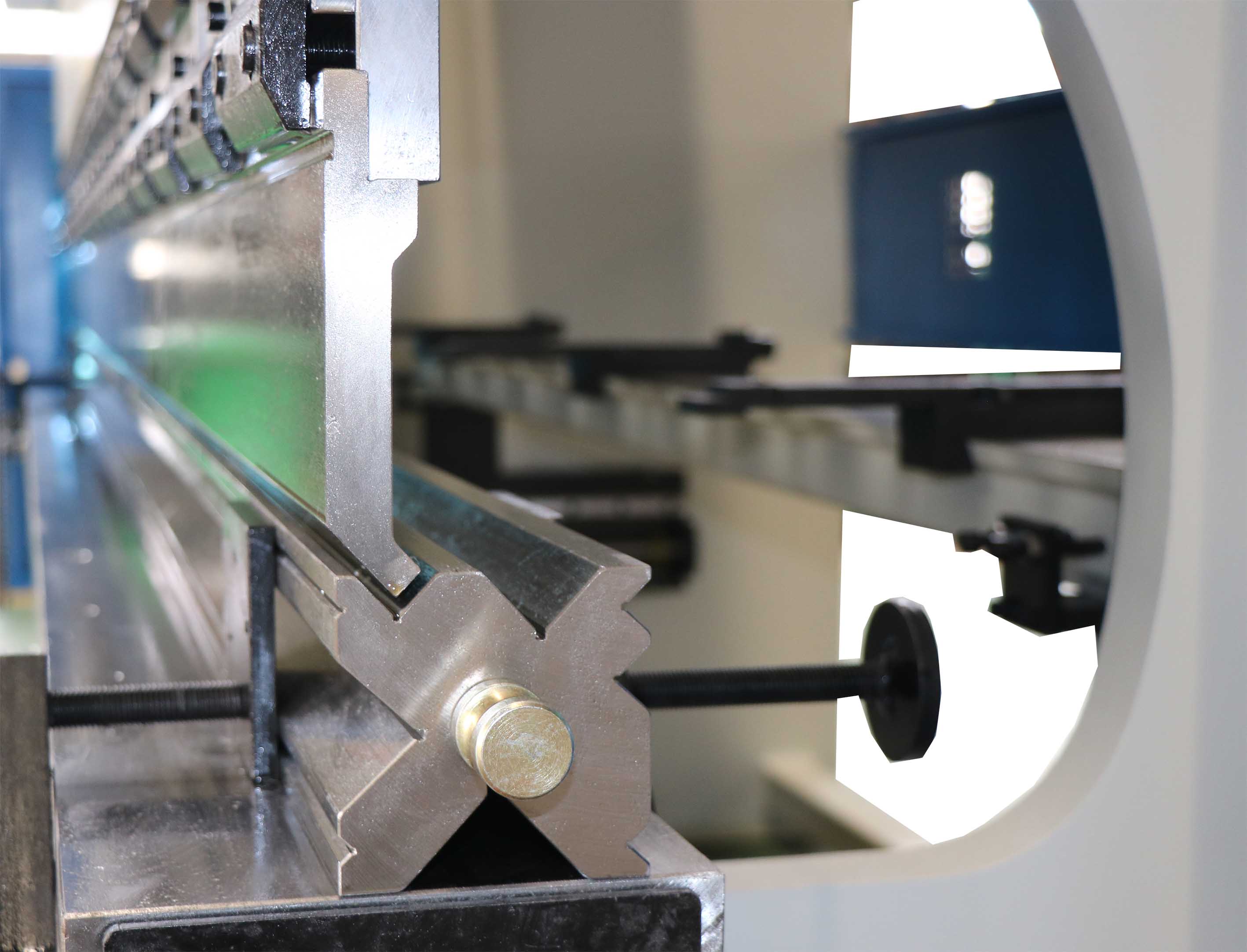

--Multi-V die
