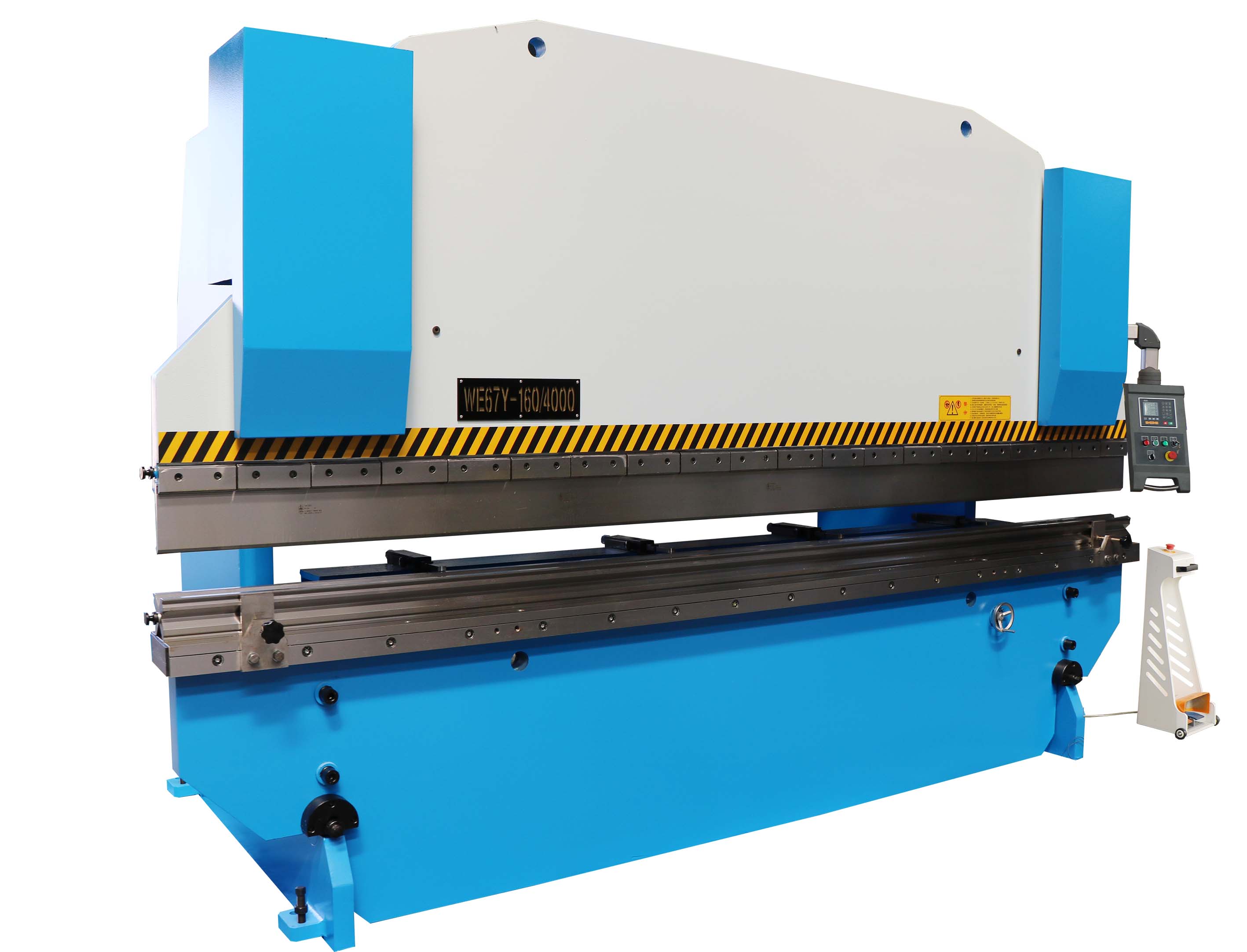

WE67Y-160T4000 Hydraulic Press Brake
Parameters
|
1 |
Nominal pressure |
1600 |
KN |
|
|
2 |
Bending width |
4000 |
mm |
|
|
3 |
Distance between uprights |
3100 |
mm |
|
|
4 |
Stroke |
160 |
mm |
|
|
5 |
Max. daylight |
430 |
mm |
|
|
6 |
Throat depth |
320 |
mm |
|
|
7 |
Working table length |
4000 |
mm |
|
|
8 |
Approaching speed |
80 |
mm/s |
|
|
9 |
Bending speed |
8 |
mm/s |
|
|
10 |
Returning speed |
60 |
mm/s |
|
|
11 |
Main motor power |
11 |
KW |
|
|
12 |
Oil pump |
25 |
l/min |
|
|
13 |
Machine length |
4100 |
mm |
|
|
14 |
Machine width |
1500 |
mm |
|
|
15 |
Machine height |
2550 |
mm |
Overland |
Features
--Hydraulic-mechanical synchronous system
--XINLIy hydraulic components

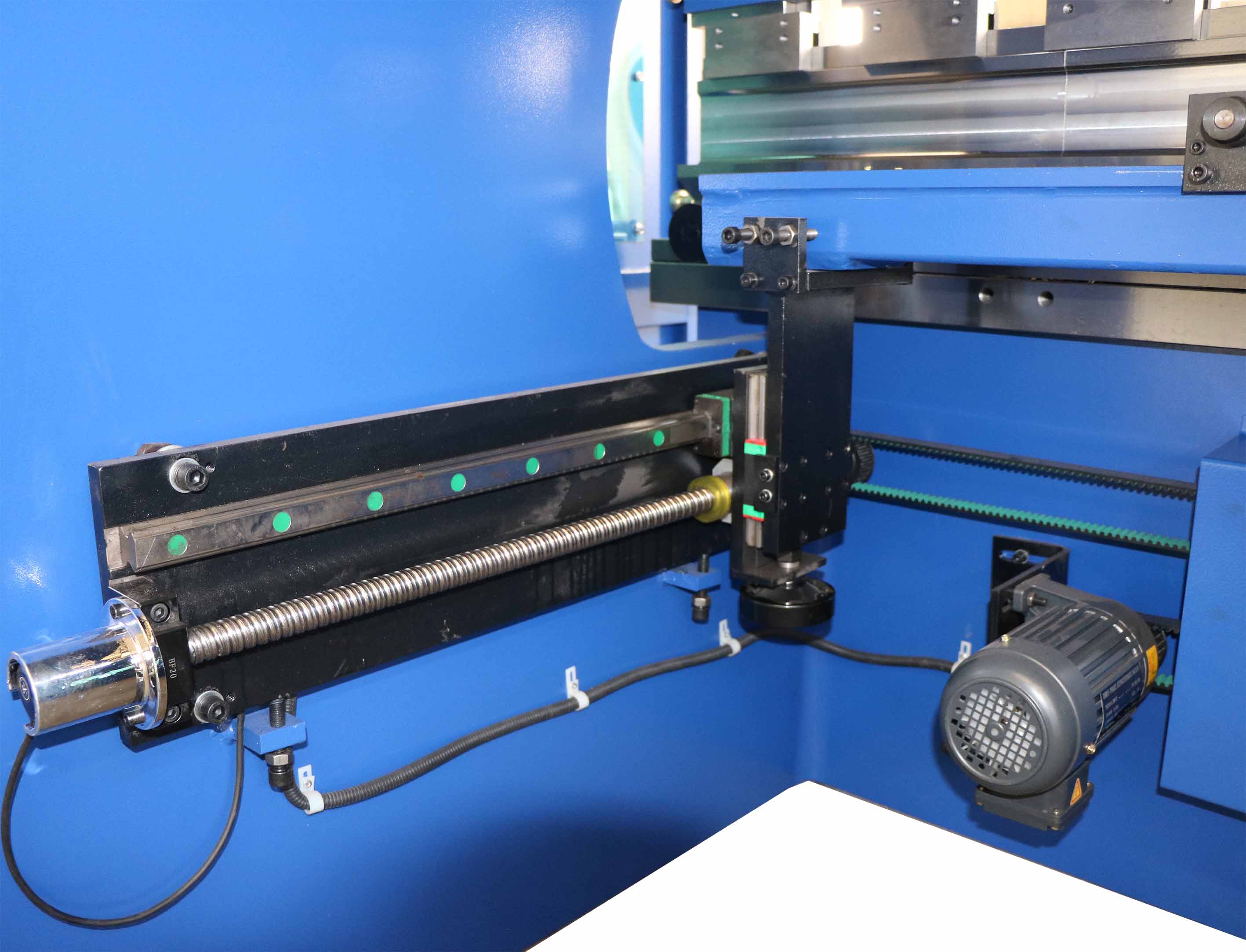

--E21 controlled back gauge ( X axis)
--E21 controlld beam strok ( Y axi)
--Accurate & fine beam position control by micro limit switch

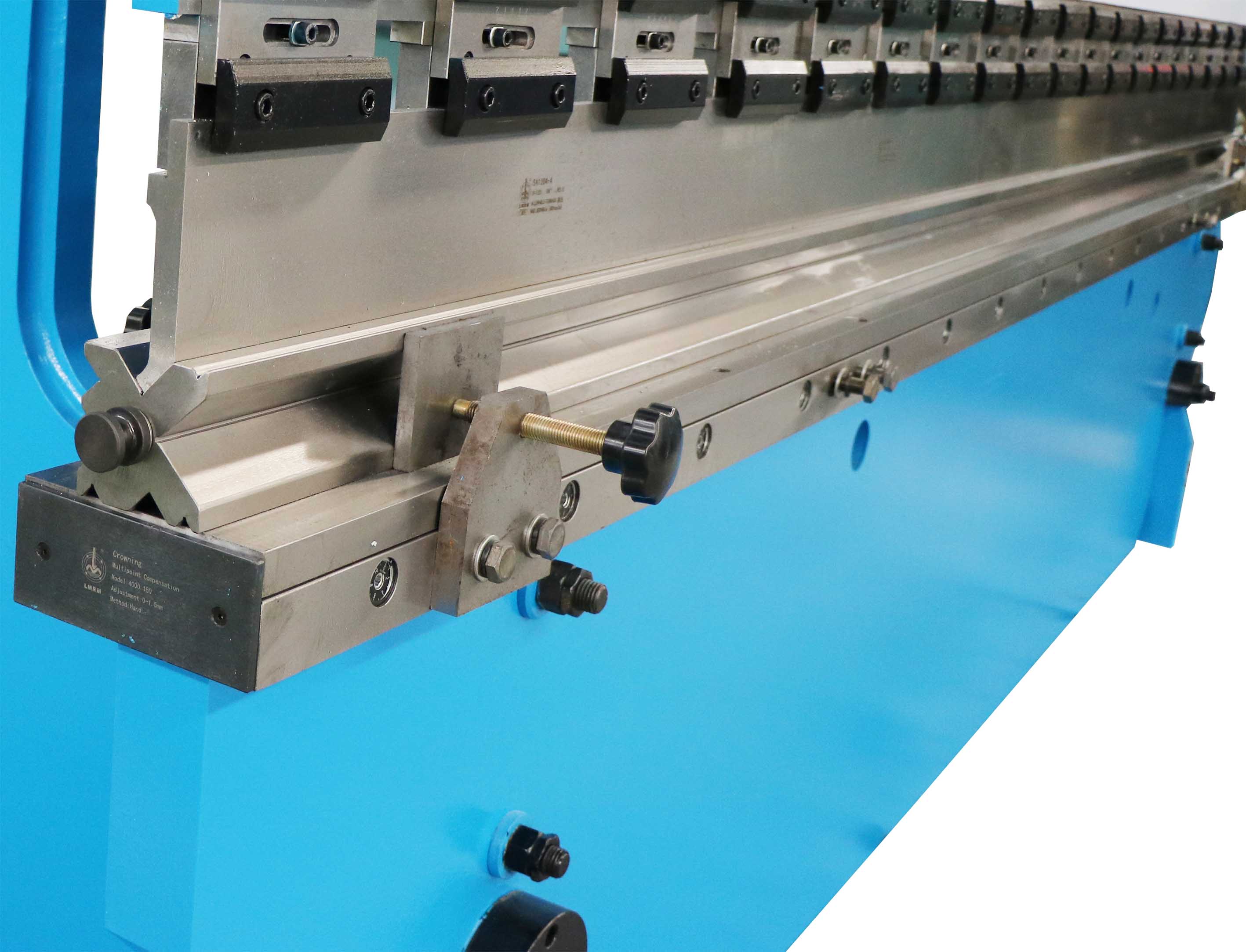

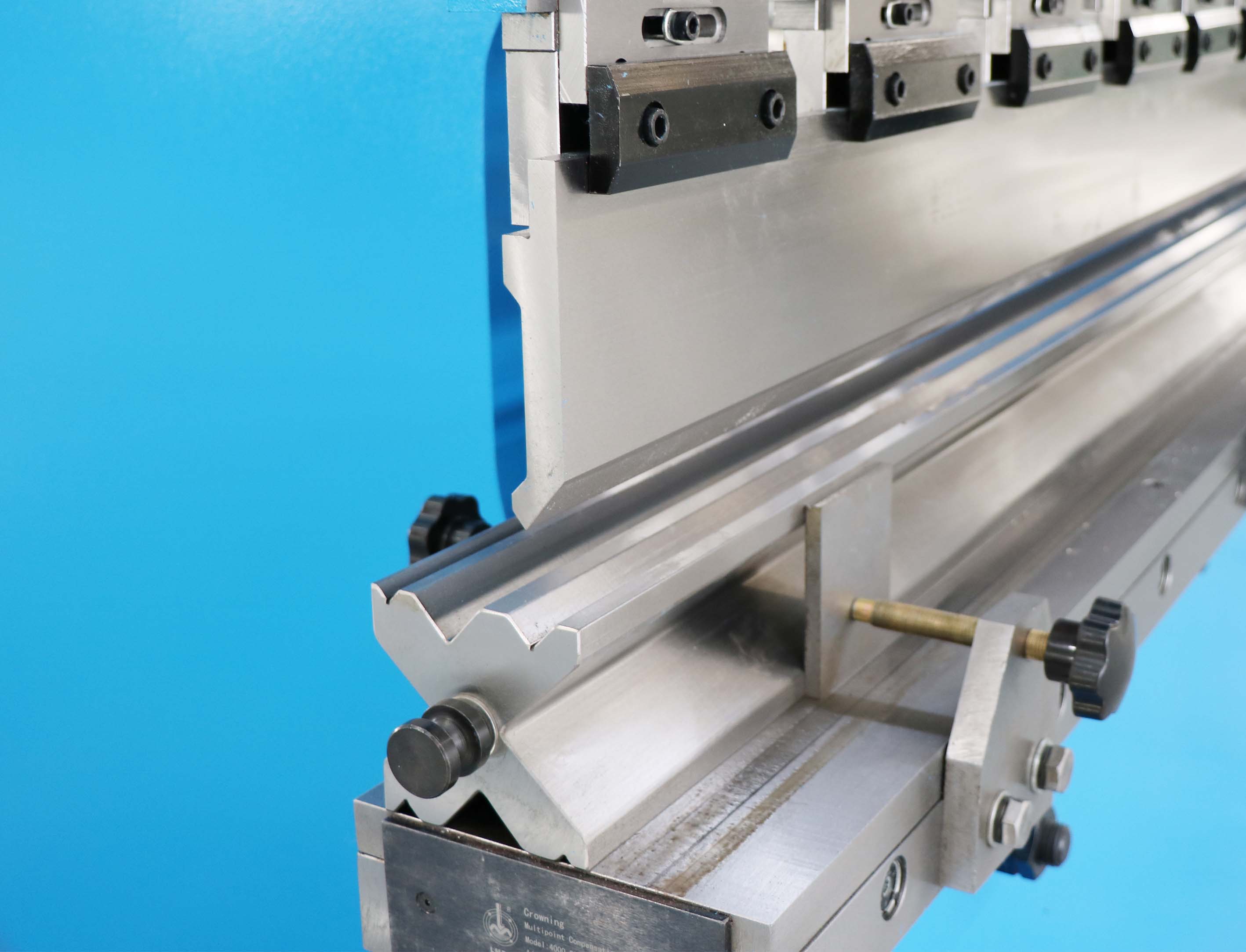

--Multi-V die
