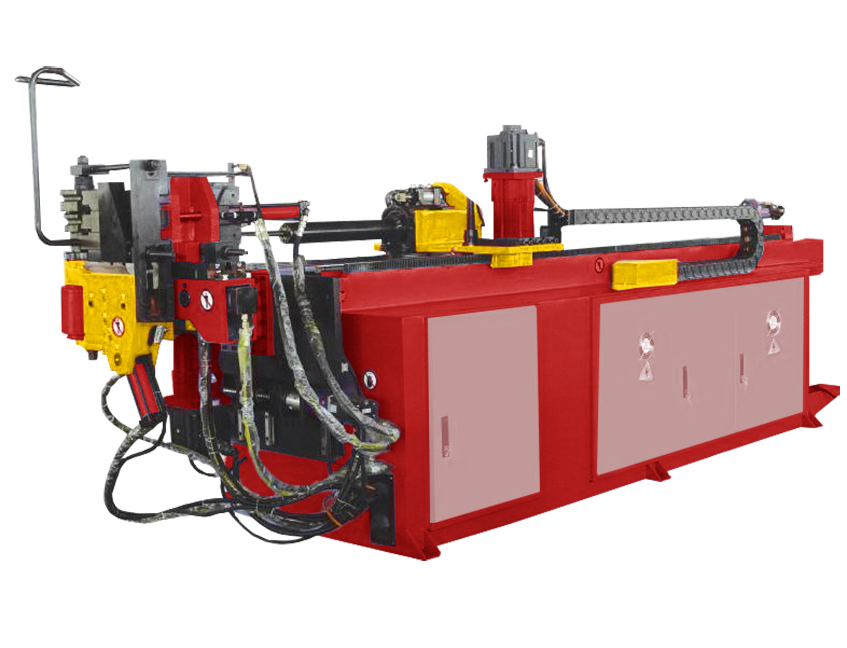

DW38CNC X2A-2S CNC Pipe Bending Machine

dw38cnc TUBE BENDING MACHINE

--Parameter

Item

    Name

Unit

Data

Remark

1



Max bending capacity



mm

Φ38×2t





Φ27 x 27 x 2

30 X 45

20

2



Max bending radius



mm



180

Can according to customer’s requirement

3.

Min bending radius

mm

Depend on the pipe diameter



4



Max feeding length

mm

2500

Can according to customer’s requirement

5

Max bending degree

Degree

190



6

Control Panel



PLC +touch screen



7

Bending unit

 piece

16



8

Working speed

bending speed

Deg/sec

150



Rotary speed

Deg/sec

200



Feeding speed

mm/sec

1000



9

Accuracy

feeding

mm

±0.1



rotary

Degree

±0.1



bending

Degree

±0.1



10

Rotary servo motor power

W

750

Japan Mitsubishi

11

Feeding servo motor power

Kw

1

Japan Mitsubishi

16

The accuracy of roller

mm

Max 50

Can according to customer’s requirement

17

Oil motor power

Kw

4



18

Max storage units

group

1000

Can enlarge according to requirement

19

Max pressure

MPa

12

Adjustable

20

Hydraulic control system



Magnetic exchange valve

Japan Yuken

21

Oil tank

L

110



22

Oil cooler

L/Min

150



23

Machine weight

Kg

1500



24

Machine size

mm

3860×720×1230



25.

Working height

mm

1300



26

Delivery time

days

50 days



27

Warranty time

month

12

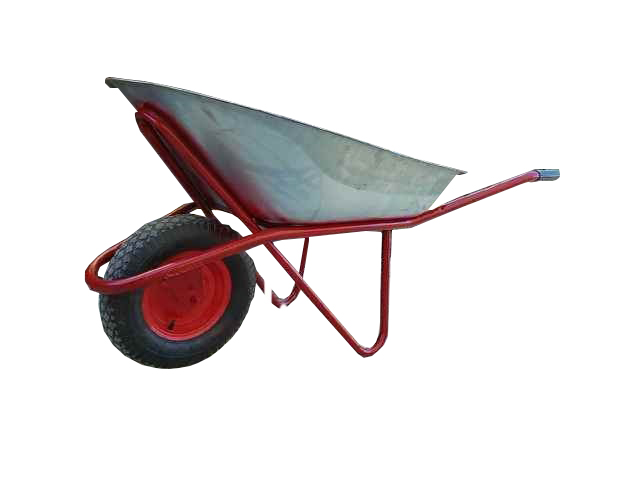

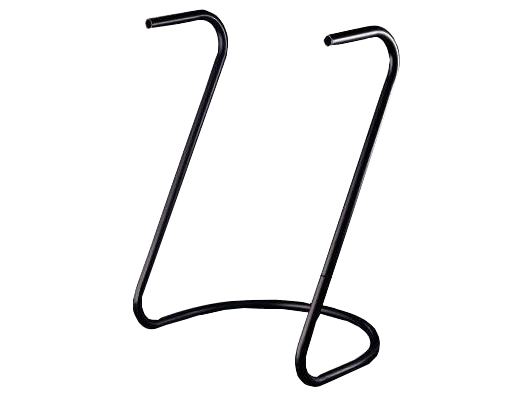

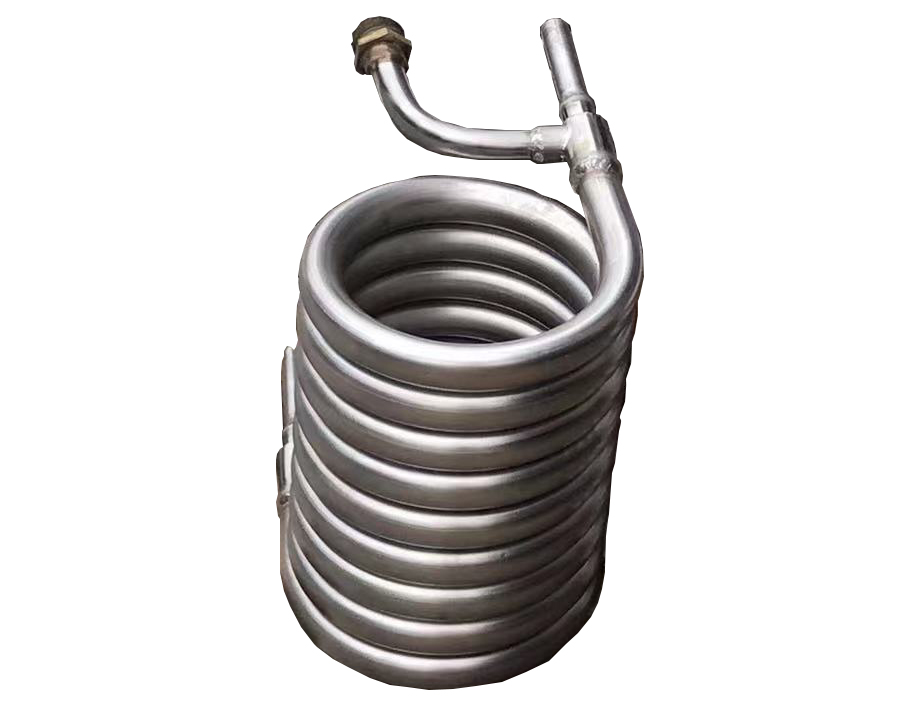

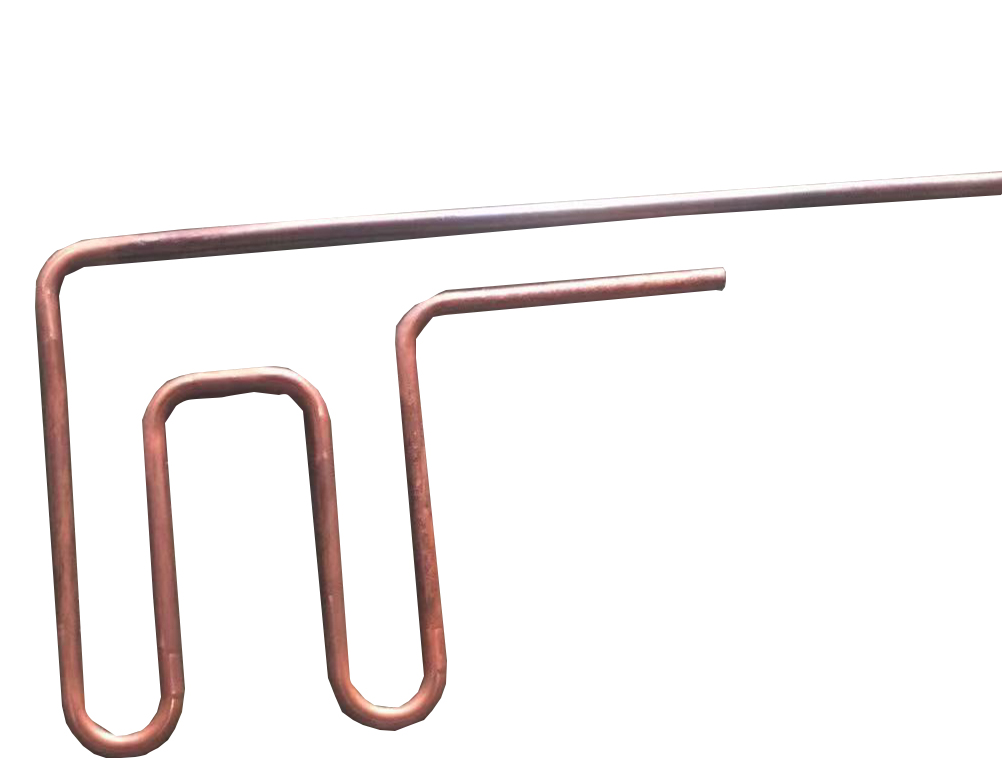

--Application
