Specification

Max.

Thk. of bending plate

(mm)

16

Thk. of pre-bending

12

Width of bending plate

2000

Effective length of the rollers

(mm)

2100

Yield Strength of Plate

(MPa)

235

Min. bending d with max.size

(mm)

600

Diameter of Roller

Upper

(mm)

300

Bottom

280

Side

240

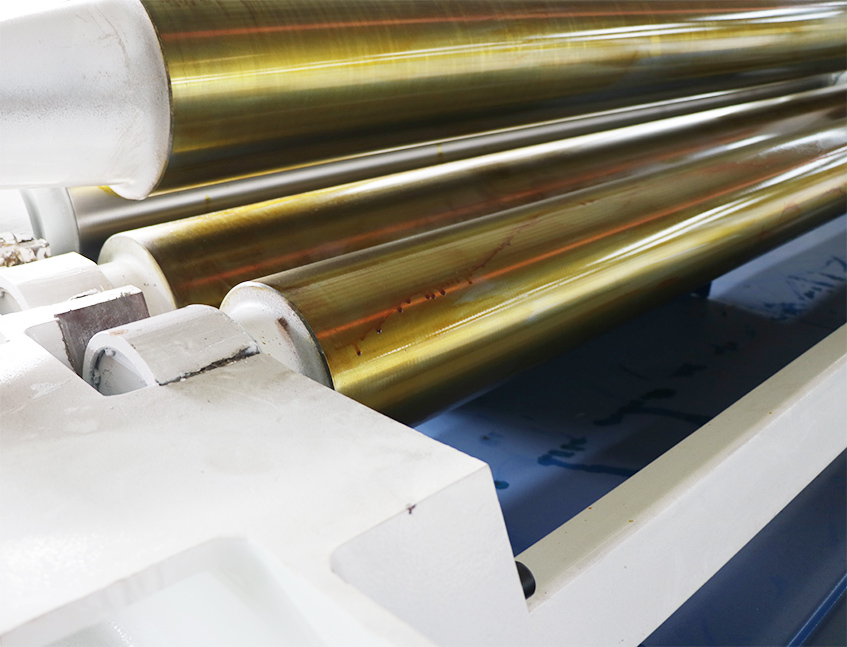

Upper Roller

Material

42CrMo

Hardness

(HB)

220-260

Induction Hardened Roll

YES

Roll Profile

crown

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

YES

Driving type

Hydraulic+ reducer

Control System

Control Mode

CNC

Display of position & displacement

LCD

PLC

ALIEN/SIEMENS

Electrical Part System

ABB/SIEMNENS

Plate Bending Speed

(m/min)

about 3.5

Torque of hydraulic motor

(n.m)

9000

Hydraulic System

Max. Working Pressure

(MPa)

31.5

Valve

SOFIMA/YUKEN

Seal

VALQUE

Side Support for Big Sheet Metal Diameters

  optional

Central Support for Big sheet Metal Diameters

　optional

Feeding Table

　optional

Oil Cooler System

　optional
