Specification

Max.

Thk. of bending plate

(mm)

25

Thk. of pre-bending

18

Width of bending plate

1500

Effective length of the rollers

(mm)

1600

Yield Strength of Plate

(MPa)

235

Min. bending diameter with max.size

(mm)

600

Diameter of Roller

Upper

(mm)

300

Bottom

280

Side

230

Roller

Material

42CrMo

Hardness

(HB)

220-260

Induction Hardened Roll

YES

Roll Profile

crown

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

YES

Driving Type

Hydraulic motor

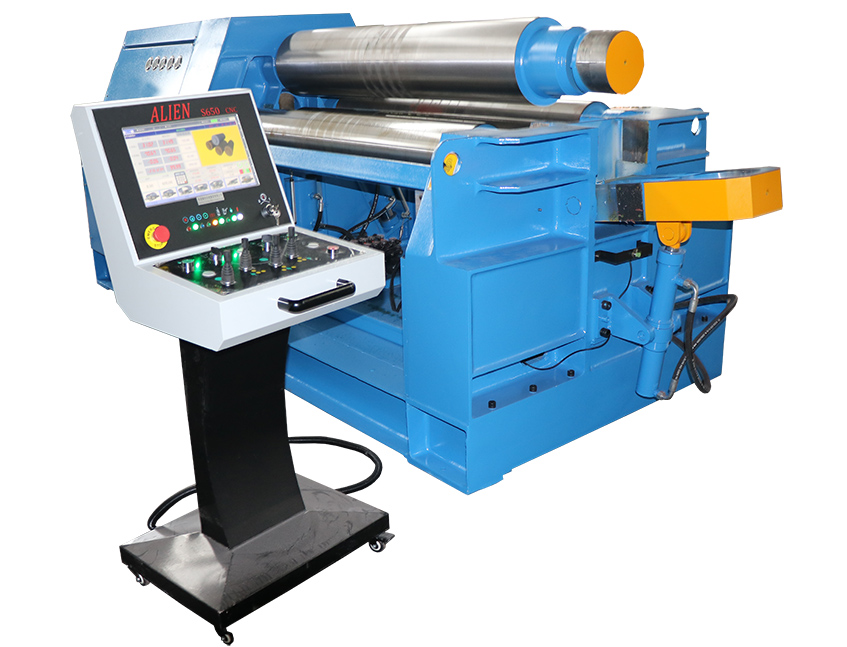

Control System

Control Mode

CNC

Display of position & displacement

LCD

PLC

 ALIEN/SIEMENS

Electrical Part System

ABB/SIEMNENS

Plate Bending Speed

(m/min)

about 3.5

Power of hydraulic motor

(KW)

22

Torque of hydraulic gear

(N.m)

22000

Hydraulic System

Max. Working Pressure

(MPa)

22

Valve

SOFIMA/YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

Side Support for Big Sheet Metal Diameters

  optional

Central Support for Big sheet Metal Diameters

　optional

Feeding Table

　optional

Oil Cooler System

　optional
