2xWE67K-200T6300 CNC Press Brake in Tandem
Parameters
|
Nominal force |
KN |
2x2000 |
|
|
Length of working table |
mm |
2x6300 |
|
|
Distance between uprights |
mm |
4800 |
|
|
Throat depth |
mm |
320 |
optional |
|
Max. daylight |
mm |
435 |
optional |
|
Main motor power |
KW |
2x15 |
|
|
Main oil pump |
L/min |
2x25 |
|
|
Approaching speed |
mm/s |
70 |
|
|
Bending speed |
mm/s |
7 |
|
|
Returning speed: |
mm/s |
70 |
|
|
Length |
mm |
2x6400 |
Without the side unloading system |
|
Width |
mm |
1650 |
Without the front feeding system |
|
Height(over land) |
mm |
3180 |
|
Features:

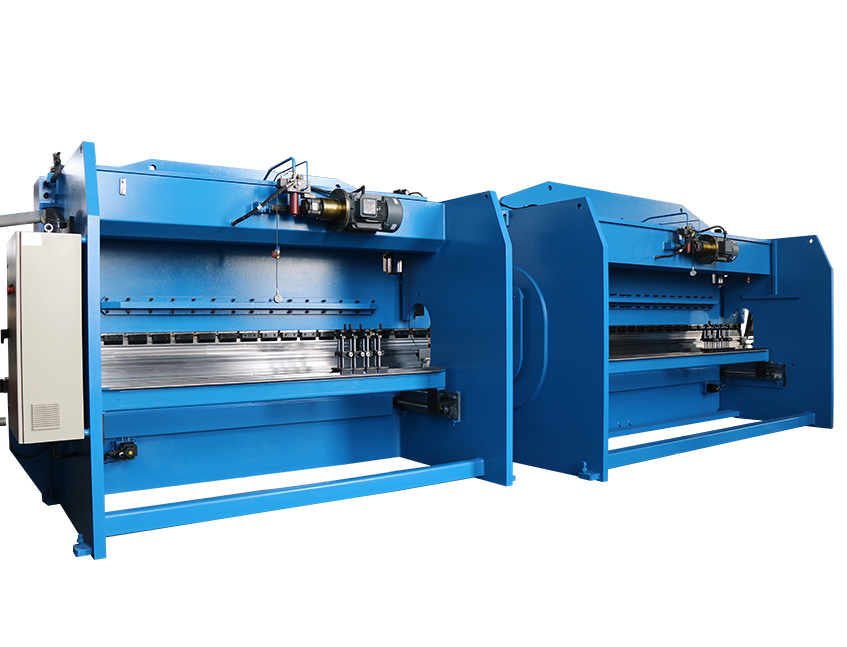

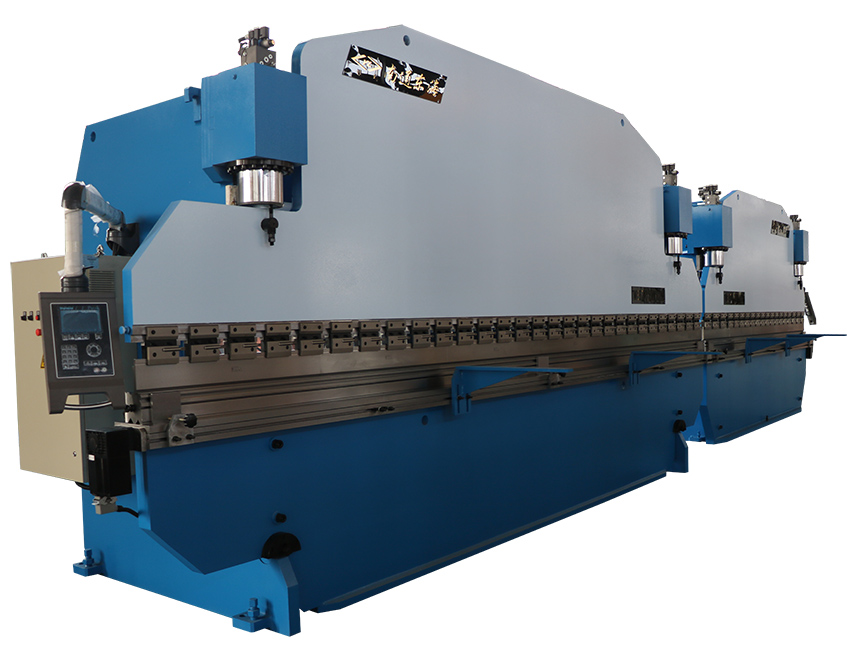

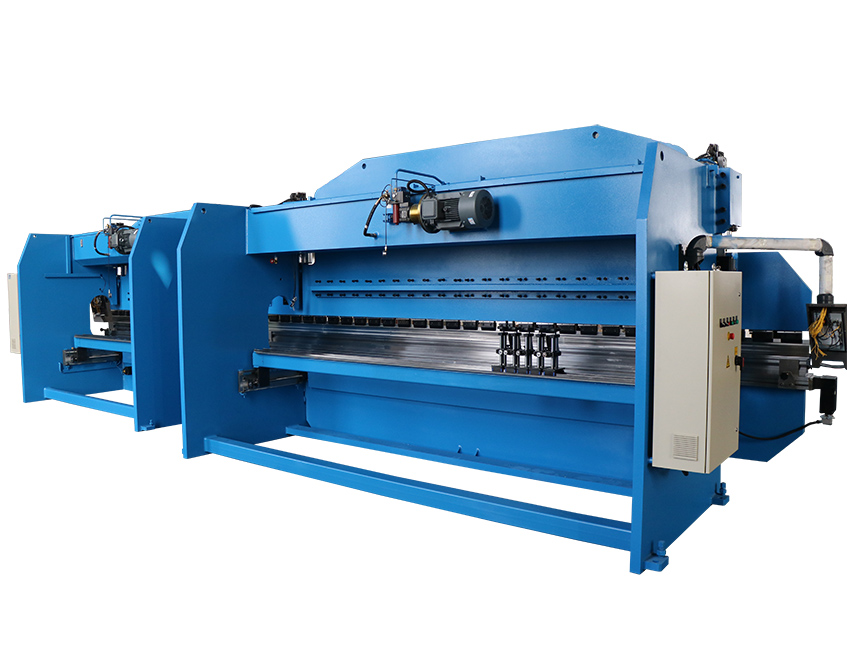

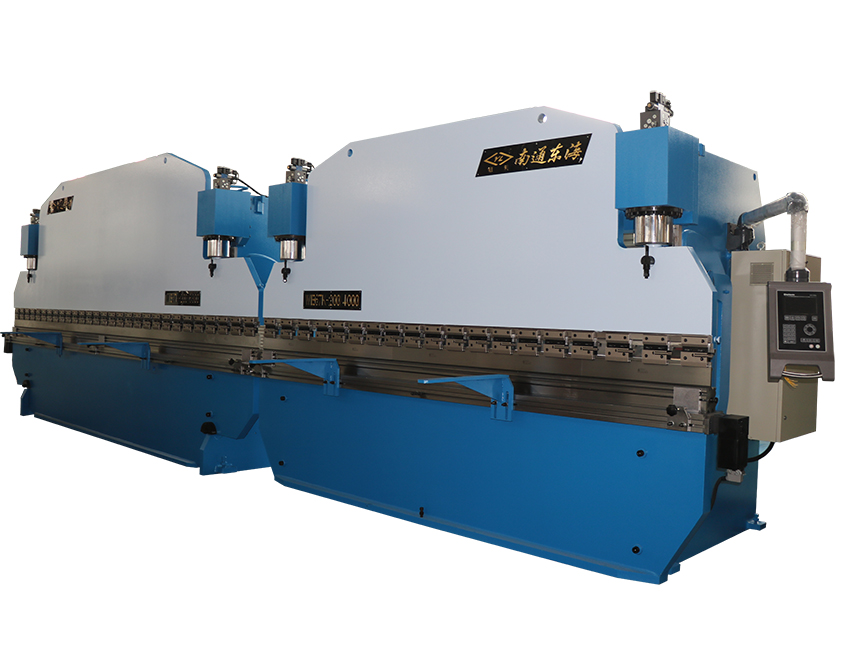

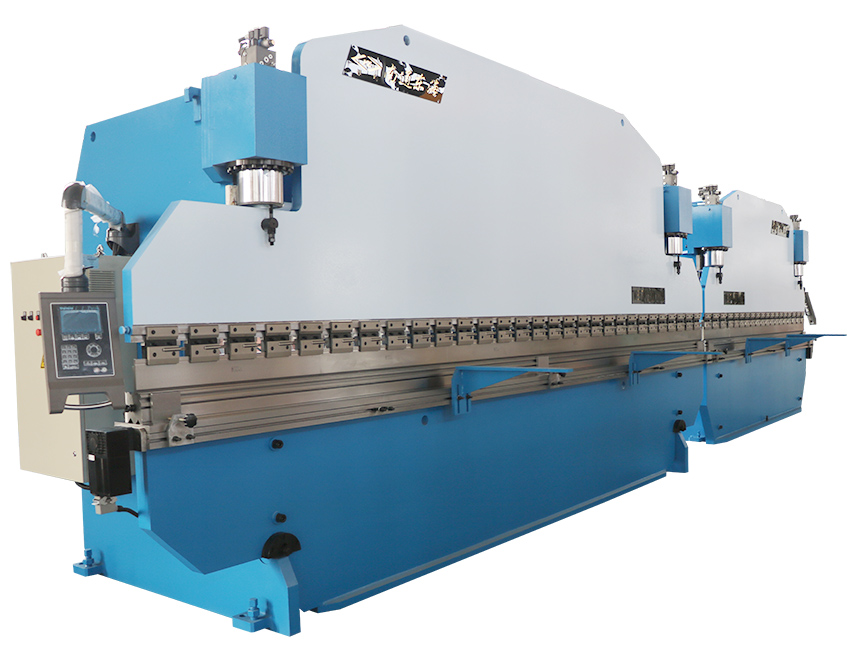

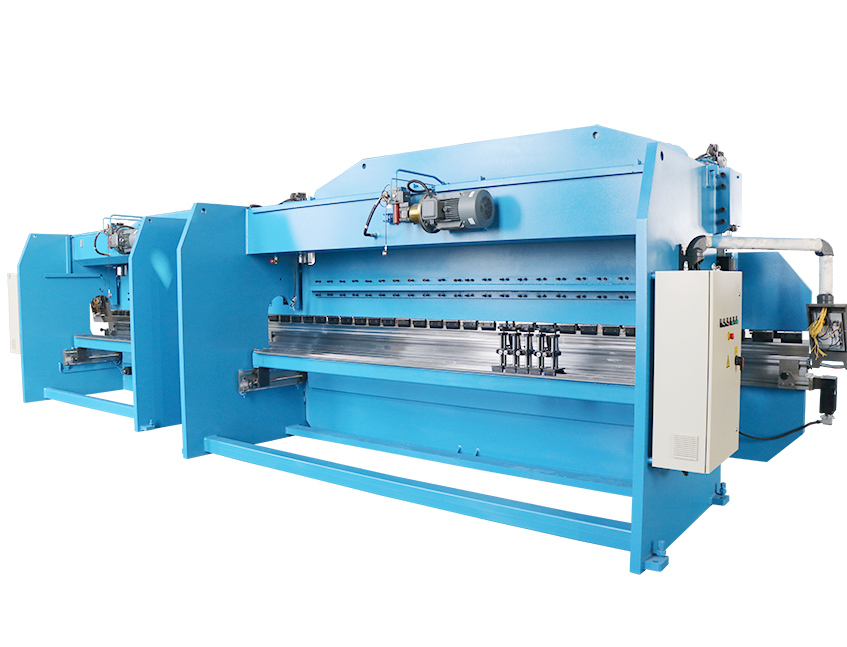

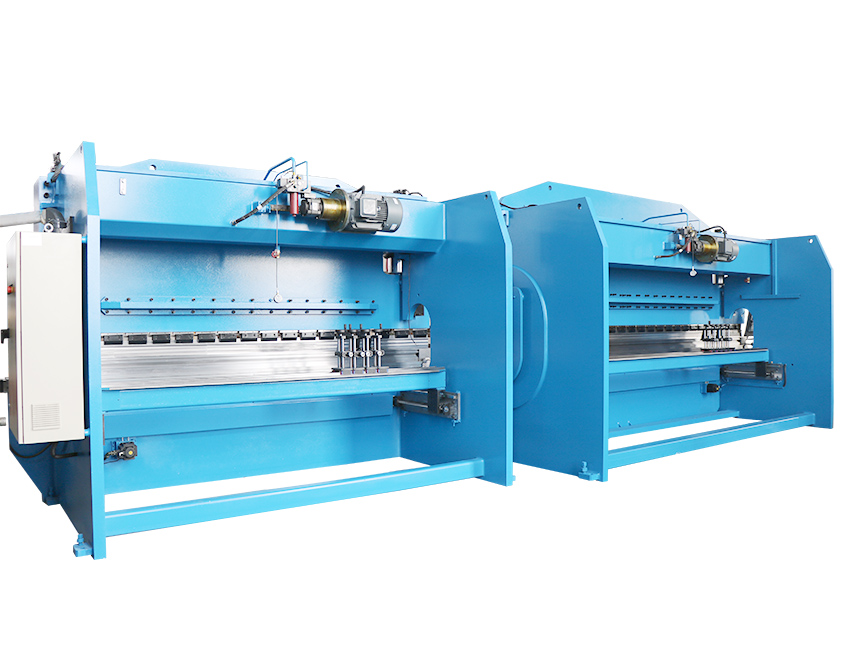

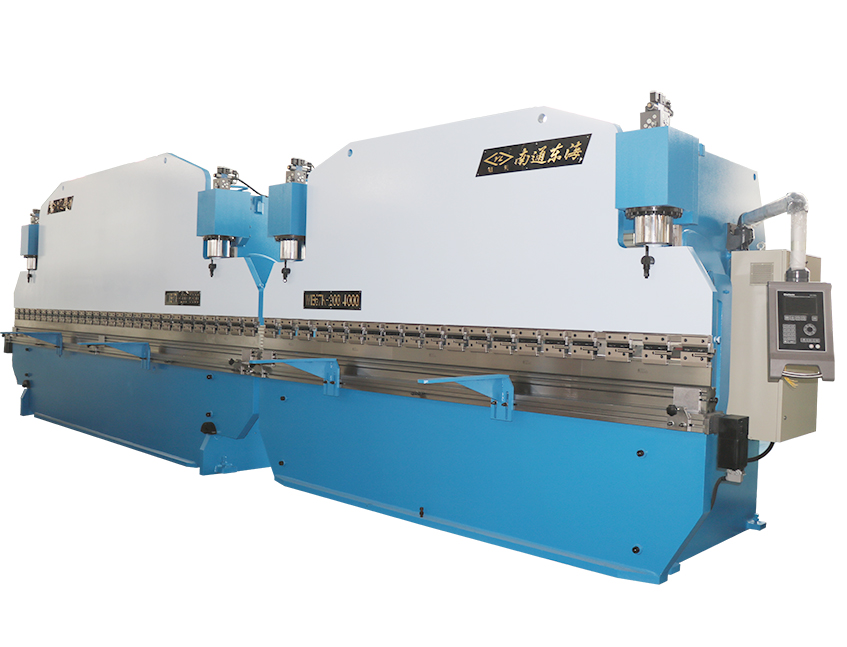

-- two CNC press brakes in tandem
-- suite bend long size plate till 12.6 meters
--REXROTH highly precise proportional valve to control accurate beam movement
-- accurate & fine beam position control by micro limit switch
--hydraulic cylinder with twin type sealing low & high pressure and hard chrome
--CNC controlled mechanical pulling-rod anti-crowing device(V)

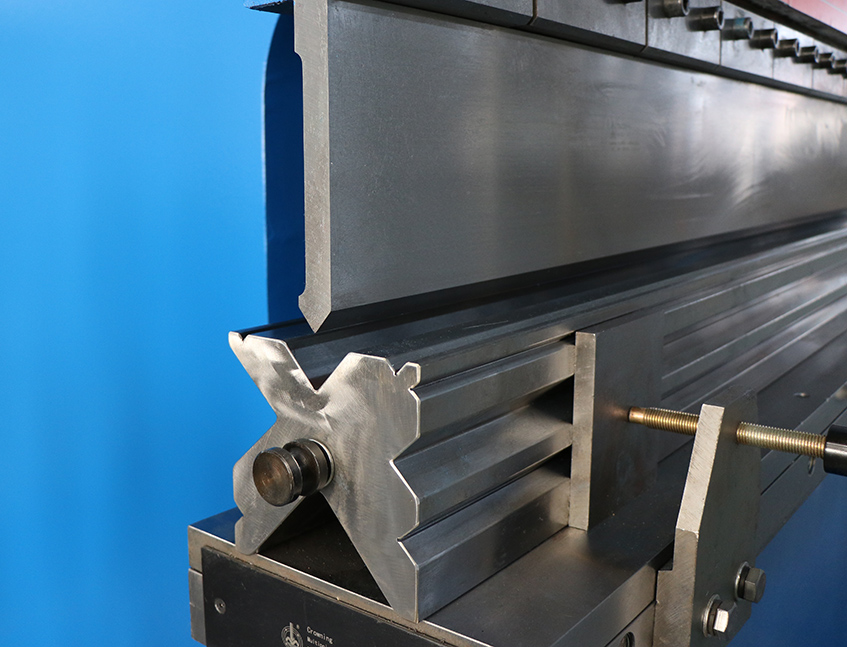

-- Variable-V die
--Fixed adapter + variable punching tool
--Highly Precise proportional valve to control accurate beam movement

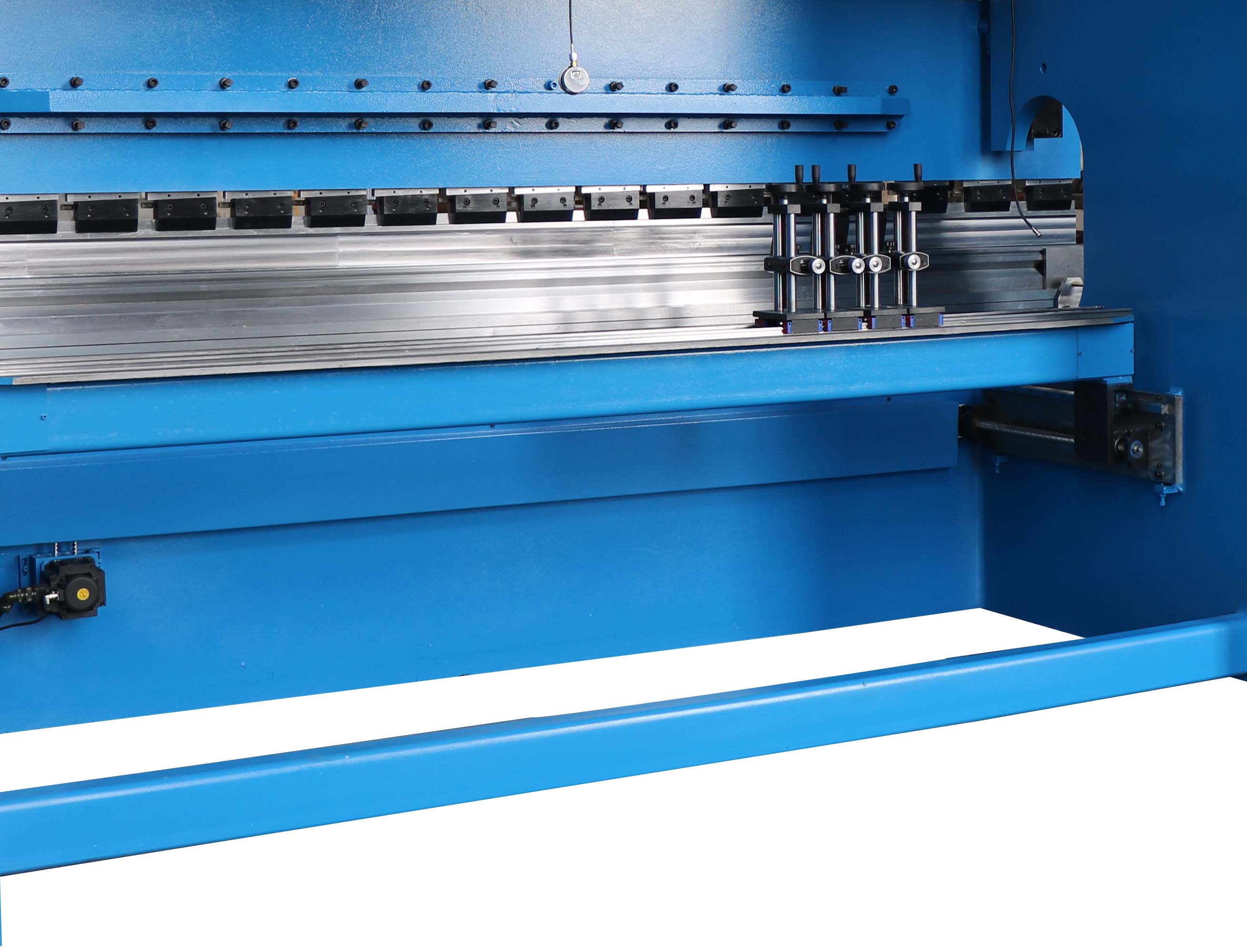

--Back gauge consist of hardened & ground ball screw
