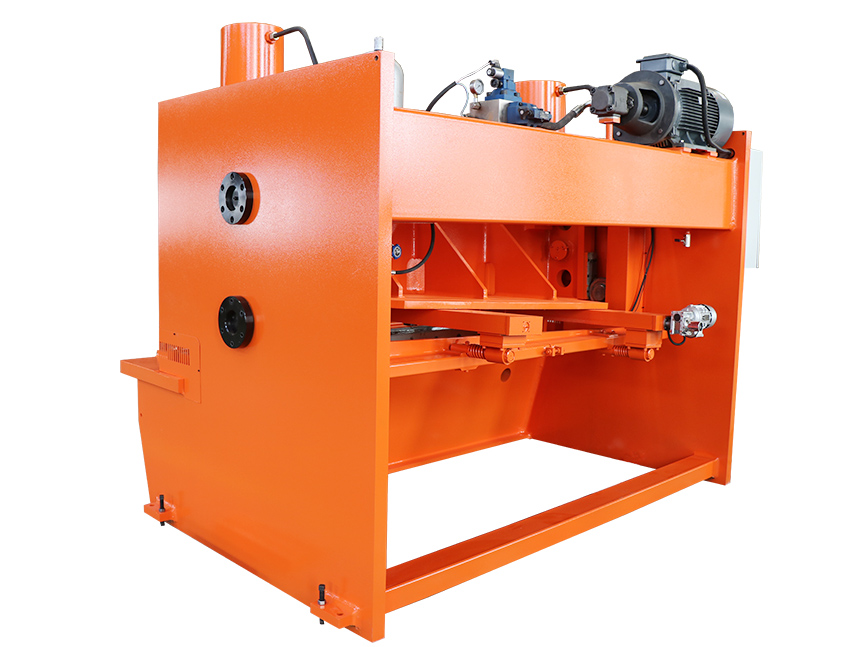

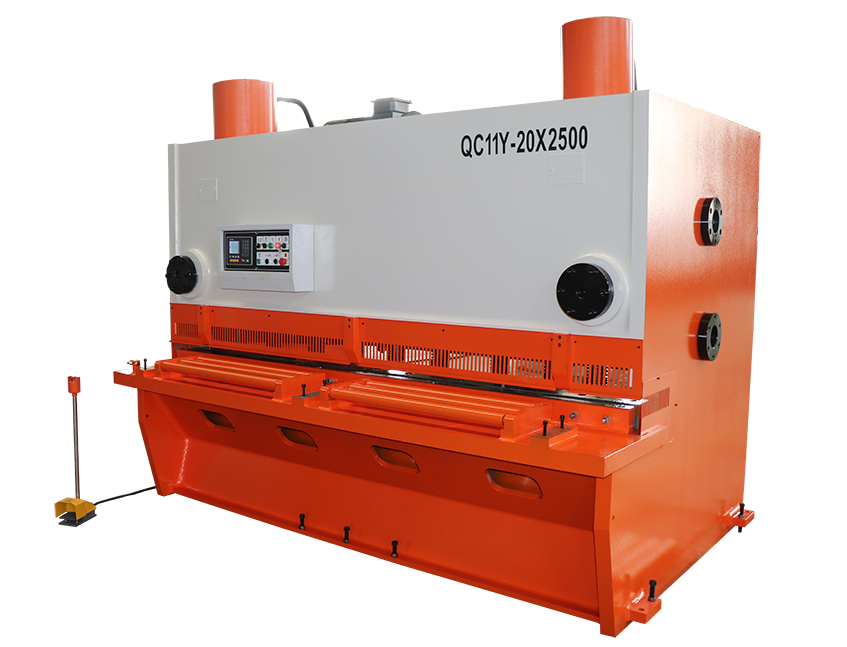

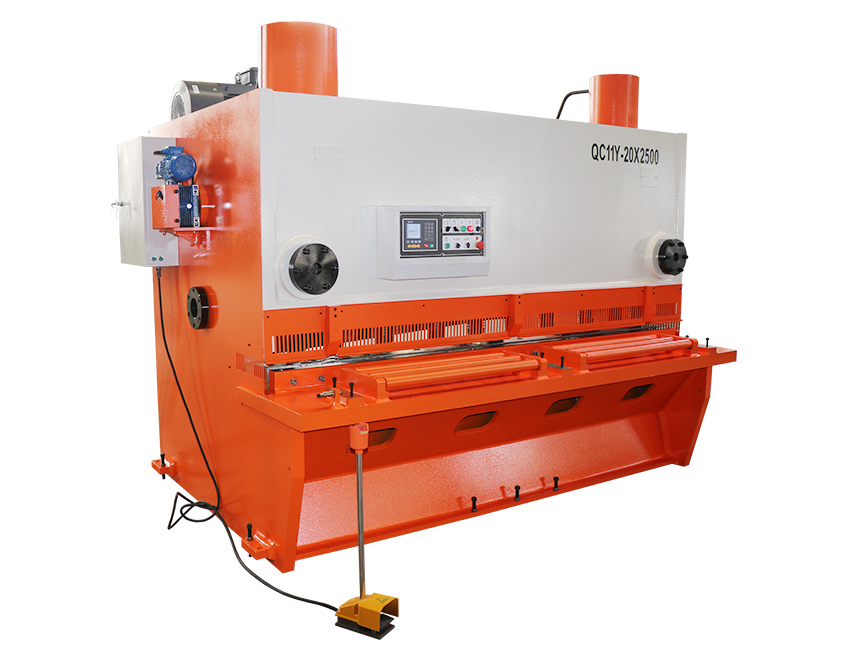

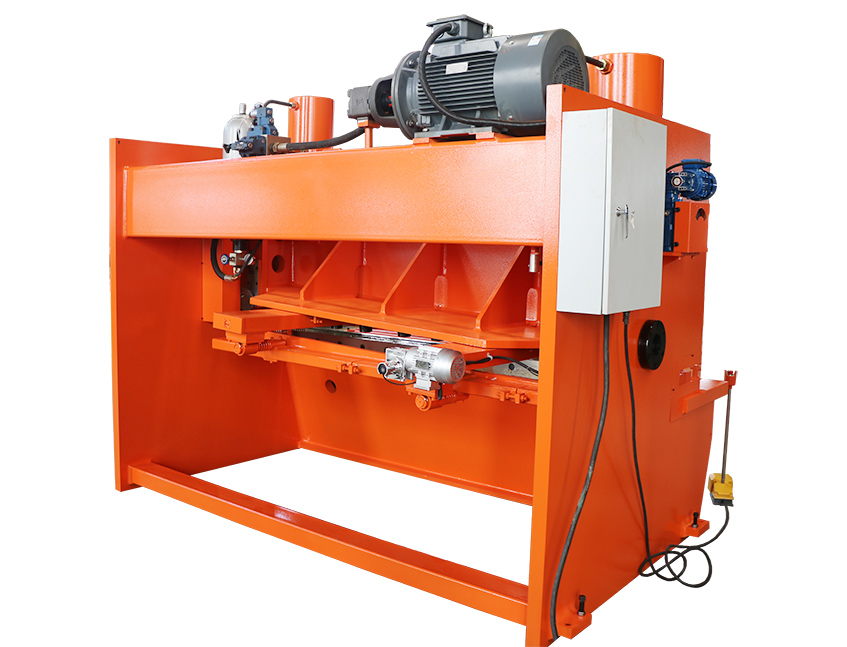

QC11Y -20x2500 Hydraulic Guillotine Shearing Machine
Parameters
|
Model(QC11Y) |
20x2500 |
|
Shearing thickness (mm) |
20 |
|
Shearing width (mm) |
2500 |
|
Cutting plate tensile strength N/mm² |
450 |
|
Shearing angle (°) |
0.5-3.0 |
|
Back gauge range (mm) |
20-1000 |
|
Blade length (mm) |
2600 |
|
Throat depth (mm) |
100 |
|
Blade material |
6CrW2Si |
|
Main motor power (KW) |
30 |
|
Oil pump( L/min) |
63 |
|
Stroke (n/min) |
7-20 |
|
Length (mm) |
3300 |
|
Width (mm) |
2050 |
|
Height (mm) |
2440 |
Features

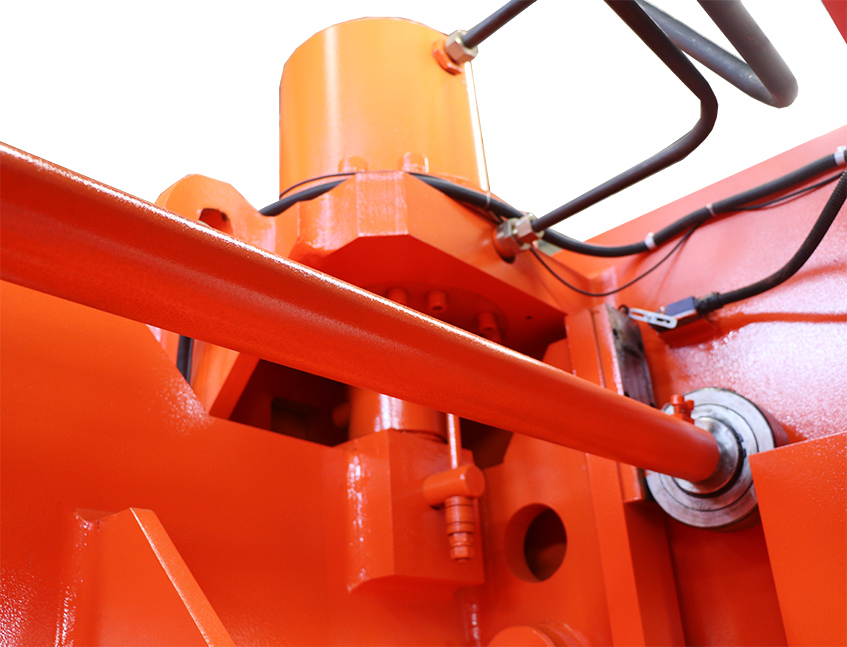

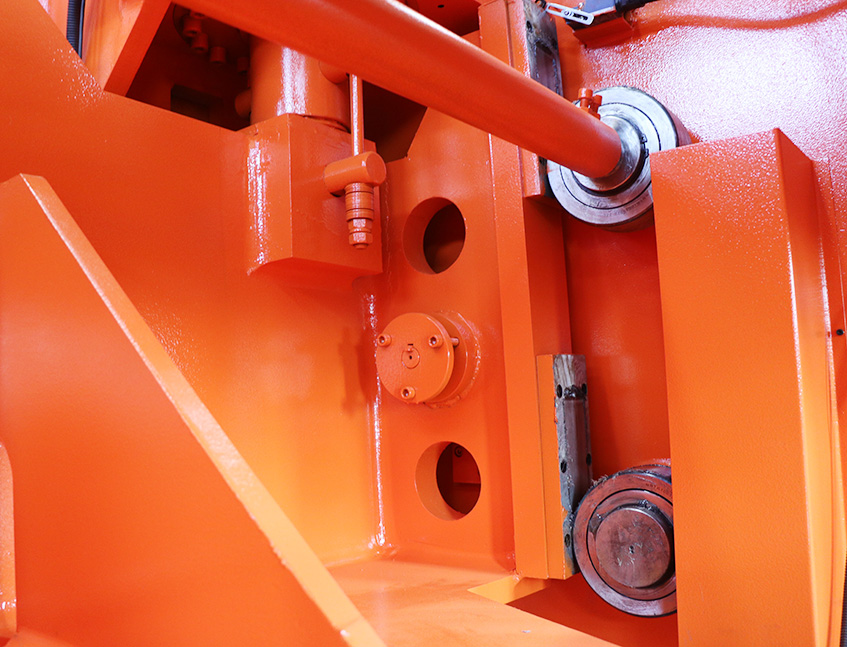

--Guillotine beam design
--Variable shearing angle
--Squaring arm with steel rule for front gauging.
--Strokes can be controlled according different shearing length
--Four edge shearing blade

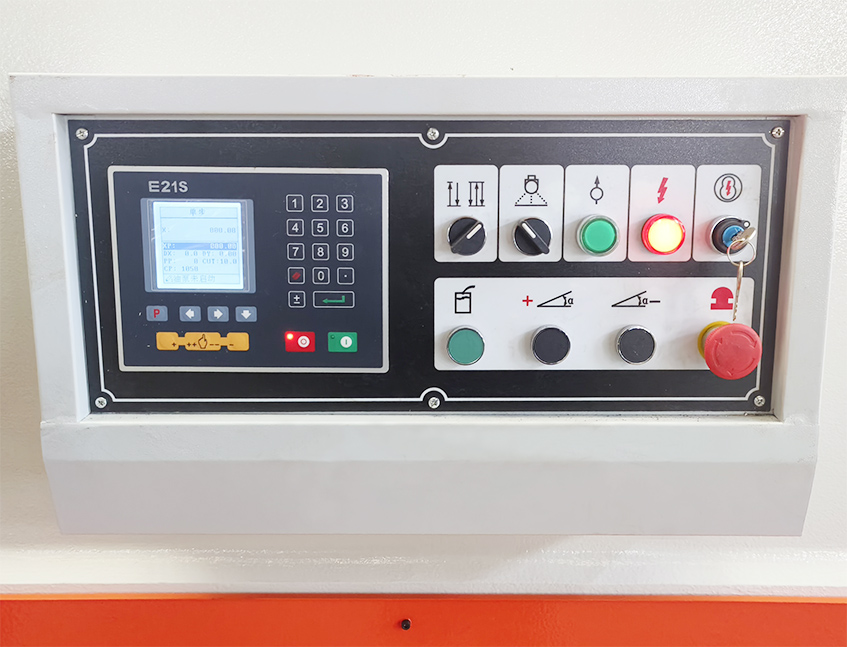

--E21S control system
