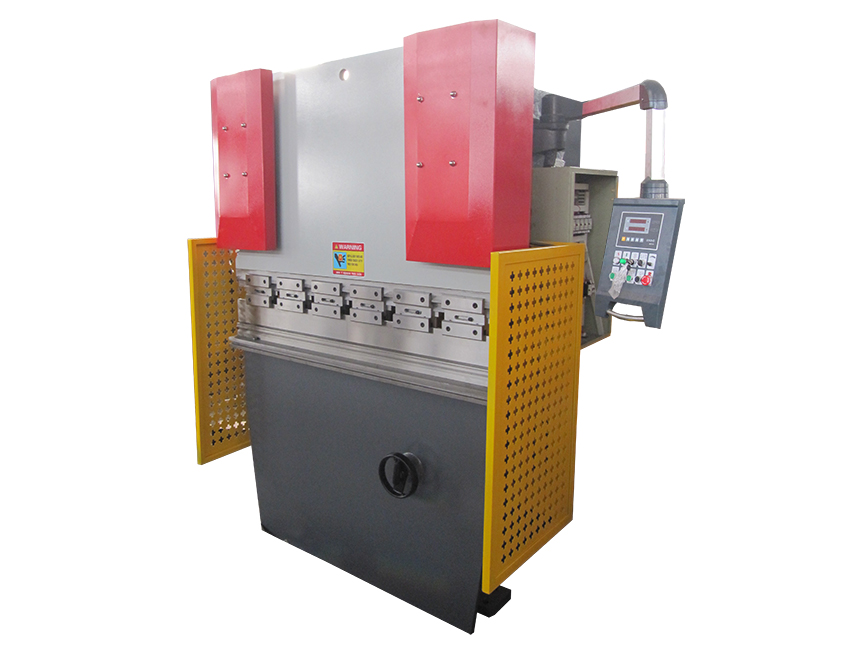

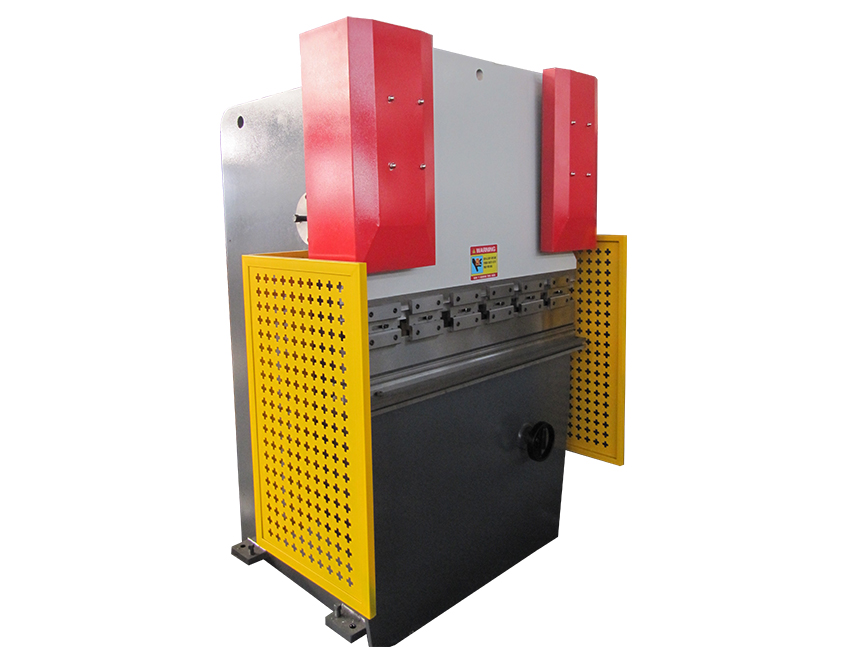

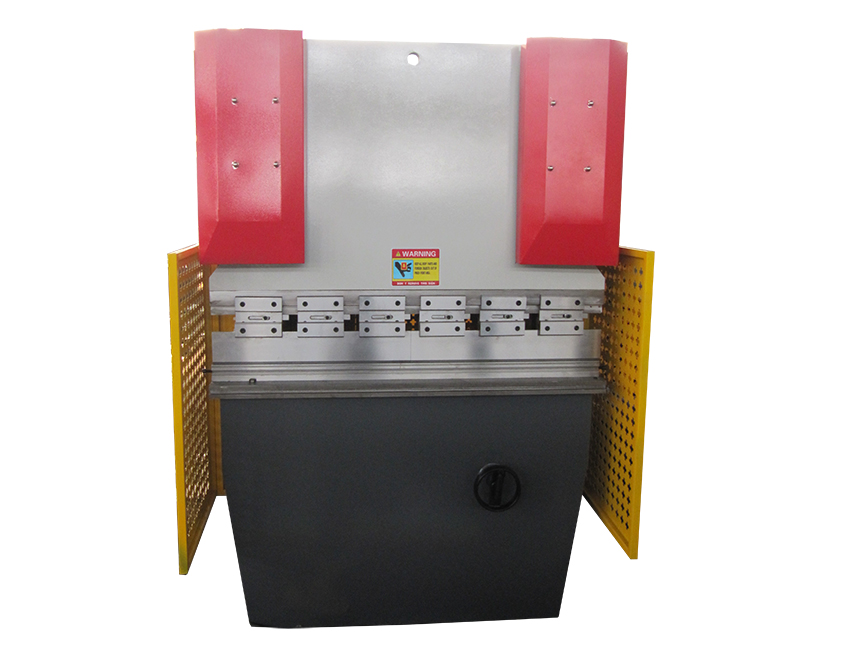

WC67Y-30/1300 Hydraulic Press Brake

WC67Y-30/1300 Hydraulic Press Brakes is specially designed for bend the short length work piece. They are accurate, and economical. Through advanced design and construction,


-- Special designed for bend thin plate at short length, most economic and lower consumption.

--Fast approach & fast return speeds to save cycle time

--International quality hydraulics components.

--Front operated manual back gauge with micro-adjustment.

--Accurate & fine beam position control by micro limit switch.

--Hydraulic cylinder with twin type sealing low & high pressure and hard chrome.

--Moving control panel with on/off controls,

--emergency push button

--selector for inching, single stroke & continuous stroke mode for easy operation & safety.


Rated force (KN) 300
Max. bendig length (mm) 1900
Distance between uprights (mm) 950
Throat depth (mm) 195
Beam stroke length (mm) 90
Max. daylight (mm) 270
Main motor power (mm) 4

Structures in detal

--E21 controller

E21 NC controller

--Punch & die

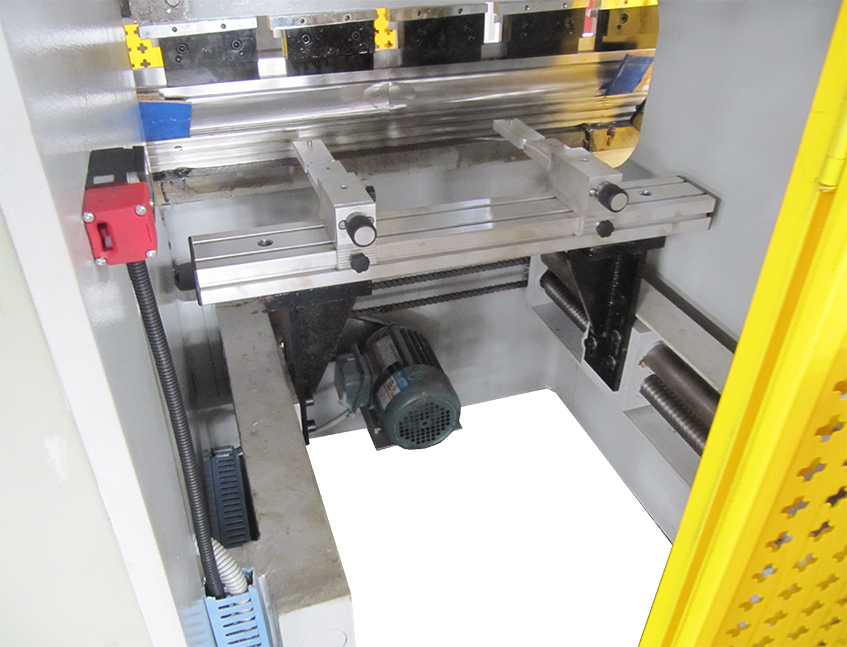

--Back gauge


--Optional Choice

--S10 NC controller

S10 NCc ontroller

--pucn & die
