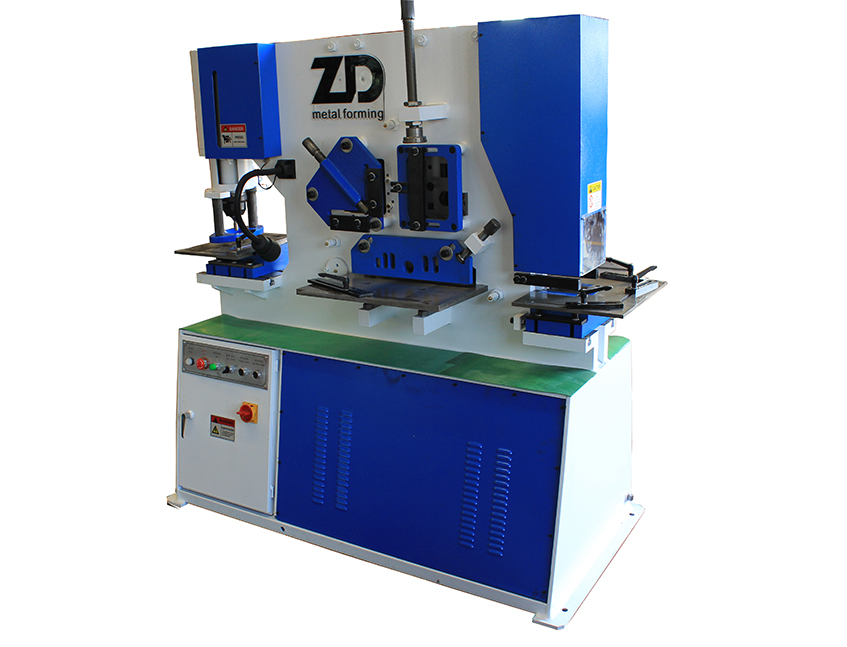

Q35Y -16 Hydraulic Ironworker

Q35Y-16 Ironwoker

The Q35Y series hydraulic ironworker is kind of machine that used to cutting, bending, punching, pressing, shearing, notching the steel plate.

This kind of ironworker is hydraulic drive, with two operation stations, with professional tool, this type of ironworker can processing the following material.

Angle steel, I-beam(IPN) ,U-beam(UPN),H-beam, steel plate, solid bar, pipe, tube

--Parameter

Model

Q35Y-16

Pressure(Ton)

66

Plate strength (N/mm2)

≤450

Sheet

shearing

Max. thickness

16x250

Max. length

8x400

Round bar cutting (mm)

Ø45

Square bar cutting (mm)

40x40

Angle steel cutting (mm)

125x12

IPN cutting (mm)

120x58

UPN cutting (mm)

120x58



Notching

(mm)

thickness

8

width

80

depth

100



Hole

Punching

(mm)

thickness

16

diameter

25

throat

300

stroke range

80

strokes

8-22

Power of main motor( Kw)

4



Dimensions

(mm)

length

1640

width

730

height

1770

Weight kg)

1700

Oiling volume(46#)

60L

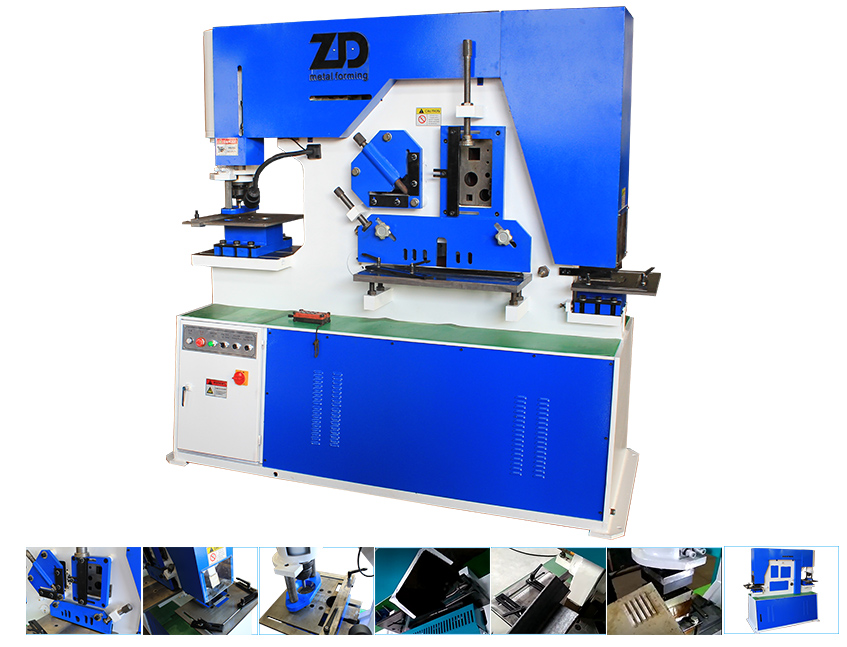

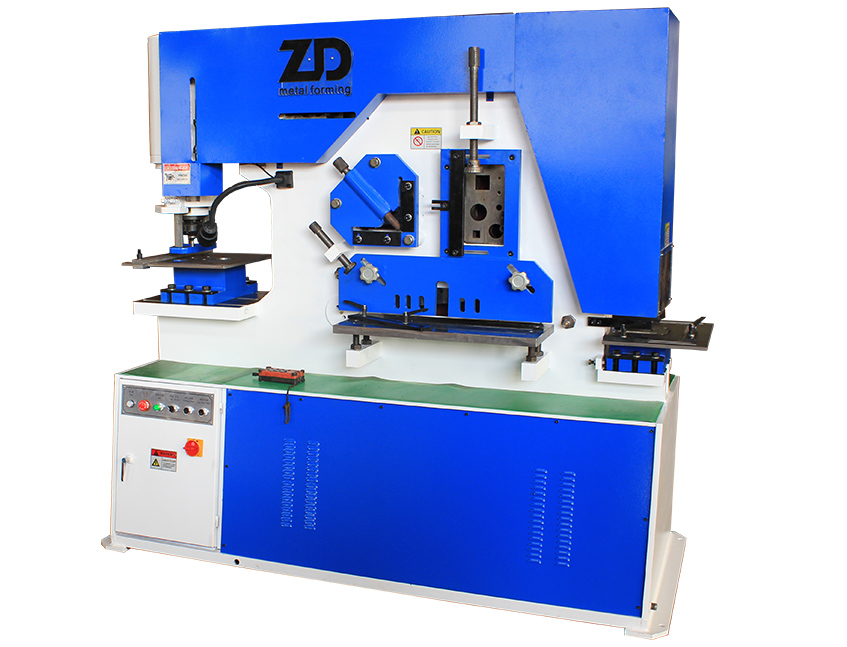

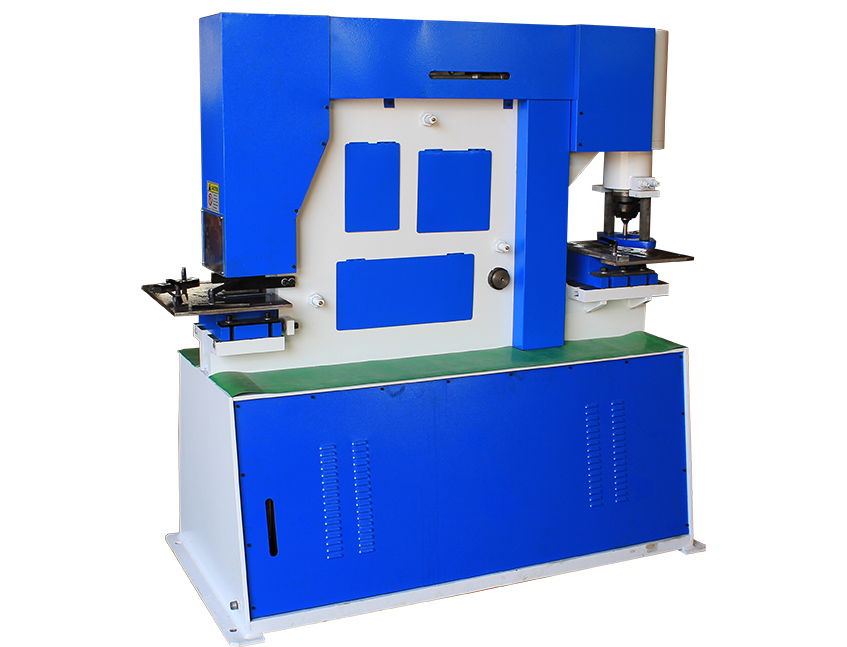

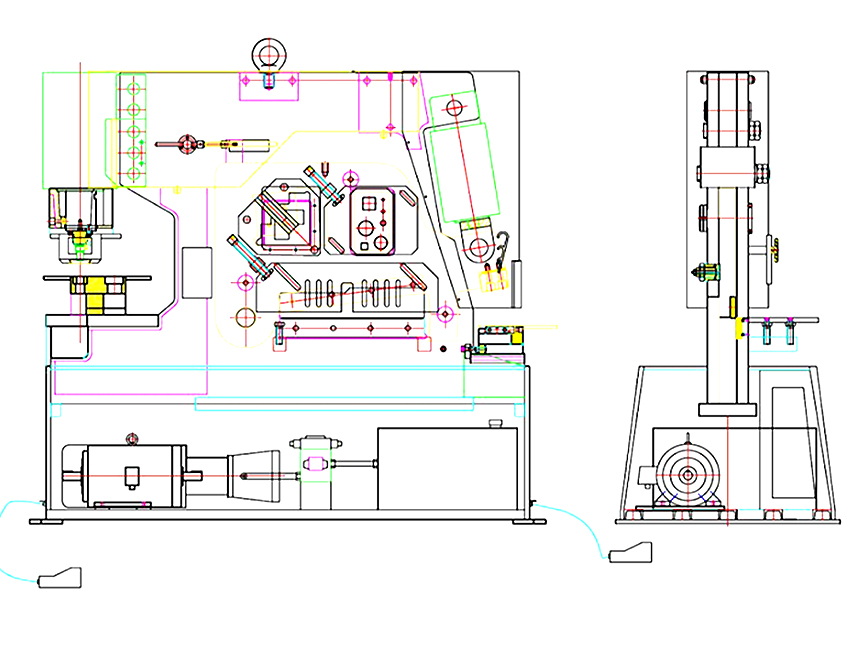

--Structure

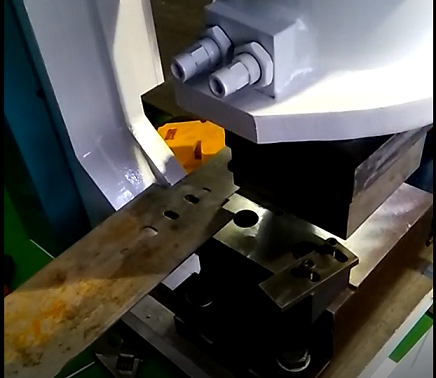

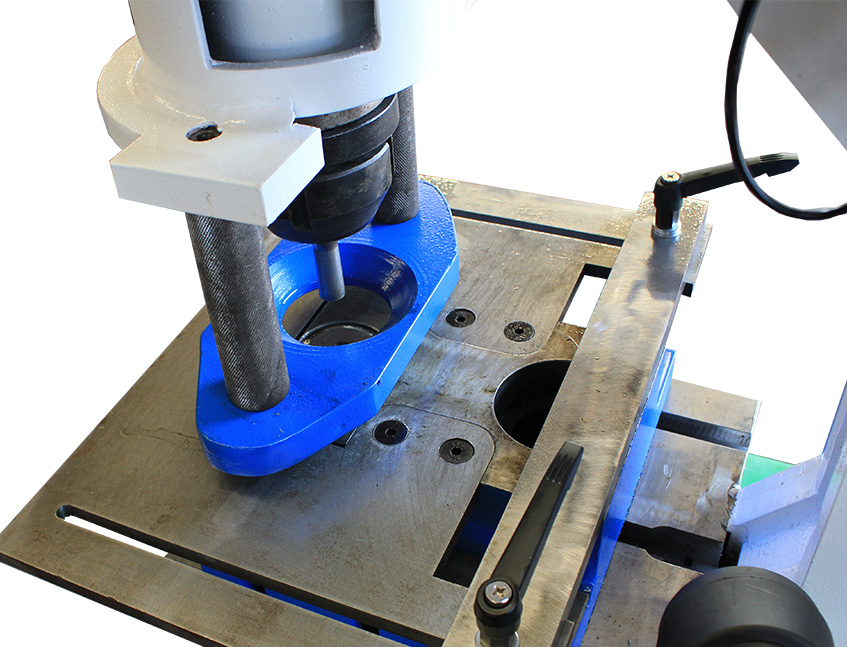

--Hole punching station

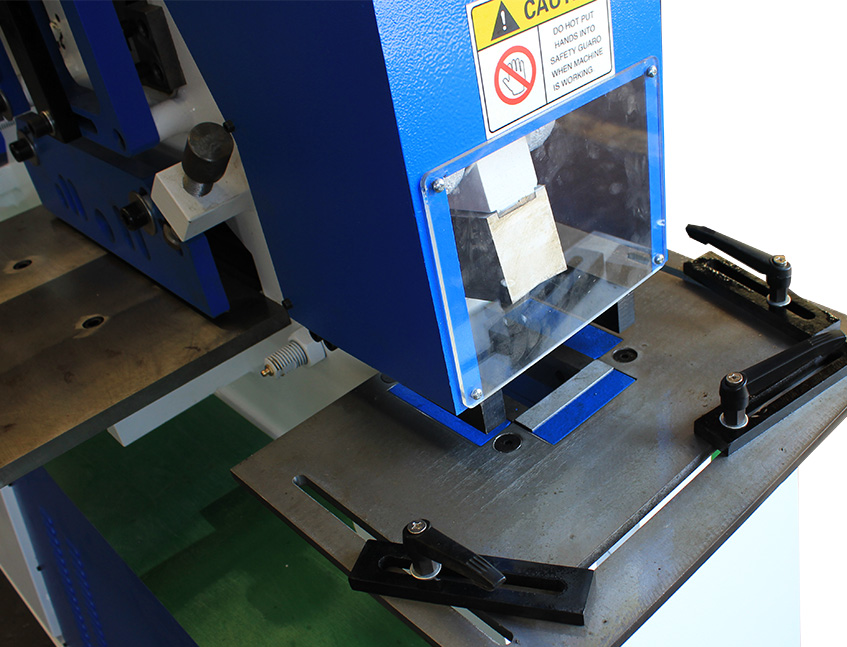

--Notching station

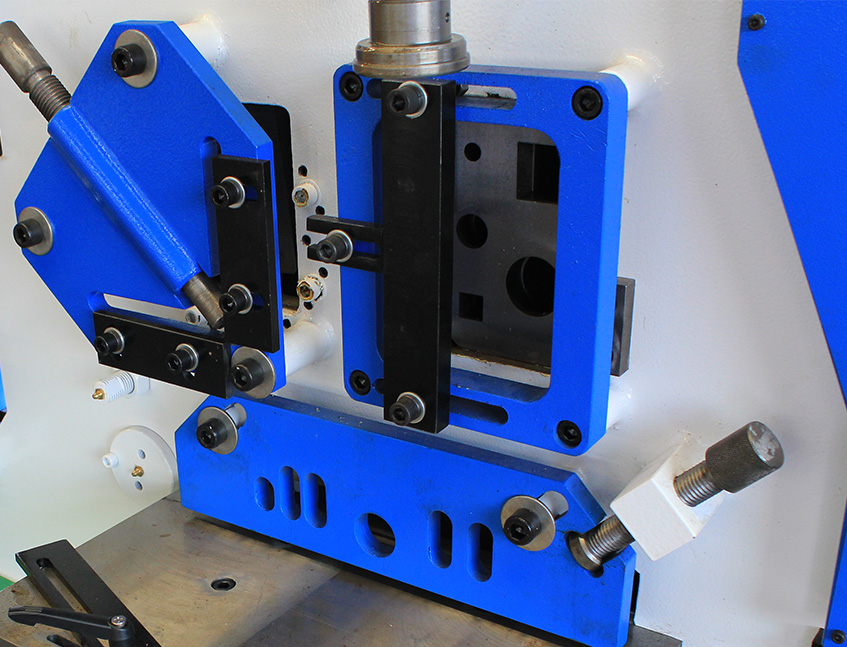

--Cutting station

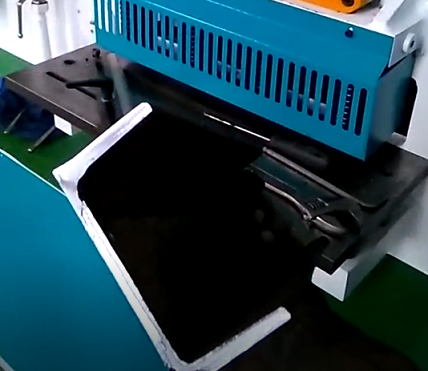

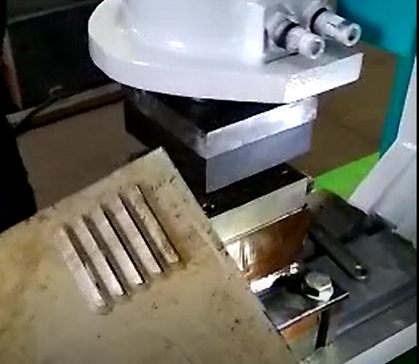

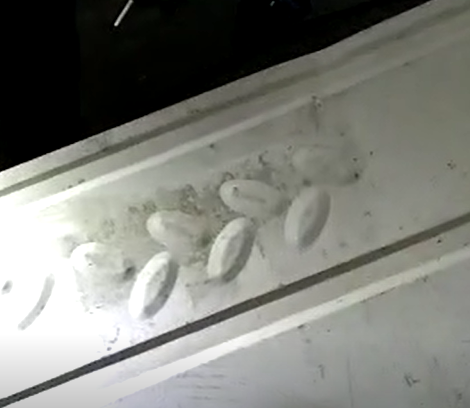

--Sample



-------
