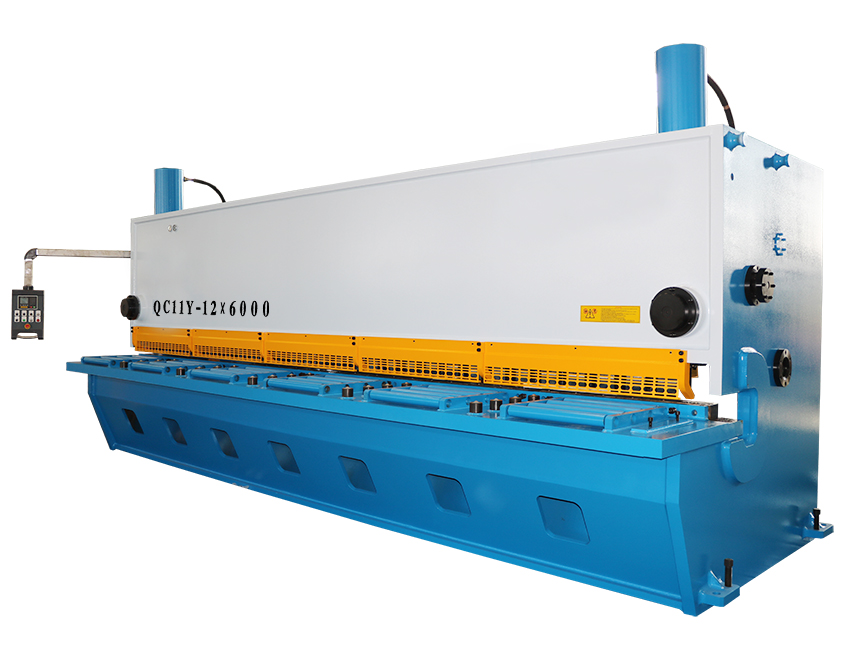

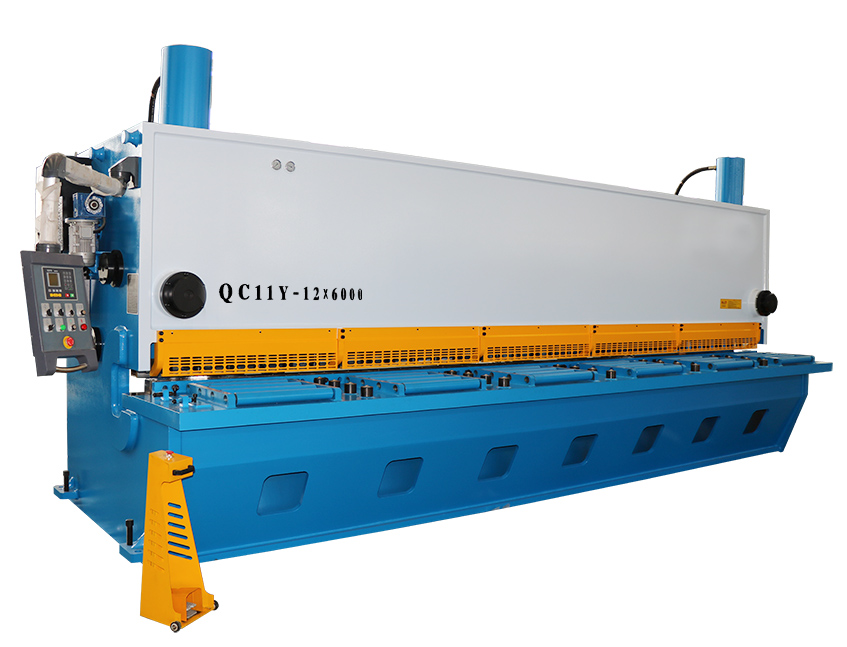

QC11Y-12x6000 Hydraulic Guillotine Shearing Machine
Parameter
|
Model(QC11Y) |
12x6000 |
|
Shearing thickness (mm) |
12 |
|
Shearing width (mm) |
6000 |
|
Cutting plate tensile strength N/mm² |
450 |
|
Shearing angle (°) |
0.5-2.0 |
|
Back gauge range (mm) |
20-1000 |
|
Blade length (mm) |
6150 |
|
Throat depth (mm) |
100 |
|
Blade material |
Cr12MoV |
|
Main motor power (KW) |
30 |
|
Oil pump( L/min) |
63 |
|
Stroke (n/min) |
6-15 |
|
Length (mm) |
6880 |
|
Width (mm) |
2380 |
|
Height (mm) |
2700 |
Features
--Guillotine beam design
--Variable shearing angle
--Squaring arm with steel rule for front gauging.
--Strokes can be controlled according different shearing length
--Four edge shearing blade
--E21S control system
