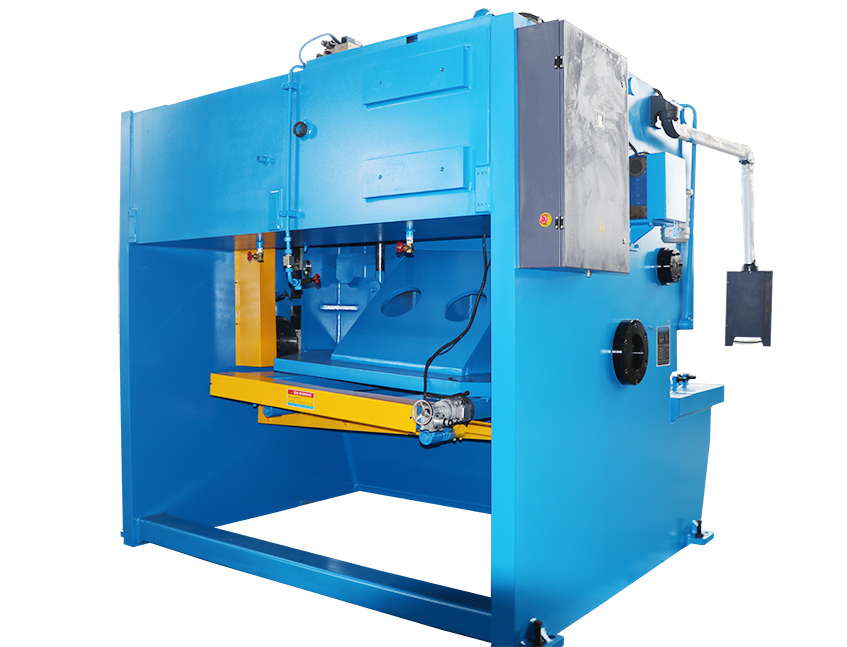

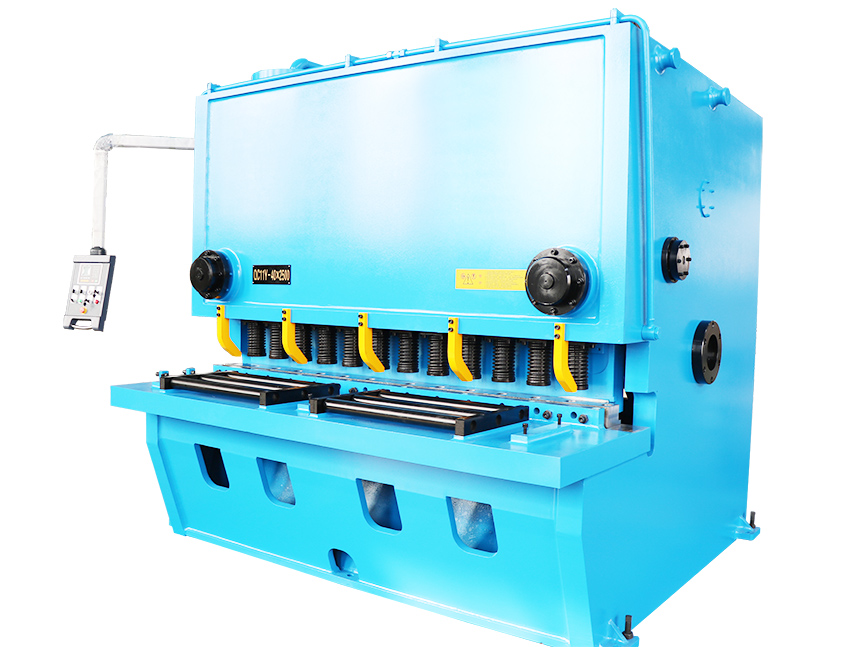

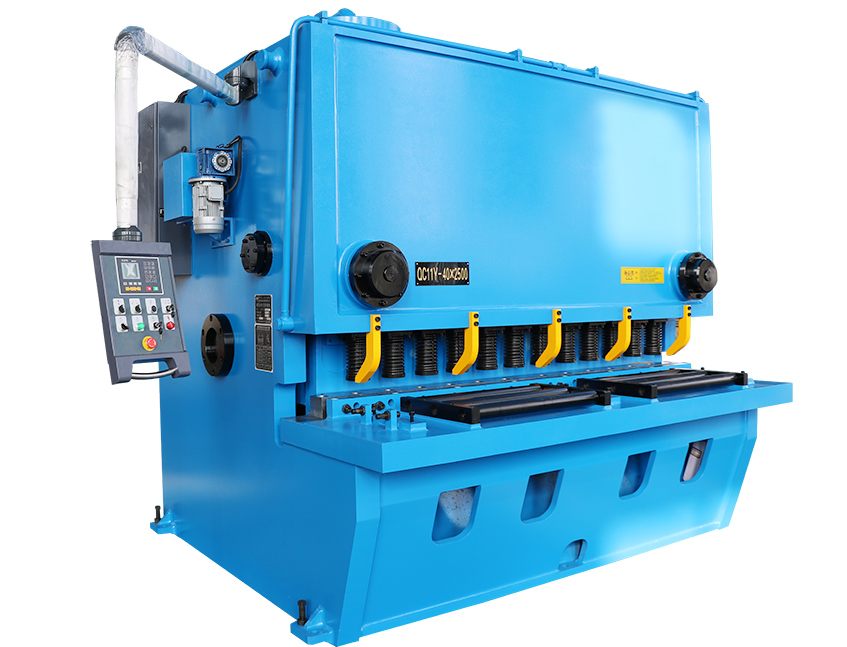

QC11Y-40x2500 Hydraulic Guillotine Shearing Machine
Parameter
|
Model(QC11Y) |
4x2500 |
|
Shearing thickness (mm) |
40 |
|
Shearing width (mm) |
2500 |
|
Cutting plate tensile strength N/mm² |
450 |
|
Shearing angle (°) |
2.0-4.0 |
|
Back gauge range (mm) |
20-1000 |
|
Blade length (mm) |
1300mm x2 |
|
Throat depth (mm) |
100 |
|
Blade material |
Cr12MoV |
|
Main motor power (KW) |
2x37 |
|
Oil pump( L/min) |
2x63 |
|
Stroke (n/min) |
4-10 |
|
Length (mm) |
3300 |
|
Width (mm) |
2630 |
|
Height (mm) |
2830 |
Features
--Guillotine beam design
--Variable shearing angle
--Squaring arm with steel rule for front gauging.
--Strokes can be controlled according different shearing length
--Four edge shearing blade
--E21S control system
