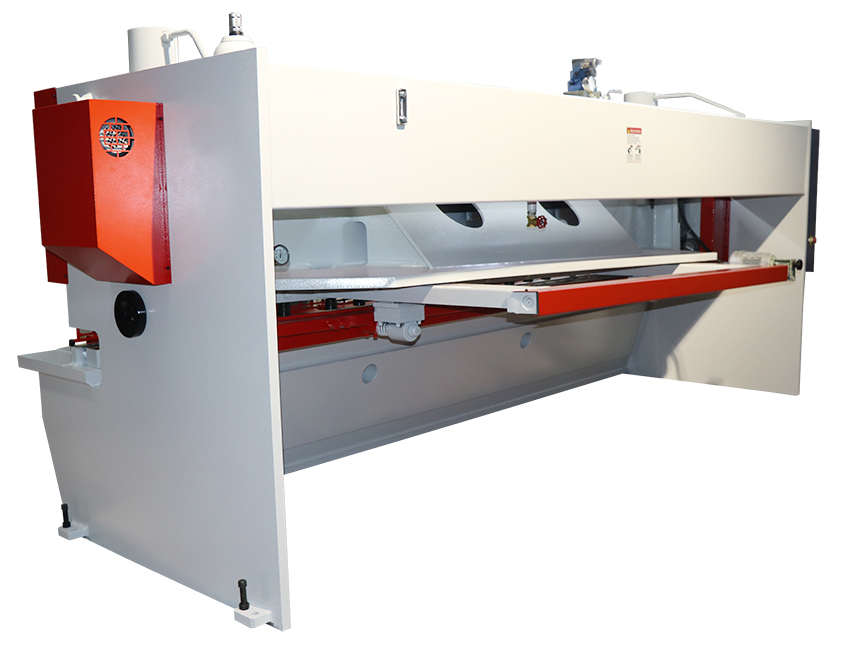

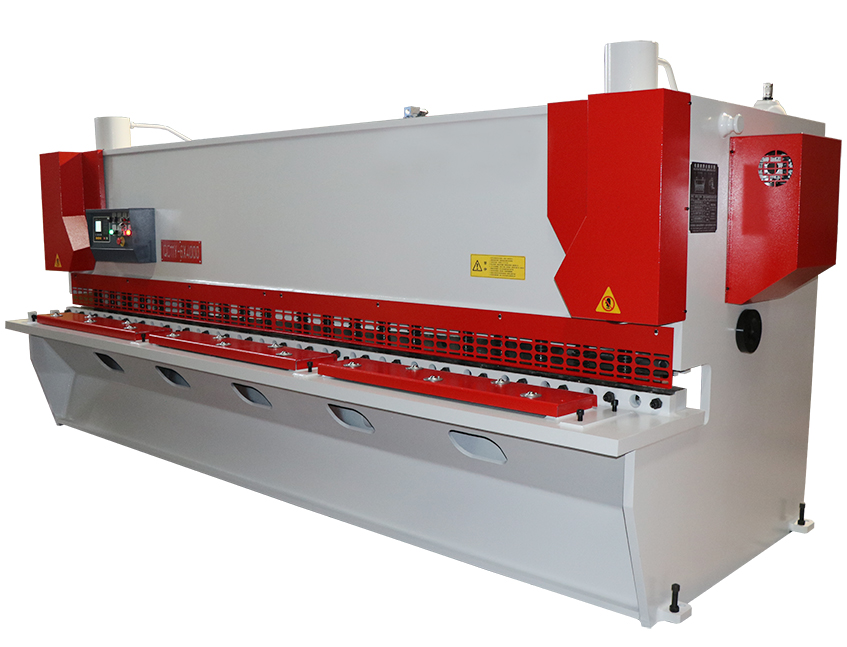

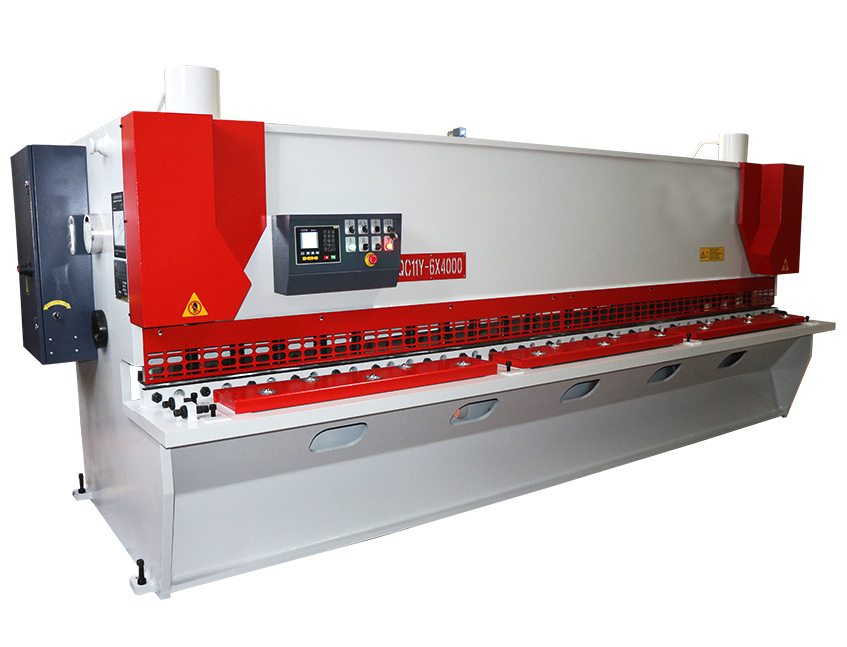

QC11Y-6x4000 Hydraulic Guillotine Shearing Machine
Parameter
|
Model(QC11Y) |
6x4000 |
|
Shearing thickness (mm) |
6 |
|
Shearing width (mm) |
4000 |
|
Cutting plate tensile strength N/mm² |
450 |
|
Shearing angle (°) |
0.5-1.5 |
|

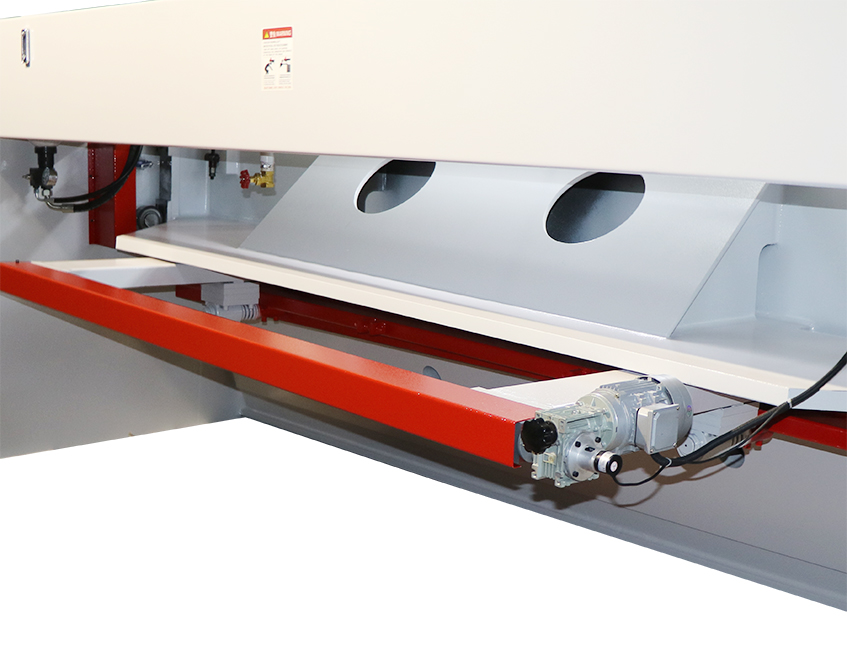

Back gauge range (mm) |
20-800 |
|
Blade length (mm) |
4100 |
|
Throat depth (mm) |
80 |
|
Blade material |
Cr12MoV |
|
Main motor power (KW) |
7.5 |
|
Oil pump( L/min) |
25 |
|
Stroke (n/min) |
10-30 |
|
Length (mm) |
4630 |
|
Width (mm) |
1750 |
|
Height (mm) |
1940 |
Features:
--Guillotine beam design
--Variable shearing angle
--Squaring arm with steel rule for front gauging.
--Strokes can be controlled according different shearing length
--Four edge shearing blade
--E21S control system
