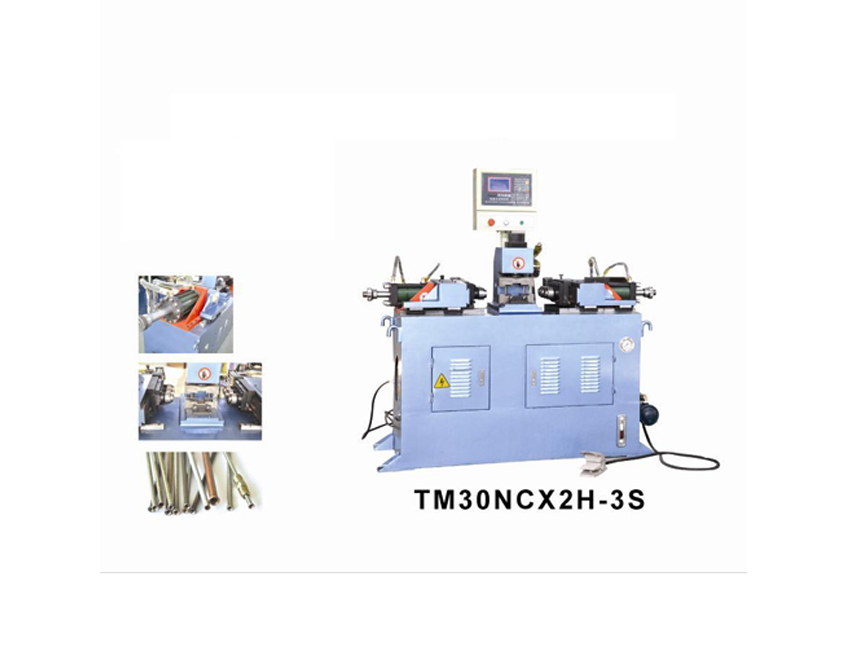

Pipe End forming machine TM30NCX2H-3S
Pipe End forming machine TM30NCX2H-3S
  • Parameters
  • Pictures
  • You May Like
  • Inquiry Now

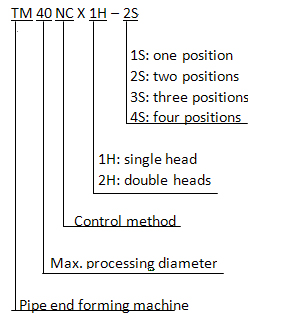

TM40NCX1H-2S

Specification / Model TM40 TM60 TM80 TM100 TM110
Max processing pipe 40*2.0t 60*2.0t 80*2.0t 100*2.0t 110*2.0t
Max working travel 100mm 130mm 150mm 150mm 150mm
Oil pressure 4.5Mpa 12Mpa 12Mpa 14Mpa 14Mpa
Working speed 100mm in3-4sec 100mm in3-4sec 130mm in5-6sec 140mm in6-7sec 140mm in8-9sec
Machine size 200*55*130cm 200*60*140cm 290*70*140cm 300*75*150cm 350*90*180cm
Machine weight 1100kg 1250kg 1600kg 1800kg 2500kg
