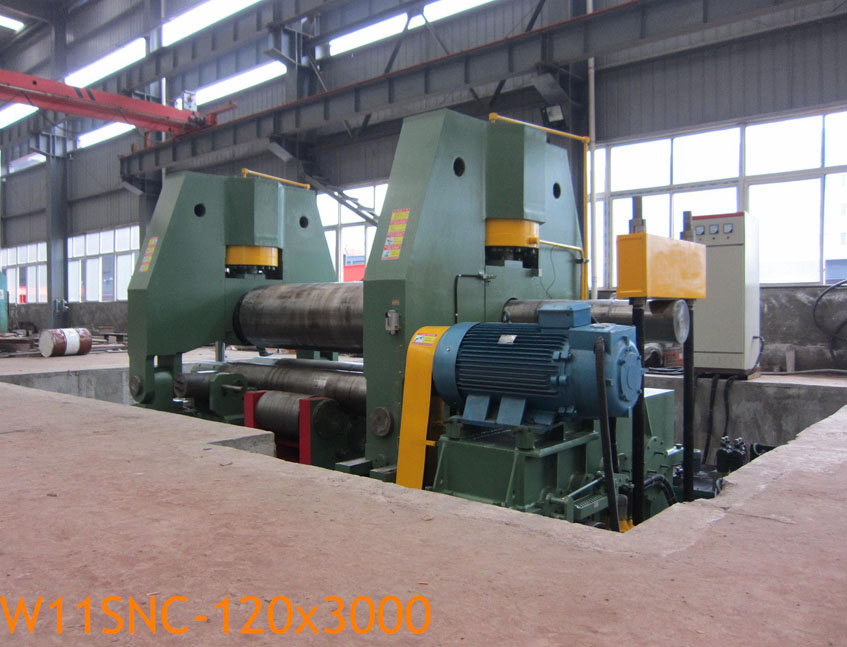

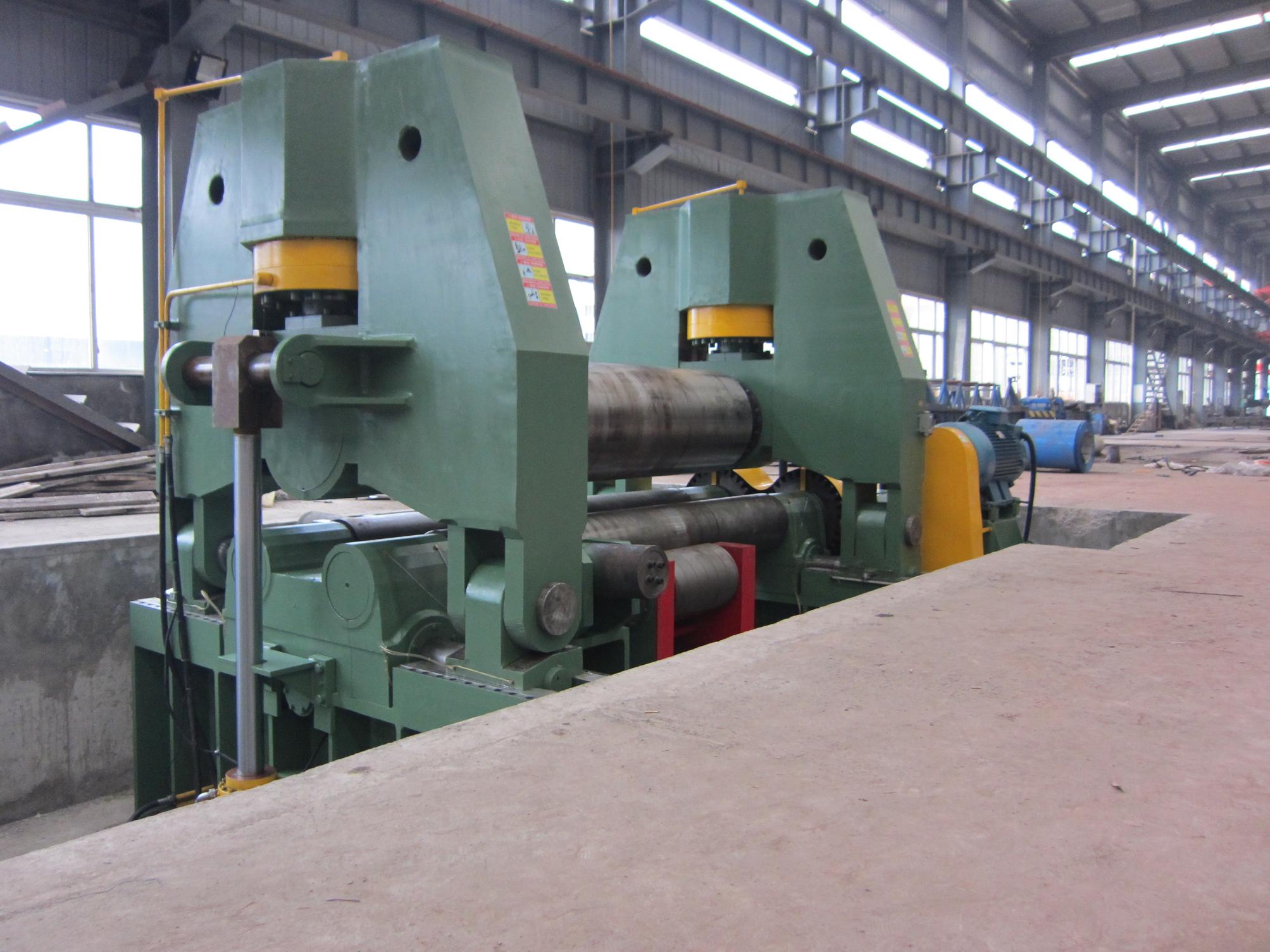

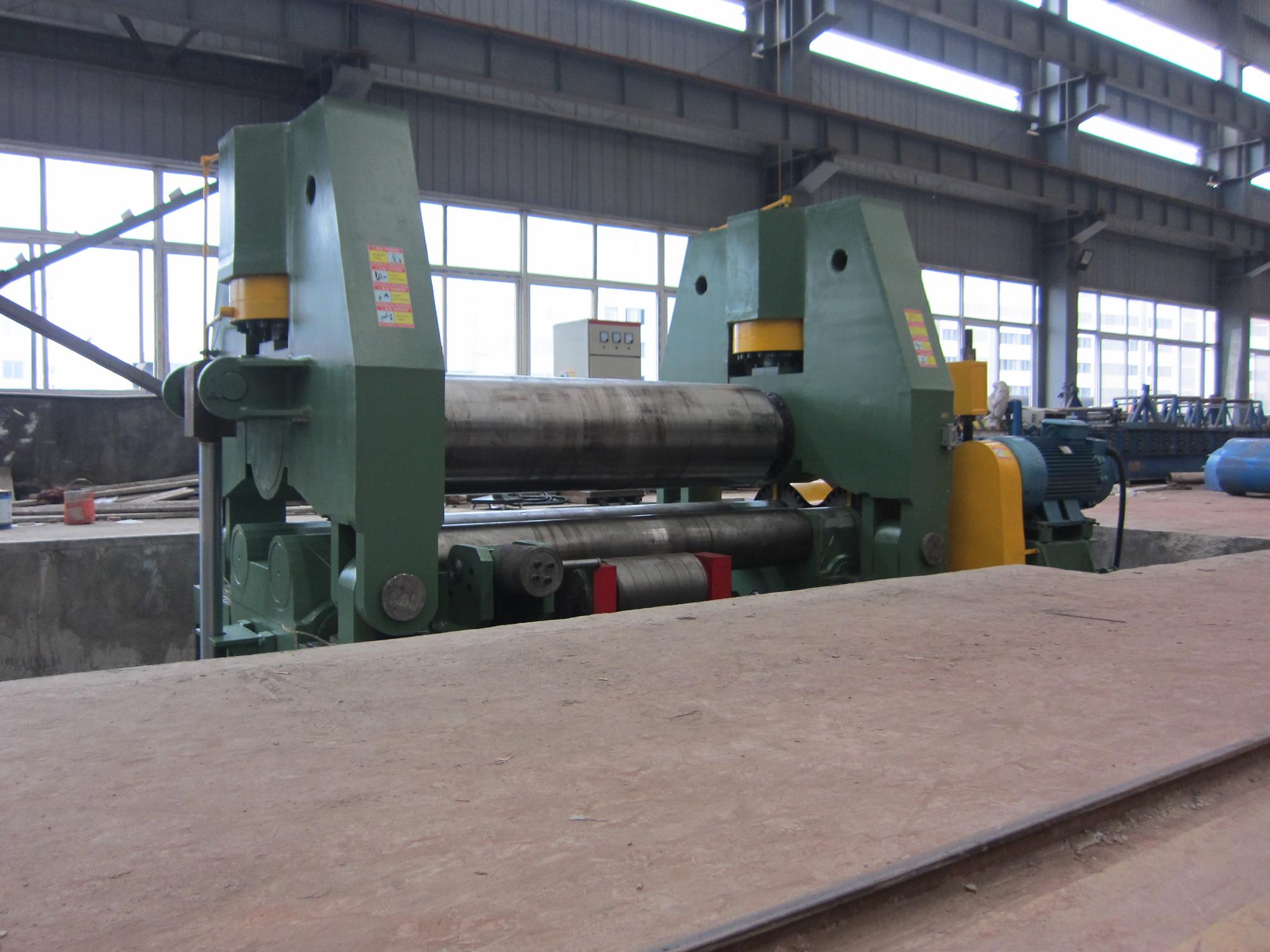

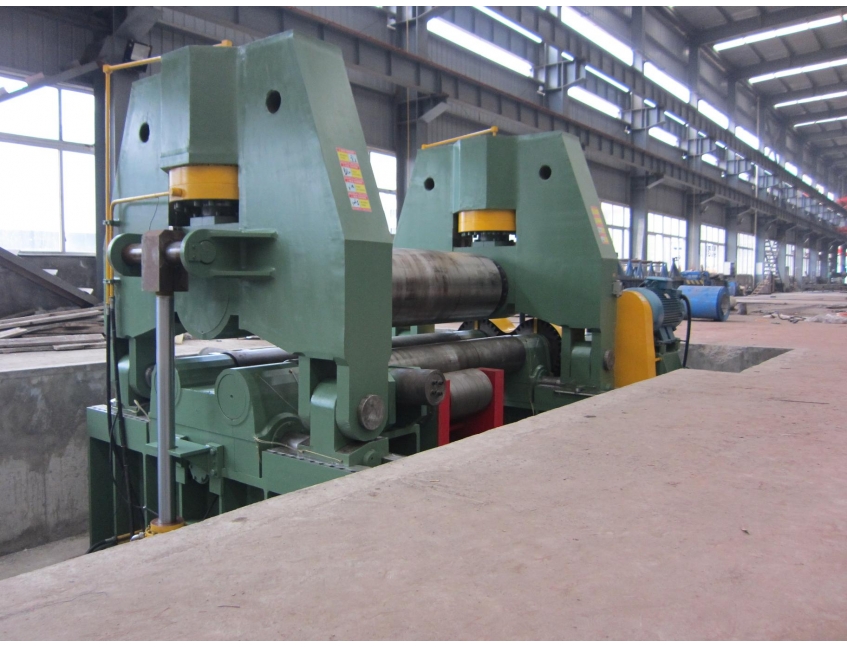

W11SNC-120x3000

Rated Pressing Force from Upper Roller

Ton

1600

Working temperature

At natural temperature

Plate yield limit

MPa

245

Max.

Thk. of bending plate

(mm)

120

Thk. of pre-bending

100

Width of bending plate

3200

Min. rolling dia. with max.size

(mm)

350

Diameter of Roller

Upper

mm

920

Bottom

mm

560

Working

Rollers

Material

42CrMo

Hardness

(HB)

260-300

Induction Hardened Roll

YES

Roll Profile

crown

Lifting Mode

hydraulic

Central distance of bottom rollers

mm

1080

Diameter of supporting roller

mm

520

Adjusting way of supporting rollers

motorized

Rolling speed

m/min

3.5

Upper roller descending speed

mm/min

120

Upper roller ascending speed

mm/min

200

Upper roller horizontal moving speed

mm/min

100

Upper roller supporting way

Self aligning roller bearing

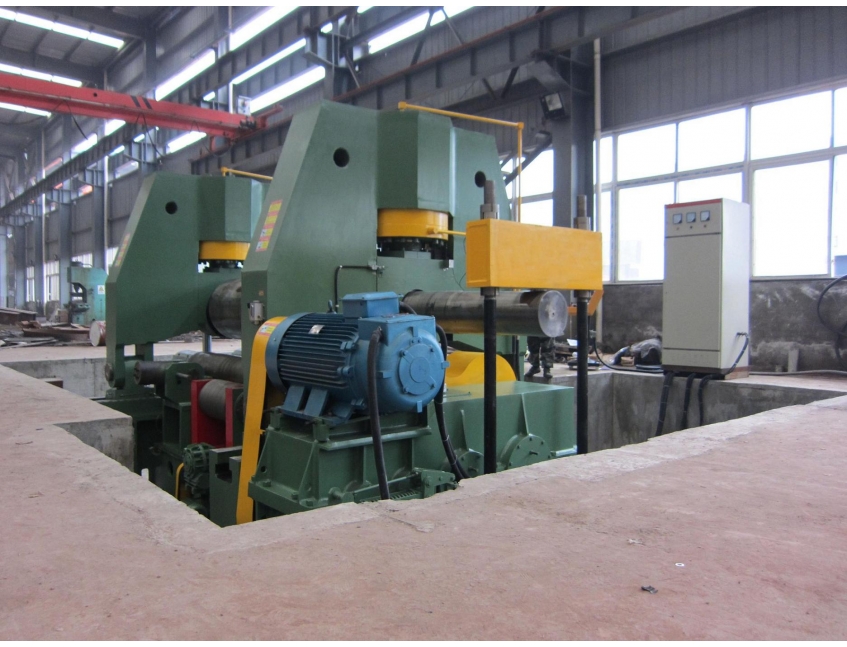

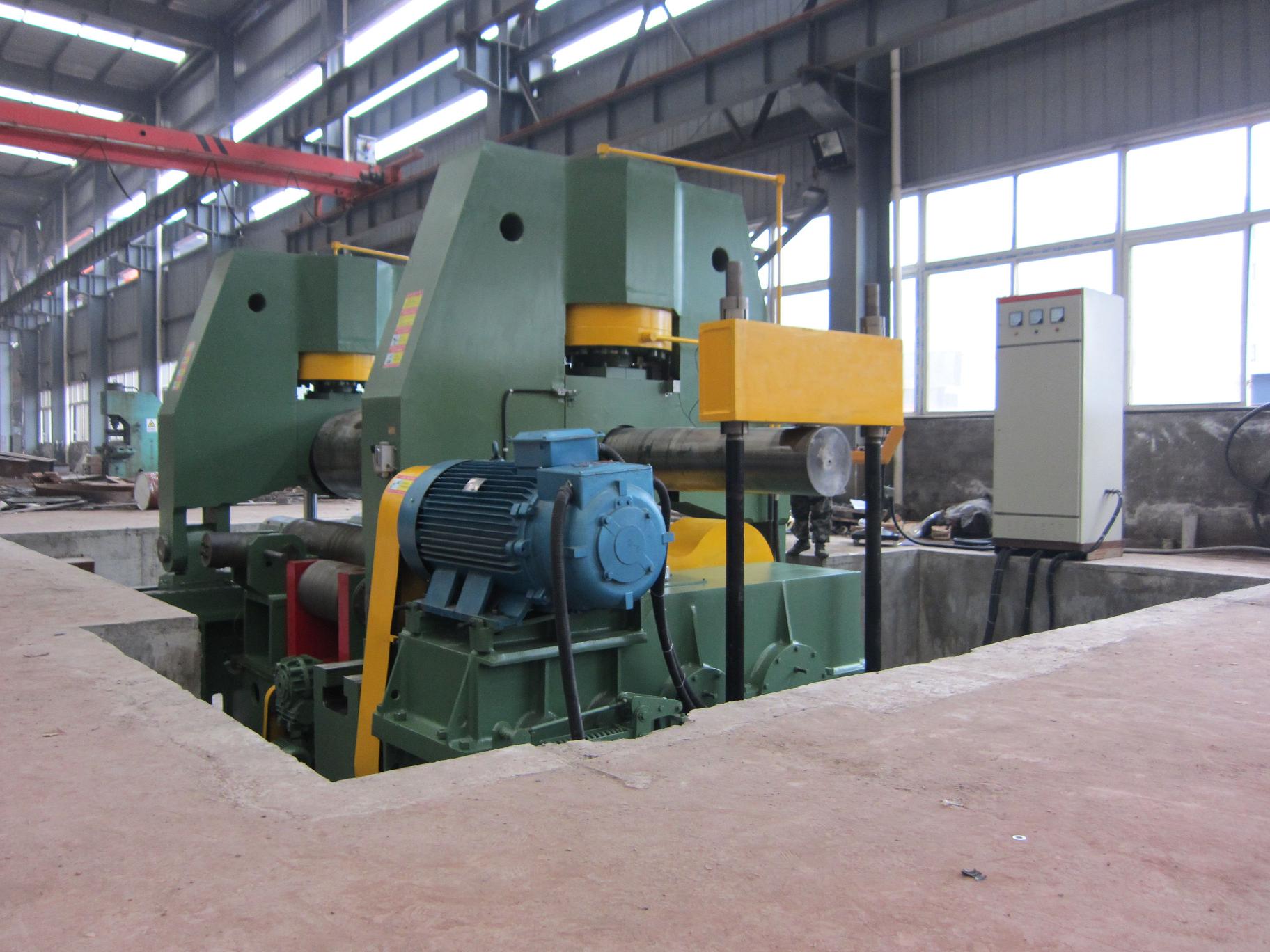

Bottom roller driving way

motor + reducer + breaker

Upper roller horizontal moving way

motor+ warm gear

Upper roller horizontal moving speeding

mm/min

100

Upper roller Synchronous Precise/Accuracy

±(mm)

≤0.20

Upper roller moving precise/accuracy

±(mm)

≤0.20

Upper roller re-position precise/accuracy

±(mm)

≤0.20

Upper roller action control

PLC + transducers

Conical Bending Device

YES

Power character

380V/50Hz/3phase

Control System

Control way

PLC control + moving controller

Display of position & displacement

LCD

PLC

OMRON

Electrical Part System

SIEMNENS

Main Power Motor

(KW)

110

Motor for hydraulic

(KW)

55

Motor for horizontal moving

(KW)

30

Hydraulic System

Max. Working Pressure

(MPa)

25

Valve

YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

Construction Steel Material

Q235

Side Support for Big Sheet Metal Diameters

optional

Central Support for Big sheet Metal Diameters

optional

Feeding Table

optional

Oil Cooler System

optional
