W11-12x2000 Plate Bending Machine
- Parameters
- Pictures
- You May Like
- Inquiry Now

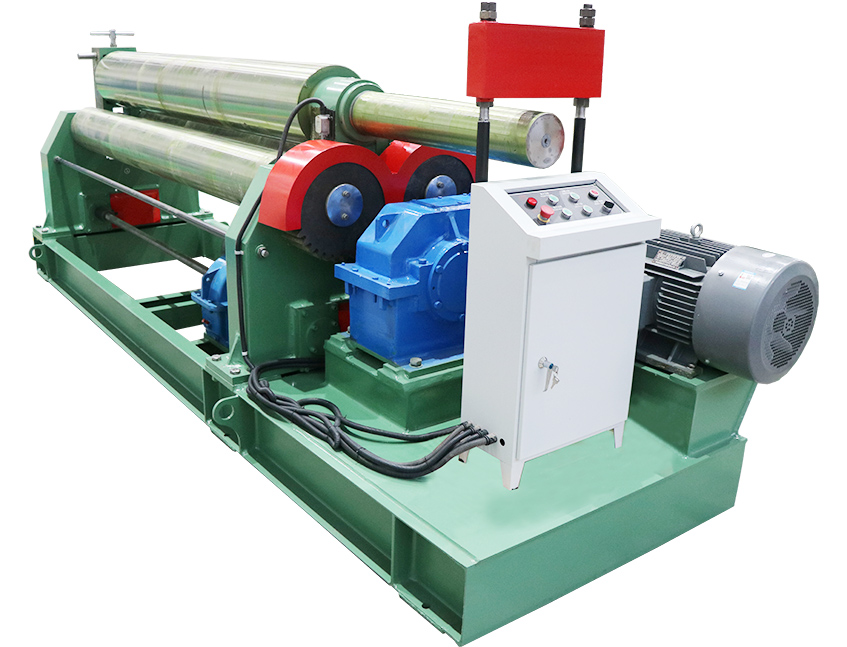

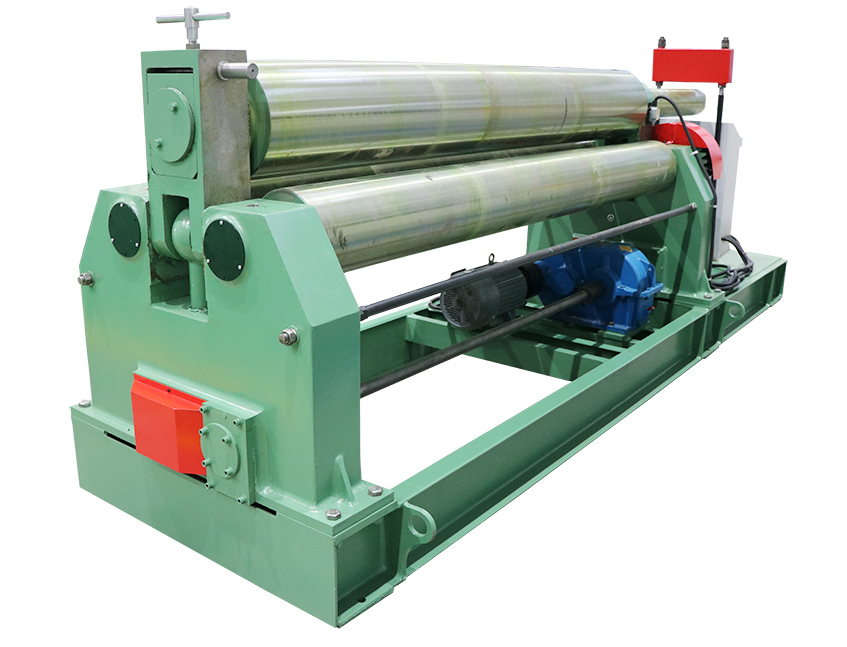

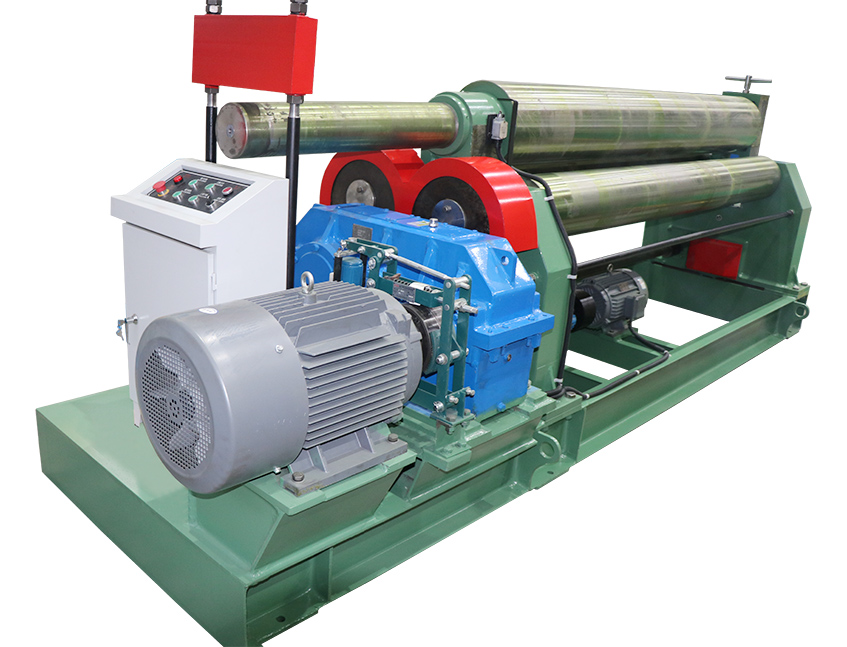

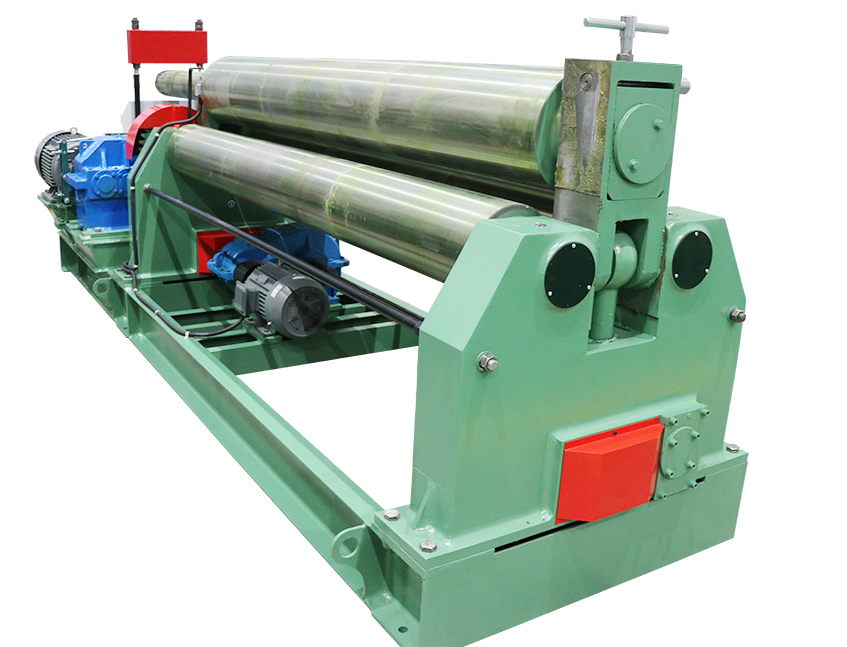

W11-12x2000 Mechanical Plate Bending Machine
Parameter
|
|
W11-12x2000 |
|
Max. rolling thickness |
12mm |
|
Max. rolling width |
2000mm |
|
Min. rolling diameter at full loading |
600 |
|
Yielding limited |
24MPa |
|
Upper roller diameter |
235mm |
|
Lower roller diameter |
175mm |
|
Central distance between lower rollers |
280mm |
|
Main motor power |
7.5KW |
|
Shift motor power |
3KW |
--Features
▲ highly productive, accurate, and economical.
▲Easy operating rolling machine, energy-efficient
▲Mechanical type, three rollers
▲Mechanical drive
▲The two lower rollers are the driving rollers, and the upper roller is drove roll
