Specification

Max.

Thk. of bending plate

(mm)

12

Thk. of pre-bending

10

Width of bending plate

1500

Effective length of the rollers

(mm)

1600

Yield Strength of Plate

(MPa)

235

Min. reel dia. with max.size

(mm)

500

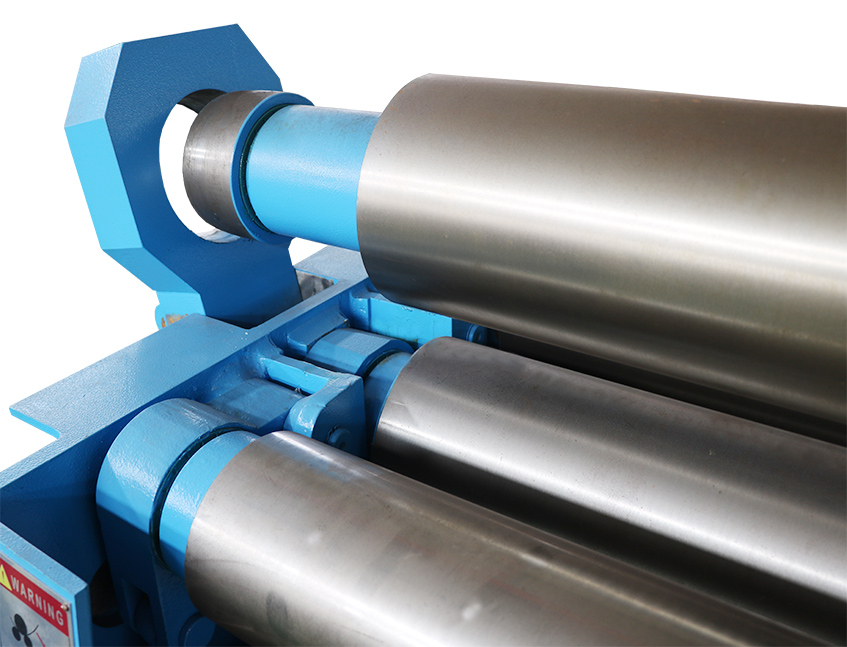

Diameter of Roller

Upper

(mm)

220

Bottom

200

Side

180

Upper roller

Material

42CrMo

Hardness

(HB)

240-286

Induction Hardened Roll

YES

Roll Profile

crown

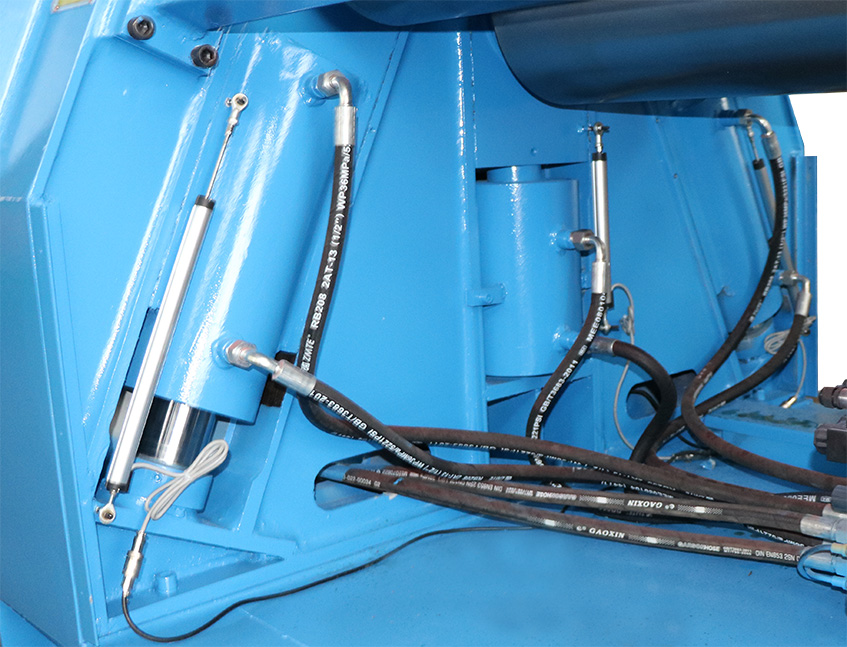

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

Optioanl

Driving Mode

Hydraulic motor

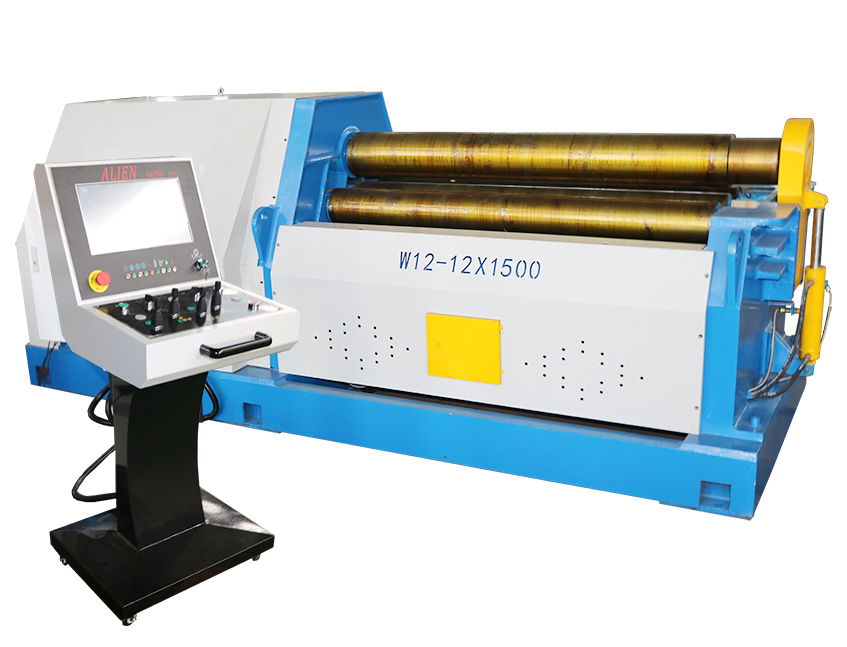

Control System

Control Mode

CNC

Display of position & displacement

LCD

PLC

XINJIE/OMRON/SIEMENS

Electrical Part System

SIEMNENS/ABB/SHNEIDER

Plate Bending Speed

(m/min)

about 3.5

Descending/Ascending Speed of bottom roller

(mm/min)

About 160

Descending/Ascending Speed of side roller

(mm/min)

About 260

Main Power Motor

(KW)

11

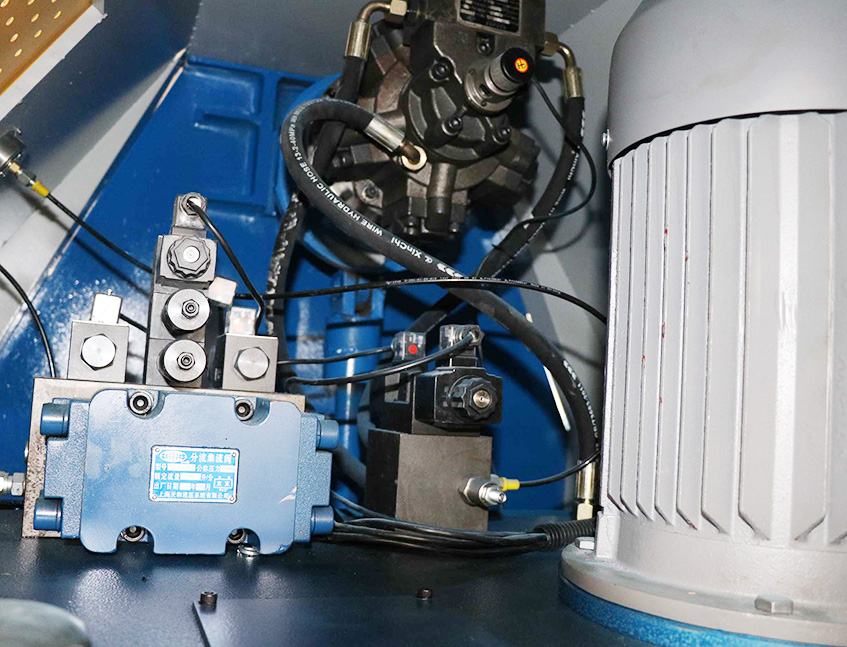

Hydraulic System

Max. Working Pressure

(MPa)

25

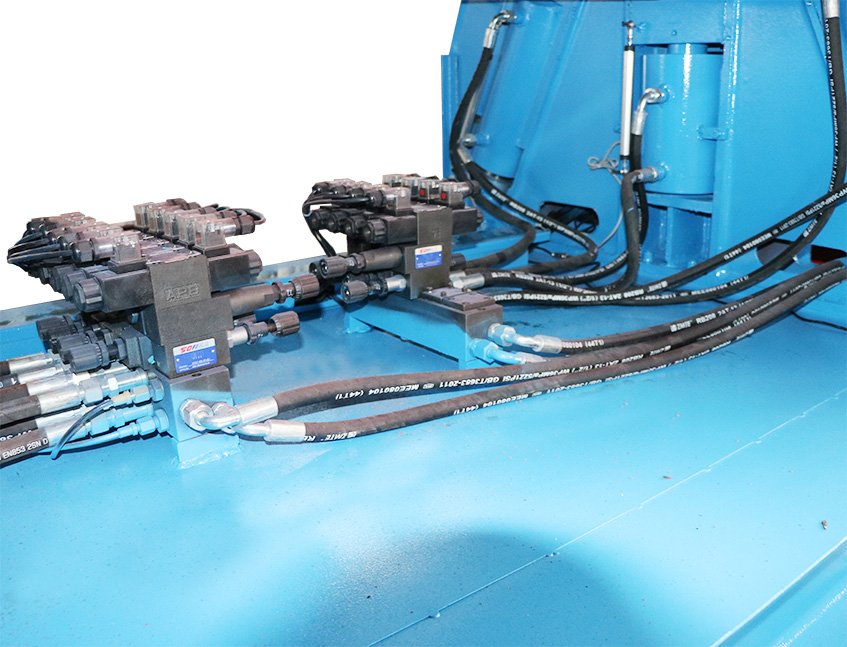

Valve

SOFIMA/YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

Side Support for Big Sheet Metal Diameters

　optional

Central Support for Big sheet Metal Diameters

　optional

Feeding Table

　optional

Oil Cooler System

　optiona
