W11-20x2000 Plate Rolling Machine
- Parameters
- Pictures
- You May Like
- Inquiry Now

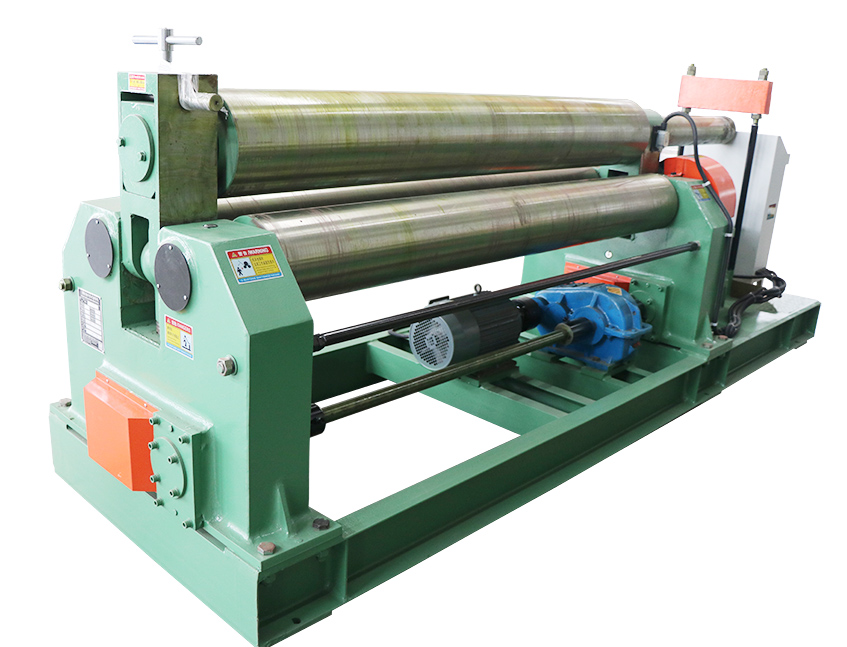

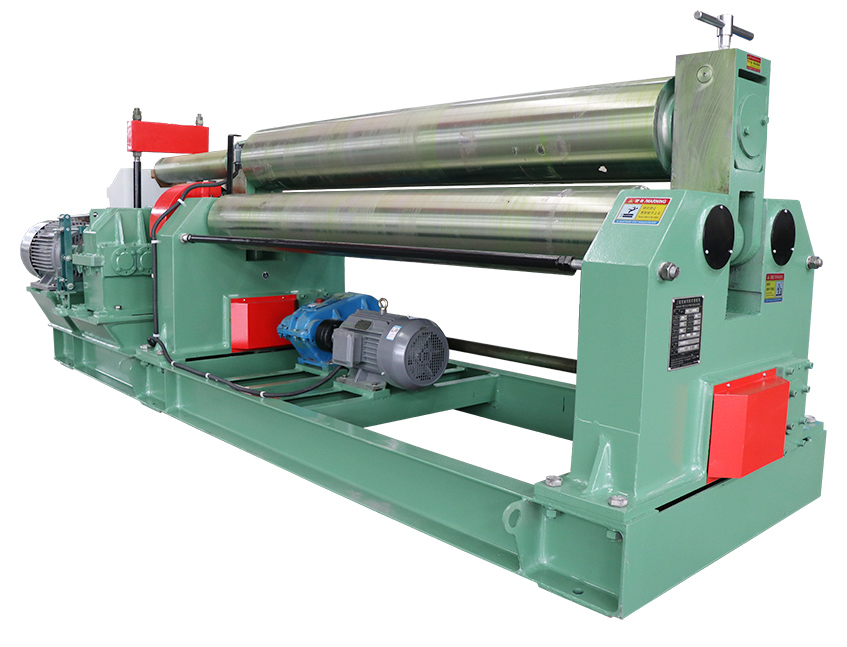

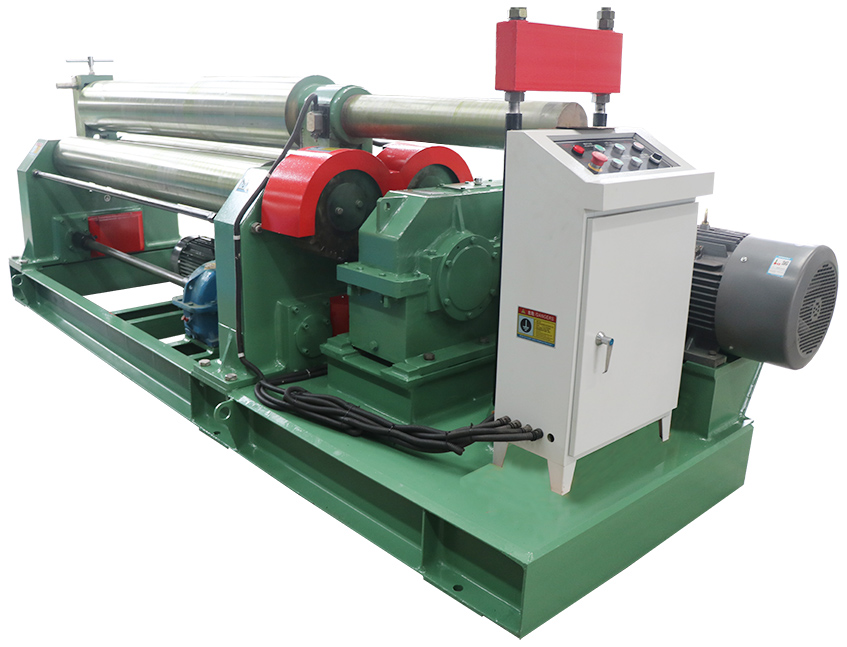

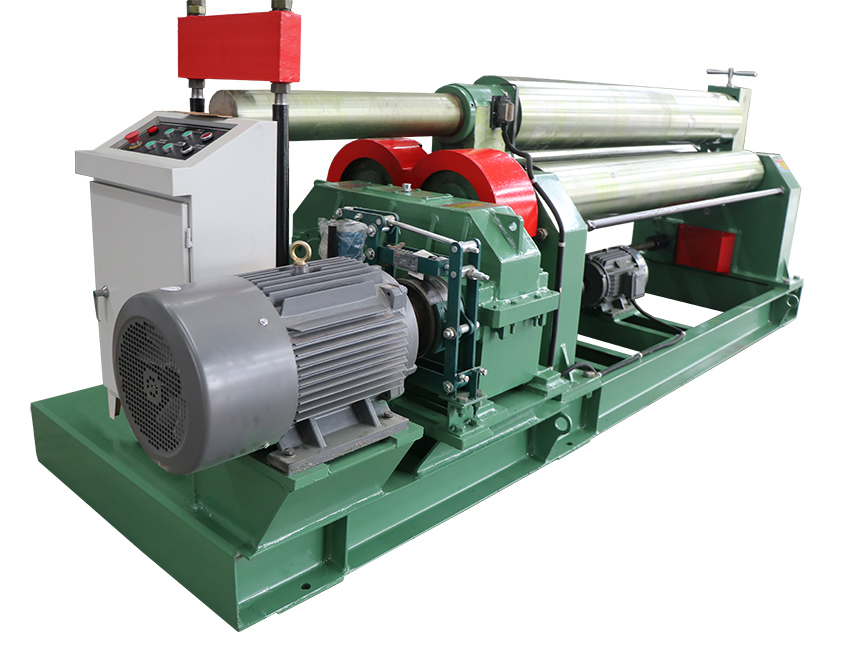

W11-20x2000 Mechanical Plate Bending Machine
Parameter
|
|
W11-20x2000 |
|
Max. rolling thickness |
20mm |
|
Max. rolling width |
2000mm |
|
Min. rolling diameter at full loading |
750 |
|
Yielding limited |
24MPa |
|
Upper roller diameter |
275mm |
|
Lower roller diameter |
235mm |
|
Central distance between lower rollers |
360mm |
|
Main motor power |
11KW |
|
Shift motor power |
4KW |
--Features
▲ highly productive, accurate, and economical.
▲Easy operating rolling machine, energy-efficient
▲Mechanical type, three rollers
▲Mechanical drive
▲The two lower rollers are the driving rollers, and the upper roller is drove roll
