Specification

Max.

Thk. of bending plate

(mm)

120

Thk. of pre-bending

100

Width of bending plate

4000

Effective length of the rollers

(mm)

4100

Yield Strength of Plate

(MPa)

235

Min. reel dia. with max.size

(mm)

3200

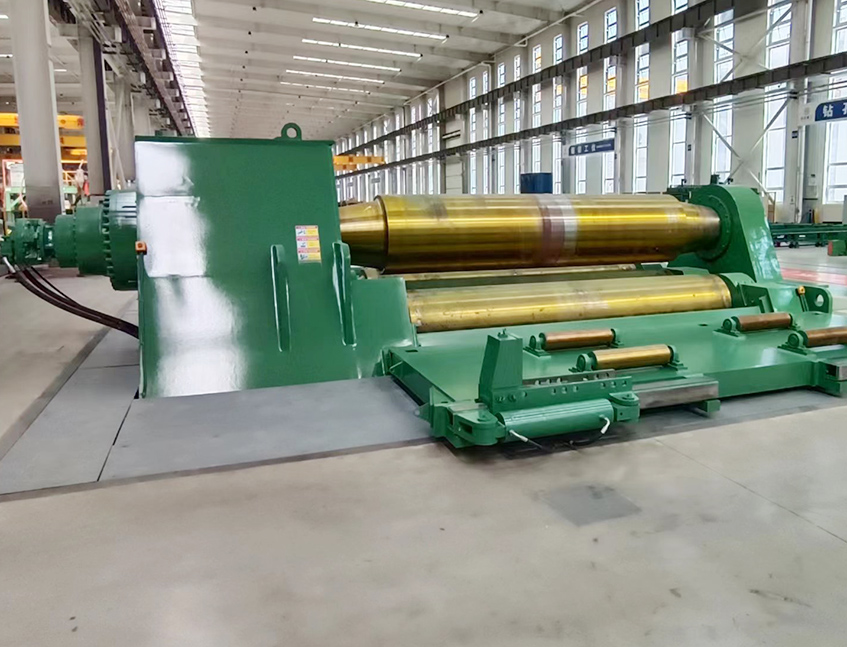

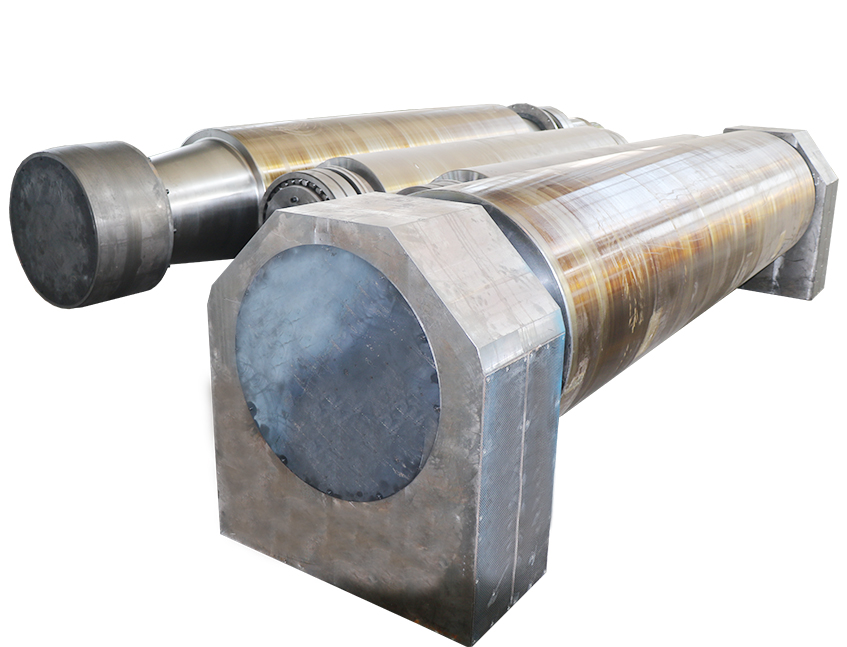

Diameter of Roller

Upper

(mm)

960

Bottom

920

Side

780

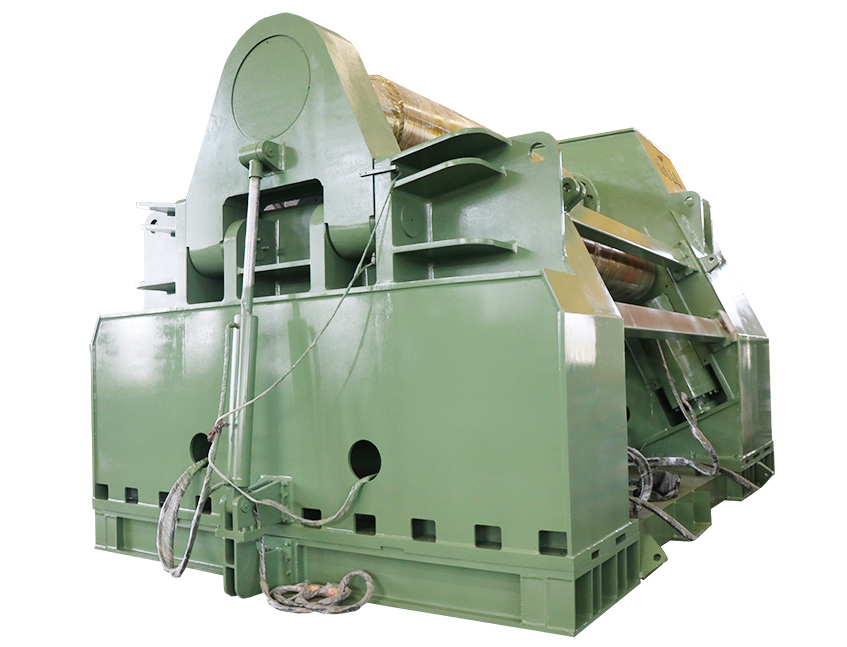

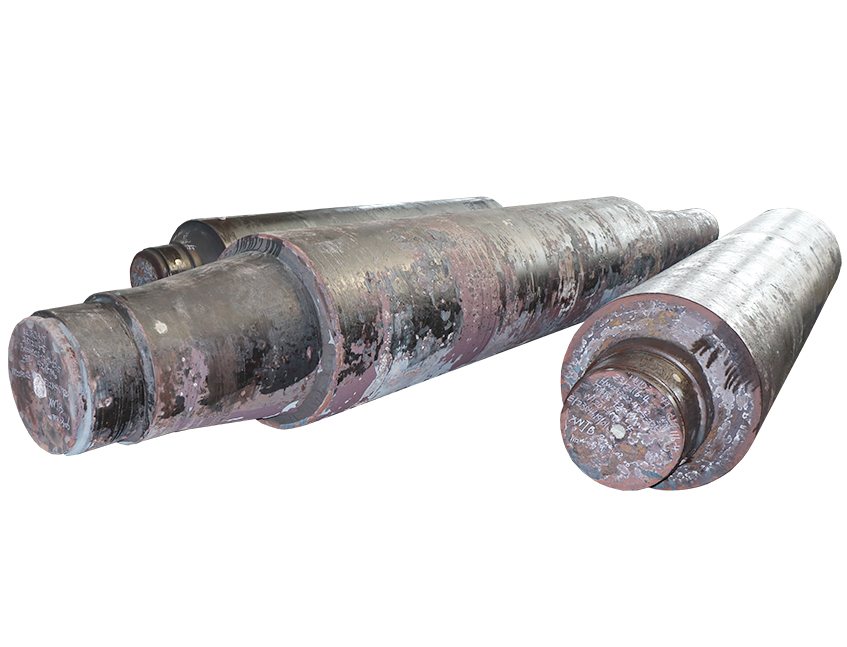

Roller

Material

42CrMo

Hardness

(HB)

240-286

Induction Hardened Roll

YES

Roll Profile

crown

Lifting Mode

hydraulic

Lifting Synchronous Precise/Accuracy

±(mm)

0.2

All Bearing Brand

Self aligning roller bearing

Conical Bending Device

YES

Driving Mode

Motor + reducer

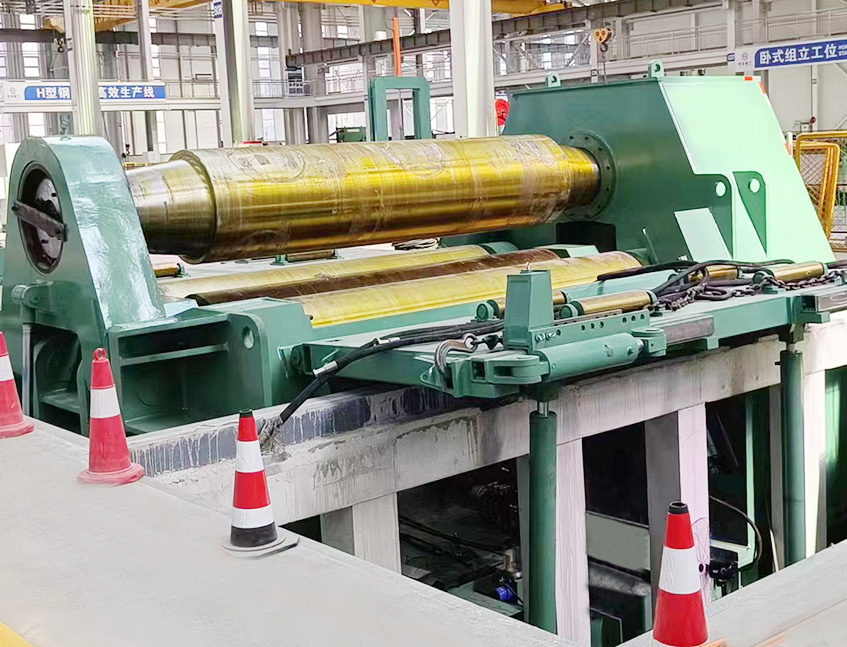

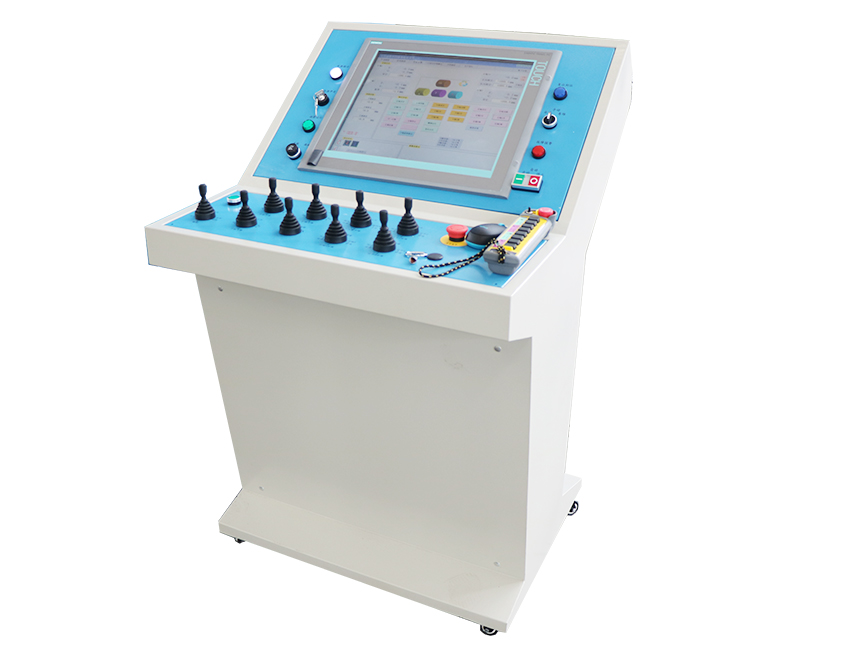

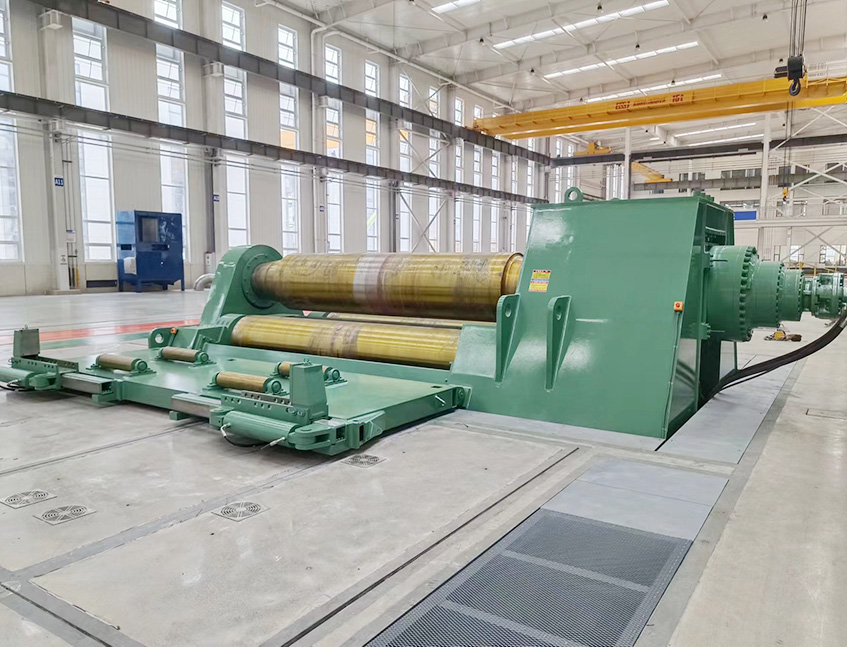

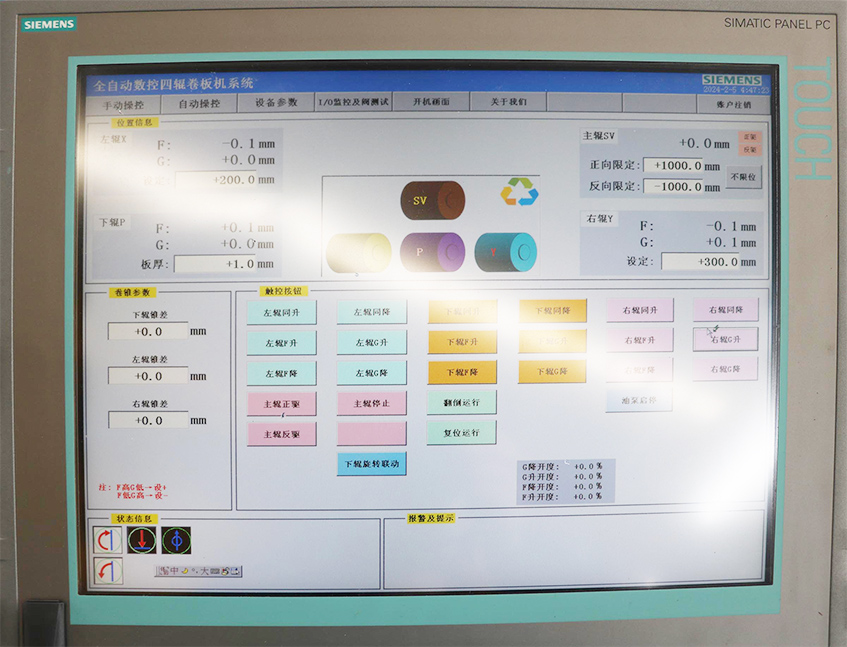

Control System

Control Mode

NC

Display of position & displacement

LCD

PLC

OMRON

Electrical Part System

SIEMNENS

Plate Bending Speed

(m/min)

about 3.5

Descending/Ascending Speed of bottom roller

(mm/min)

About 160

Descending/Ascending Speed of side roller

(mm/min)

About 260

Main Power Motor

(KW)

200

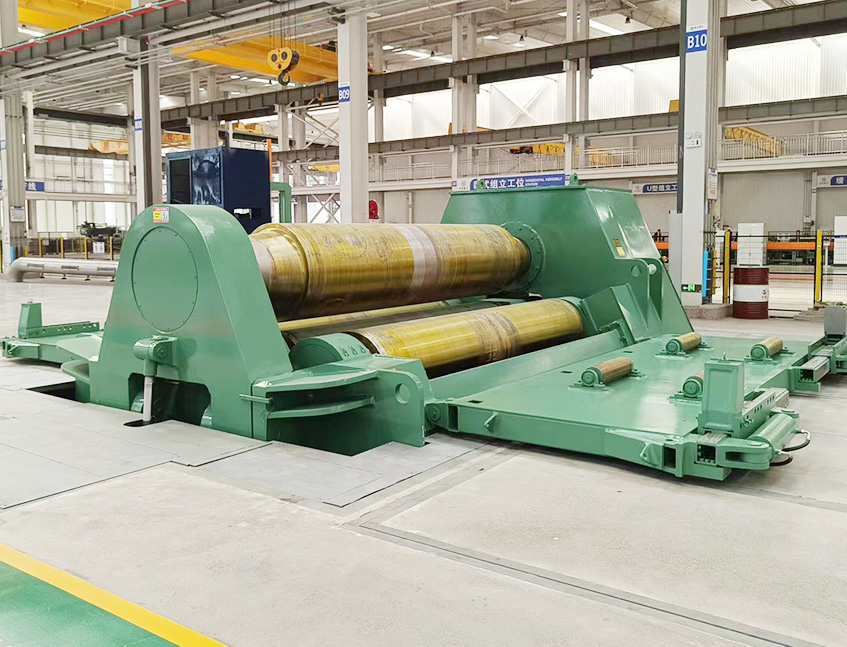

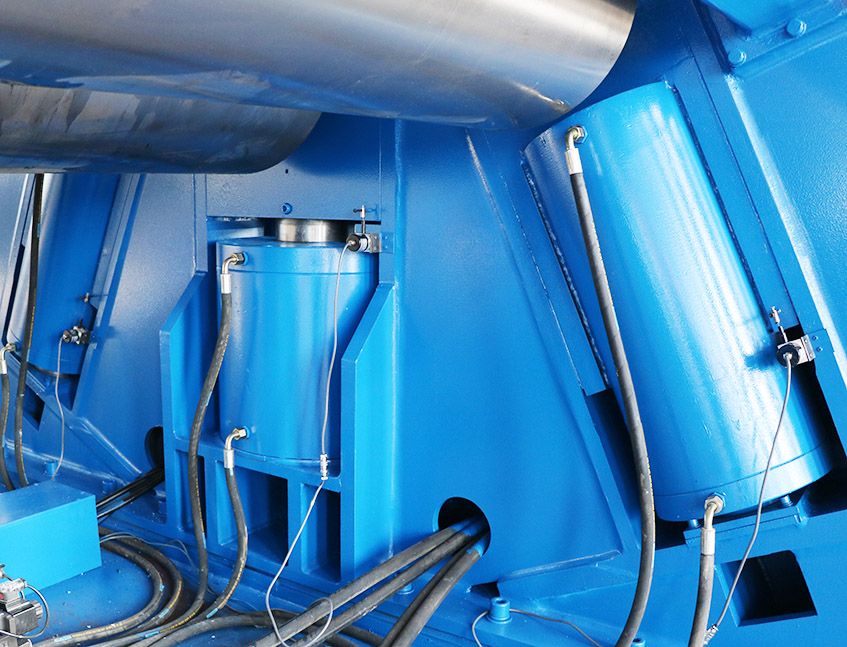

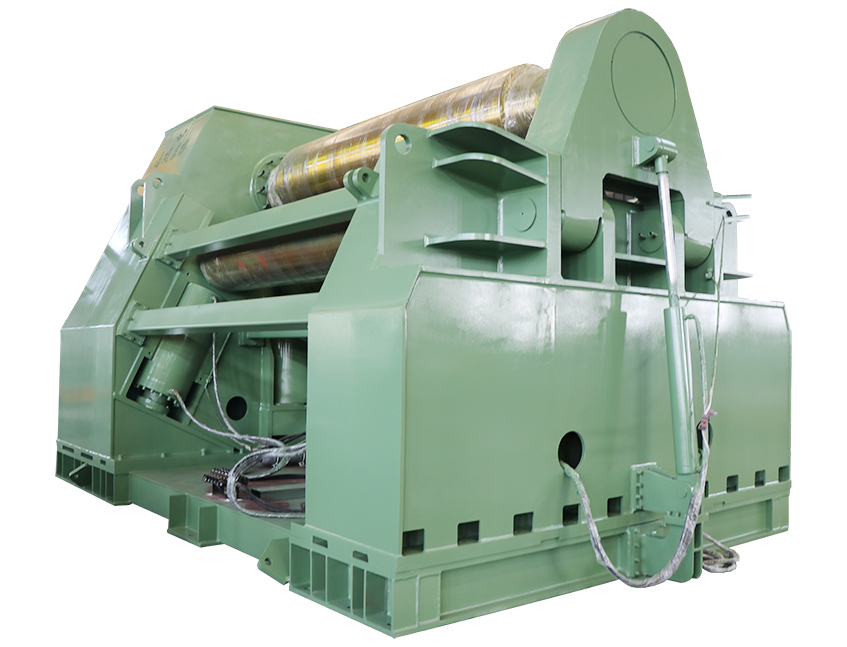

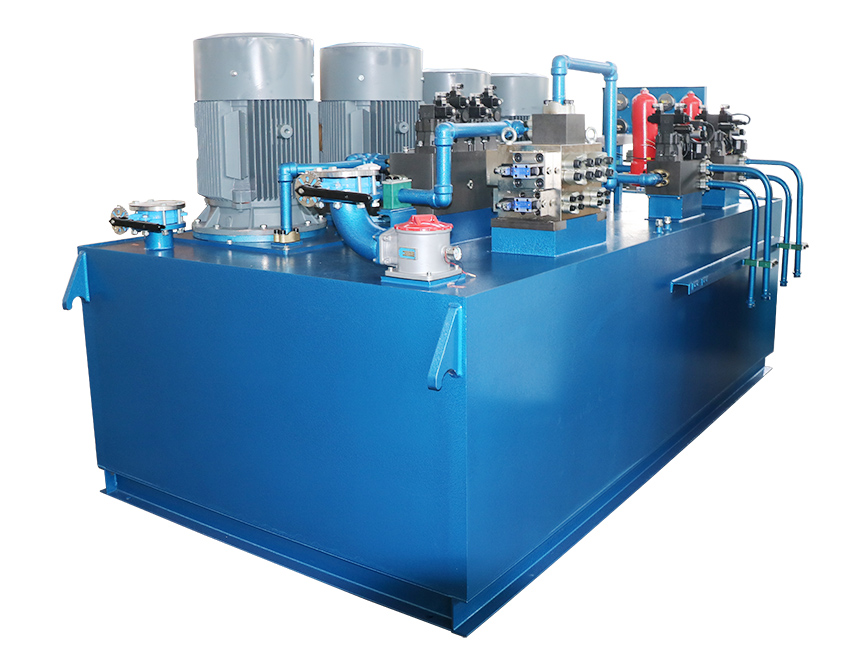

Hydraulic System

Max. Working Pressure

(MPa)

25

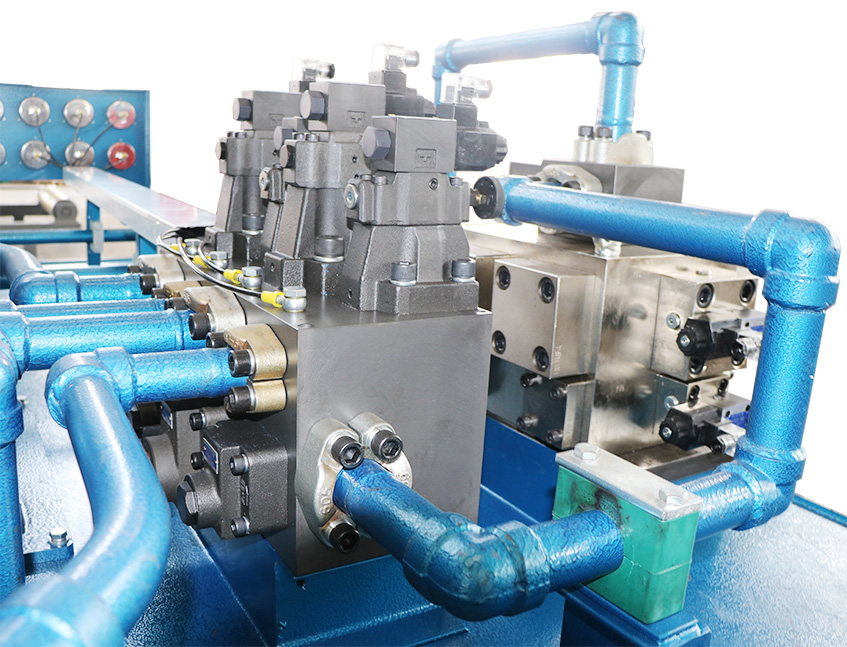

Valve

YUKEN

Seal

VALQUE

Electrical & Hydraulic Protection Againts Overload

YES

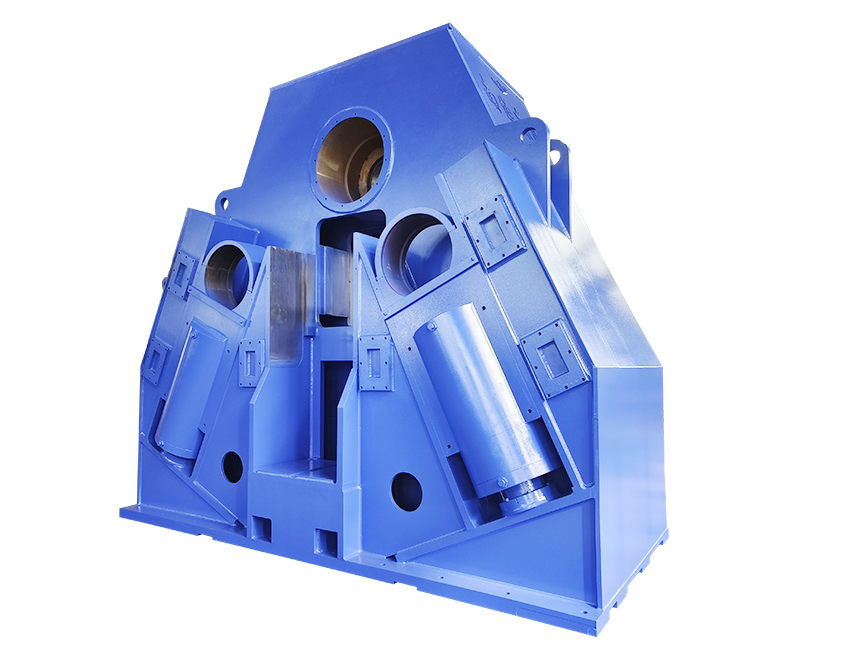

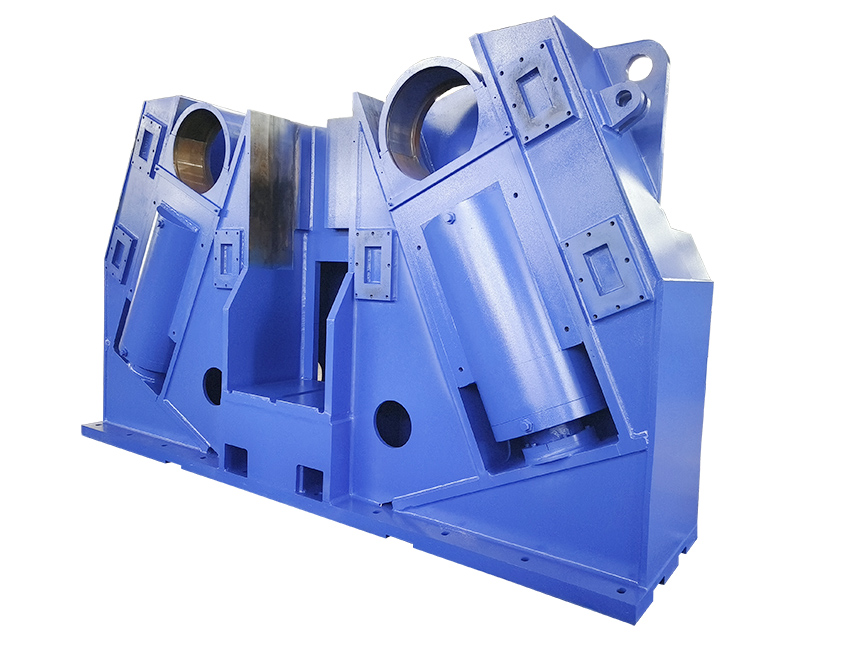

Construction Steel Material

Q235

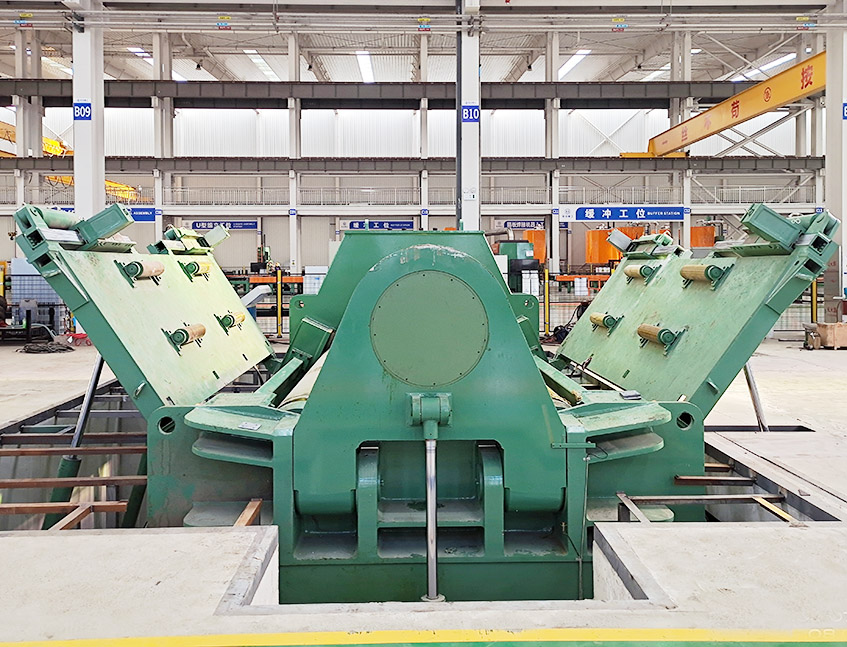

Side Support for Big Sheet Metal Diameters

　optional

Central Support for Big sheet Metal Diameters

　optional

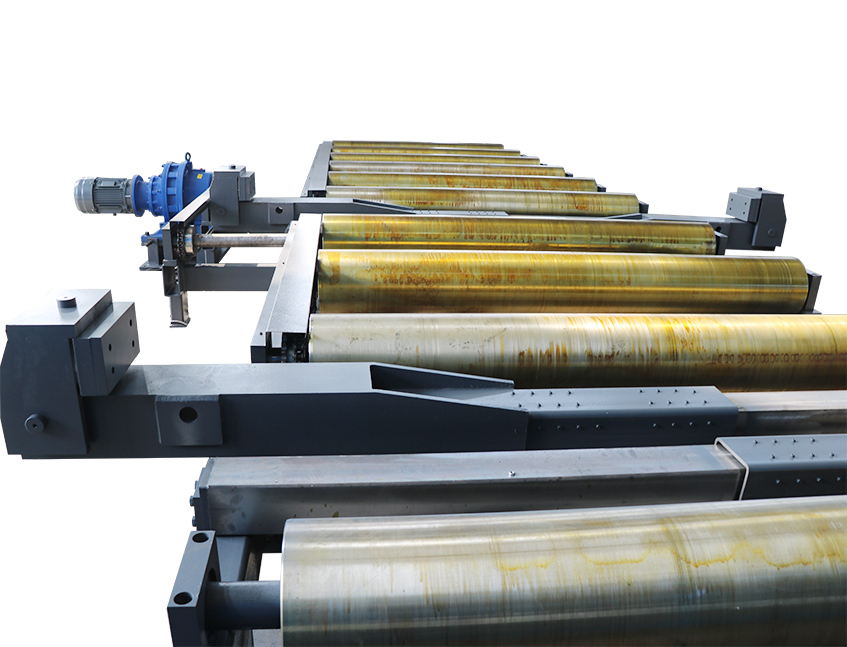

Feeding Table

　optional

Oil Cooler System

　optiona
