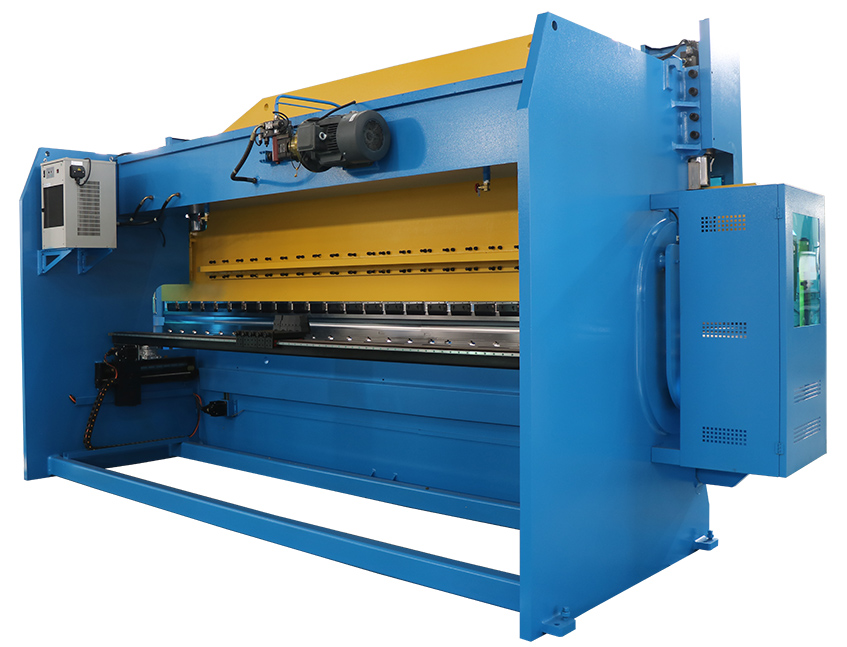

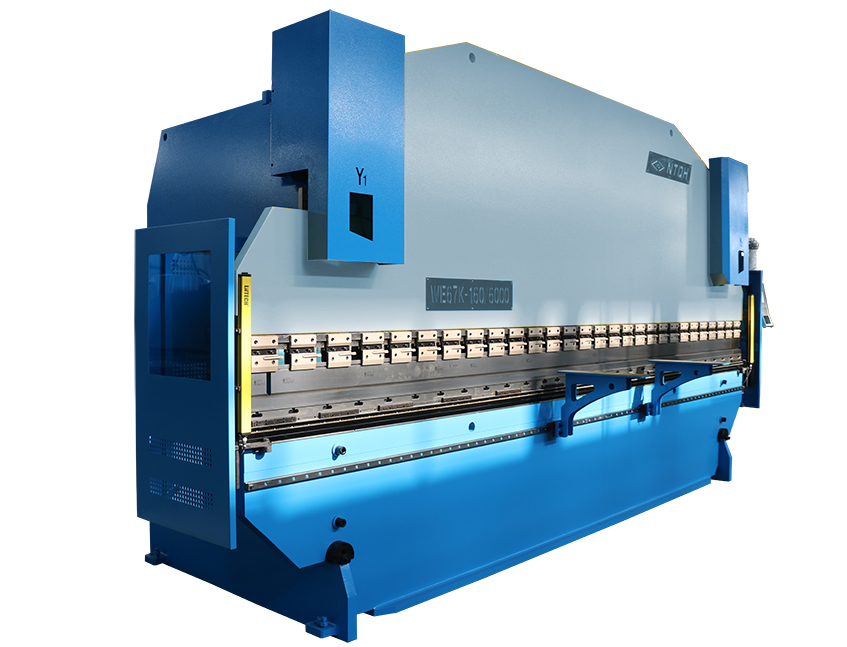

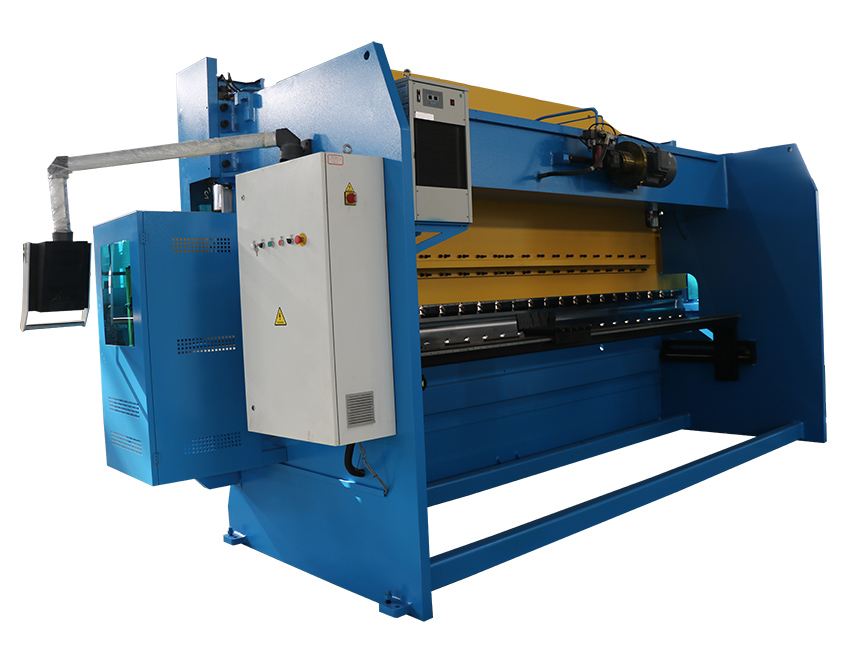

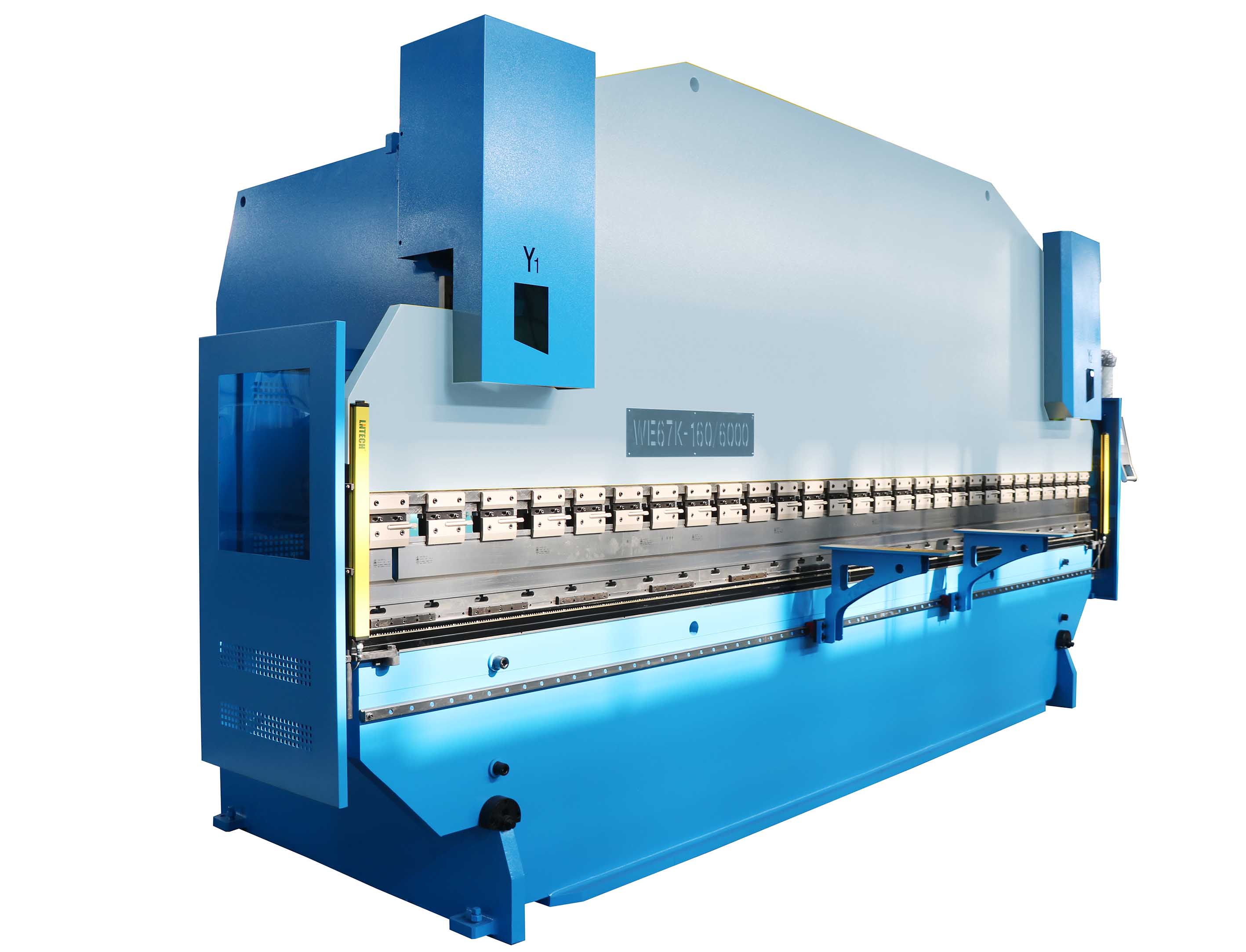

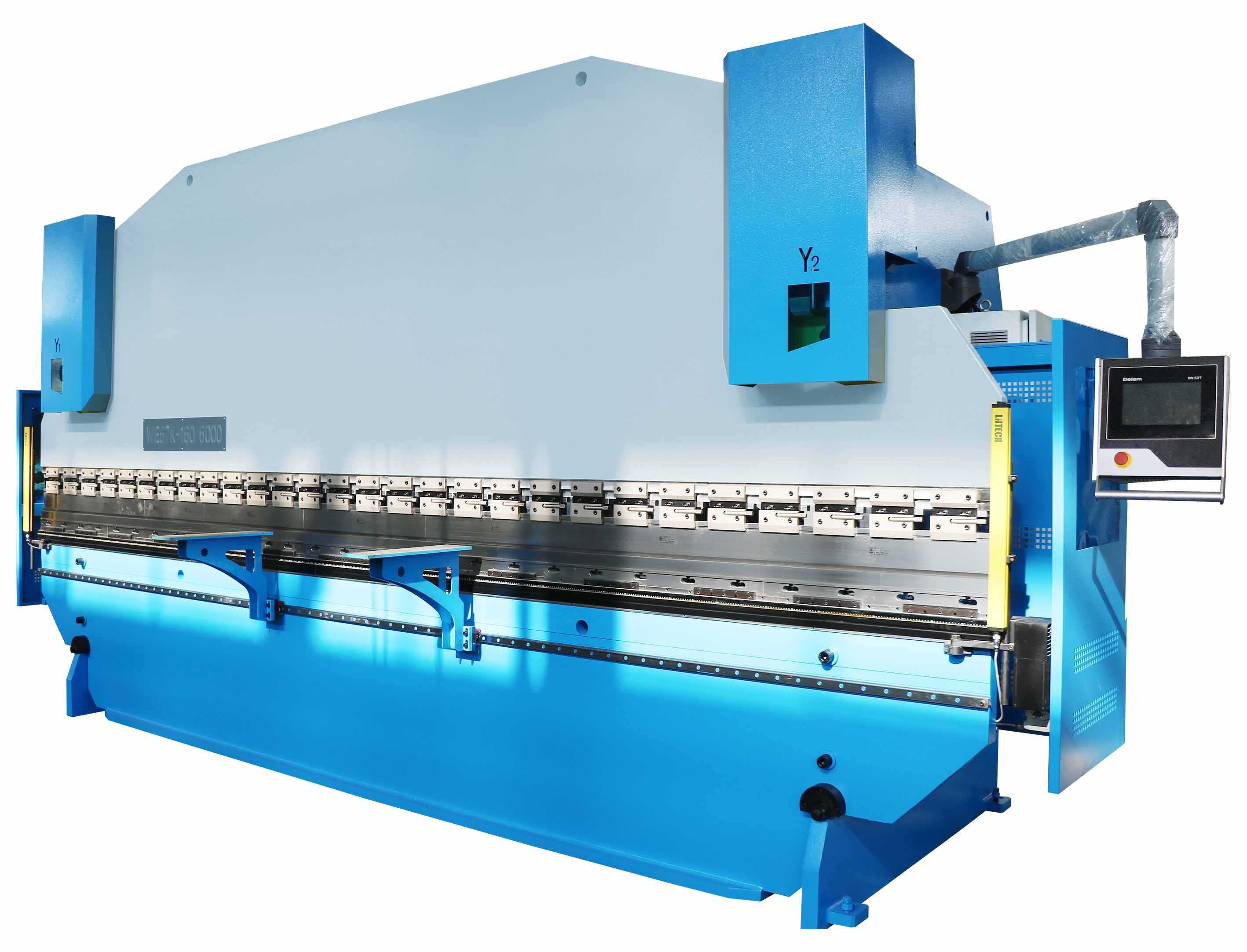

WE67K-160T6000 CNC Press Brake
Features
-- Y1-Y2-X-R +V axis CNC controlled

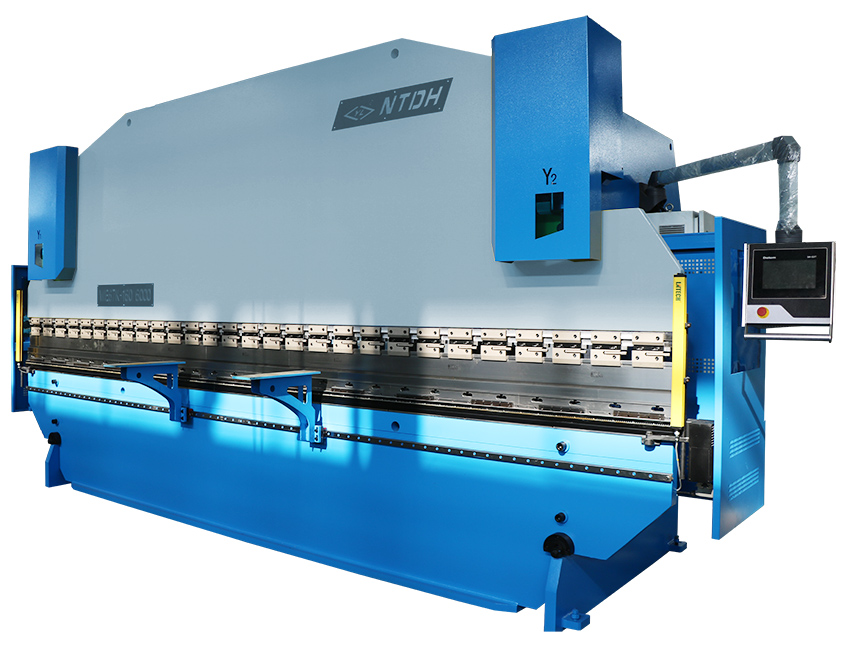

--DA-53T CNC system
-- Close loop proportional hydraulics for beam synchronization

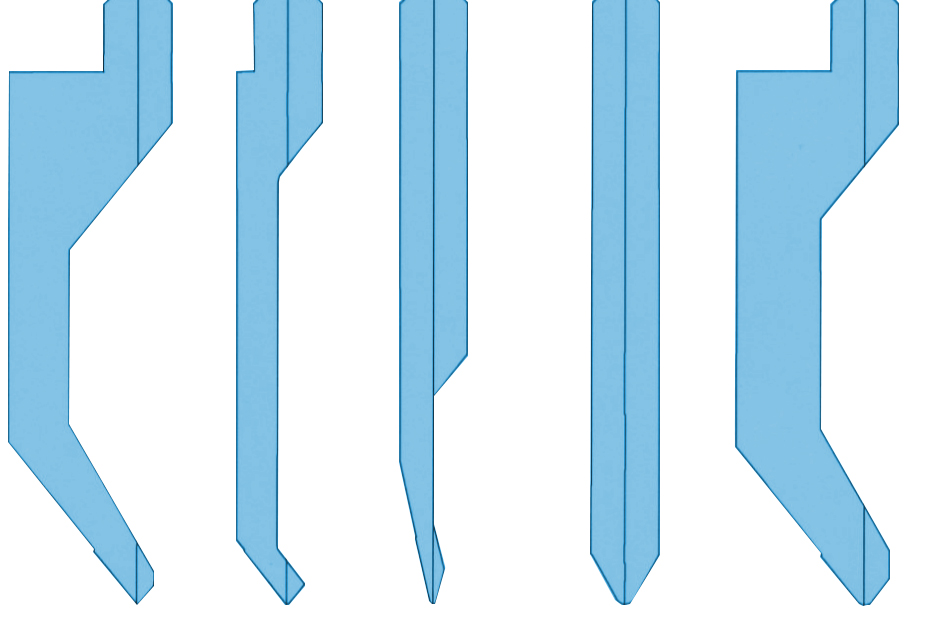

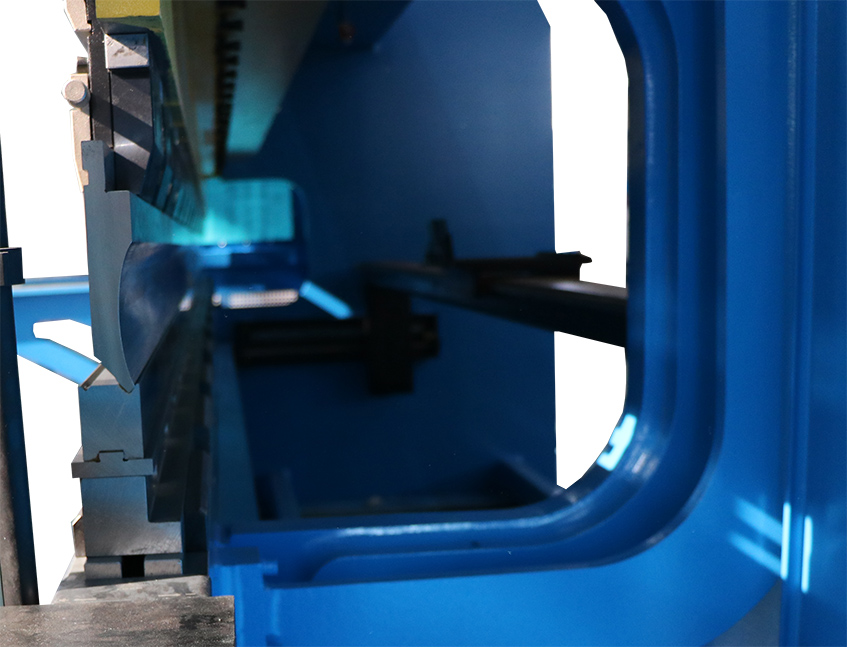

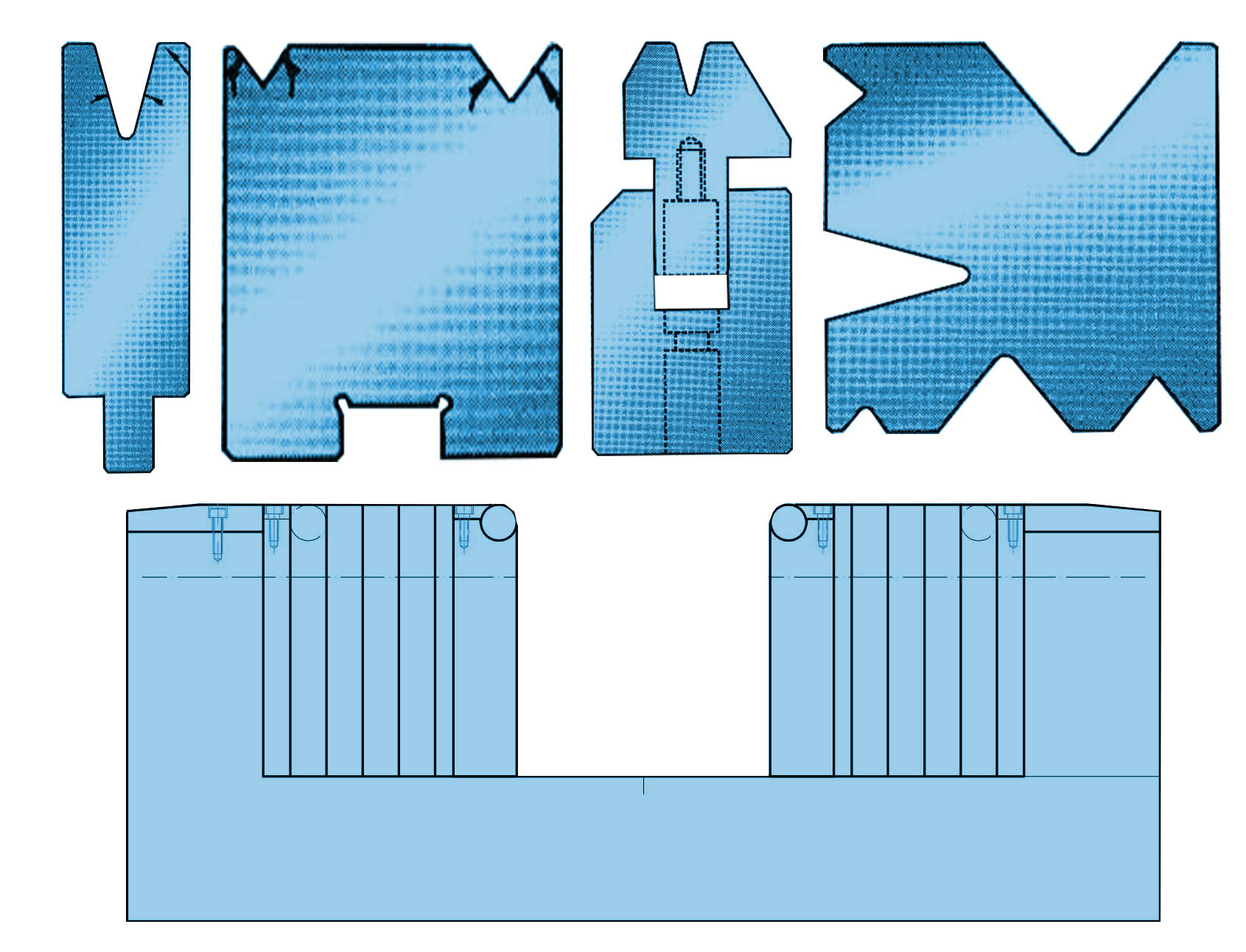

-- Hardened multi-V Die & Punch

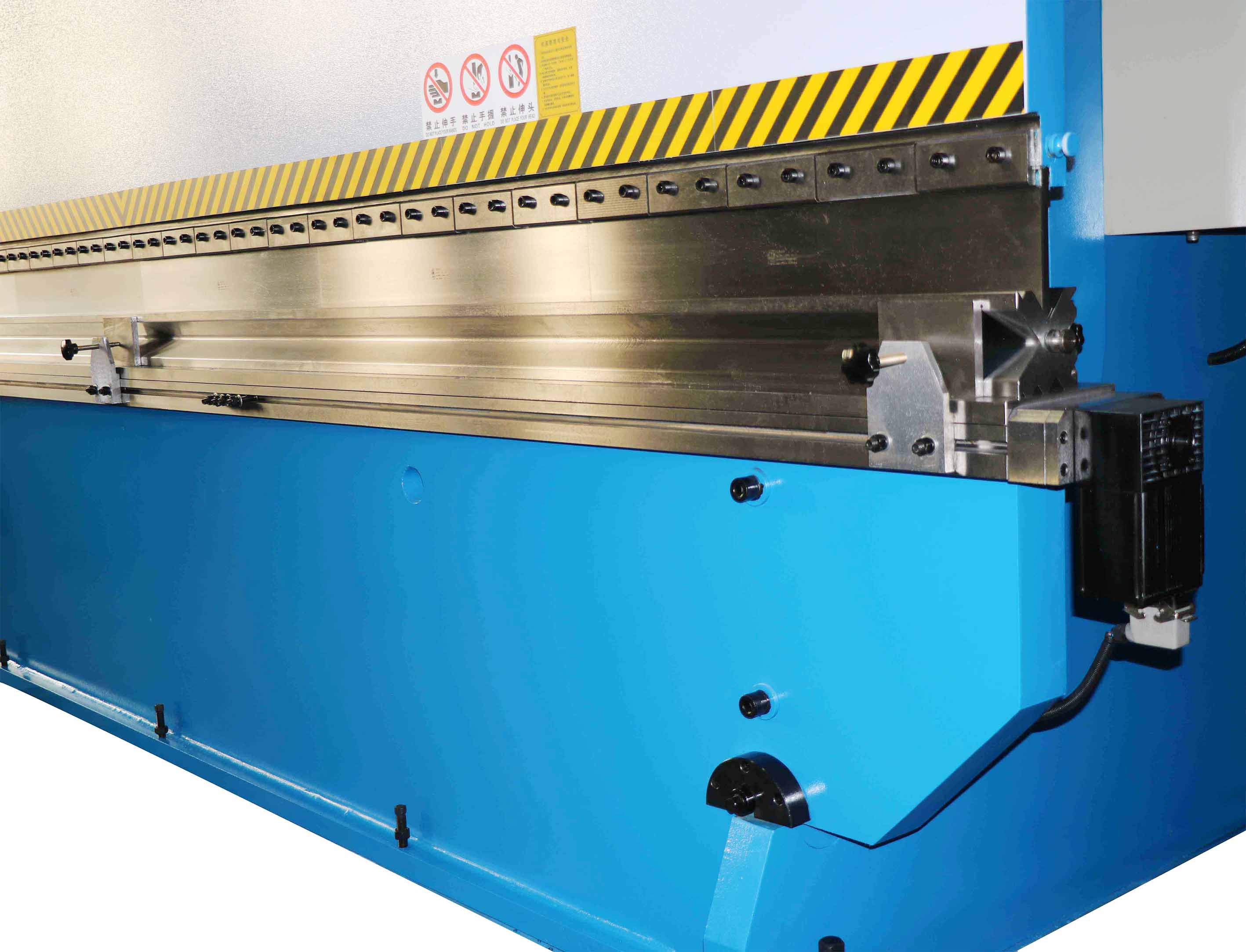

-- Quick release die clamps

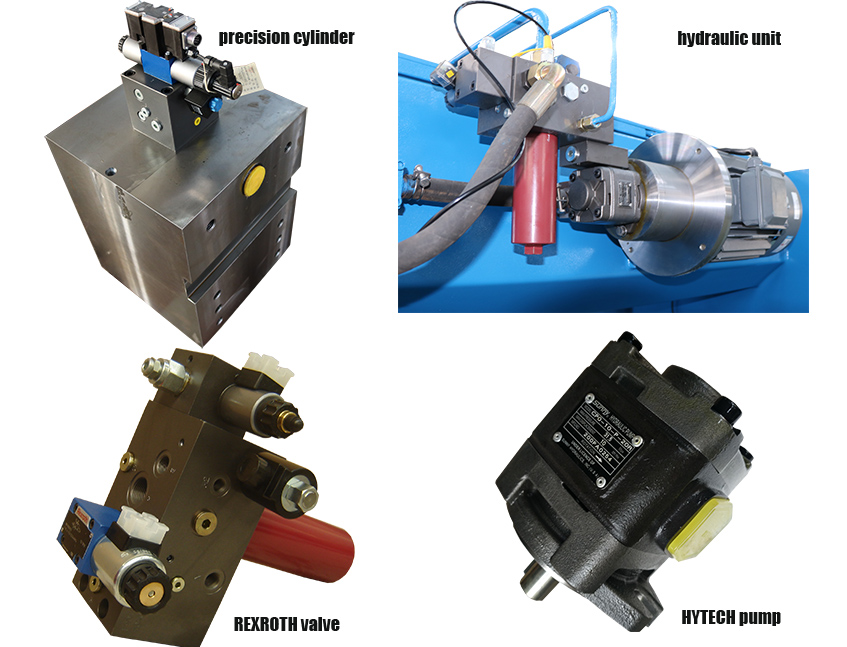

-- REXROTH precise proportional valve to control accurate beam movement

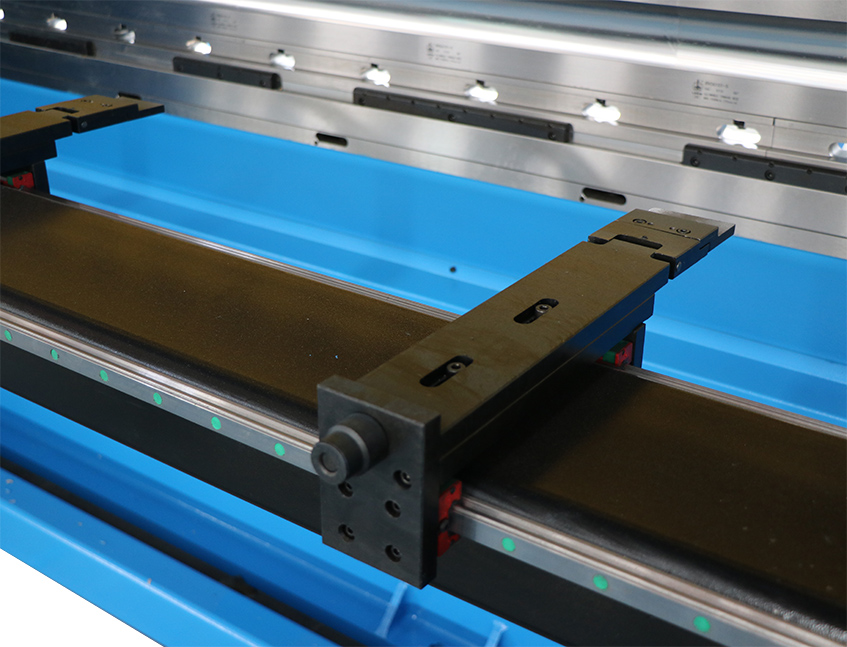

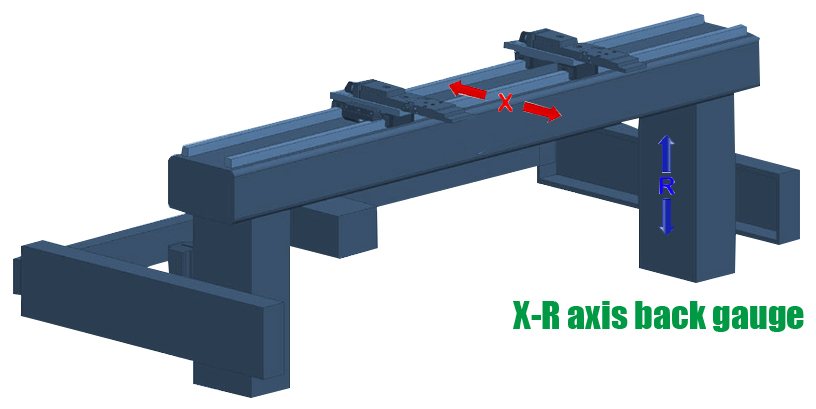

-- X-R back gauge consist of hardened & ground ball screw
-- liner motion bearings and AC servo drive for accurate position
Parameters:
|
1 |
Nominal pressure |
1600 |
KN |
|
|
|
2 |
Bending width |
6000 |
mm |
|
|
|
3 |
Distance between uprights |
4800 |
mm |
|
|
|
4 |
Stroke |
200 |
mm |
|
|
|
5 |
Max. Daylight |
470 |
mm |
|
|
|
6 |
Throat depth |
500 |
mm |
|
|
|
7 |
Working table length |
6000 |
mm |
|
|
|
8 |
Approaching speed |
110 |
mm/s |
|
|
|
9 |
Bending speed |
10 |
mm/s |
|
|
|
10 |
Returning speed |
90 |
mm/s |
|
|
|
11 |
Main motor power |
11 |
KW |
|
|
|
12 |
Oil pump |
25 |
mr/r |
|
|
|
13 |
Back gauge range |
X range |
600 |
mm |
|
|
X speed |
450 |
mm/s |
|
||
|
R range |
200 |
mm |
optional |
||
|
R speed |
75 |
mm/s |
optional |
||
|
14 |
Machine length |
6300 |
mm |
|
|
|
15 |
Machine width |
1950 |
mm |
Without front feeder |
|
|
16 |
Machine height |
3050 |
mm |
|
|
|
17 |
axis |
Y1-Y2-X-R+V |
CNC |
||
Y1.Y2. axis re-position: ≤+0.05mm
Y1.Y2. axis position: ≤+0.03mm
X axis re-position: ≤+0.02mm
X axis position: ≤+ 0.05mm
Test bending angle: + 1°/3000 mm
Test straightness: ±0.75/1000 mm
