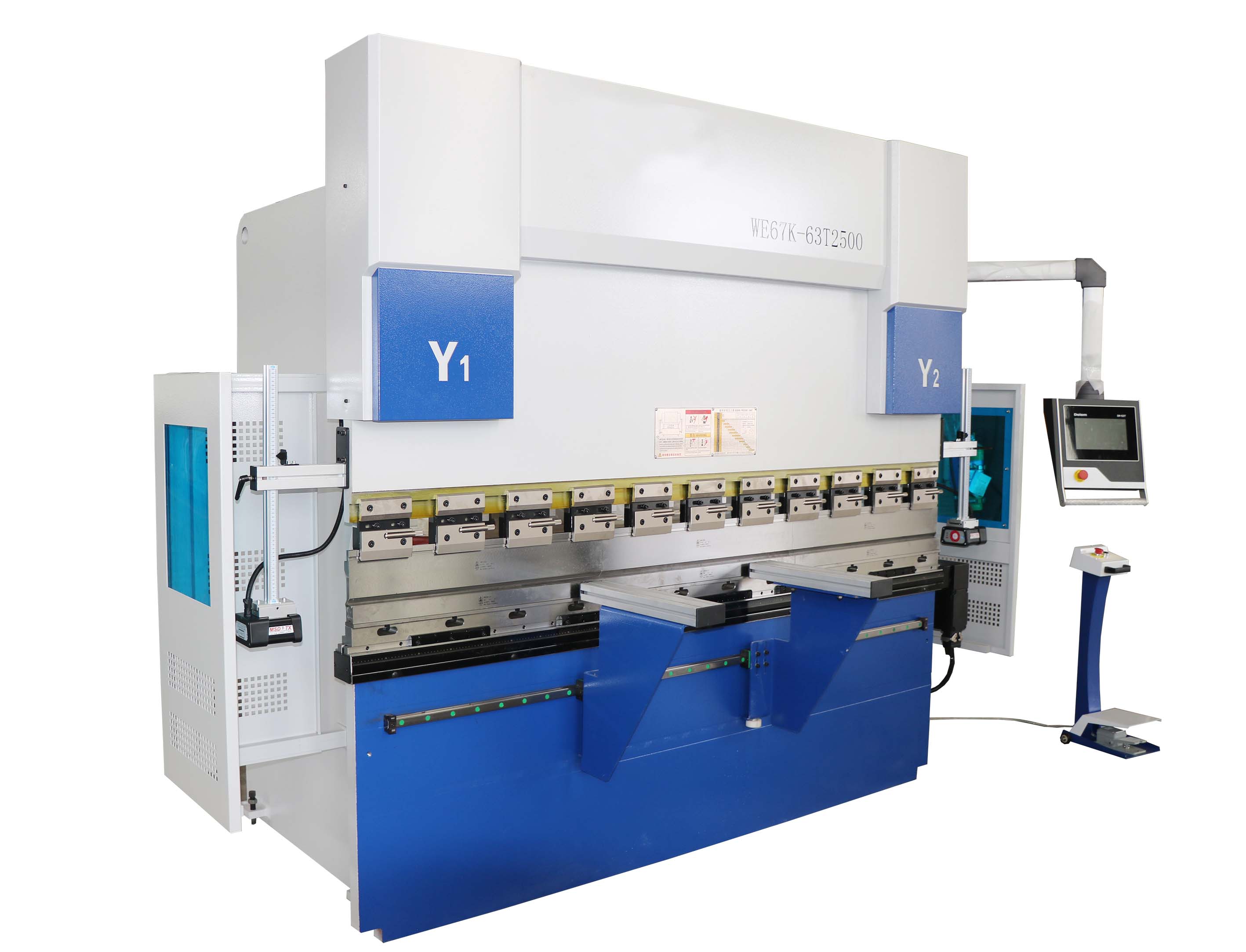

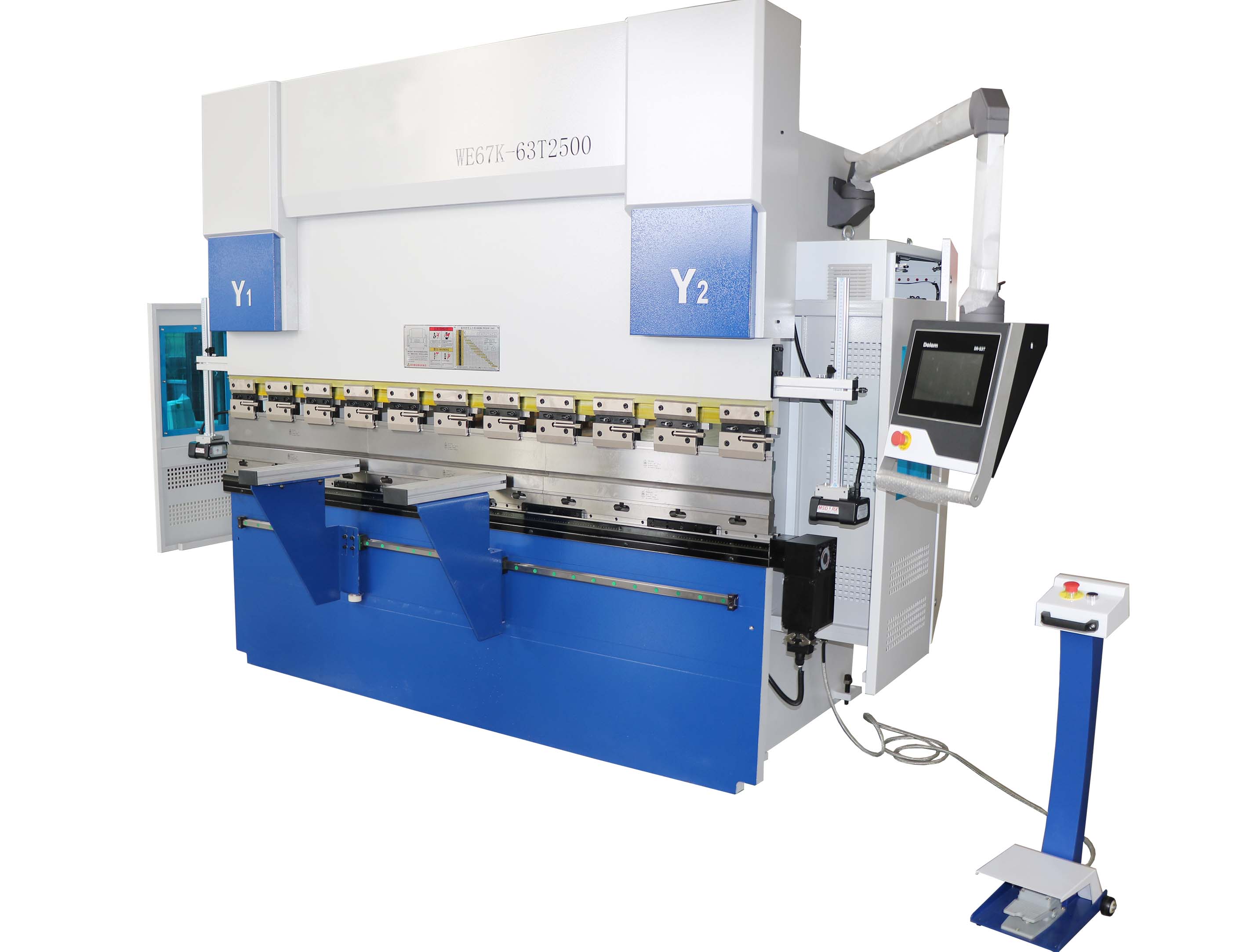

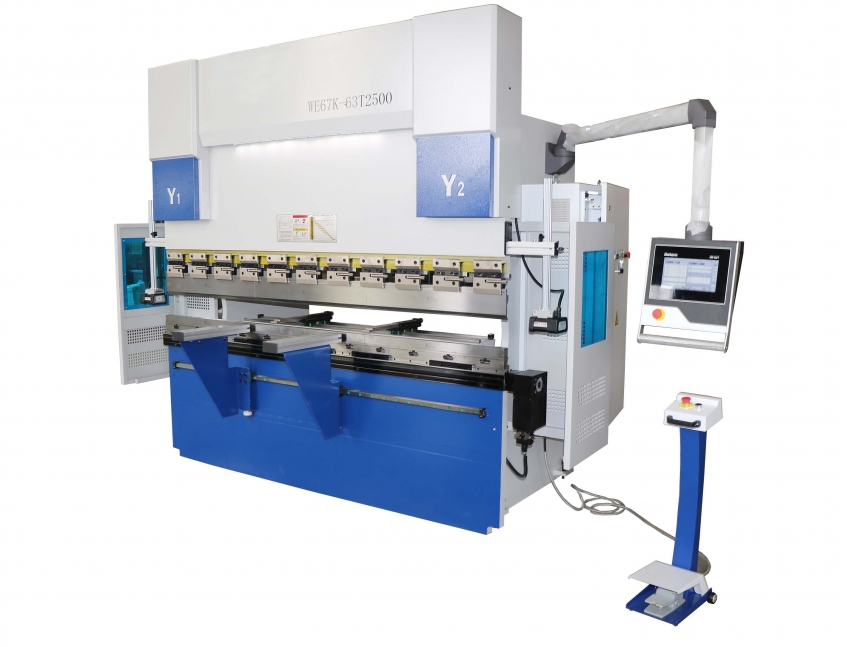

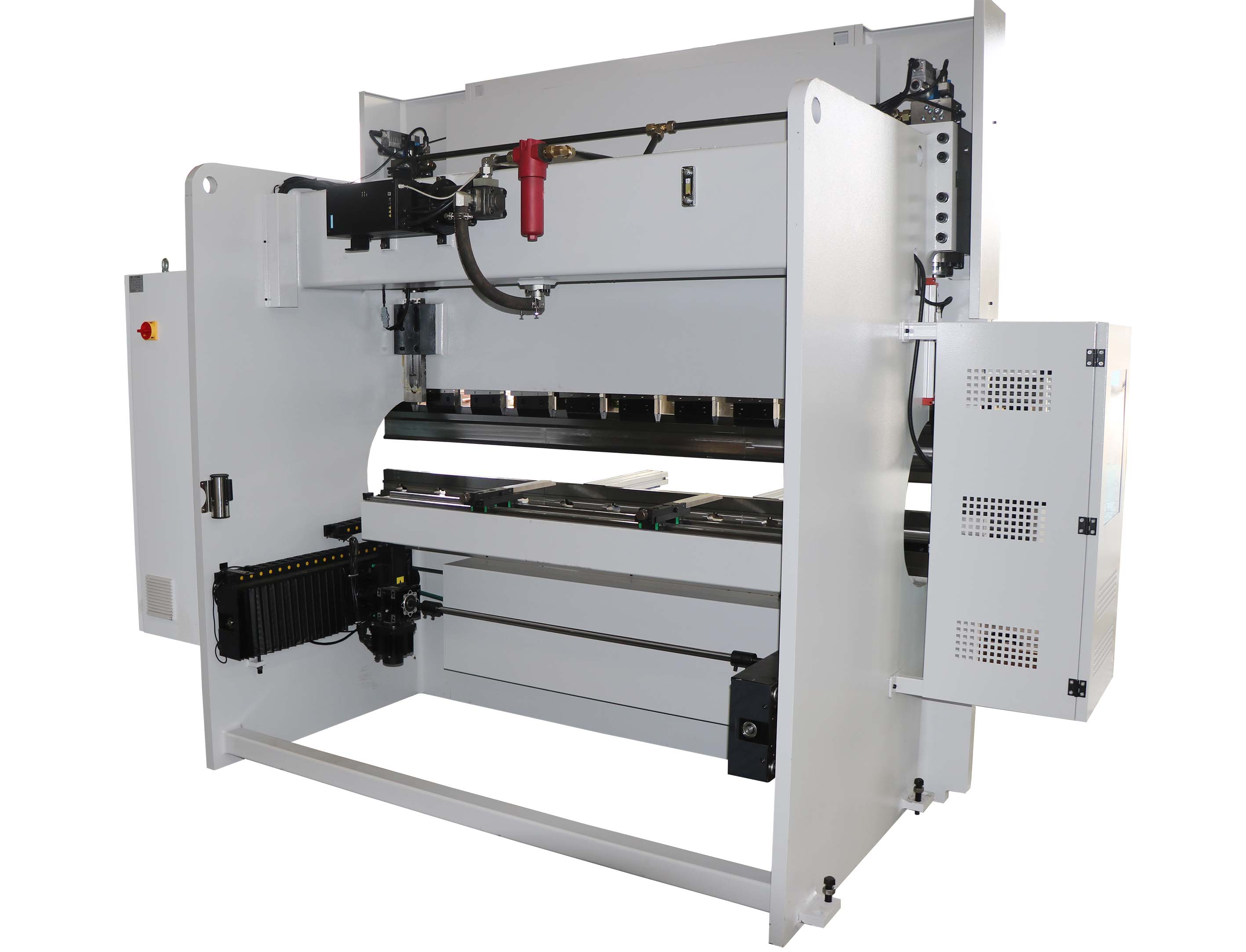

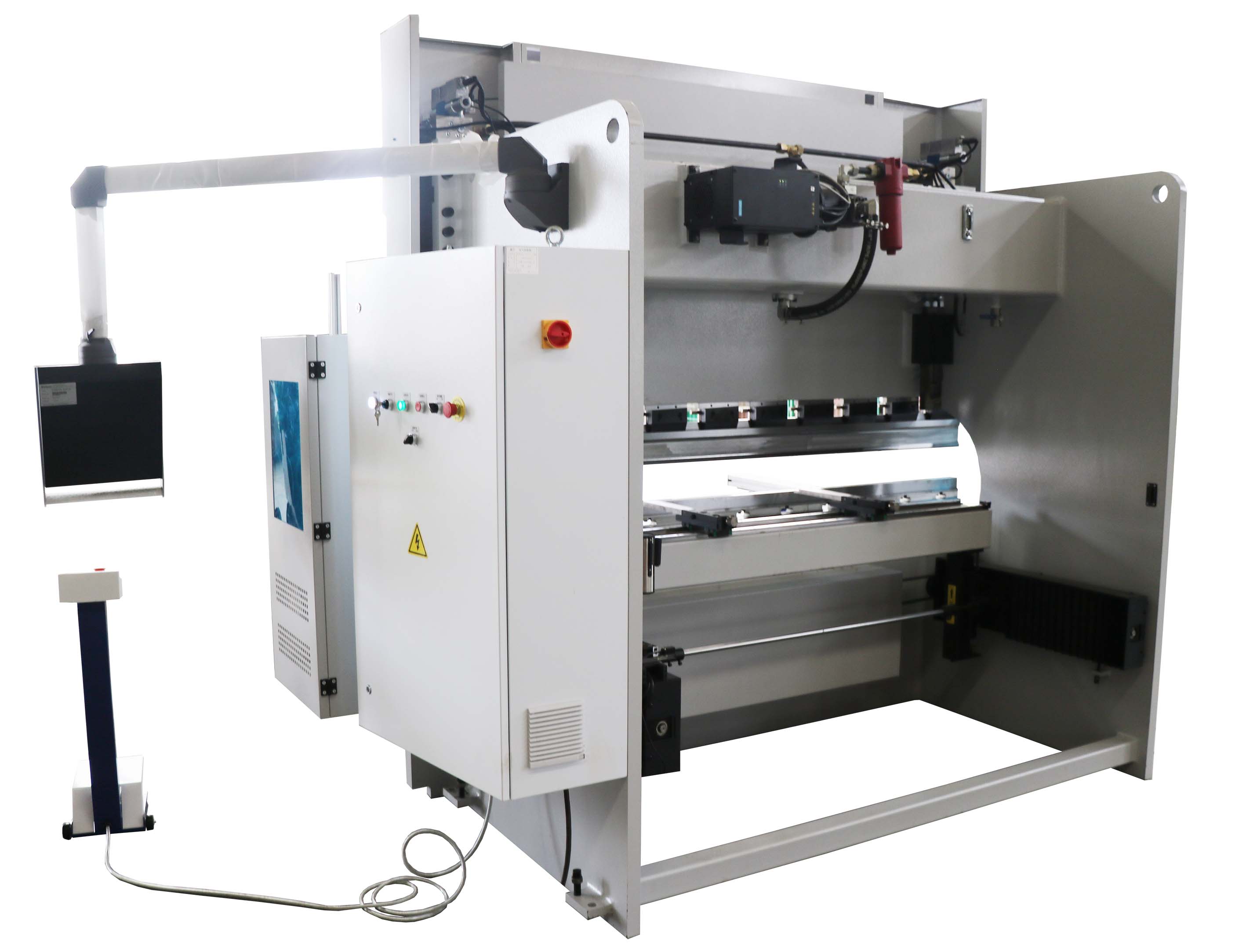

WE67K-63T2500 CNC Press Brake

Features

-- Y1-Y2-X-R +V axis CNC controlled

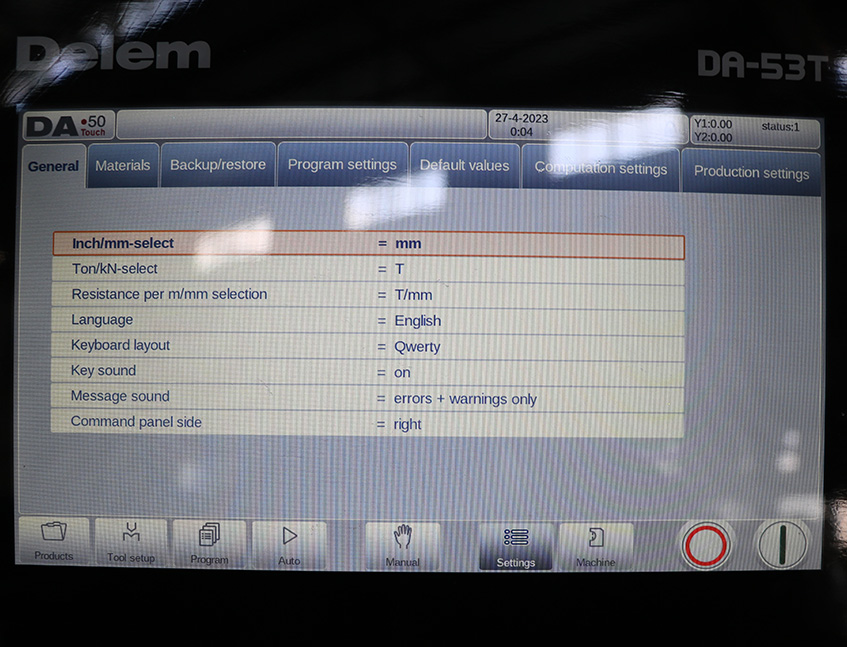

--DA-53T CNC system

-- Close loop proportional hydraulics for beam synchronization

-- Hardened  multi-V Die & Punch

-- Quick release die clamps

-- REXROTH precise proportional valve to control accurate beam movement

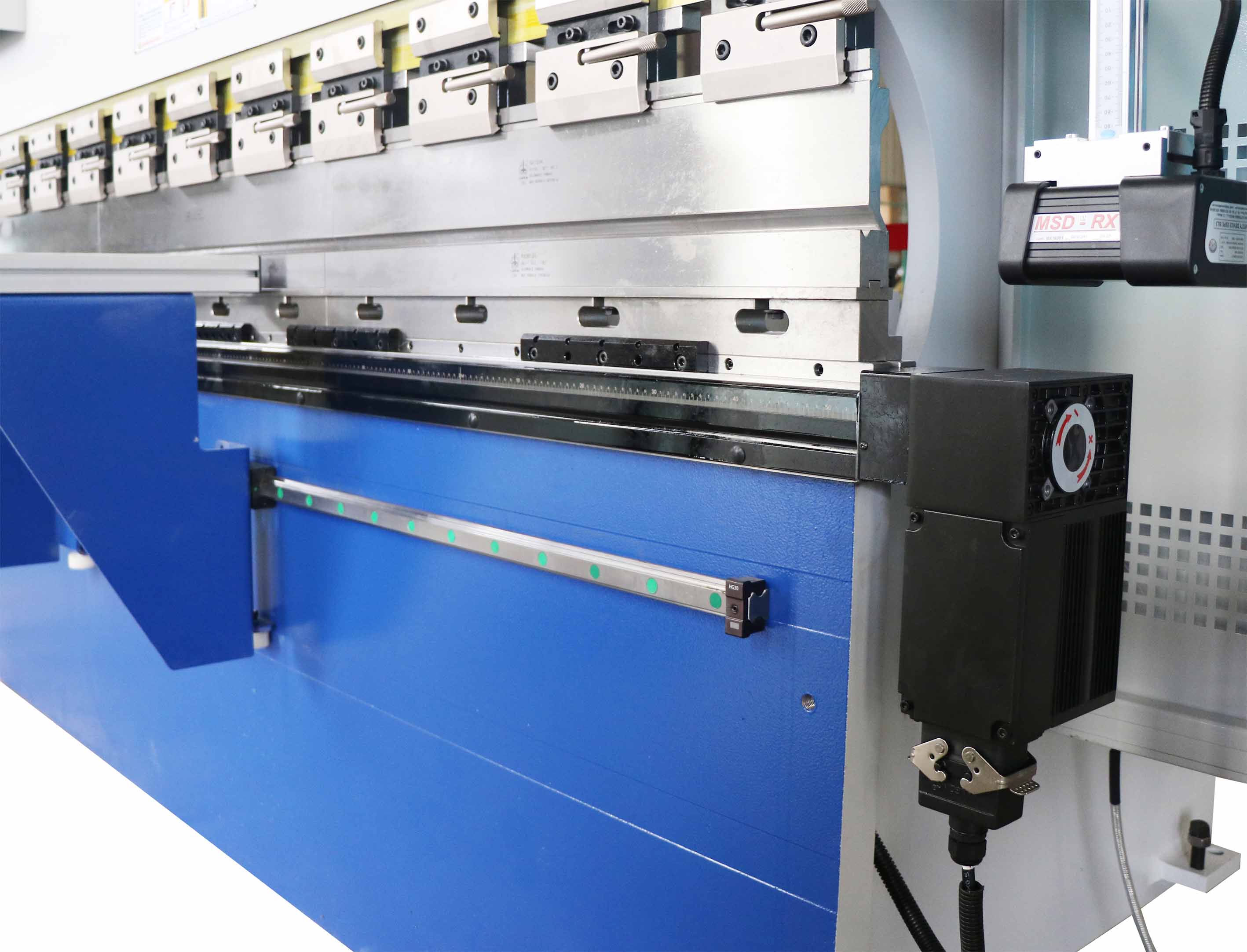

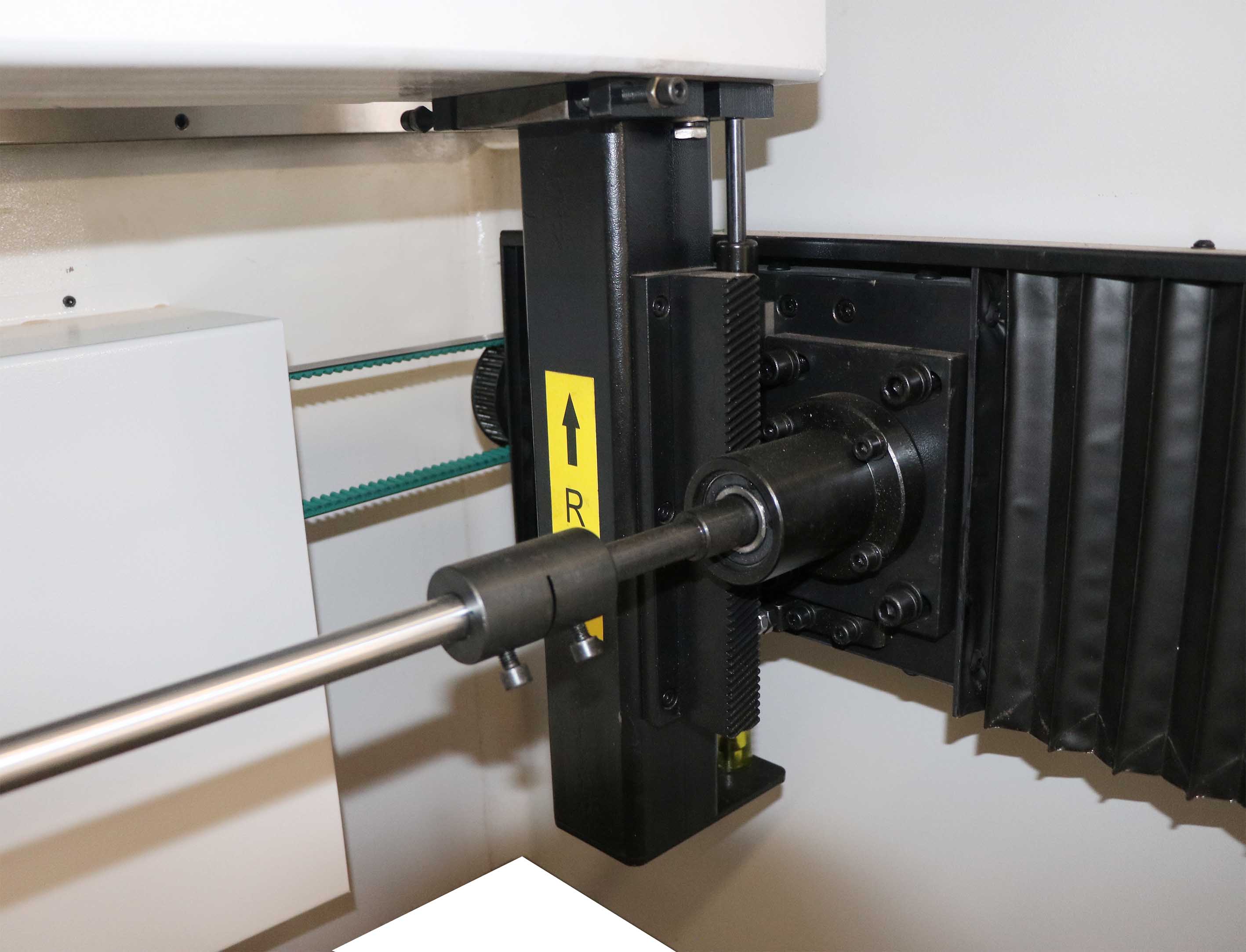

-- X-R back gauge consist of hardened & ground ball screw

-- liner motion bearings and AC servo drive for accurate position

Parameters:

--Accuracy

Y1.Y2. axis re-position: ≤+0.05mm

Y1.Y2. axis position: ≤+0.03mm

X axis re-position: ≤+0.02mm

X axis position: ≤+ 0.05mm

Test bending angle: + 1°/3000 mm

Test straightness: ±0.75/1000 mm

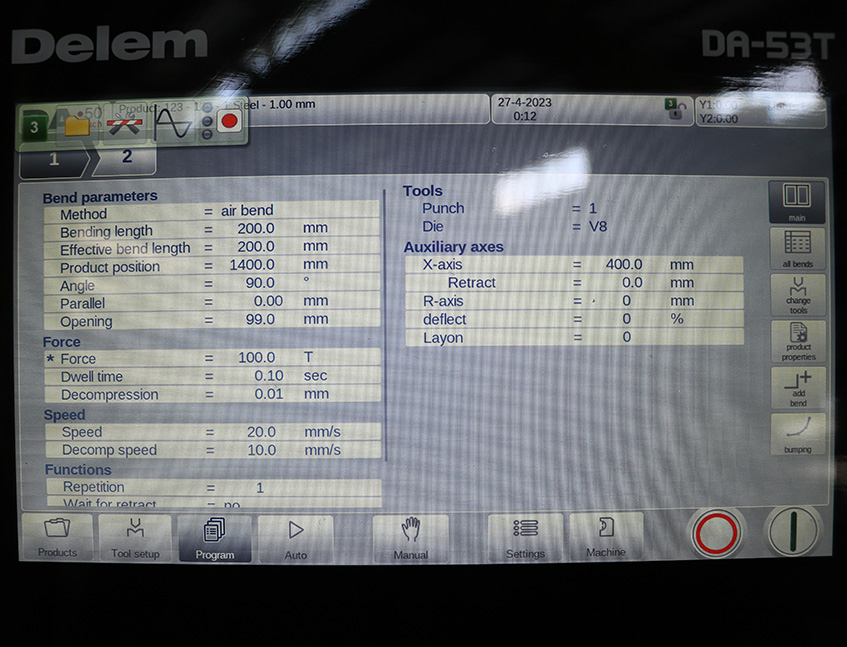

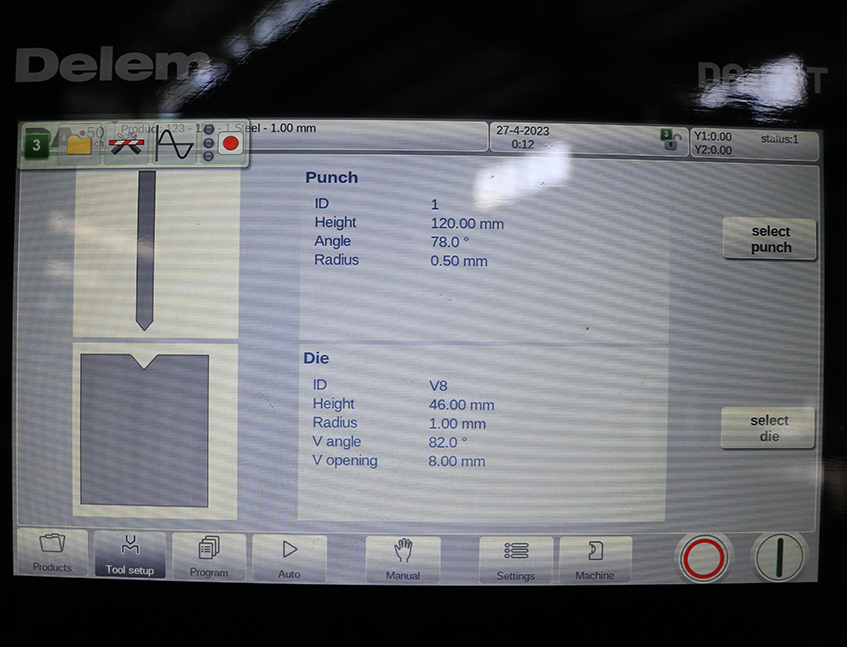

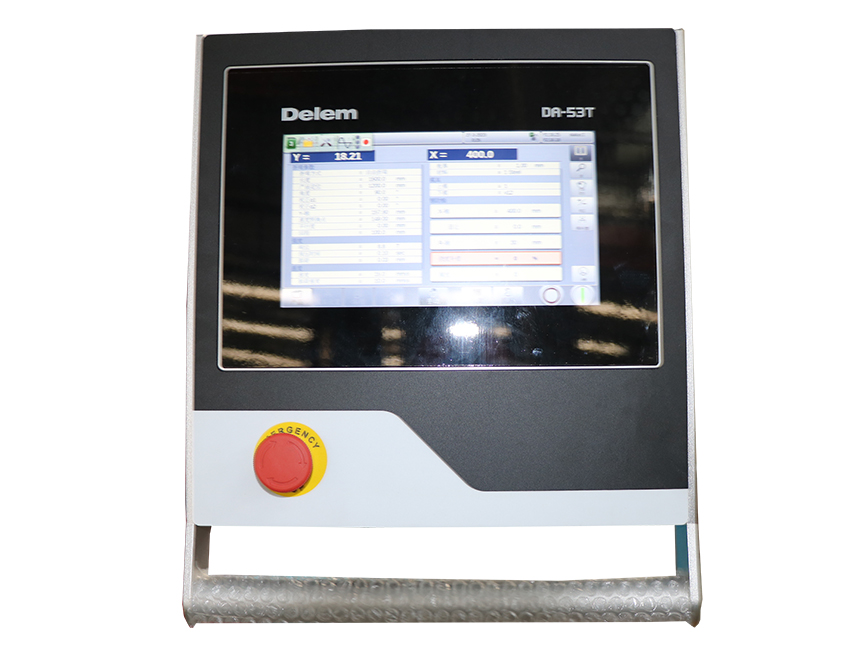

--DA-53T CNC controller

--Automatic crowing table

--Precious cylinder

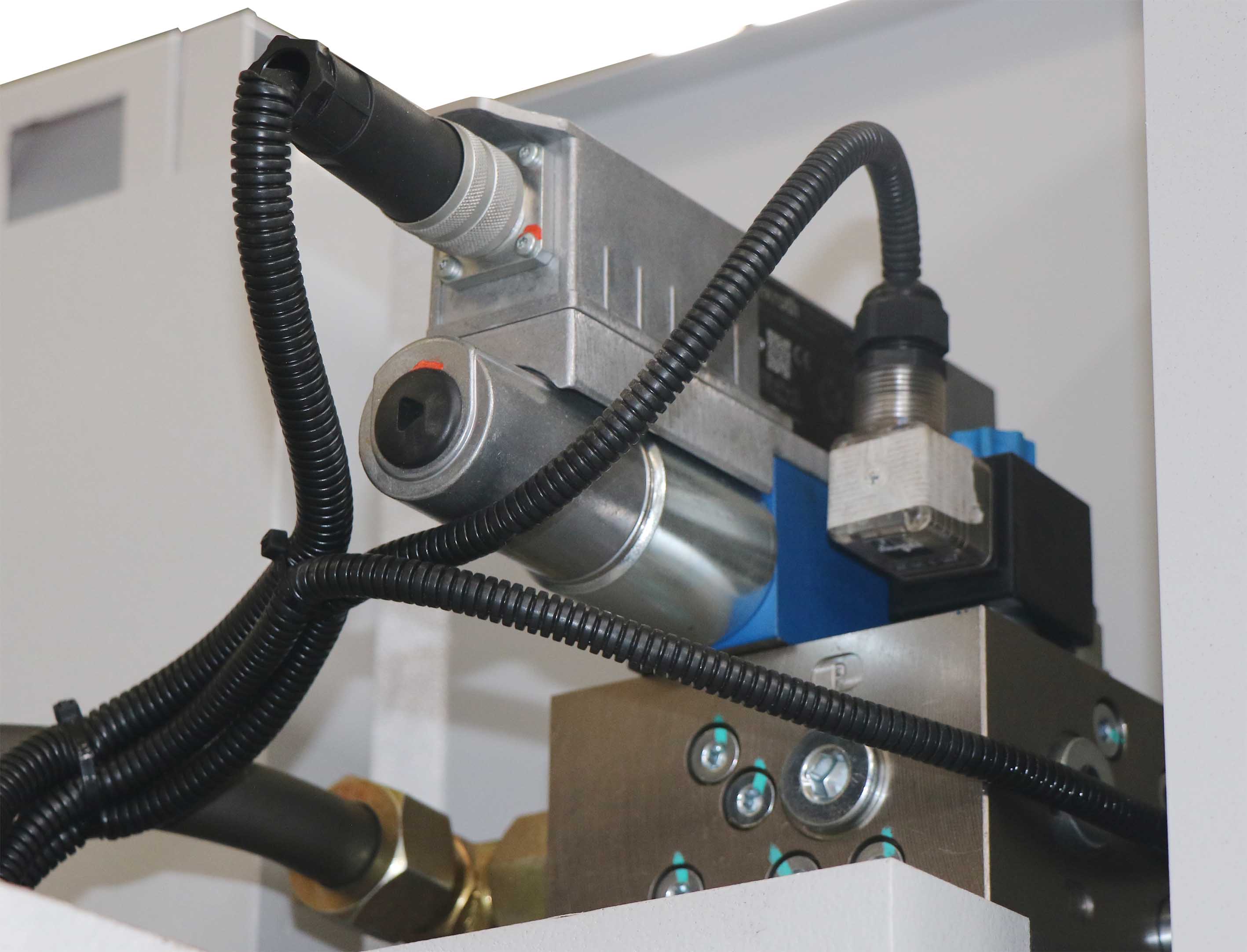

--REXROTH valve hydraulic system

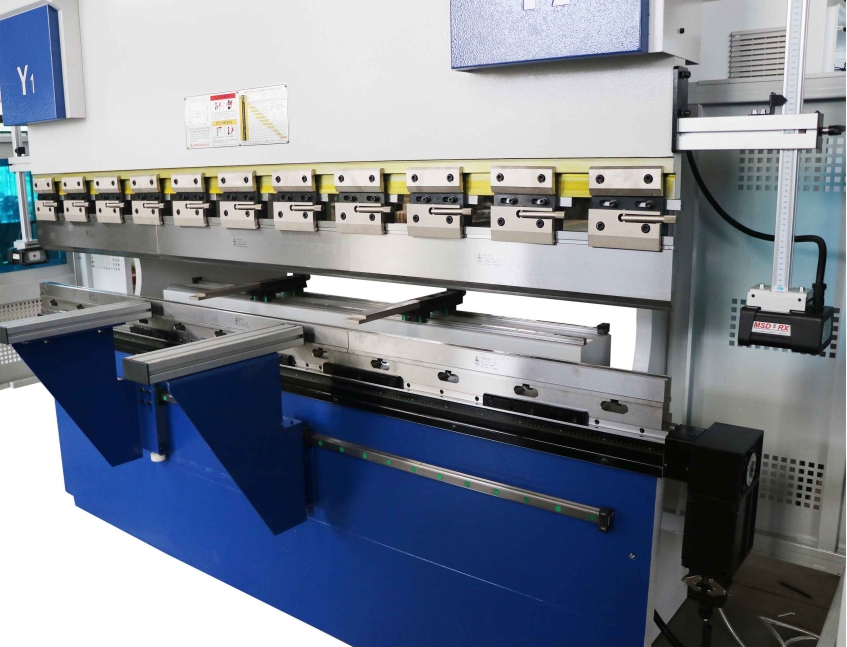

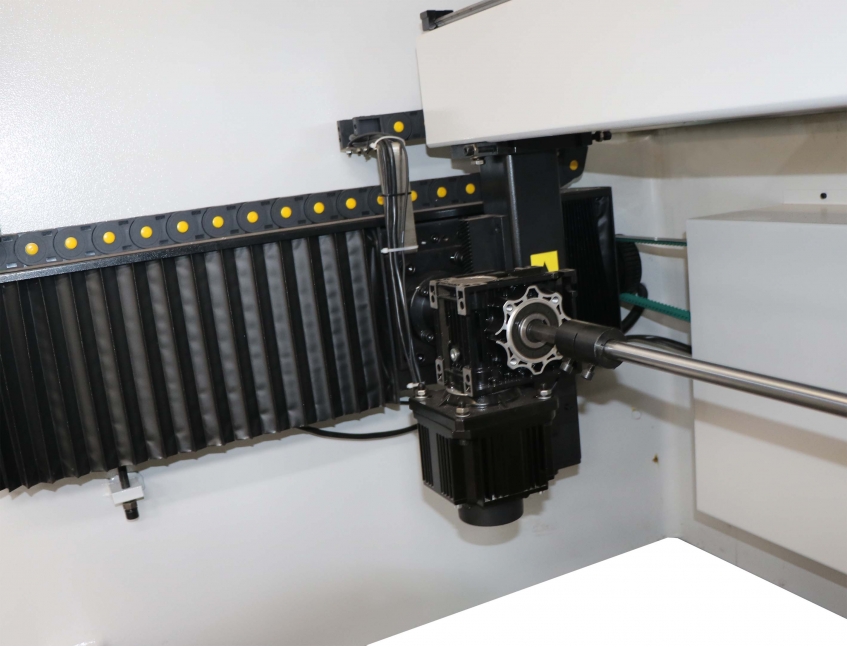

--CNC back gauge (X-R axes)

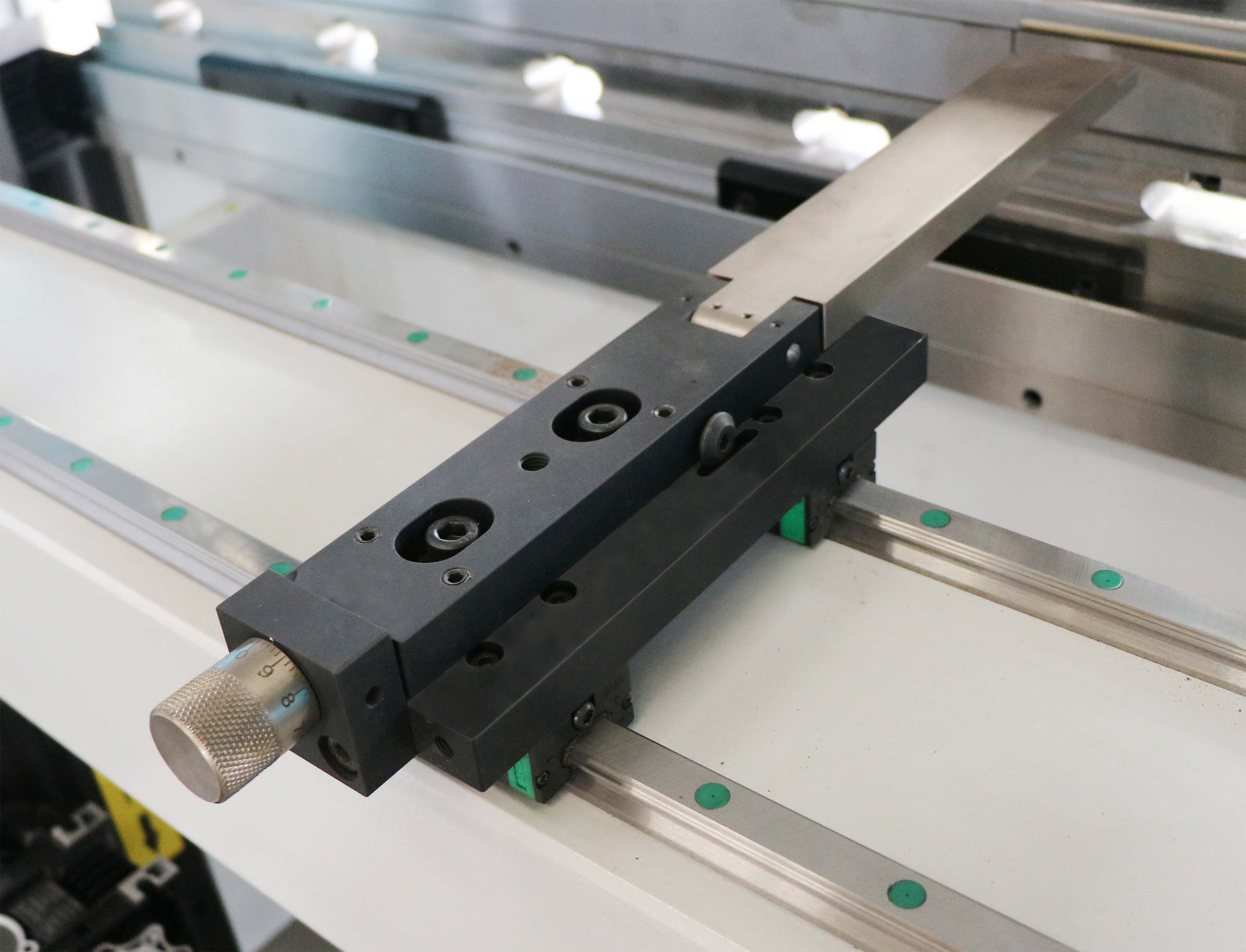

--Stop finger

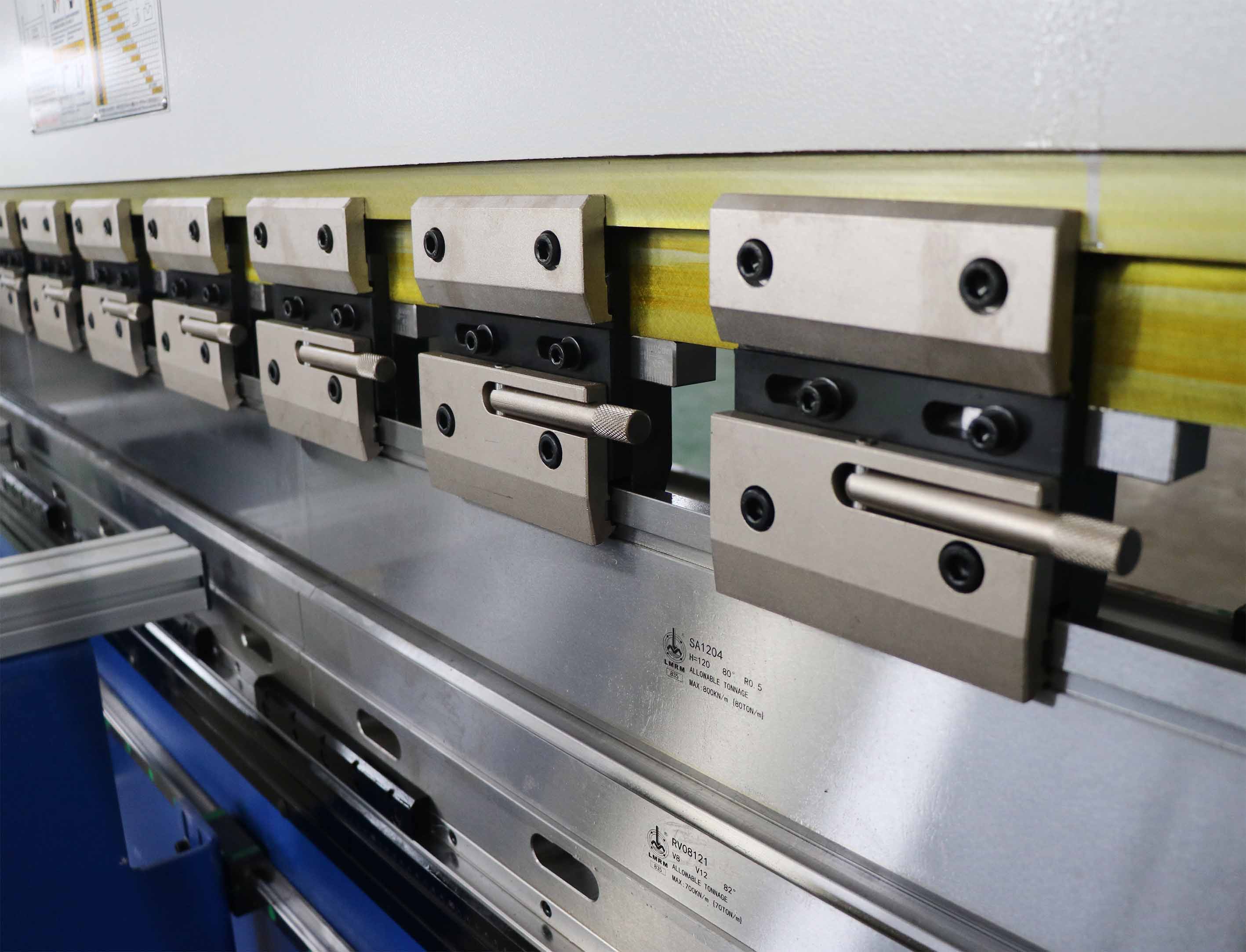

--Quick clamping system

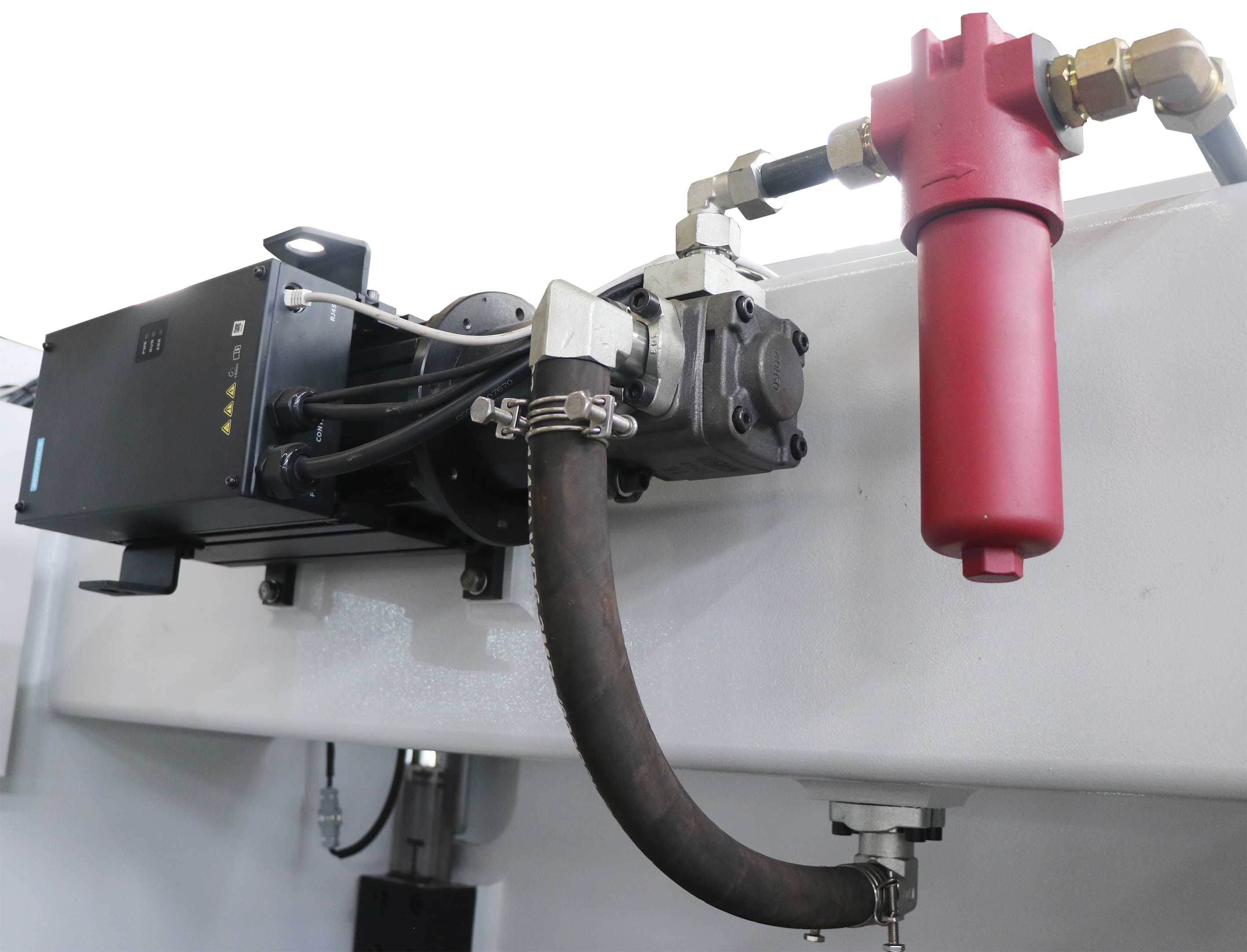

--Servo motor & pump

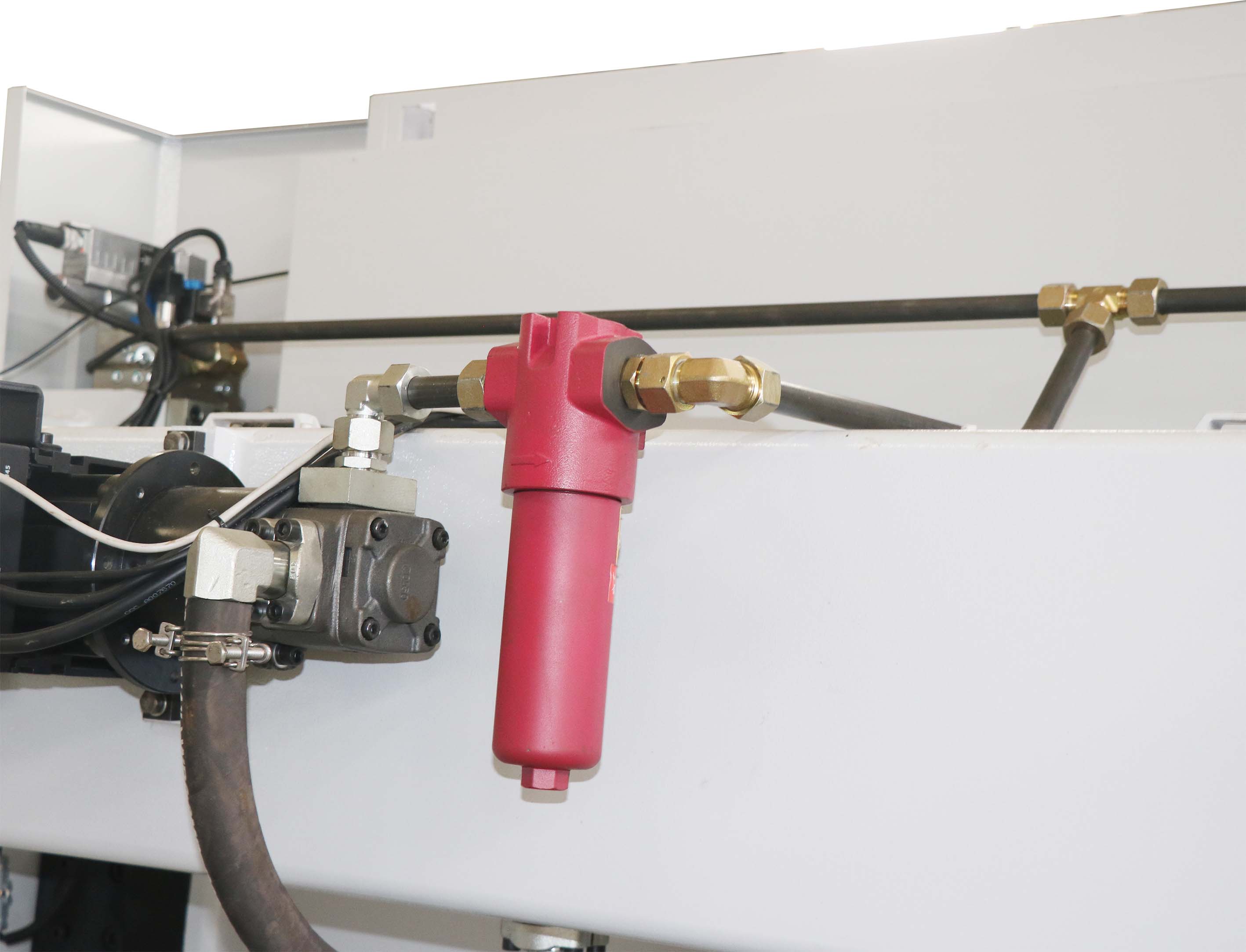

--Oil filter

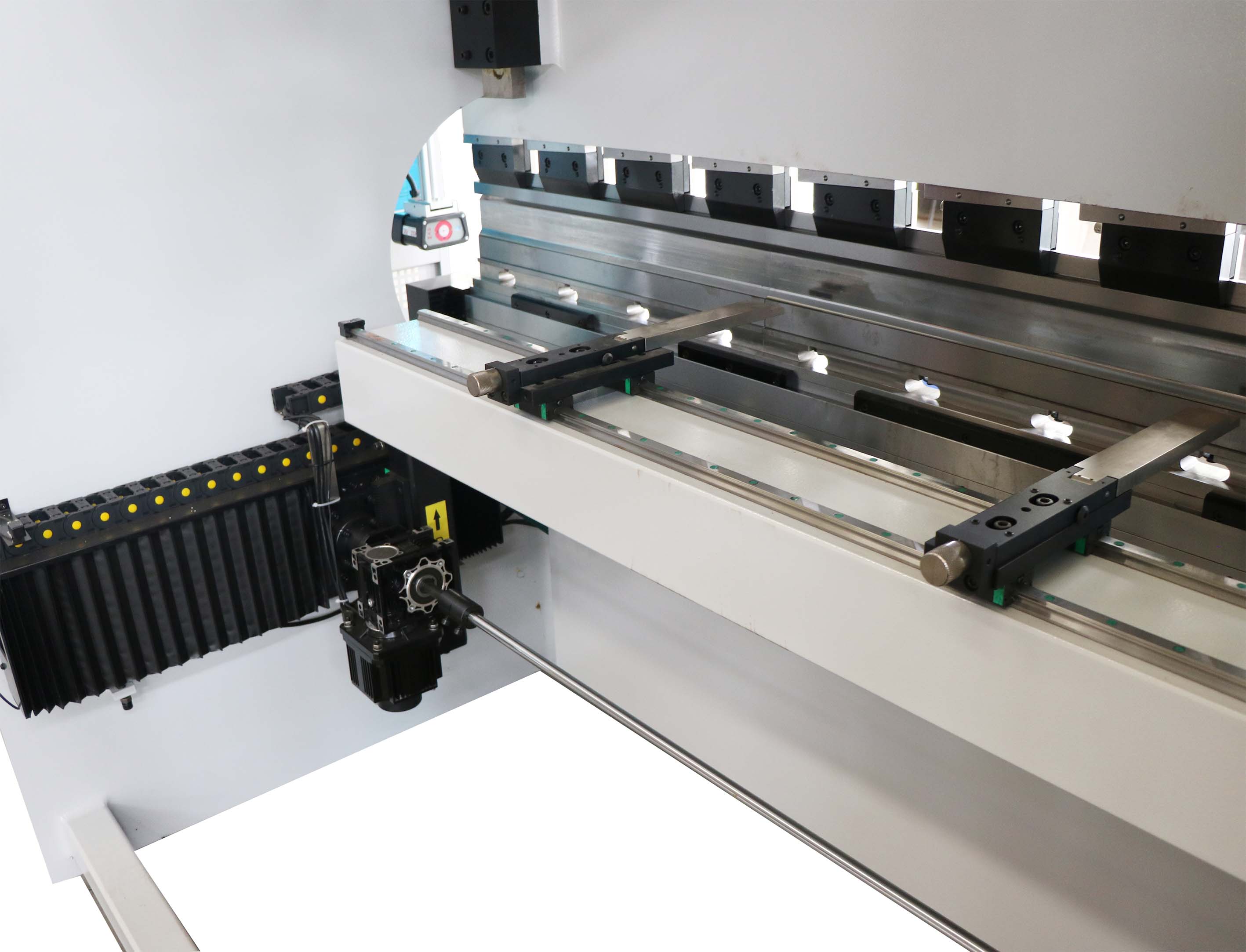

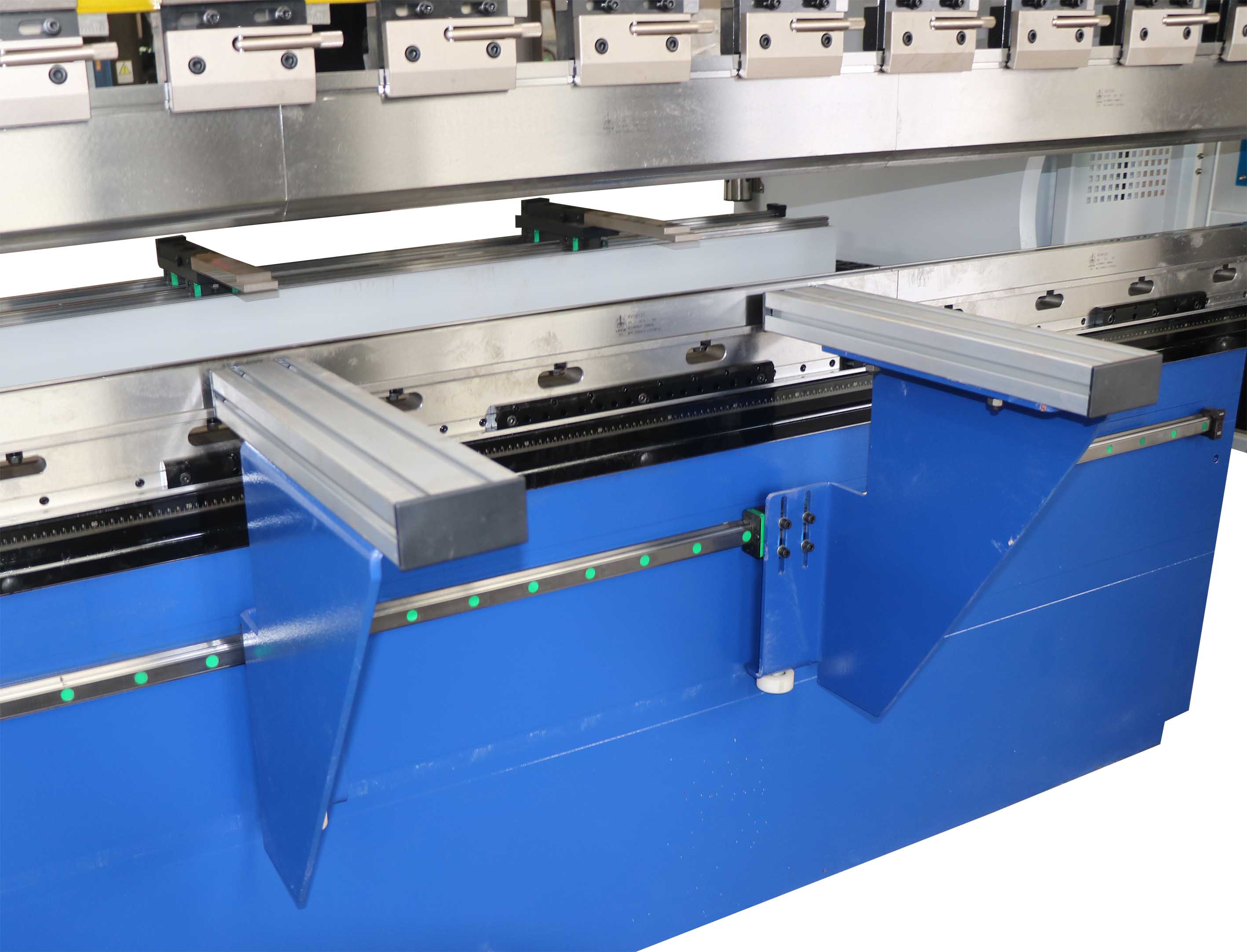

--Slidding sheet support

--Operating light

--Foot pedal

--Electric components

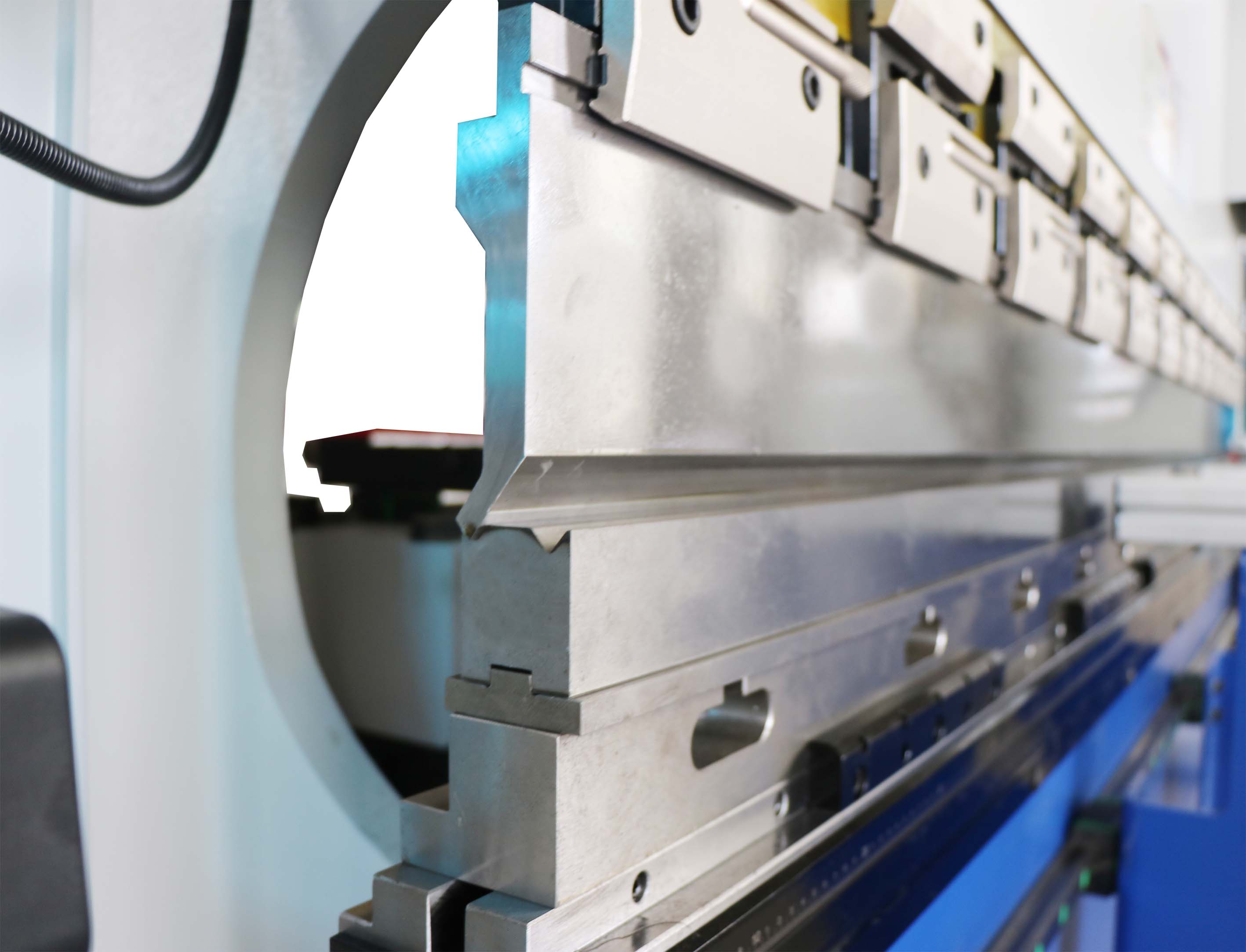

--Punch & multi-V die

--GIVI lineal scale

-- Laser protecting device (Optional)
