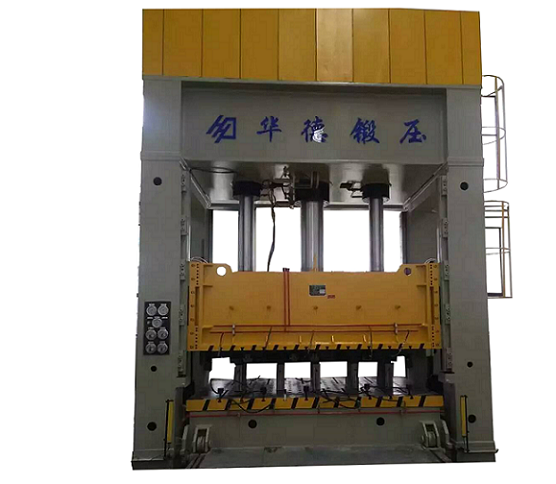

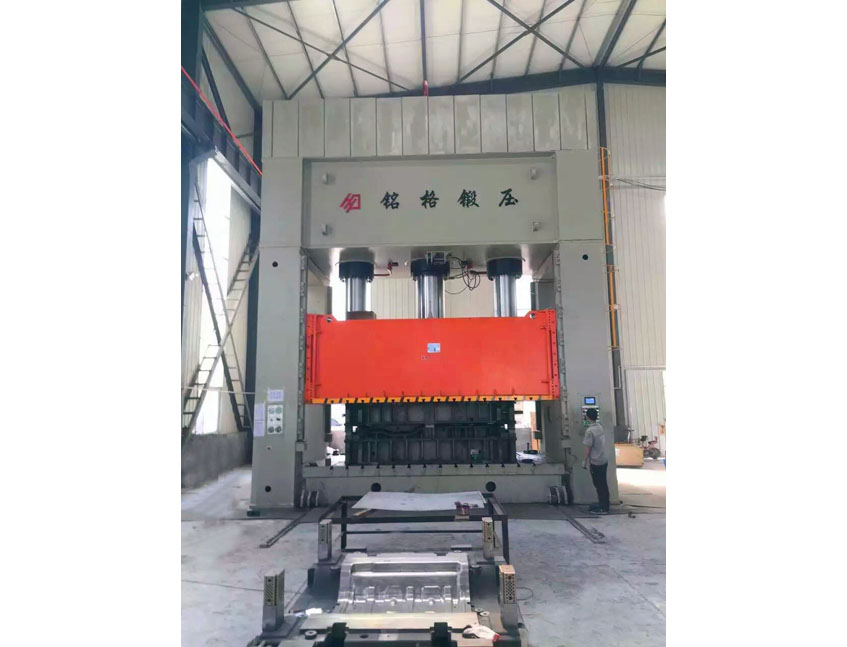

YMG71 Composite Forming Hydraulic Press

hot press machine

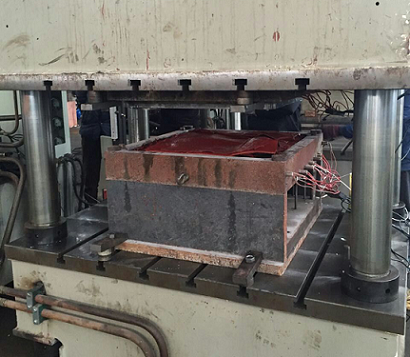

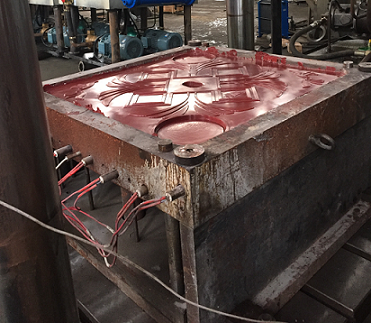

The YMG71 series composite press machines are mainly used to make the hot pressing product, such as organic materials, fiber boards, glass-fiber-reinforced plastic and smetict-tanker,etc



Main features:

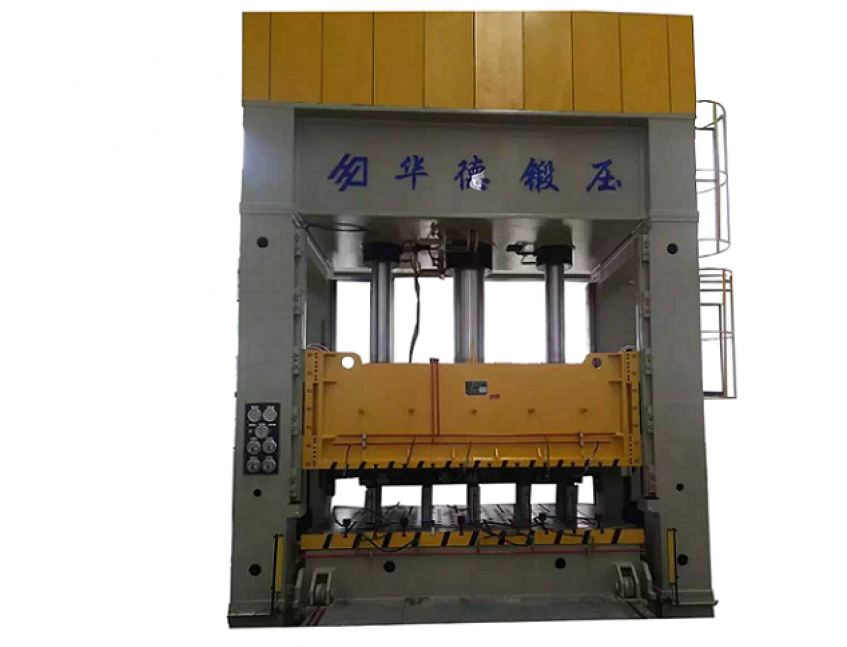

--Three-beam four-column structure or straight-side frame

--Fully digital-control of parameters with closed-loop control of pressure

--Pressure holding and energy efficiency

-- Multiple pre-pressing and exhaust functions

--Multiple pressing and exhaust automatic control

--No-pressure mould alignment, convenient for aligning mould

--Mould recipe storage and fault diagnosis functions

--The full arrange of safety devices and safety control system

--High efficiency of cooling device, suitable for continuous production

--Heating plates can be heated by means of electricity, conduction oil or steam

Specification

Items unit Model
YMG71-500 YMG71-630 YMG71-800 YMG71-1000 YMG71-1600 YMG71-2000
Nominal force KN 5000 6300 8000 10000 16000 20000
Max.pressure Mpa 25 25 25 25 25 25
Slider stroke mm 800 900 900 1000 1100 1100
Daylight mm 1300 1400 1400 1500 1600 1600
proload KN 2000 2500 2500 3150 5000 6300
Mold opening force KN 1000 1000 1600 2000 3150 4000
Slider speed idle mm/s 150 250 250 250 250 250
pressing mm/s 6-12 8-15 6-12 7-14 6-12 8-16
mold opening mm/s 2-8 2-8 2-8 2-8 2-8 2-8
return mm/s 100-150 100-150 100-150 100-150 100-200 100-200
Table size mm*mm 2000*1600 2000*1600 2000*1600 2000*1600 2600*1800 2600*1800
2600*1800 2600*1800 2600*1800 2600*1800 3200*2200 3200*2200
3200*2200 3200*2200 3200*2200 3200*2200 3500*2500 3500*2500
Motor power KW 30 45 45 67 90 135

Options

--Parallelism control system

--Heating by means of steam, electric or oil

--Rolling bolster for QDC

--Various auxiliary device including ejection, coring coating and vacuum zing

--Other client oriented function and details

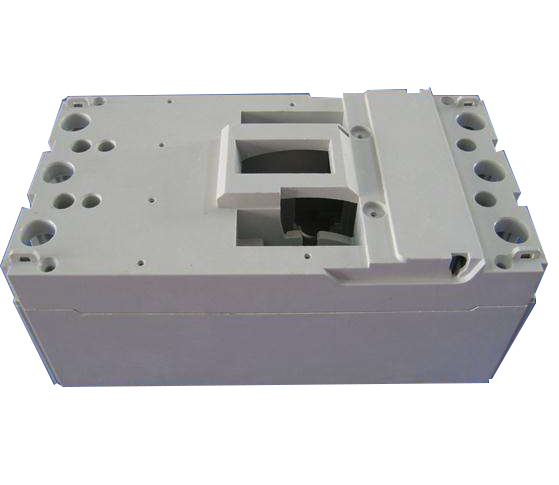

Applications

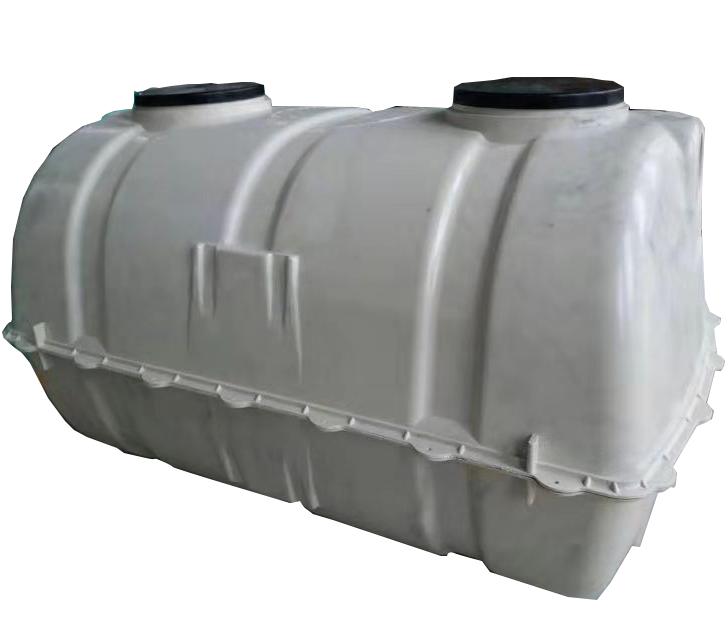

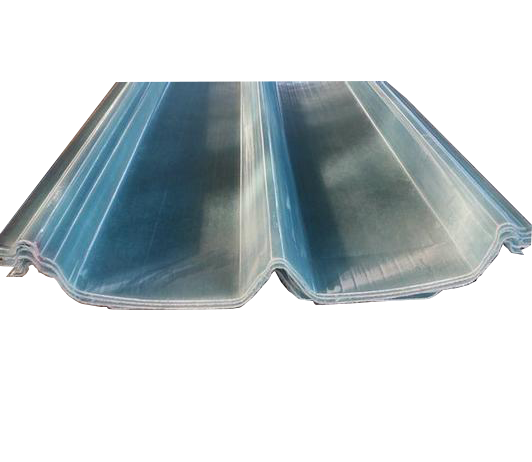

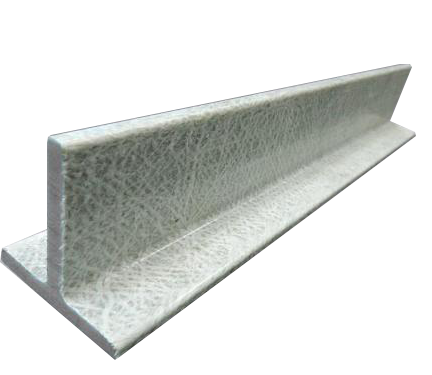

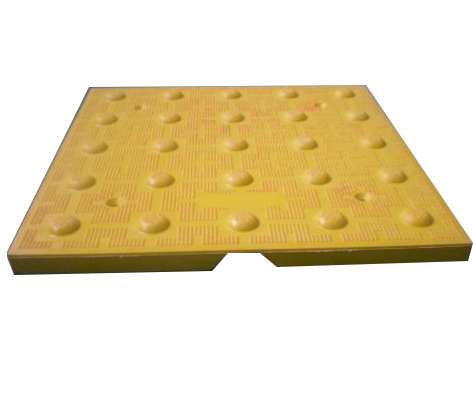

Hot-pressing of organic materials, fiber boards, glass-fiber-reinforced plastic

 smetict-tanker
