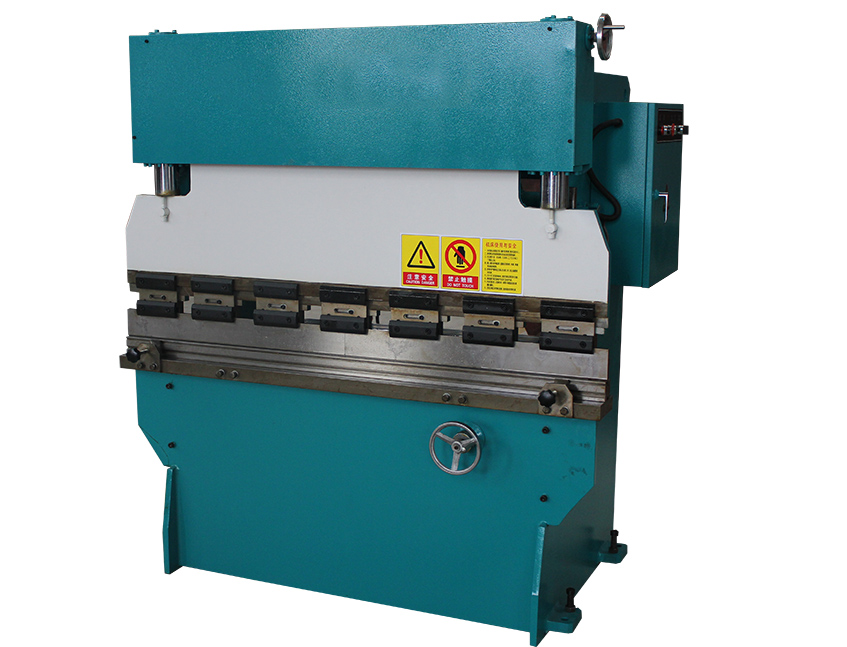

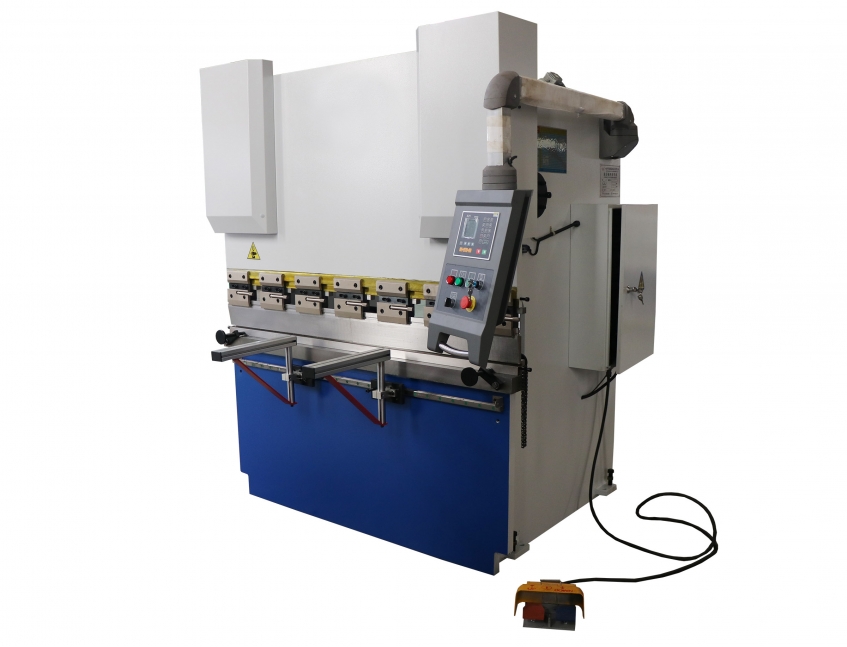

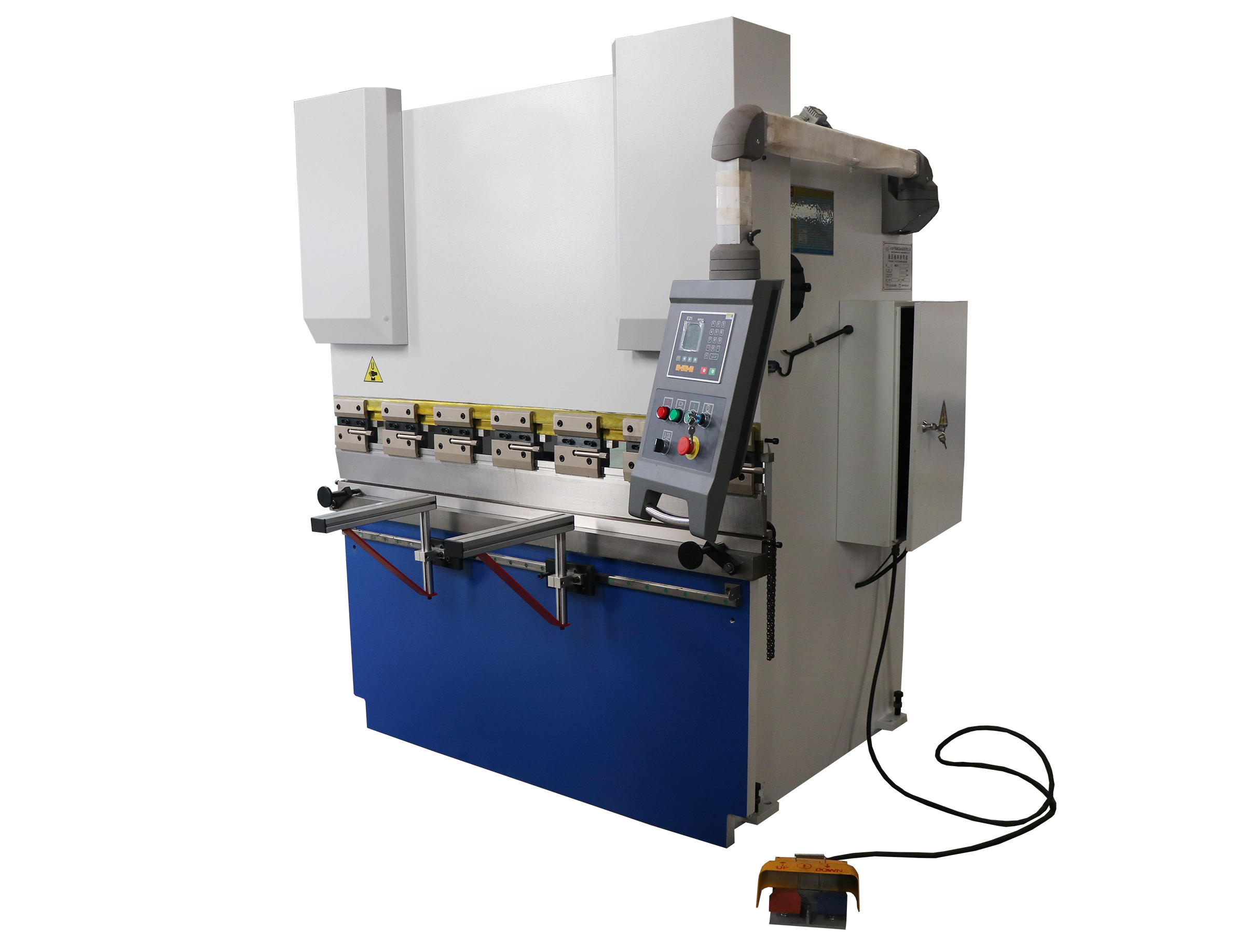

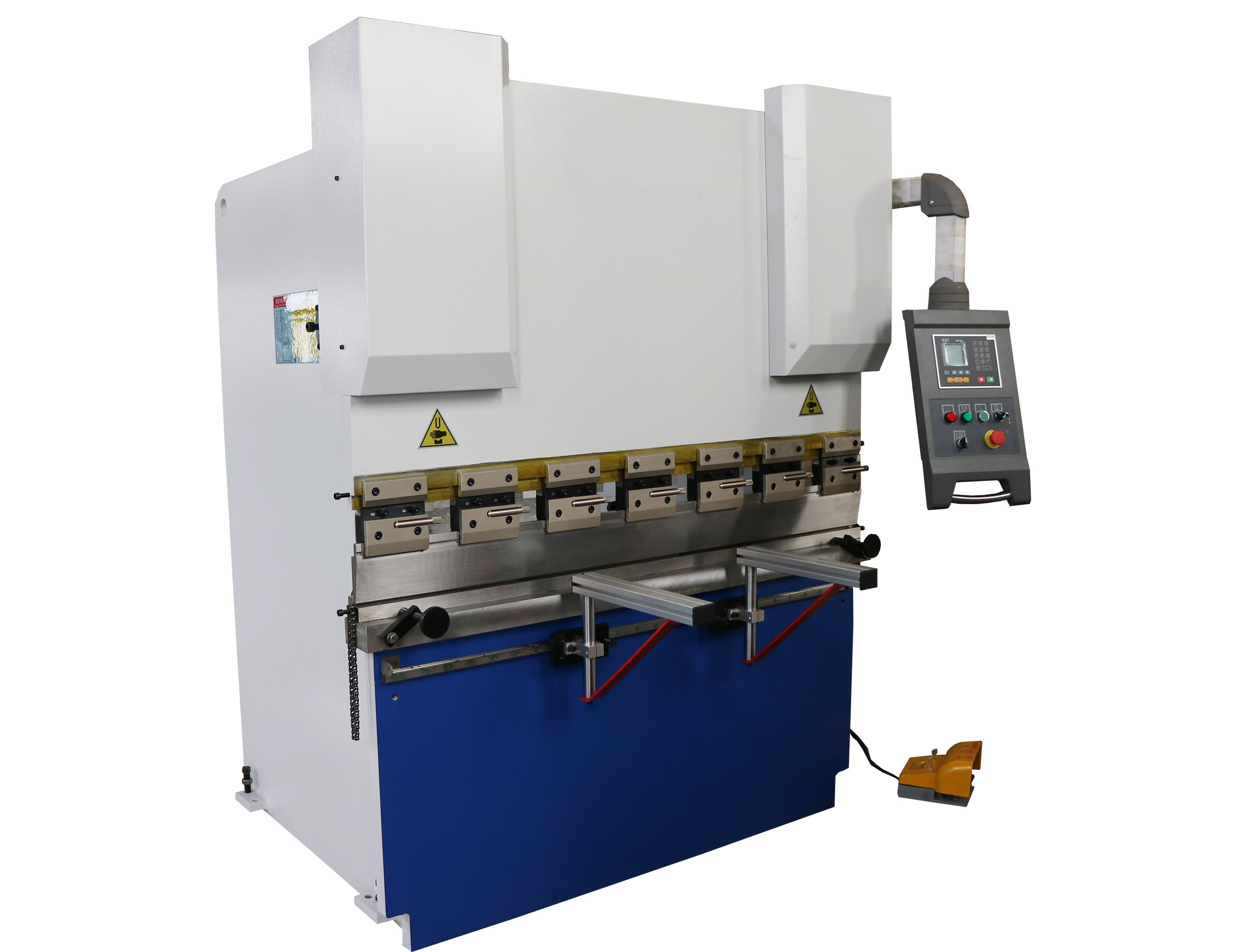

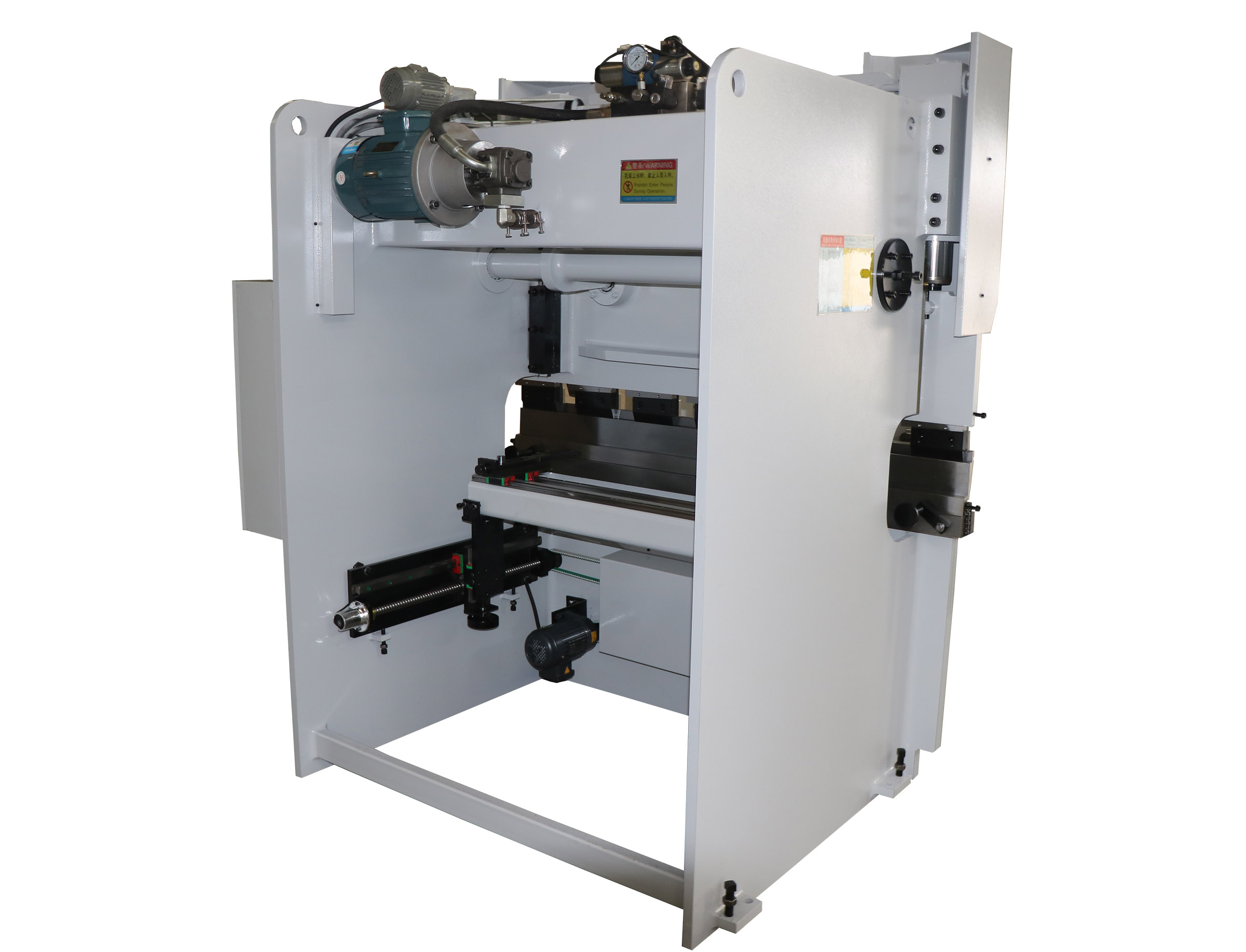

WC67Y-40/1600 Hydraulic Press Brake

WC67Y-40/1600 Hydraulic Press Brakes is specially designed for bend the short length work piece. They are accurate, and economical. Through advanced design and construction,


-- Special designed for bend thin plate at short length, most economic and lower consumption.

--Fast approach & fast return speeds to save cycle time

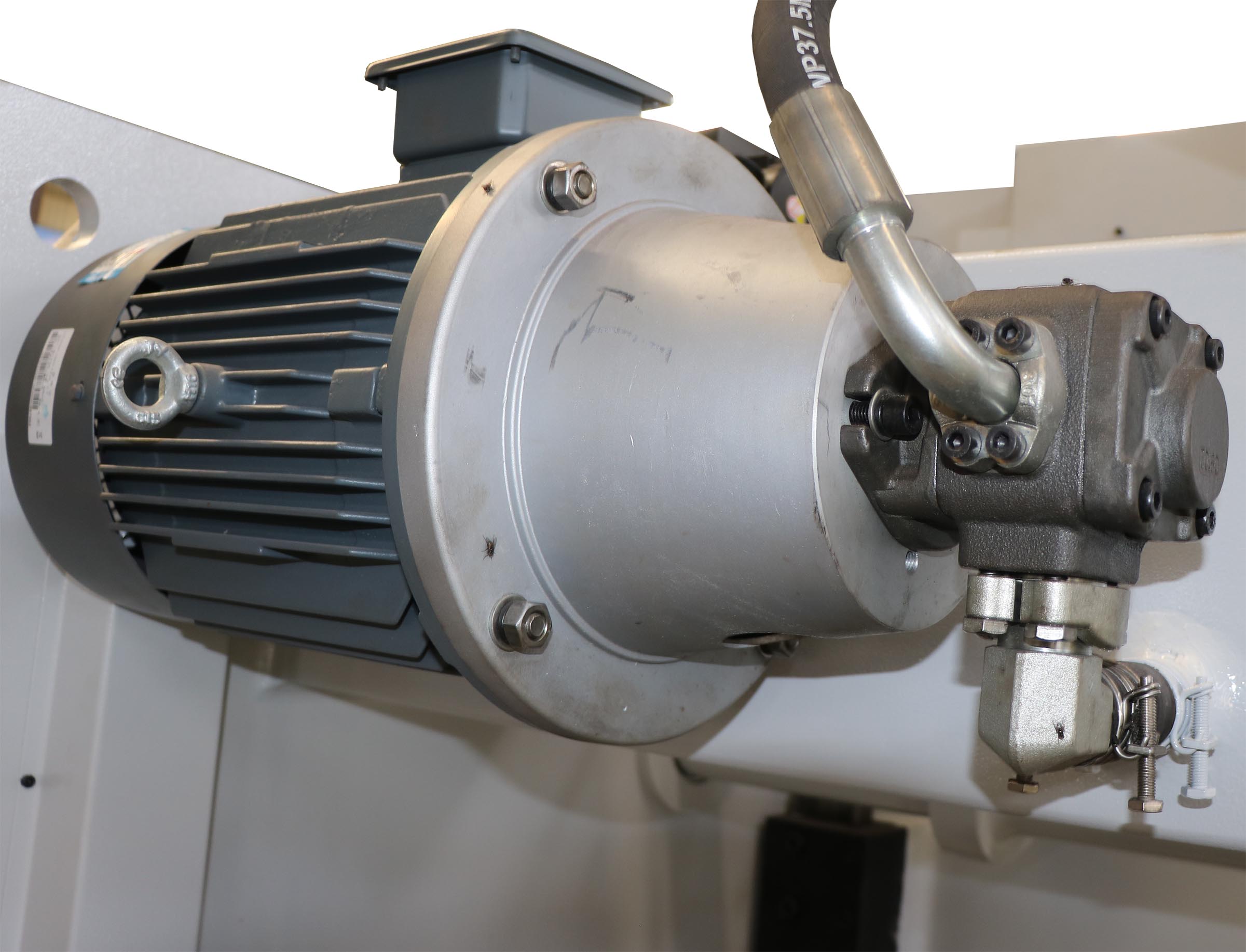

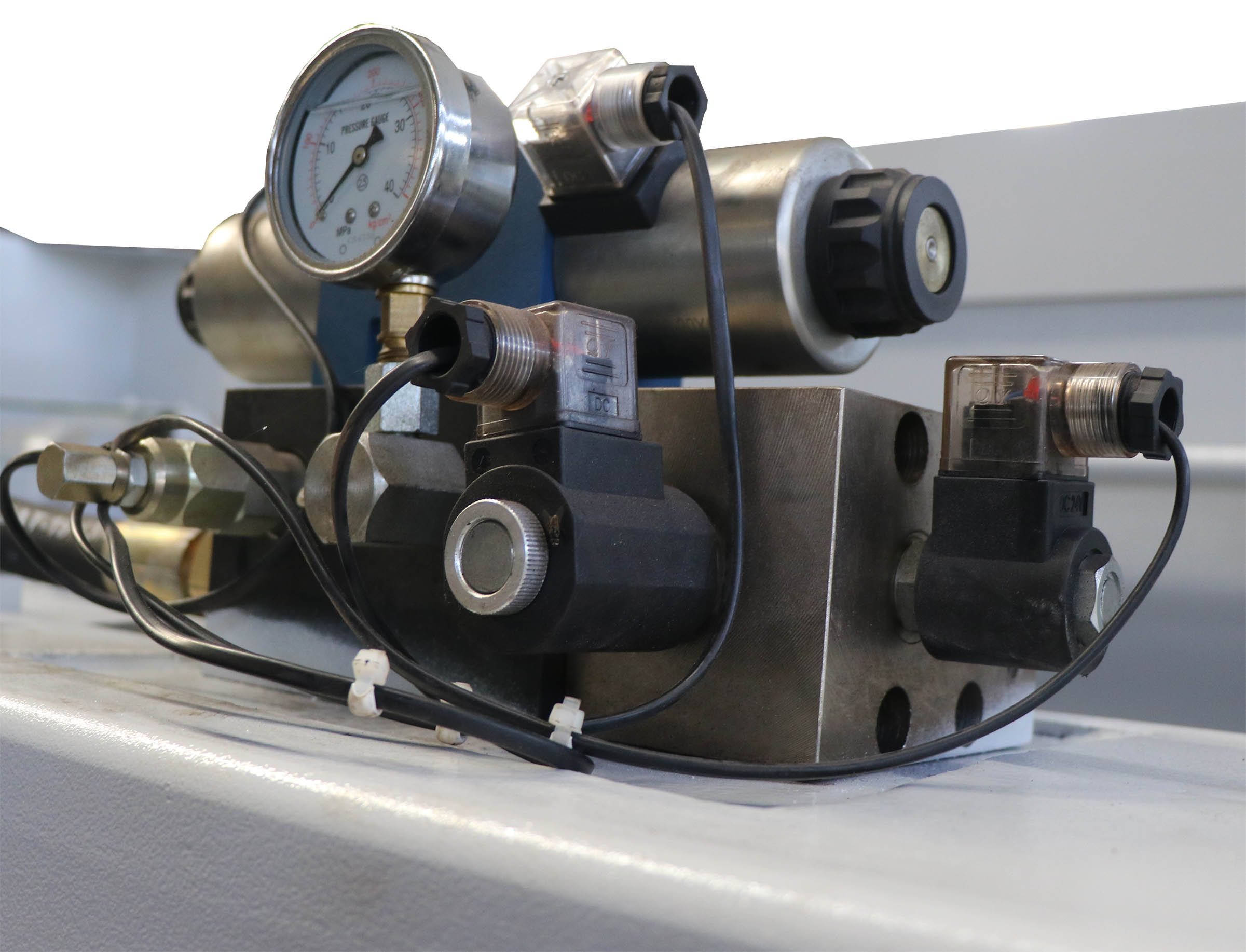

--International quality hydraulics components.

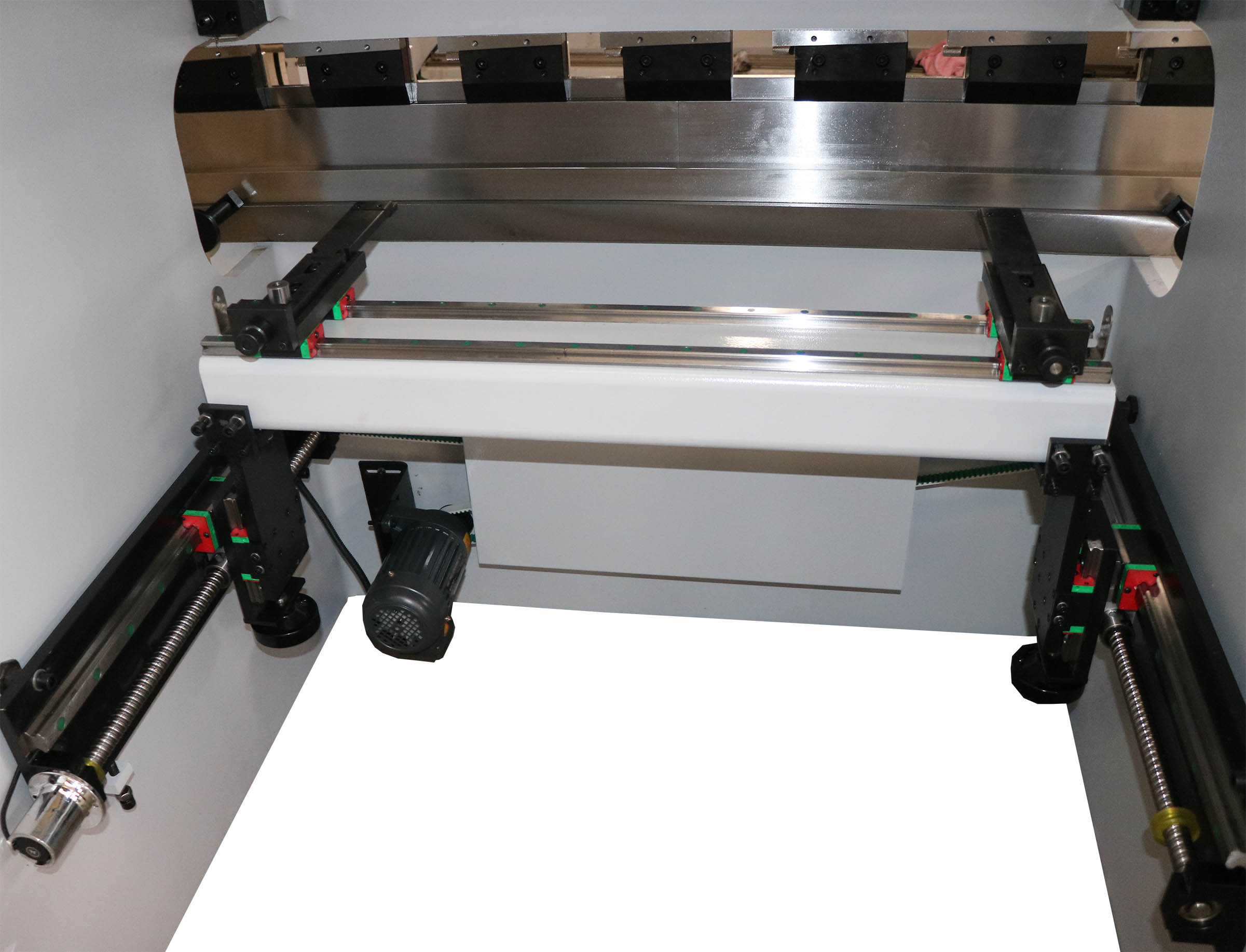

--Front operated manual back gauge with micro-adjustment.

--Accurate & fine beam position control by micro limit switch.

--Hydraulic cylinder with twin type sealing low & high pressure and hard chrome.

--Moving control panel with on/off controls,

--emergency push button

--selector for inching, single stroke & continuous stroke mode for easy operation & safety.


Rated force (KN) 400
Max. bendig length (mm) 1600
Distance between uprights (mm) 1250
Throat depth (mm) 200
Beam stroke length (mm) 120
Max. daylight (mm) 310
Main motor power (mm) 4

Structures in detal

--E21 controller

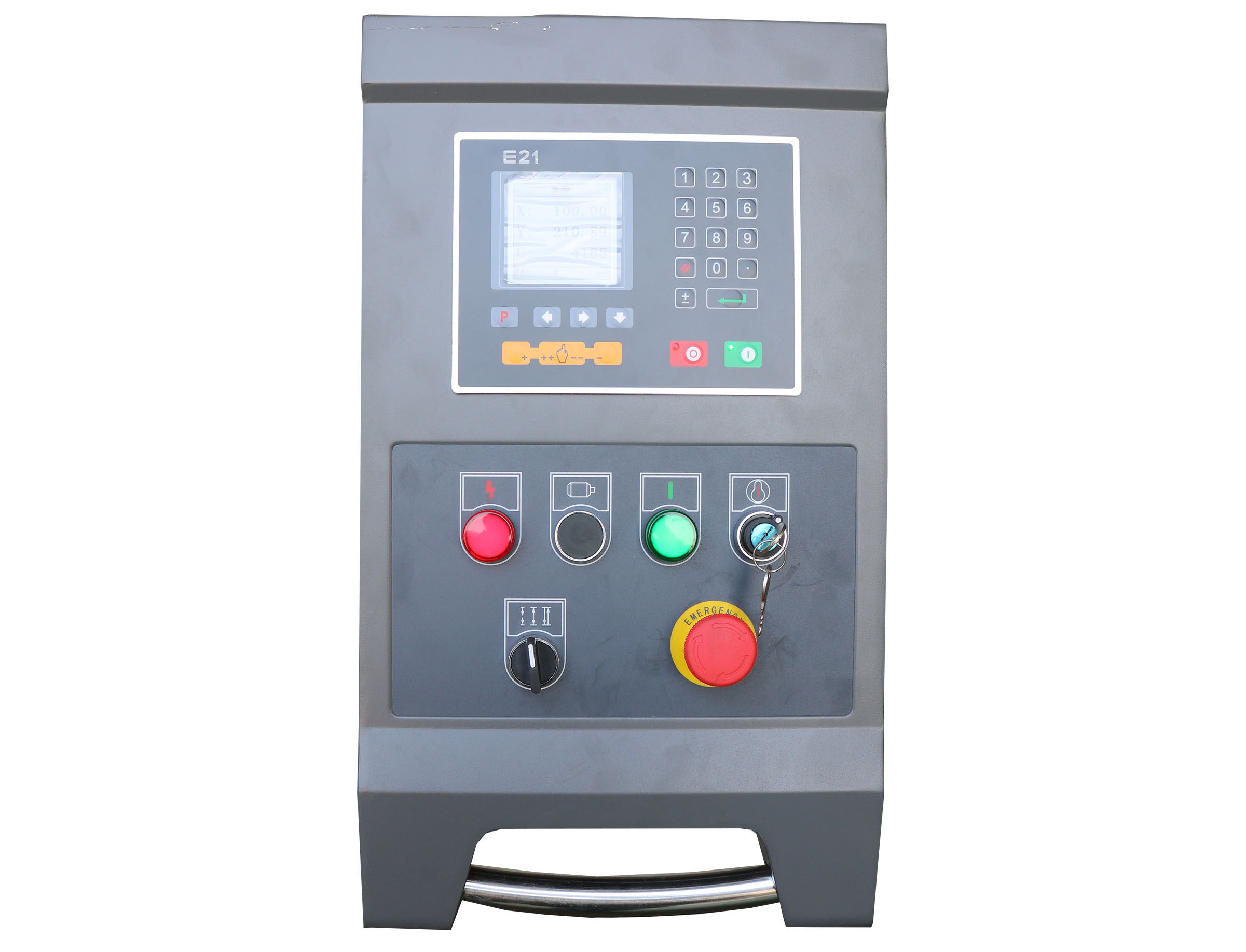

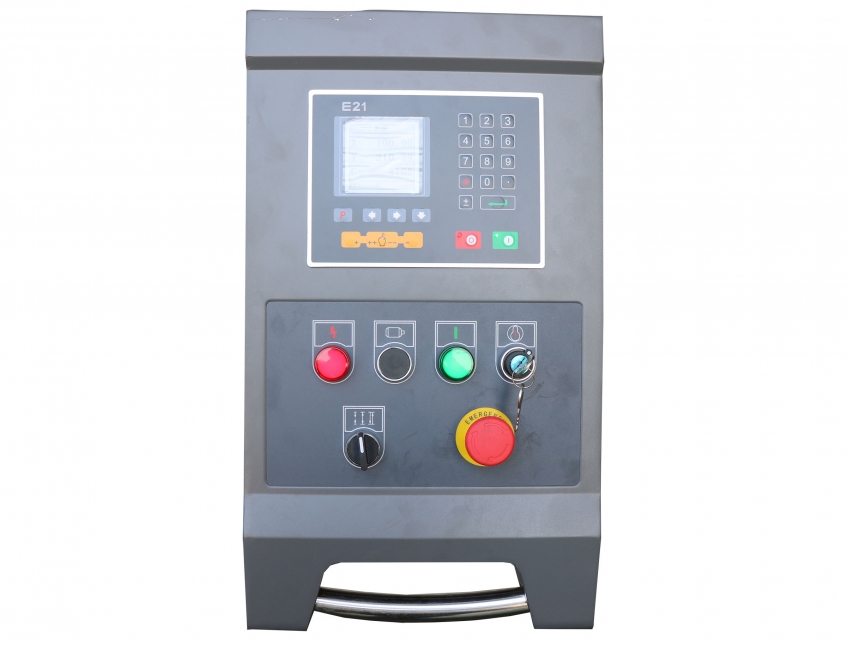

E21 NC controller

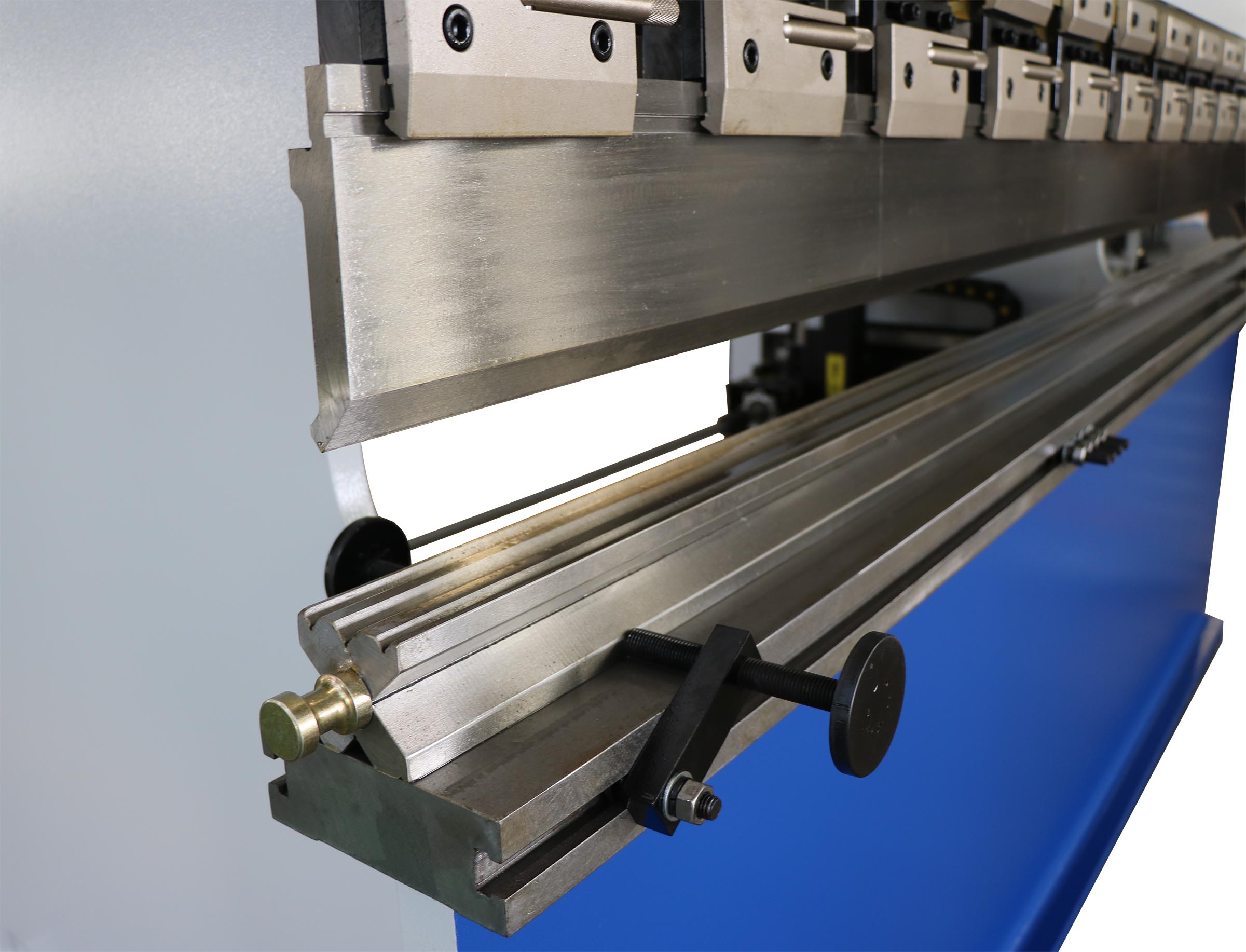

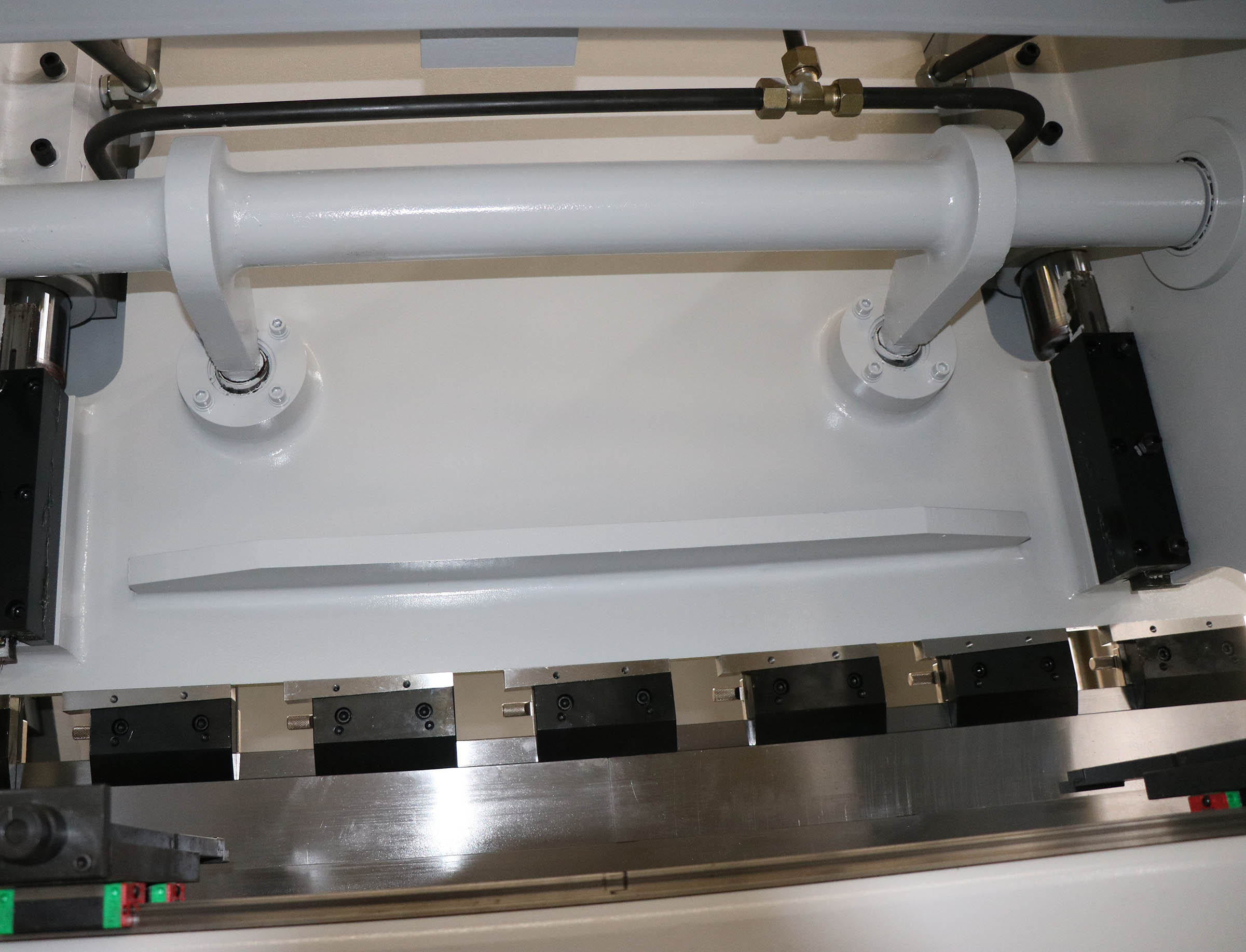

--Punch & die



--Optional Choice

--S10 NC controller

S10 NCc ontroller

--pucn & die
